Ridetech 21120101 Air Suspension Kit
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description

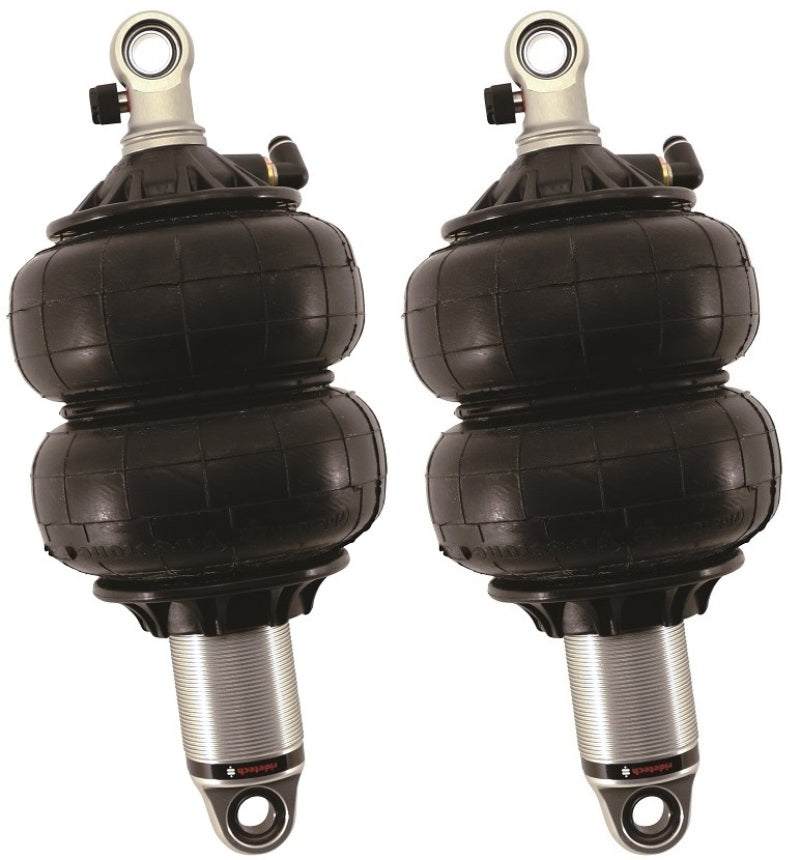

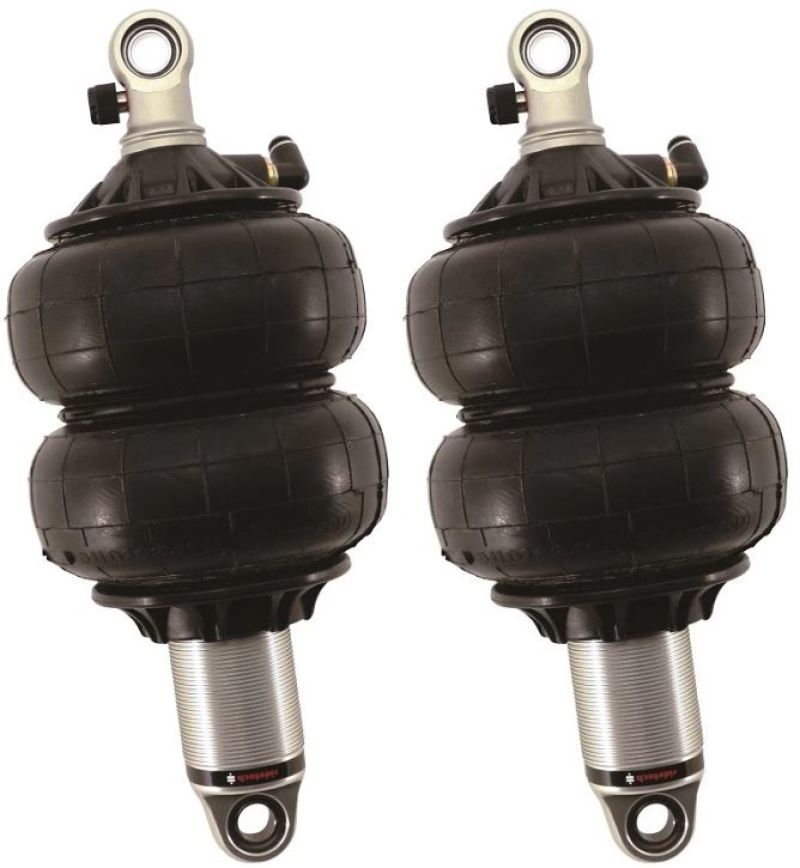

Ridetech 21120101 Air Suspension Kit
The ShockWave is very similar to a CoilOver spring/shock assembly. Our CoilOvers and ShockWaves both use the same great monotube shock cartridge and offer damping adjustment. Both offer ride height adjustments. In many cases, RideTech CoilOvers are interchangeable W/ RideTech ShockWaves.
The main distinction between CoilOvers and ShockWaves is that the metal coilspring is replaced W/ a pressure adjustable air spring. ShockWaves allow for electronic ride height adjustments at the push of a button.

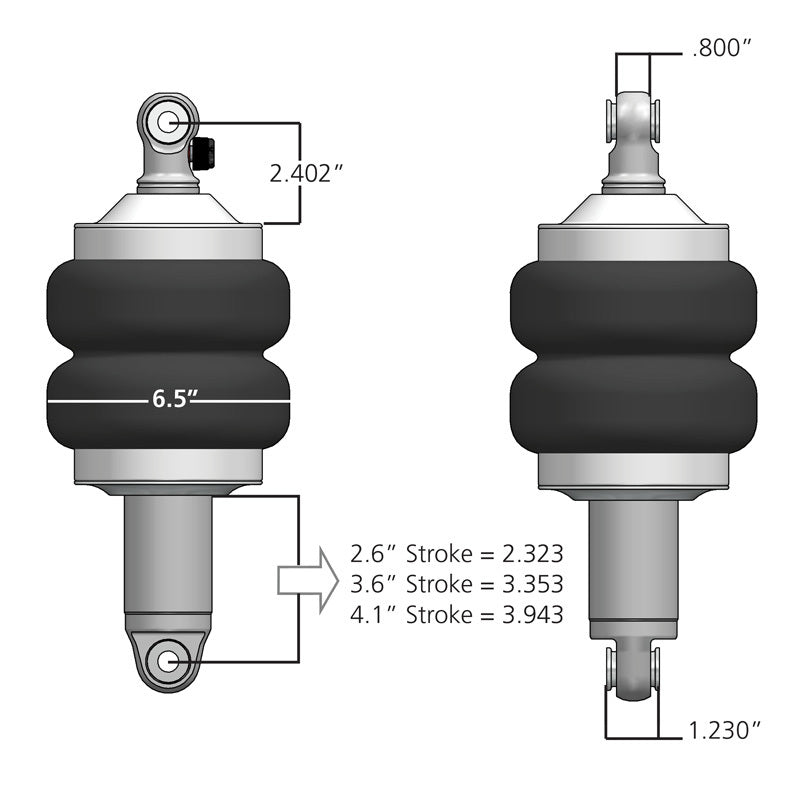

Front HQ Shockwaves 1000 Series W/ 2.9 Inch Stroke And 1.7 Inch Eye A Pair Of Rebound Adjustable Shockwaves 6.5 Inch Double Convoluted W/ 1/4 Inch Fittings And Bearing Spacers 1/2 Inch And 5/8 Inch. 9.3 Inch X 11.6 Inch W/ A 10.5 Inch-10.75 Inch Ride Height.
Recommended Applications:
Independent front and / or Independent rear installations on vehicles weighing 1,500-2,500 lbs. per axle.
Not recommended for solid axle rear applications … not enough travel, too much load capacity.
Load capacity: 2,140 lbs. at 100 psi
The Handling Quality (HQ) Series features single adjustable shock valving. It is housed in a impact forged aluminum construction. The HQ series is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.
Features:
- Completely redesigned internal design
- Aluminum construction
- Single adjustable shock valving
- Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
- Impact forged body / mono-tube design for superior ride quality and durability
- Easy andamp; precise valve adjustment W/ 24 rebound clicks
