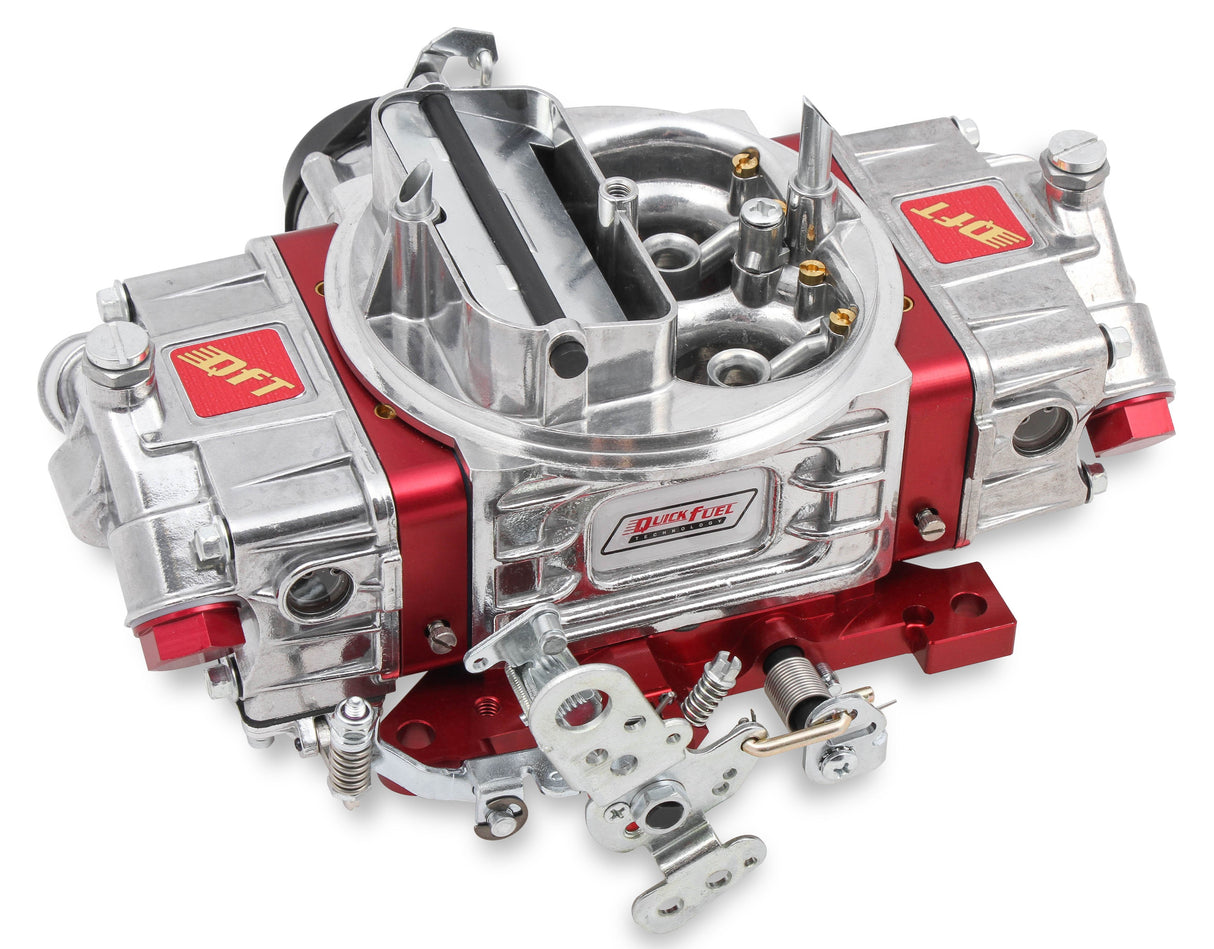

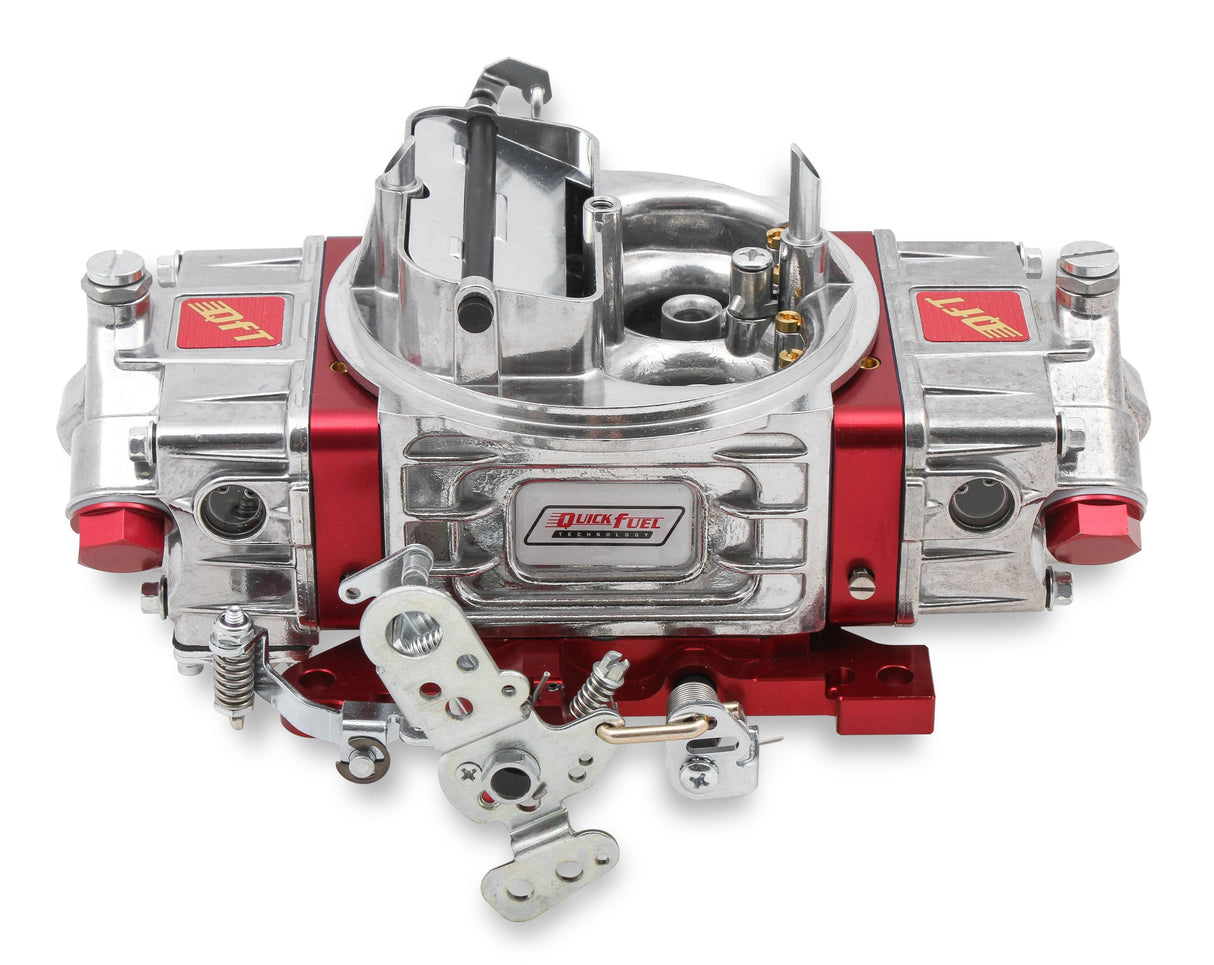

Quick Fuel Technology SS-850 - SS Series Carburetor

Quick Fuel Technology SS-850 - SS Series Carburetor

Carburetor - SS-Series - 4-Barrel - 850 CFM - Square Bore - Electric Choke - Mechanical Secondary - Dual Inlet - Aluminum - Red Anodized / Tumble Polished - Each

SS Series Carburetor; 850 cfm.; Mechanical Secondary; Polished Finish; Electric Choke;

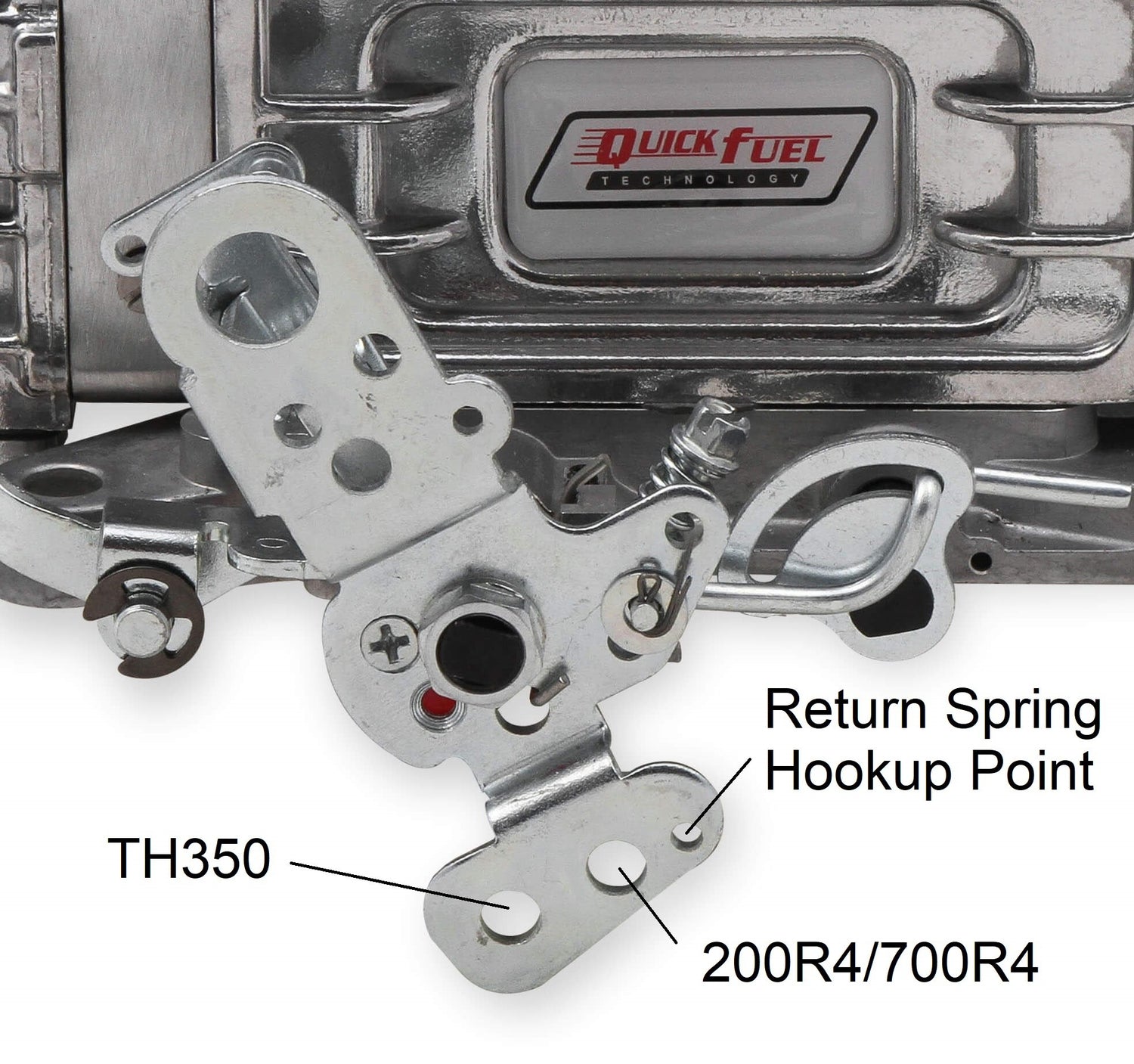

Super Street Series carburetors combine street-friendly drivability and track-capable performance in a single value-oriented package. Setting them apart from ordinary street carbs, they feature billet dual metering blocks and throttle-bodies that offer tighter tolerances and eliminate porosity. Not only are Super Street Series carbs available with both vacuum or mechanical secondaries, QFT also offers models designed and calibrated specifically for E85 fuel and blow-through forced induction applications. Running alternative fuel or boost no longer requires an expensive custom carburetor. All SS-Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Available in 8 different sizes, bolting on the ultimate street/strip carburetor has never been easier. Billet dual metering blocks & throttle bodies for improved durability Changeable idle, high-speed air bleeds & power valve restrictions Dual inlet fuel bowls with dual sight glass windows for easy float adjustment4-Corner idle for precise idle and smooth transition Fully-adjustable electric choke with easy one wire hookup Race-ready with notched secondary floats and jet extensions Polished or Black Diamond finish available (some models)

• 1 3/4 in. Throttle Bore Size
• 22-80 Primary Jet
• 22-86 Secondary Jet
• 26-70 Idle Bleed
• 26-28 Hi Speed Bleed
• 21-35 Pump Nozzle
• 25-65 Power Valve
• 18-3 Needle And Seat
• Gas Fuel
