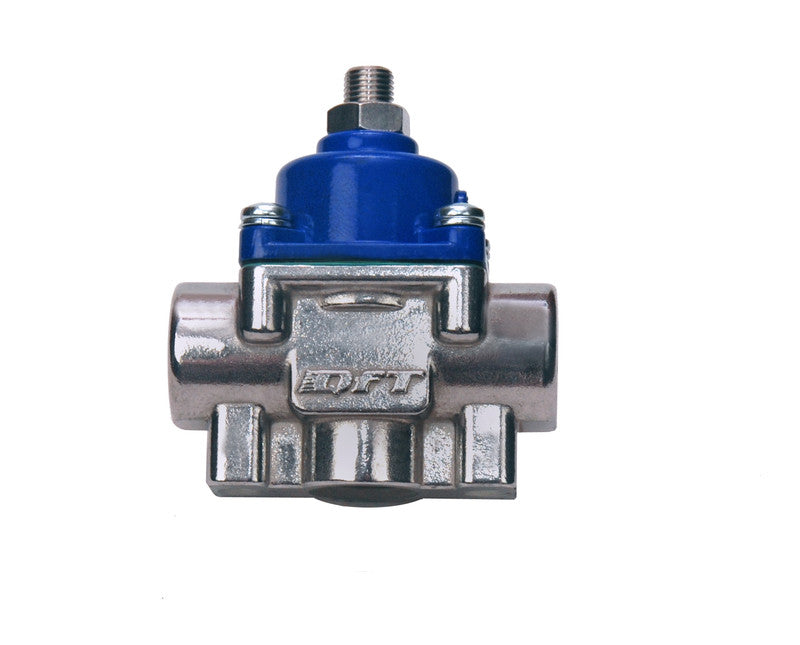

Quick Fuel Technology 30-899QFT - Fuel Pressure Regulator

Quick Fuel Technology 30-899QFT - Fuel Pressure Regulator

Fuel Pressure Regulator - 4-1/2 to 9 psi - In-Line - 3/8 in NPT Female Inlet - 3/8 in NPT Female Outlet - 3/8 in NPT Female Return - Bypass - Aluminum - Blue / Natural - E85 / Gas / Methanol - Each

Fuel Pressure Regulator; Bypass Regulator w/Jet; 4.5-9 psi. 3/8 NPT Ports; Cast Body w/Blue Top;

Cast Bypass Regulator W/JET - Features blue powder-coated top and is designed for use with a belt driven or mechanical fuel pump. Adjustable jet provides tuning of low RPM fuel pressure. Comes with stainless mounting bracket. All threads are NPT. Adjustable from 4.5 - 9 PSI; Preset to 6.5 PSI3/8 in. NPT ports.375 in. (3/8 in.) restriction Recommended for use with alcohol fuels Includes an 1/8 in. NPT port for manifold reference Boost Reference 1-1

• •Adjustable from 4.5 - 9 PSI; Preset to 6.5 PSI
• •3/8" NPT ports
• •.375" (3/8") restriction
• •Recommended for use with alcohol fuels
• •Includes an 1/8" NPT port for manifold reference
• Boost Reference 1-1
