MSD 8956 - RPM Activated Switches

MSD 8956 - RPM Activated Switches

RPM Activated Switch - Chip Adjustable - Single Circuit - Each

These RPM-Activated Switches will perform a variety of different functions from turning on a bulb or solenoid to activating an MSD Timing Control at a desired rpm.

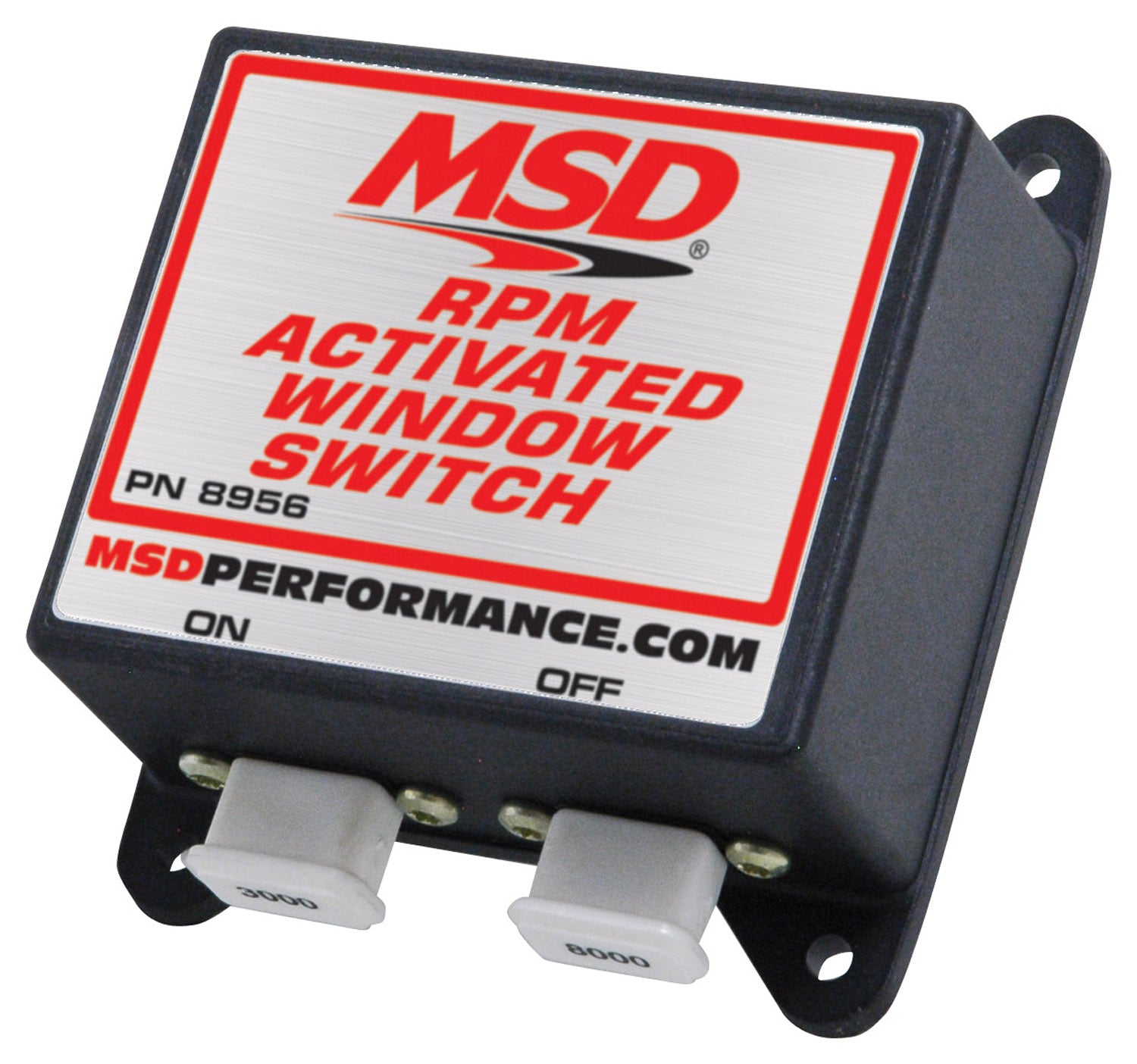

These RPM-activated switches will perform a variety of different functions from turning on a bulb or solenoid to activating an MSD timing control at a desired rpm. The RPM-activated switch, PN 8950, has two activation wires; one to ground a circuit and the other to open a circuit. Simply plug in an rpm module and wire the switch to the circuit you want to activate. When the engine rpm reaches that amount, the circuit is activated and will remain on until the rpm falls below that amount. The RPM window switch, PN 8956, has two rpm adjustments; one to activate a circuit, while the other deactivates the same circuit. This switch will supply then remove ground to a circuit. This is a great feature to deactivate nitrous before the engine's rev limit is reached. Both switches can be used with stock inductive ignitions or an MSD ignition and can handle up to 1.5 amps. For use on 4, 6, or 8-cylinder engines.

• 2 RPM Adjustments
• Activate a circuit
• Deactivate a circuit
