MSD 8534 - Billet Chrysler Small Block Distributor

MSD 8534 - Billet Chrysler Small Block Distributor

Distributor - Pro-Billet - Magnetic Pickup - Mechanical Advance - HEI Style Terminal - Red - Small Block Mopar - Each

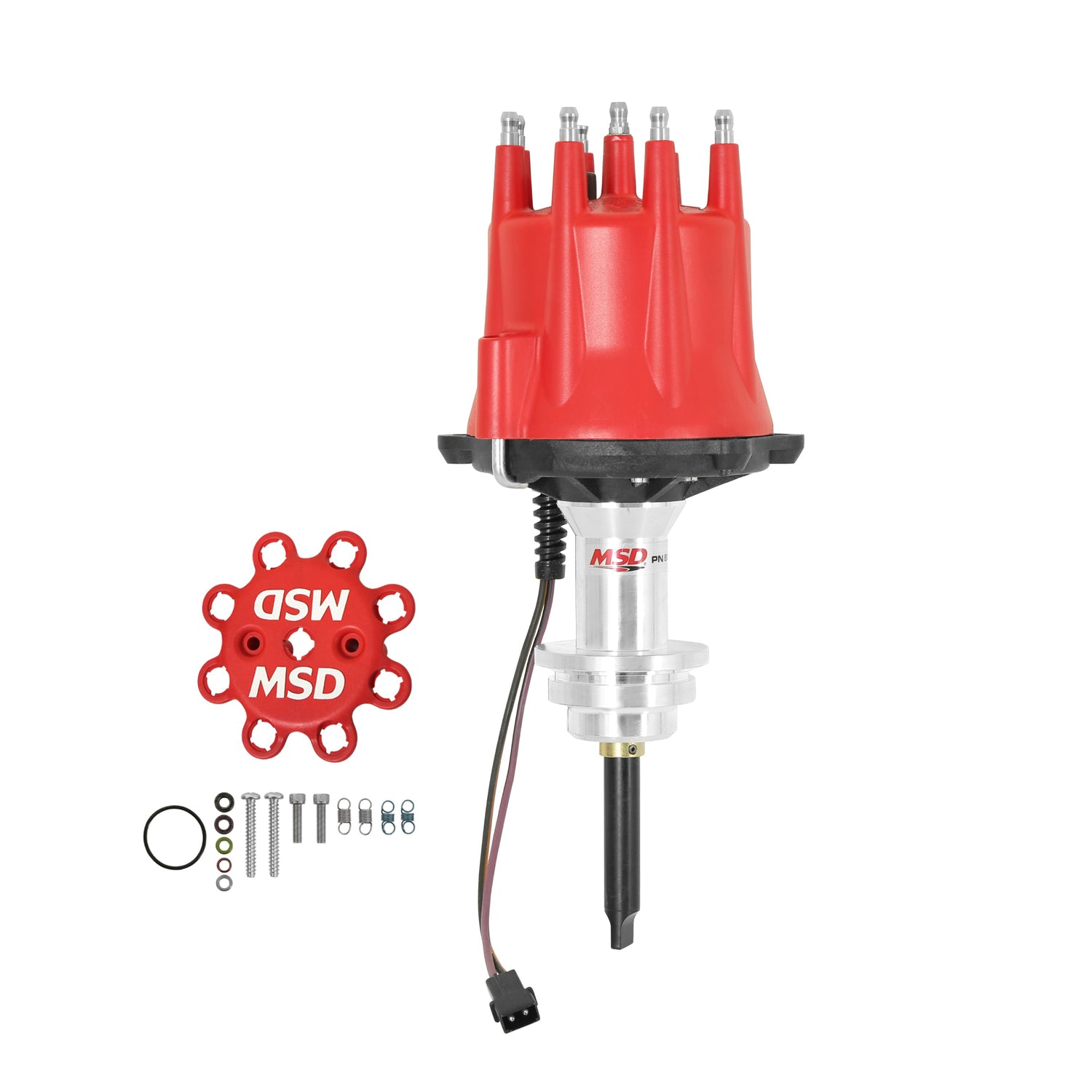

Billet Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; w/o Vacuum Advance; Mopar 273/318/340/360 cid;

Get your Mopar fired up with billet accuracy and performance. Remove the MSD cap and Race Rotor and youll find easy access to the adjustable mechanical advance assembly for easy adjustments. This advance is designed for accuracy and strength with TIG-welded weight pins, nylon pads for smooth movement of the weights and a QPQ coating for friction reduction. Different advance springs and stop bushings are supplied so you can custom tailor a timing curve to fit your Chryslers needs. Supporting the advance assembly is a hardened, polished steel shaft. Two ballbearing guides are used to support the shaft producing incredible stability. Precision paddles of a zinc-plated reluctor pass a maintenance-free magnetic pickup creating a trigger signal that tells the MSD to fire.

• CNC machined billet aluminum housing and Dupont Rynite base
• Must Be Used w/An MSD Ignition Control
• Mech. advance assem. can be locked out for crank trigger systems
• QPQ coated polished steel shaft; guided by 2 sealed ball bearings
