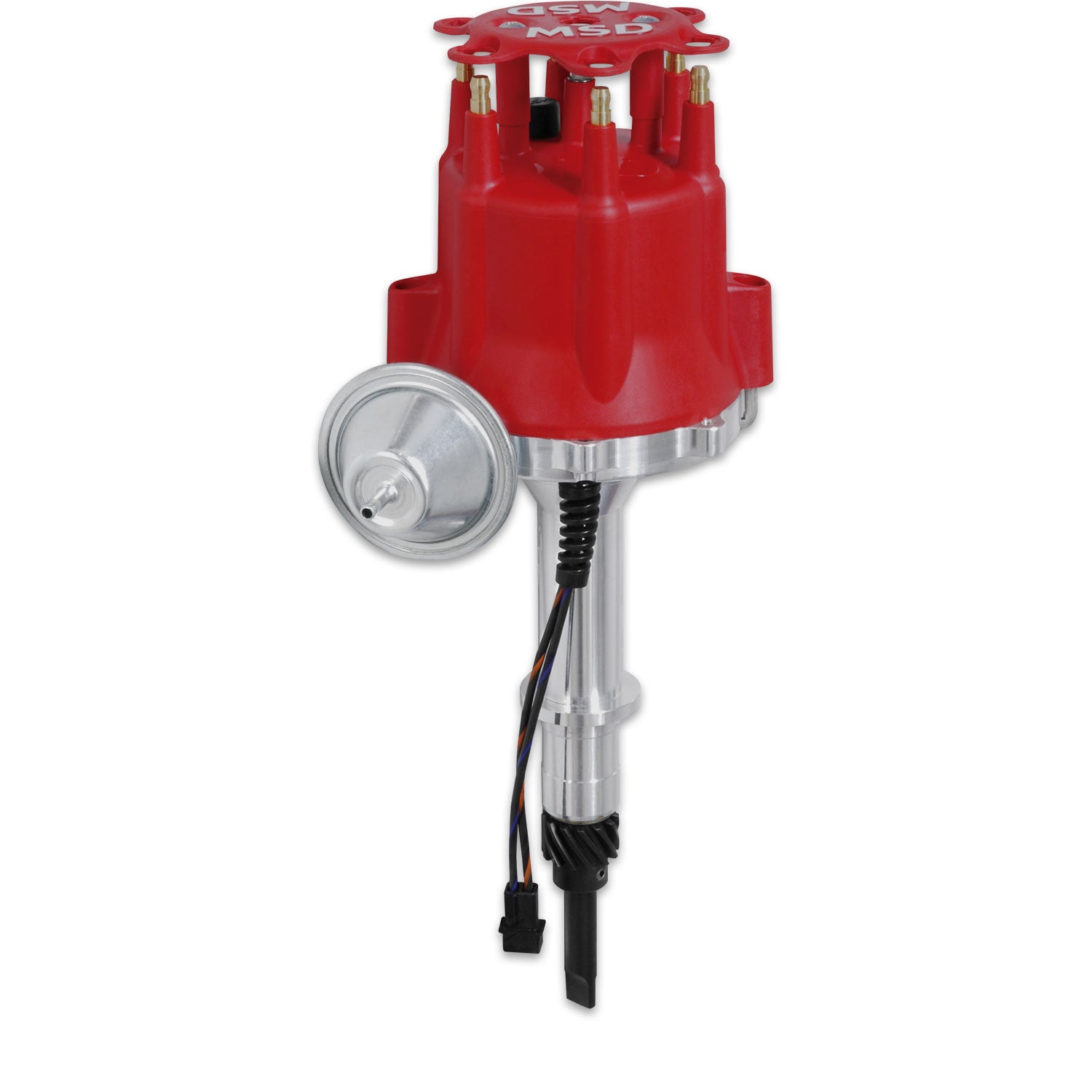

MSD 8515 - Pro-Billet Distributor

MSD 8515 - Pro-Billet Distributor

Distributor - Pro-Billet - Magnetic Pickup - Vacuum Advance - HEI Style Terminal - Red - Chevy Inline-6 - Each

For 194, 230, 250, 292 Inline-6 engines. Must be used with an MSD 6, 7 or 8-series ignition.

Chevy produced a number of inline-6 engines over the years, some dinky powerless wonders and others that can be made to put out some pretty impressive torque and power numbers. For those that dare to be different or want to stick with original power plants, MSD has a distributor for you. While you may not see many 194 Cu. In. engines being built, the 250 and 292 are showing up more and more. This distributor fits them all, including the 230. Like all MSD Pro-Billet distributor, this housing is crafted from billet aluminum and MSD bolts in a non-magnetic pickup to fire the mandatory ignition control. There's a vacuum advance to assist with economy and the adjustable mechanical advance makes it easy to tune in a specific curve. Pro-Billet inline-6, 194, 230, 250, 292 - PN 8515 note: must be used with an MSD 6, 7 or 8-series ignition.

• Designed for street/performance use with a mechanical and vacuum advance
• Must be used with an MSD Ignition Control
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Advance weight pins are staked and tig welded to the plate
• O-ring seals can be added to modified blocks to improve oil pressure control
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Will not fit 235 and 261 engines
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Vacuum advance canister for improved economy (can be locked out)
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Special oil tract improves lubrication to the distributor and cam gear
• CARB E.O. Approved
• Nylon pads ensure smooth operation of the advance weights

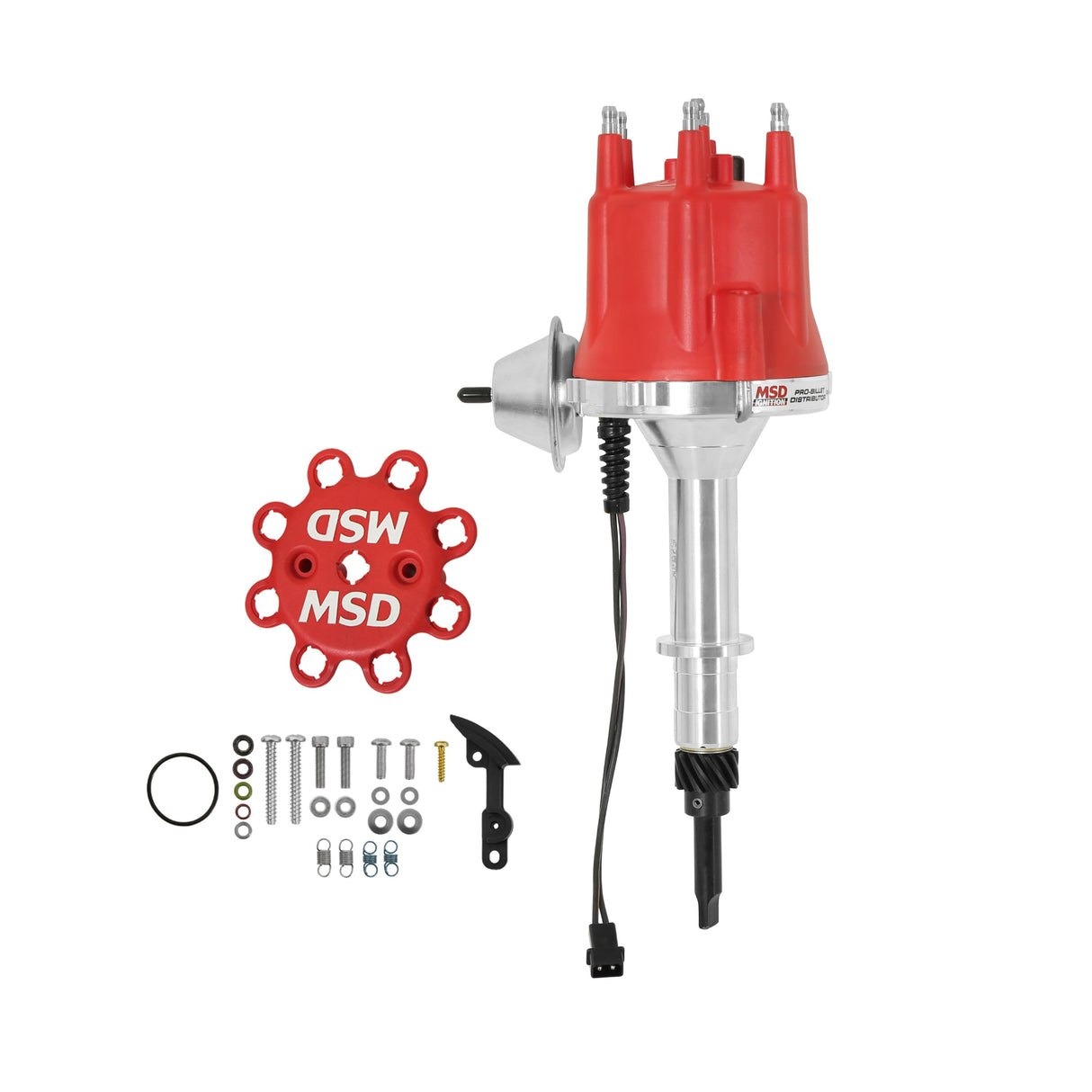

• Supplied with a socket style distributor cap and rotor
• CNC machined billet aluminum housing and billet aluminum base
