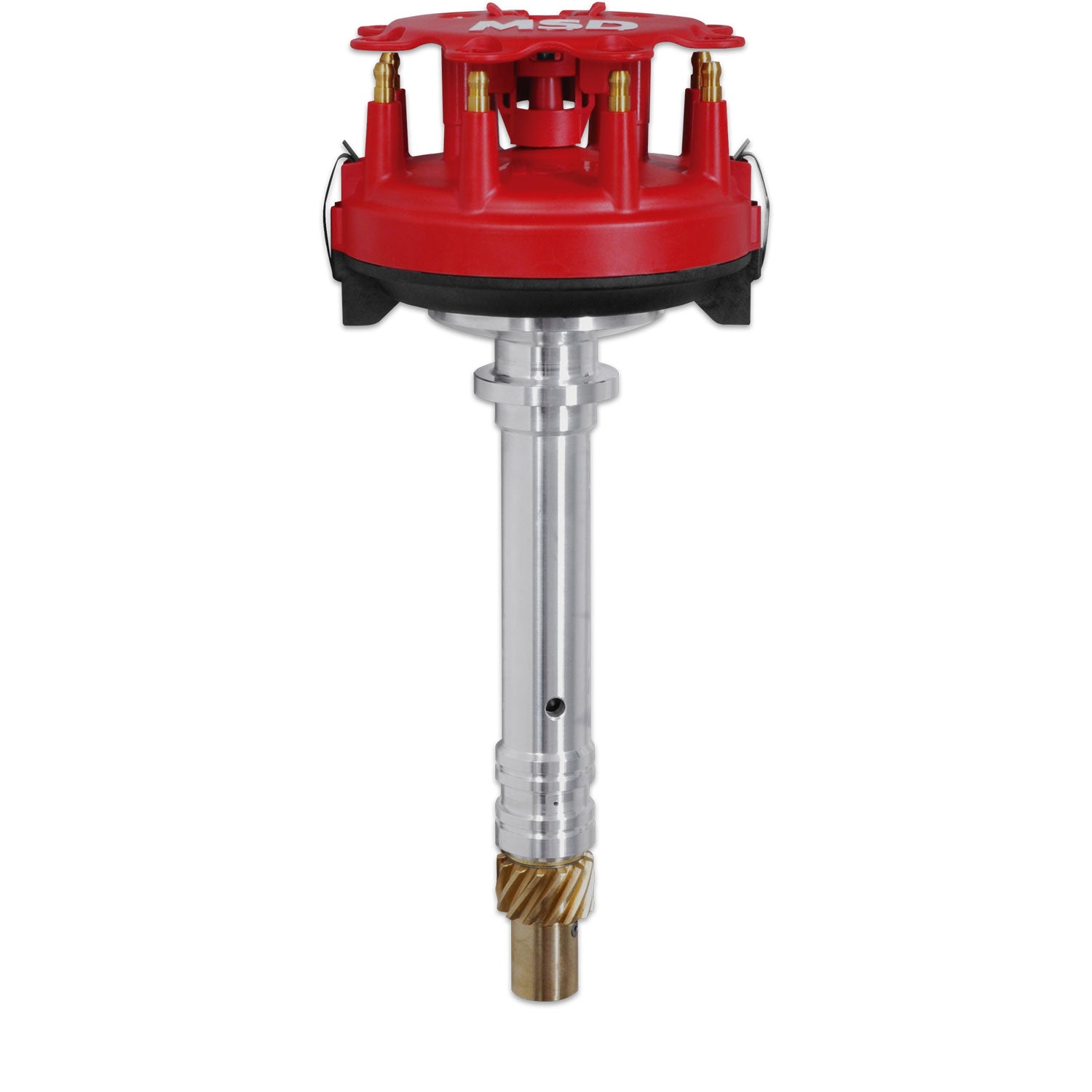

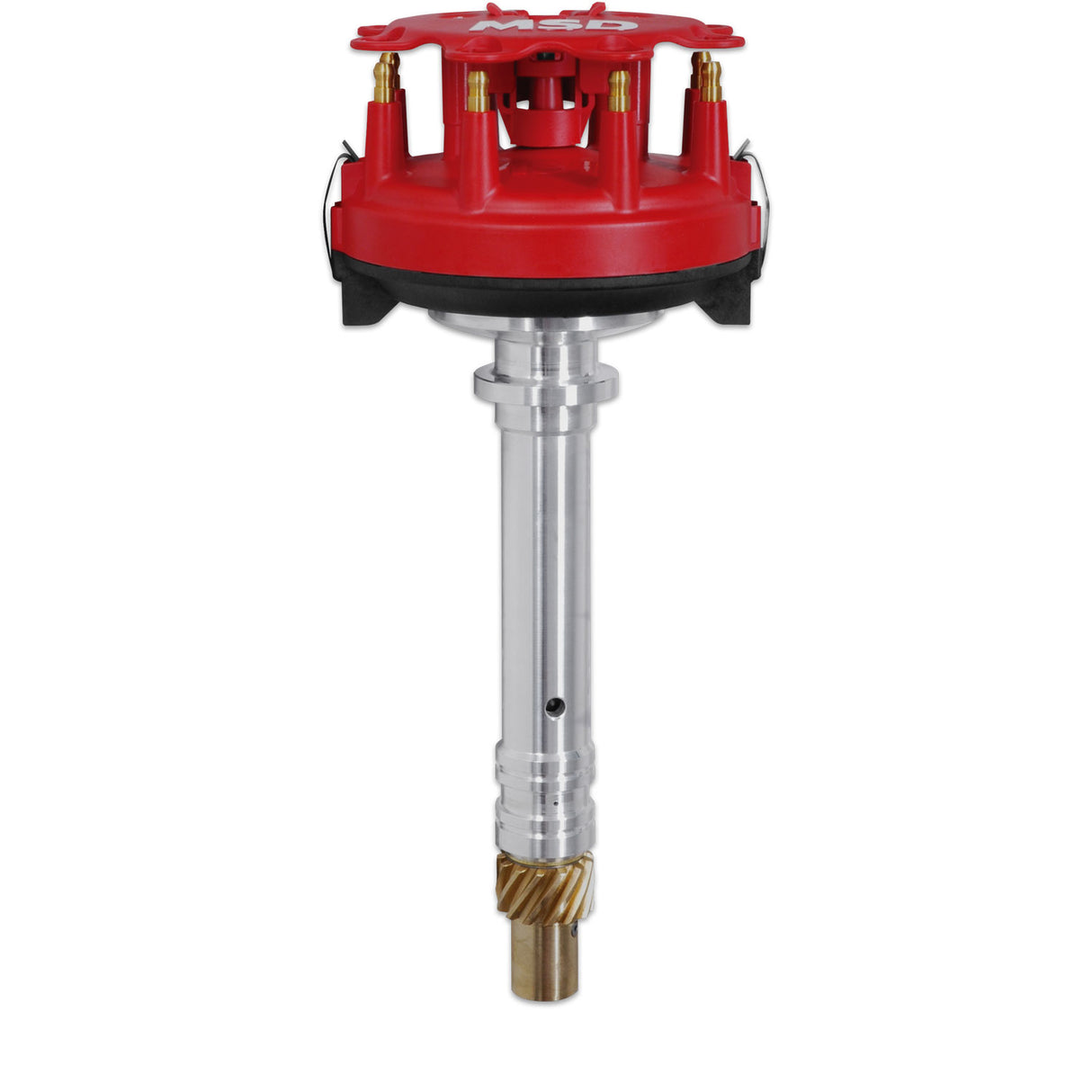

MSD 84697 - Crank Trigger Distributor

MSD 84697 - Crank Trigger Distributor

Distributor - Pro-Billet - Crank Trigger Pickup - Locked Advance - HEI Style Terminal - Red - Low Profile - Chevy V8 - Each

Low-profile racing distributor, must be used with an MSD 6, 7 or 8-series ignition and a crank trigger.

The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing.

• Designed to fit low in the block to clear firewall/intake combos
• Supplied w/Bronze Gear
• Supplied w/Large Diameter HEI Style Distributor Cap And Rotor
• Must Be Used w/An MSD Crank Trigger And MSD Ignition Control
• O-ring seals can be installed for oil press. control (Mods only)
• Special oil tract improves lubrication to the dist./cam gear
• QPQ coated polished steel shaft; guided by sealed ball bearings
• Oversized Polished Steel Shaft w/QPQ Coating
• CNC machined billet aluminum housing and Dupont Rynite base
