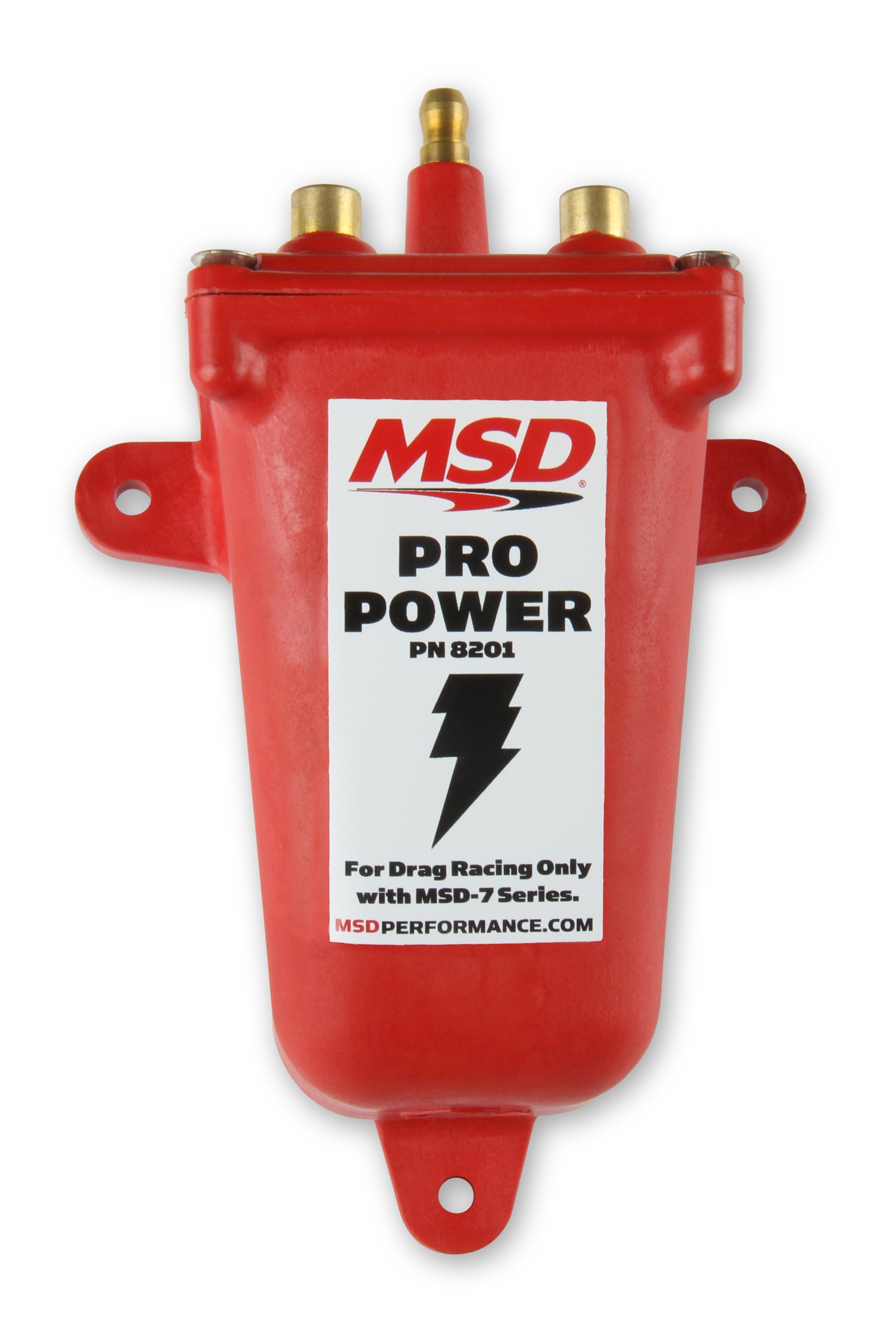

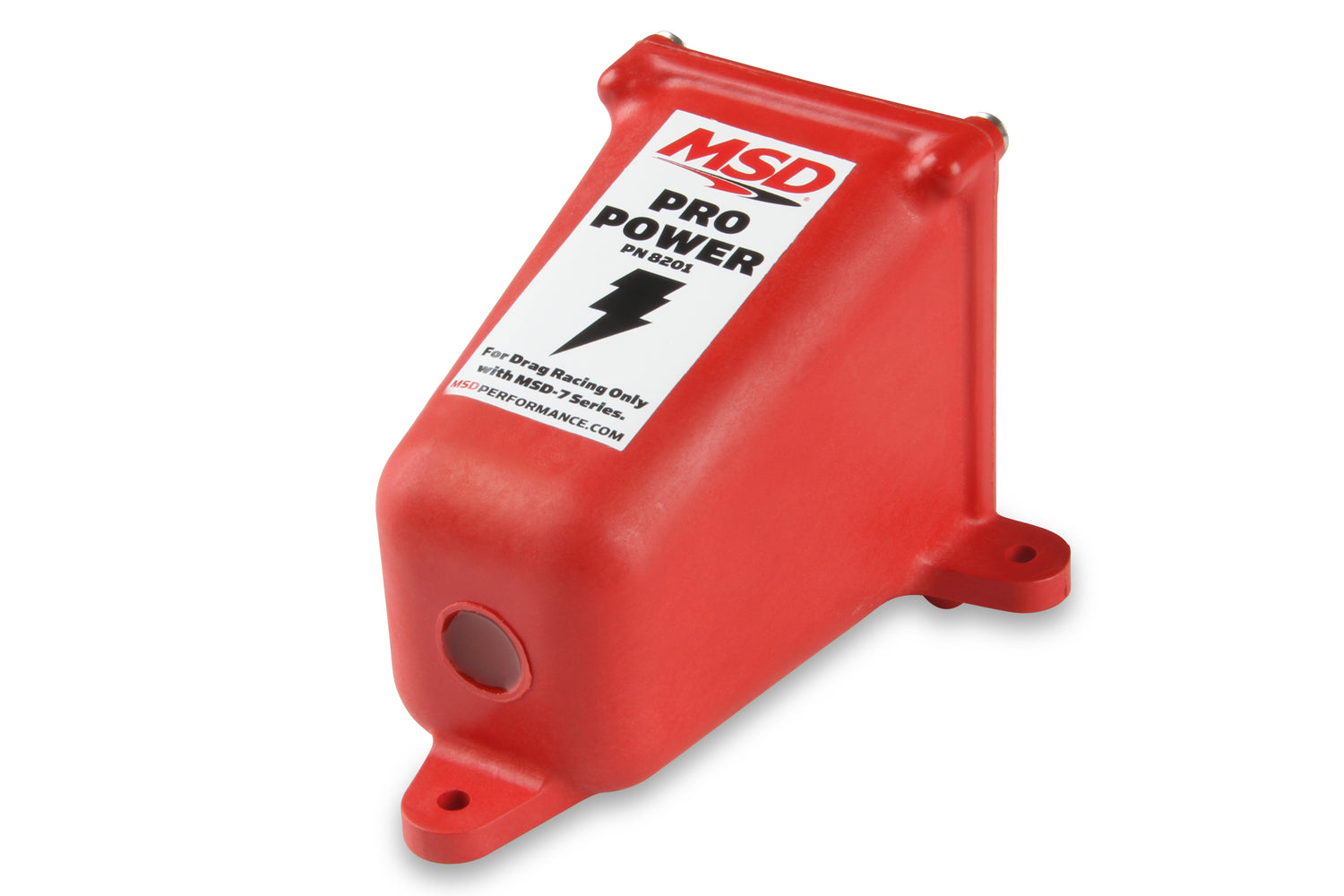

MSD 8201 - Pro Power Ignition Coil

MSD 8201 - Pro Power Ignition Coil

Ignition Coil - Pro Power - Canister - Epoxy Filled - 0.030 ohm - Male HEI - 43000V - Red - Each

Pro Power Ignition Coil; For Use w/MSD 7 and 8 Series; Short Duration; 1 mH Inductance; 43000 Max Voltage; 800 mA Peak Current; 100:1 Turns Ratio; Red;

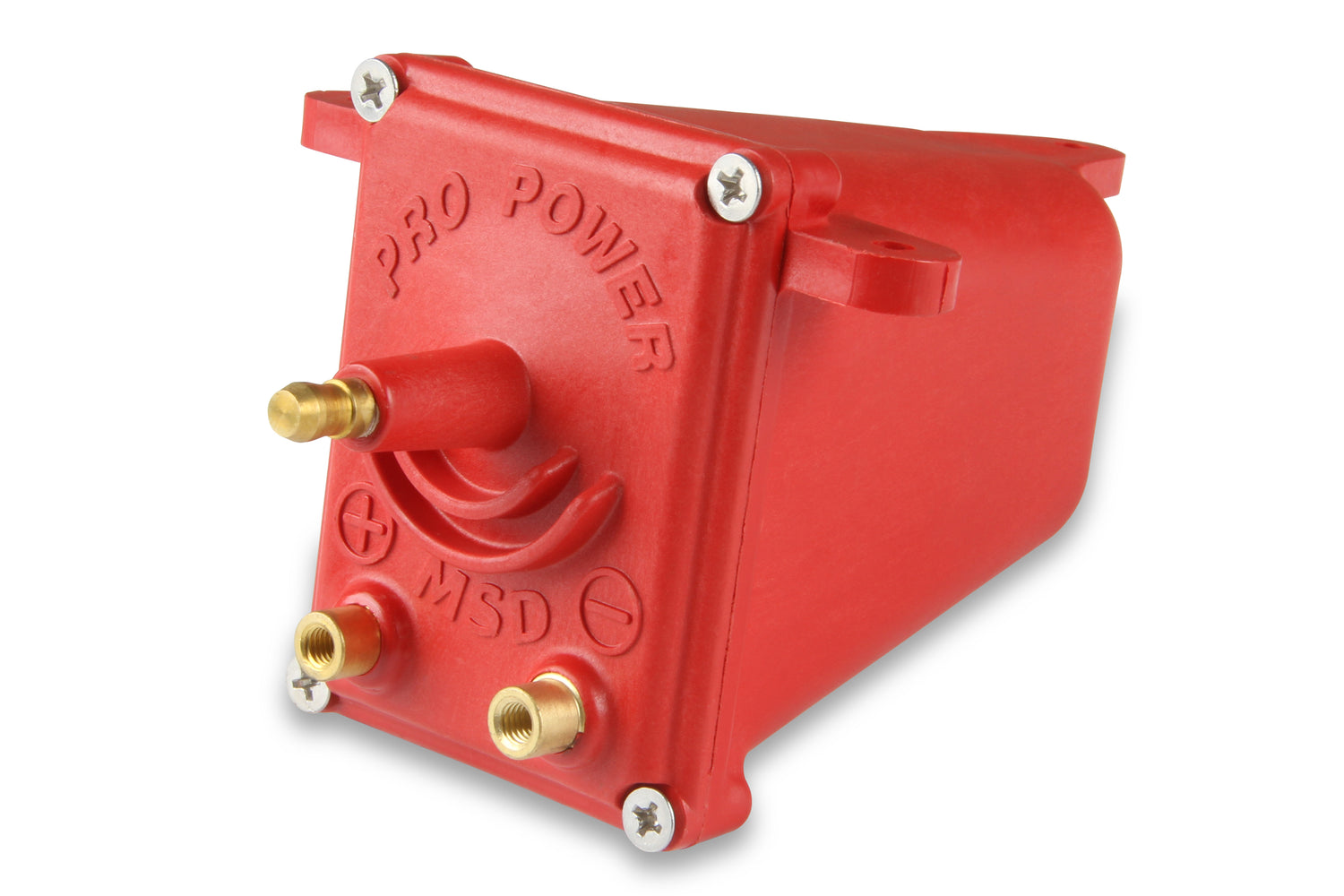

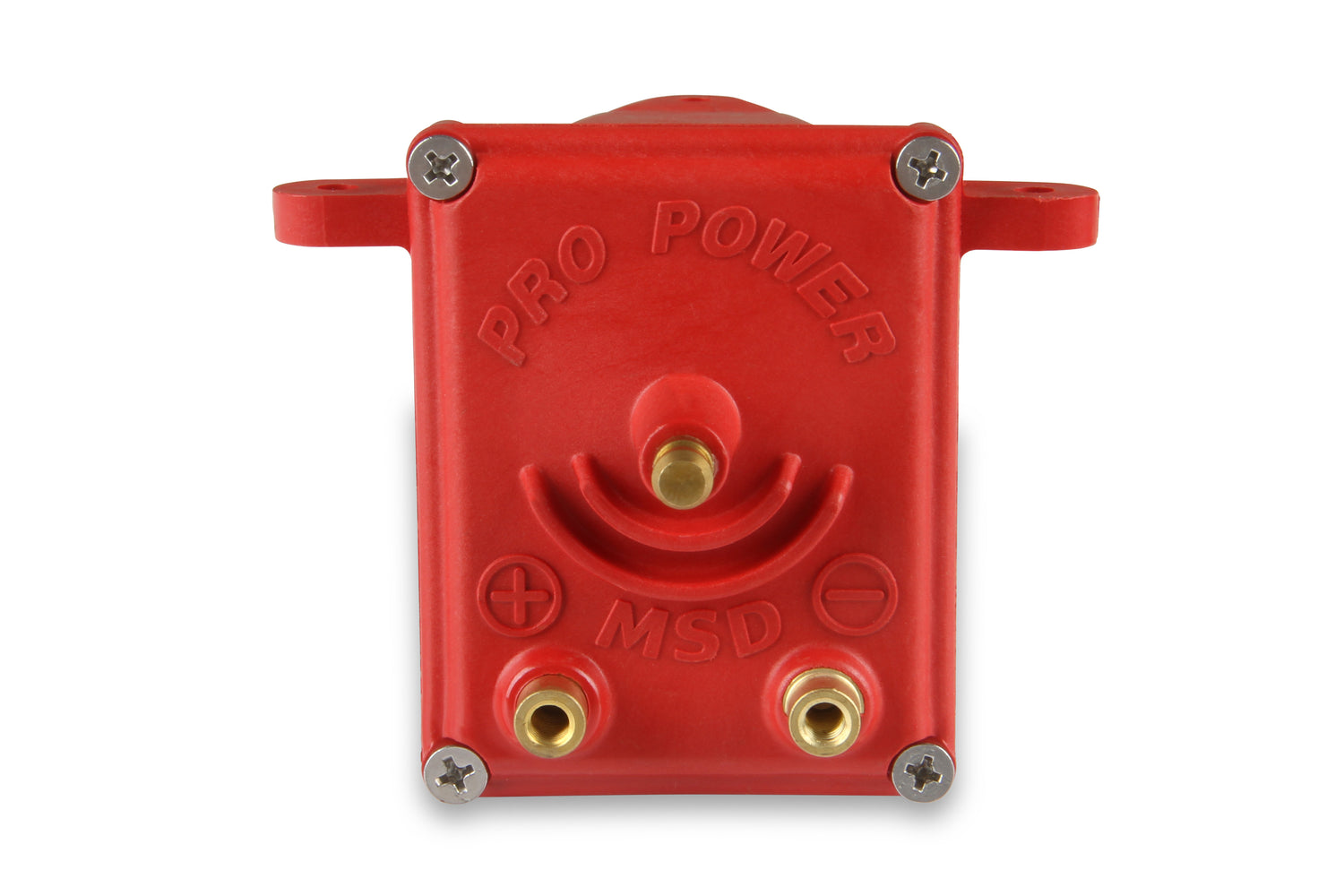

The MSD pro power coil is a great choice for short duration applications such as drag racing. The special windings of the pro power coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 series ignition control. The coil wire tower rises tall above the primary terminals and uses a spark plug style terminal for a firm connection to the coil wire. The housing is molded from a high dielectric polyester material and a ciba urethane compound adds vibration protection to the coil windings. Vibration mounts are also supplied.

• High voltage coil designed for short duration applications only
• Primary and secondary windings are polyurethane encased
• Extremely low primary resistance
• Housing Is Molded From A Durable And High Dielectric Polyester

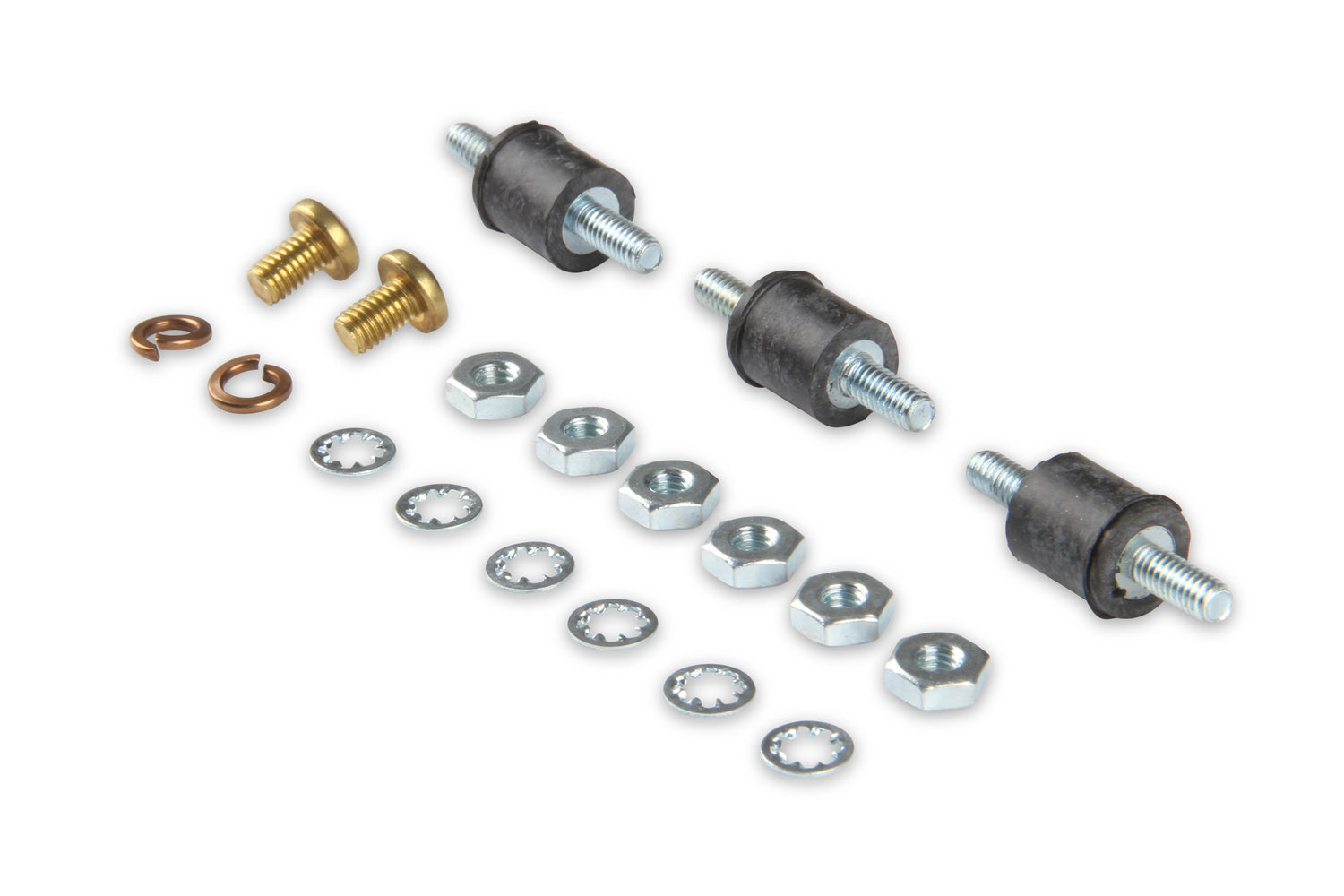

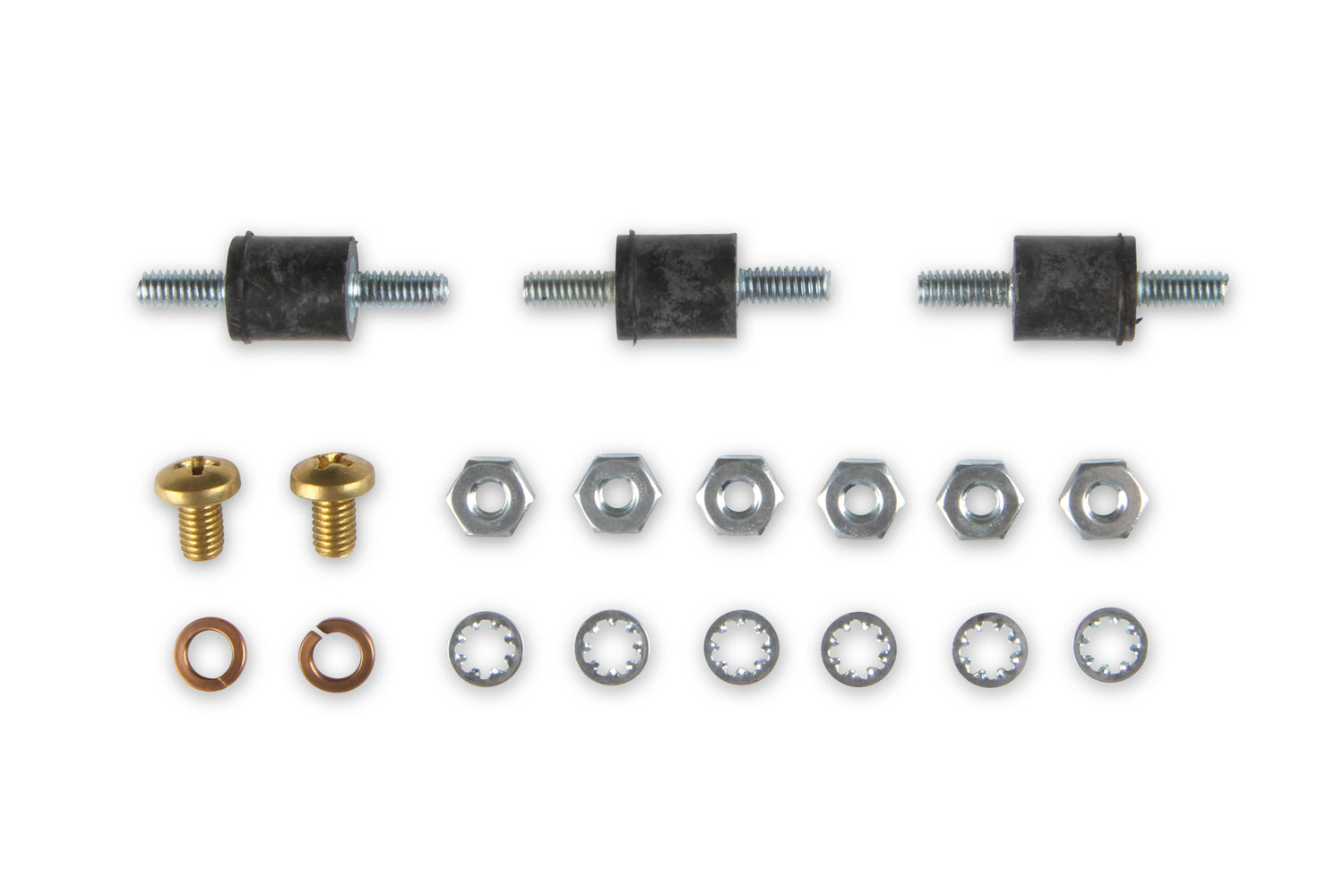

• Supplied w/Rubber Shock Mounts
• For MSD 7 and 8 ignitions only; not for use on street vehicles
