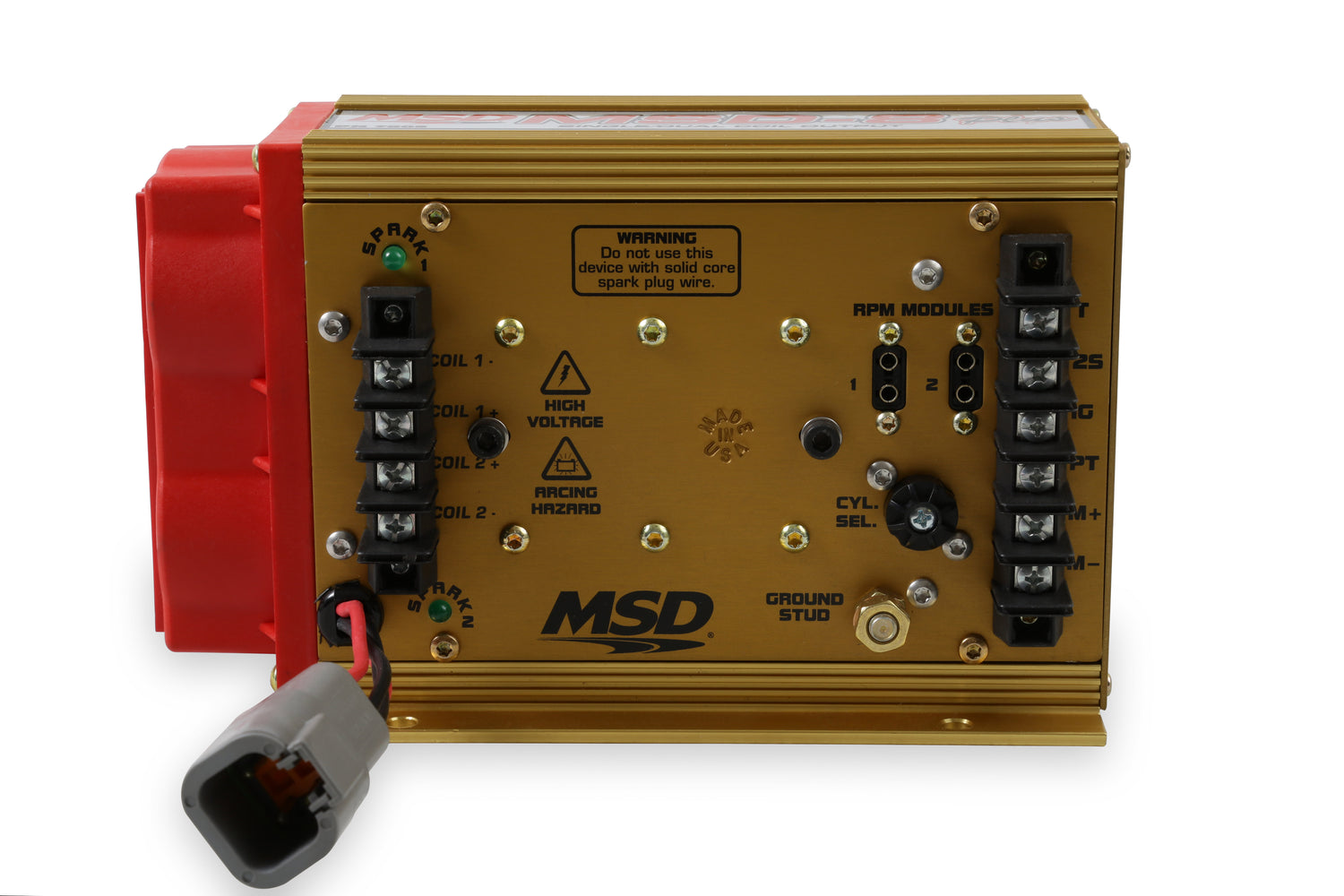

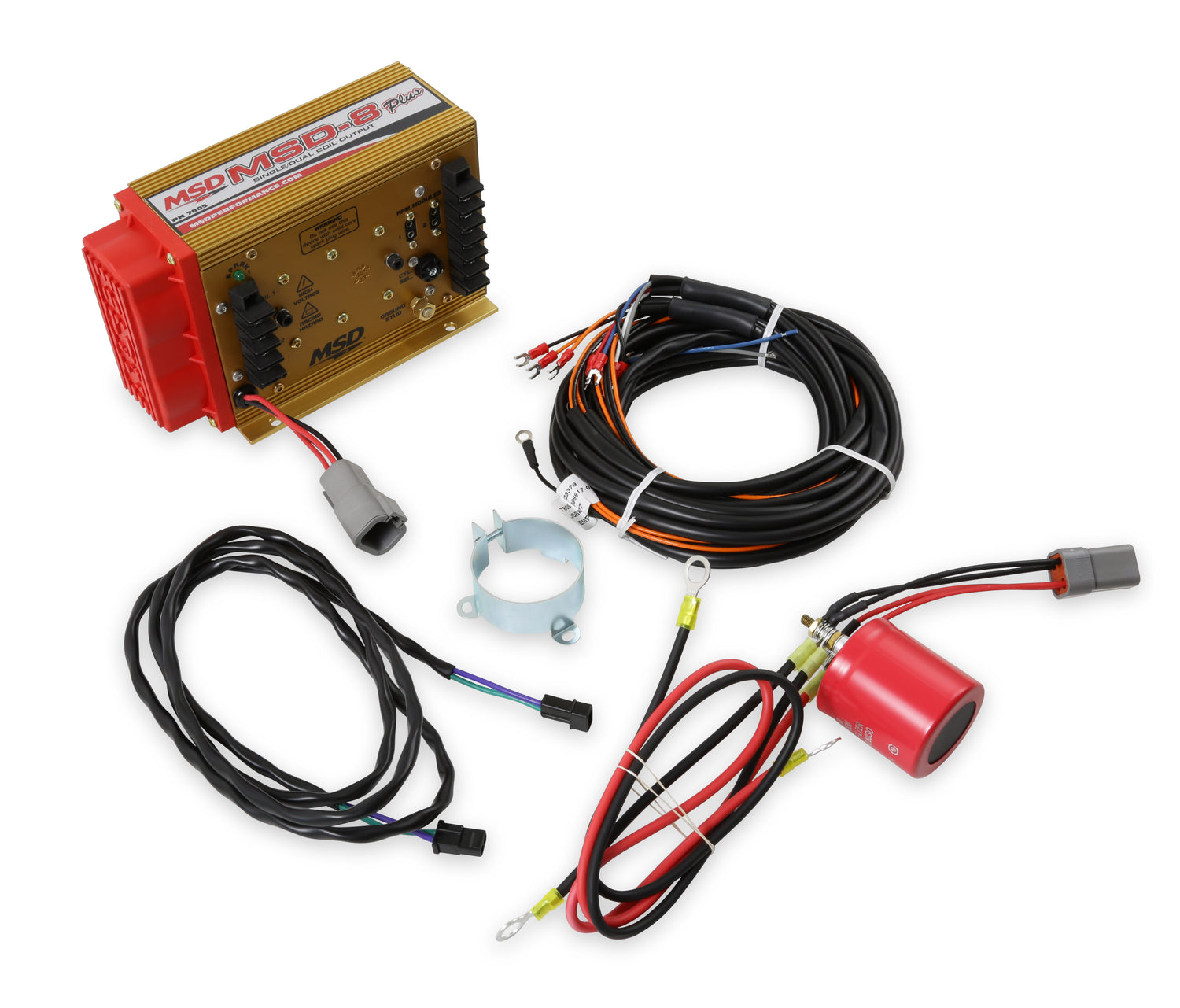

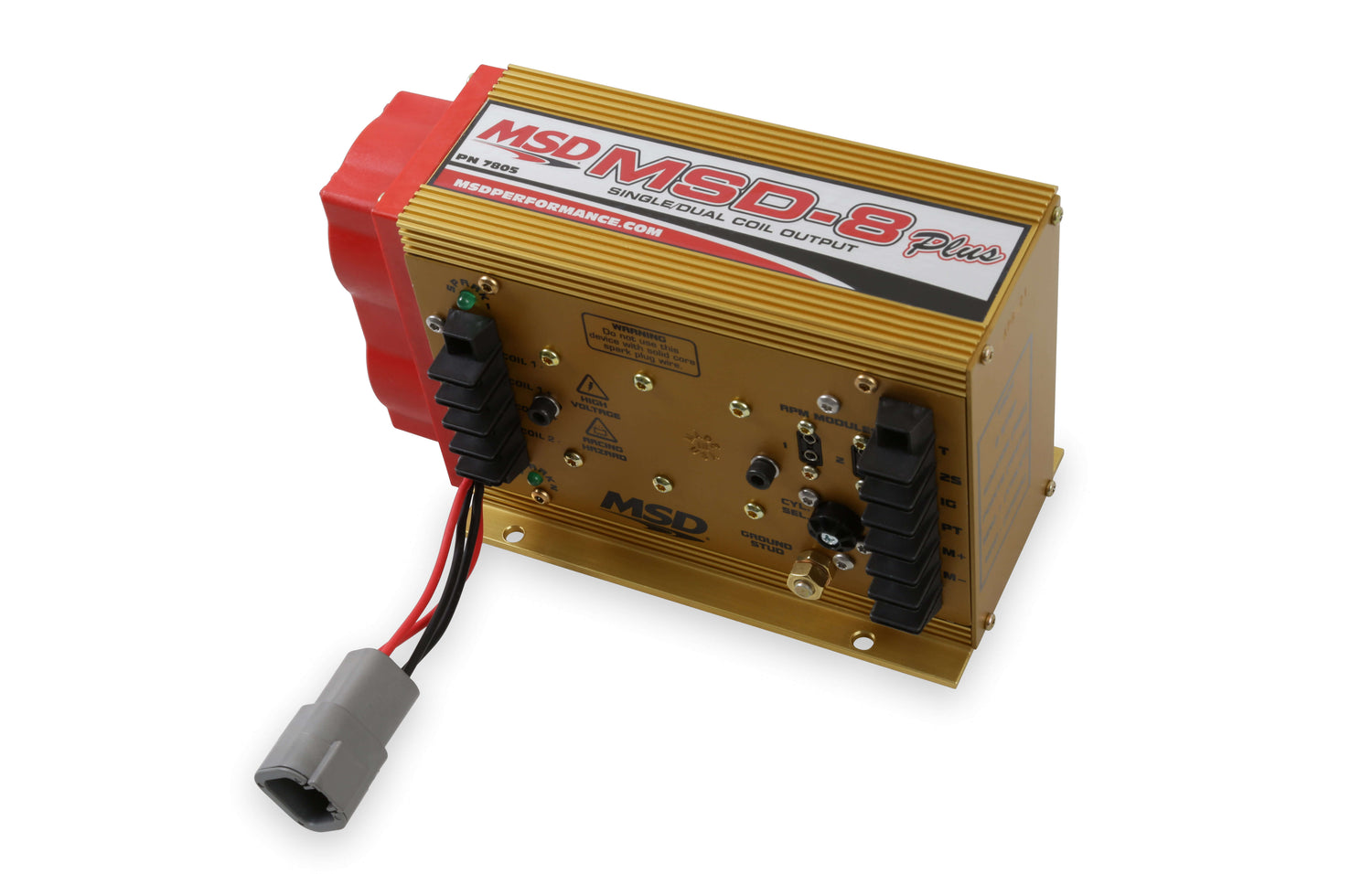

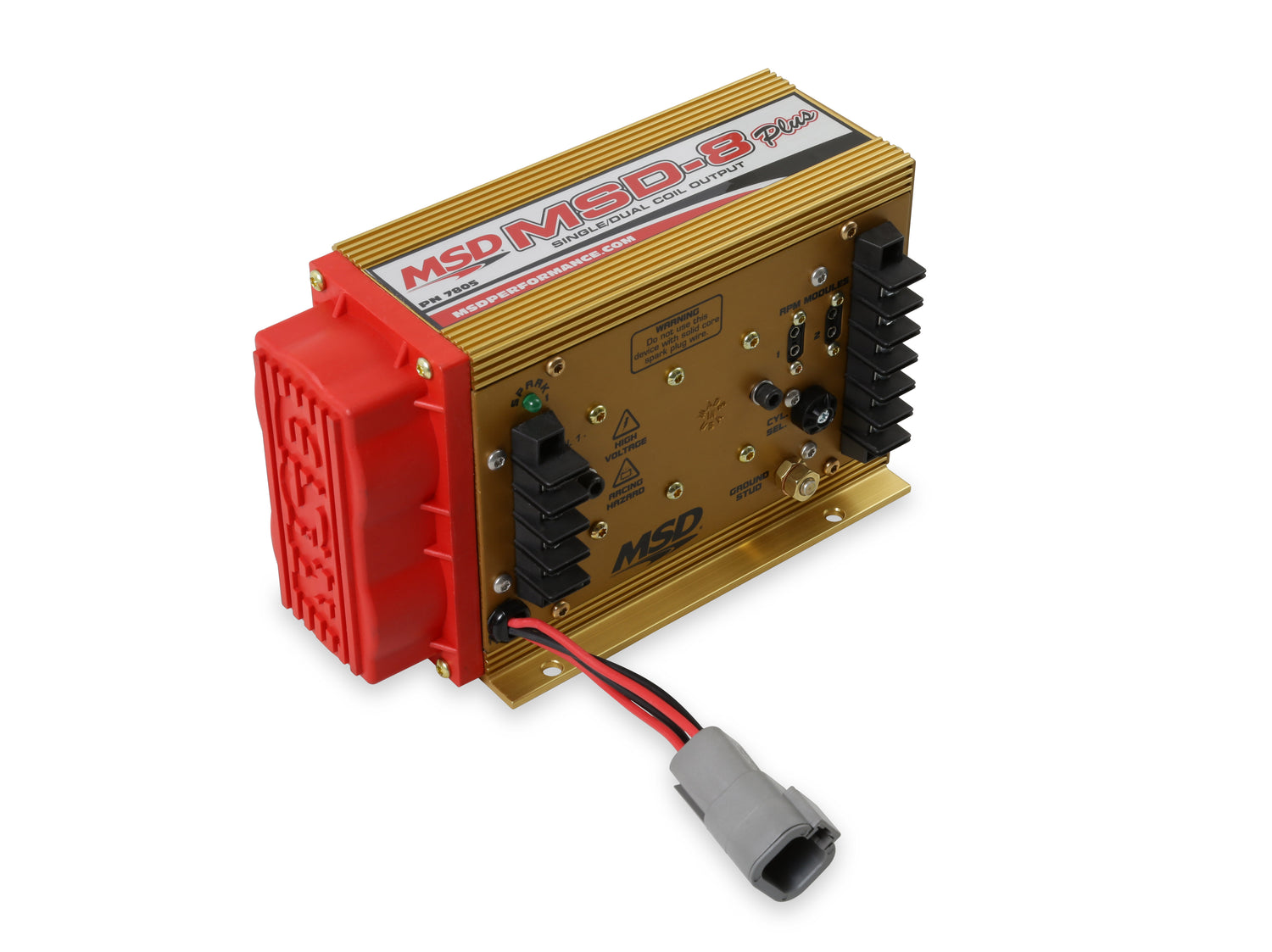

MSD 7805 - 8-Plus Ignition Control

MSD 7805 - 8-Plus Ignition Control

Ignition Box - MSD 8 Plus - 50000V - 2-Step Rev Limiter - Single or Dual Coil Output - Each

MSD 8-Plus Ignition Control; For 4/6/8 Cylinders; 36 Amps at 12000 RPM; 480 Primary Volts; 15000 RPM w/14.4 Volts; 50000 Secondary Volts; 315-345 mJ Per Spark;

There has always been a niche group of hardcore racers and pullers that run nothing but the MSD 8 Ignition Series. If you liked it then, youre going to like it even better now! The MSD 8-Plus Ignition produces the same extreme output of the original 8-Series, yet is now in a smaller housing with improved efficiency and internal components. One distinct change is now a built-in 2-Step Rev Control. Now you can switch between two rev limits without extra wiring or housings. For those that are looking for a dual fire MSD 8, the new 8-Plus is all you need. Our engineers were able to deliver an ignition that is capable of firing two coils at once for those extreme racers using dual plug race setups.

• Compatible for 4, 6 and 8-cylinders
• Built-in 2-step rev control
• 12-18 Volts, Negative Ground
• Extreme spark output
• 36 Amps at 12,000 RPM
• Single or dual coil output
• 15,000 RPM with 14.4 Volts
