MSD 7566-1 - Single Channel Relay Module

MSD 7566-1 - Single Channel Relay Module

1-Channel Mechanical Relay Module

MSD Relay Module; 1 Channel; 7V-20V Supply; 40A Output;

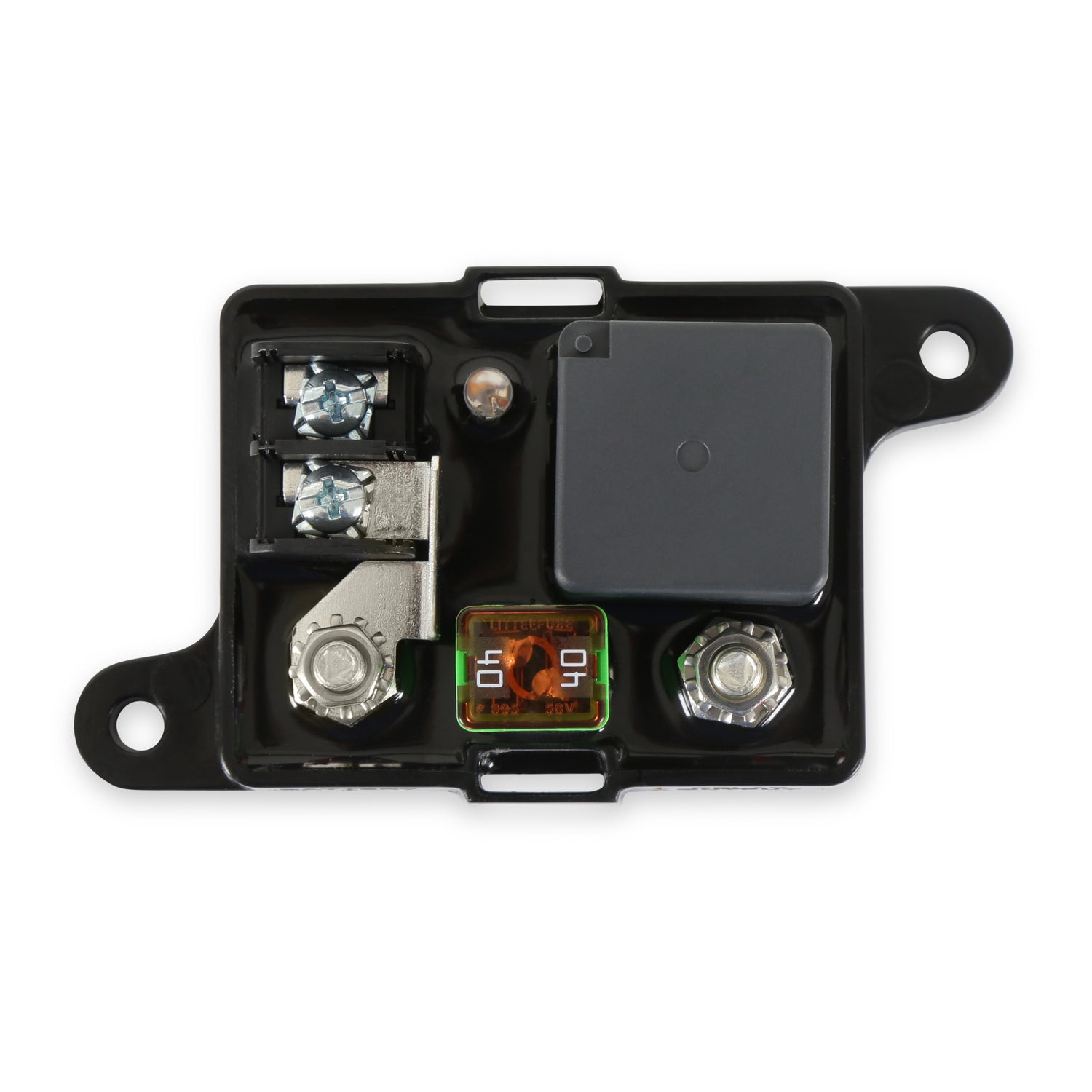

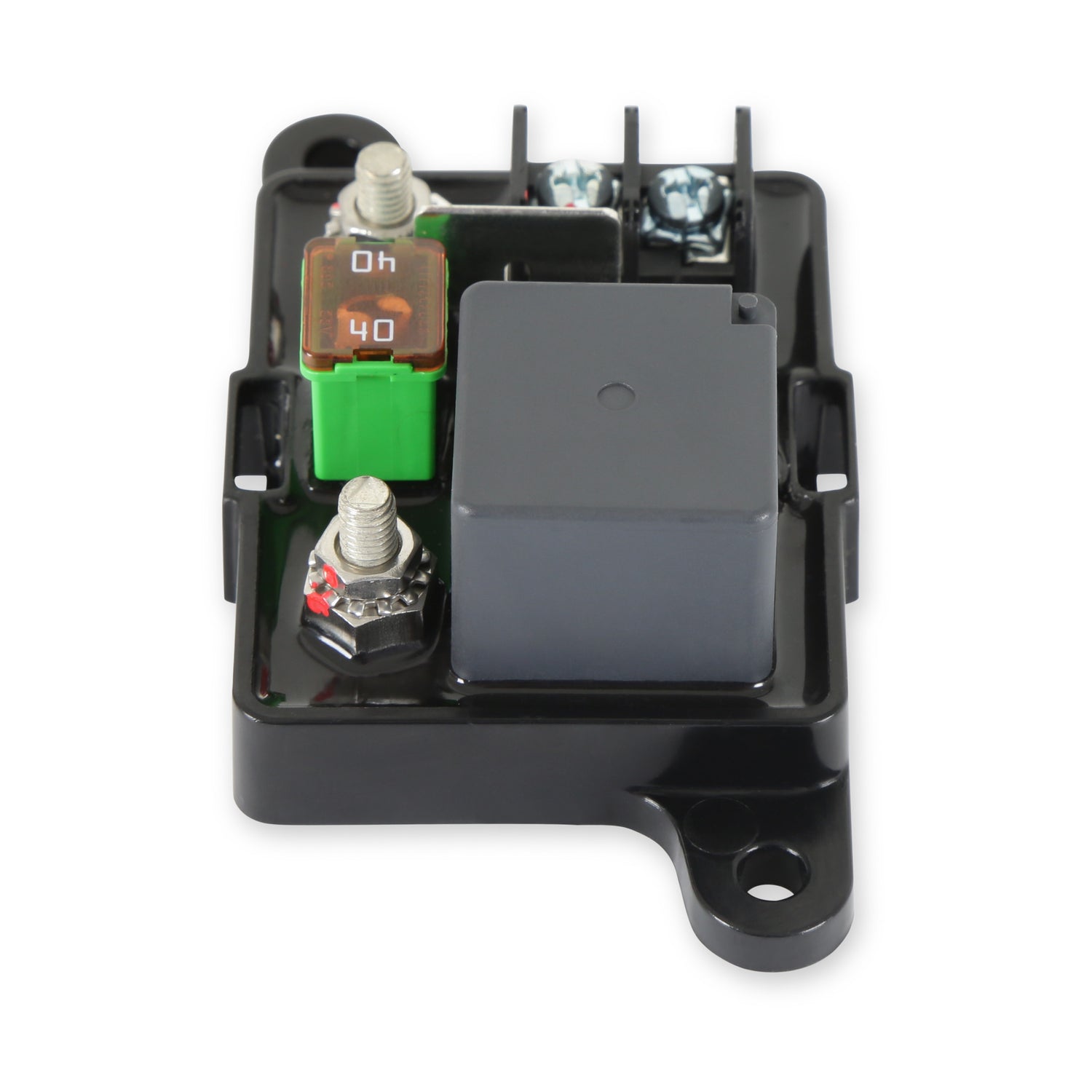

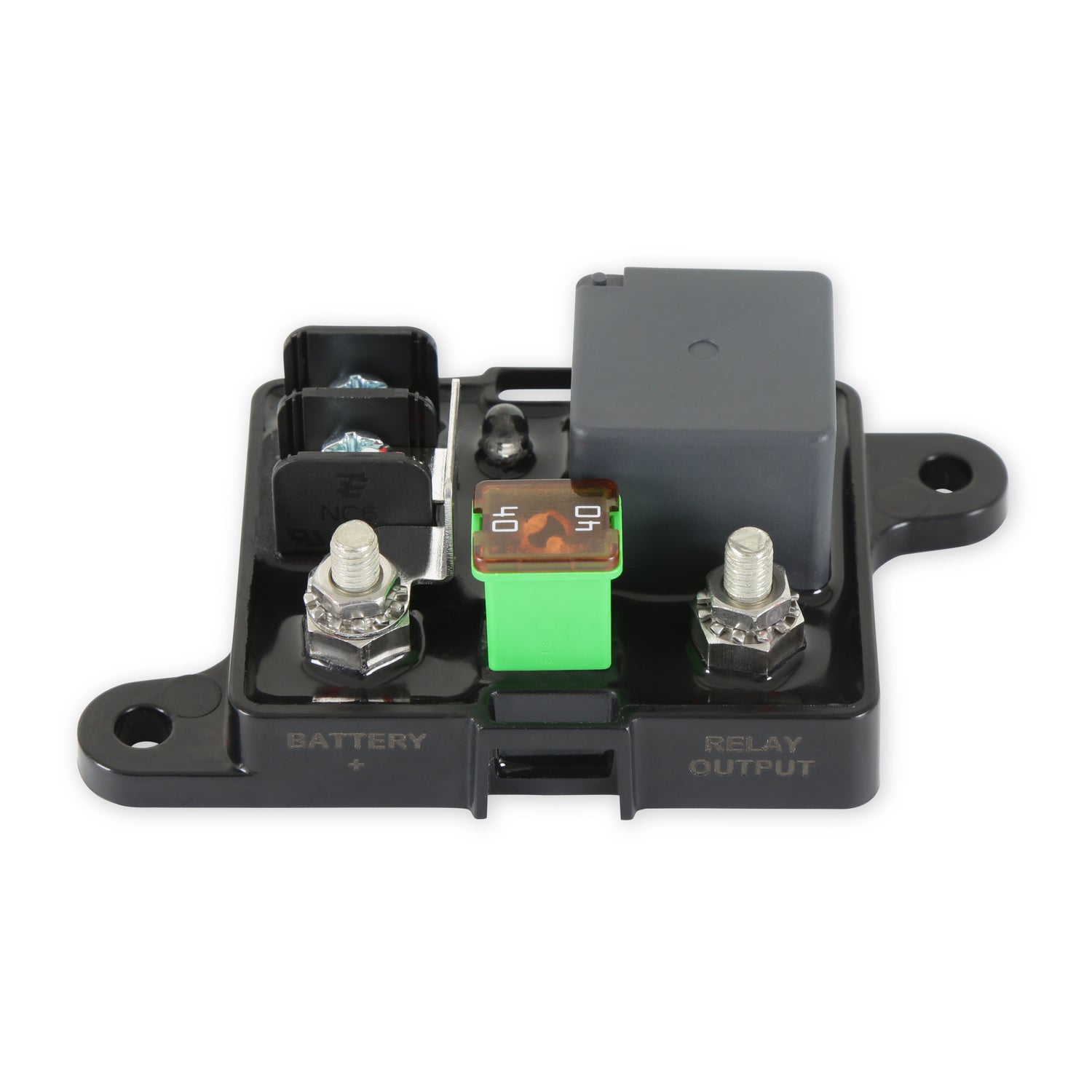

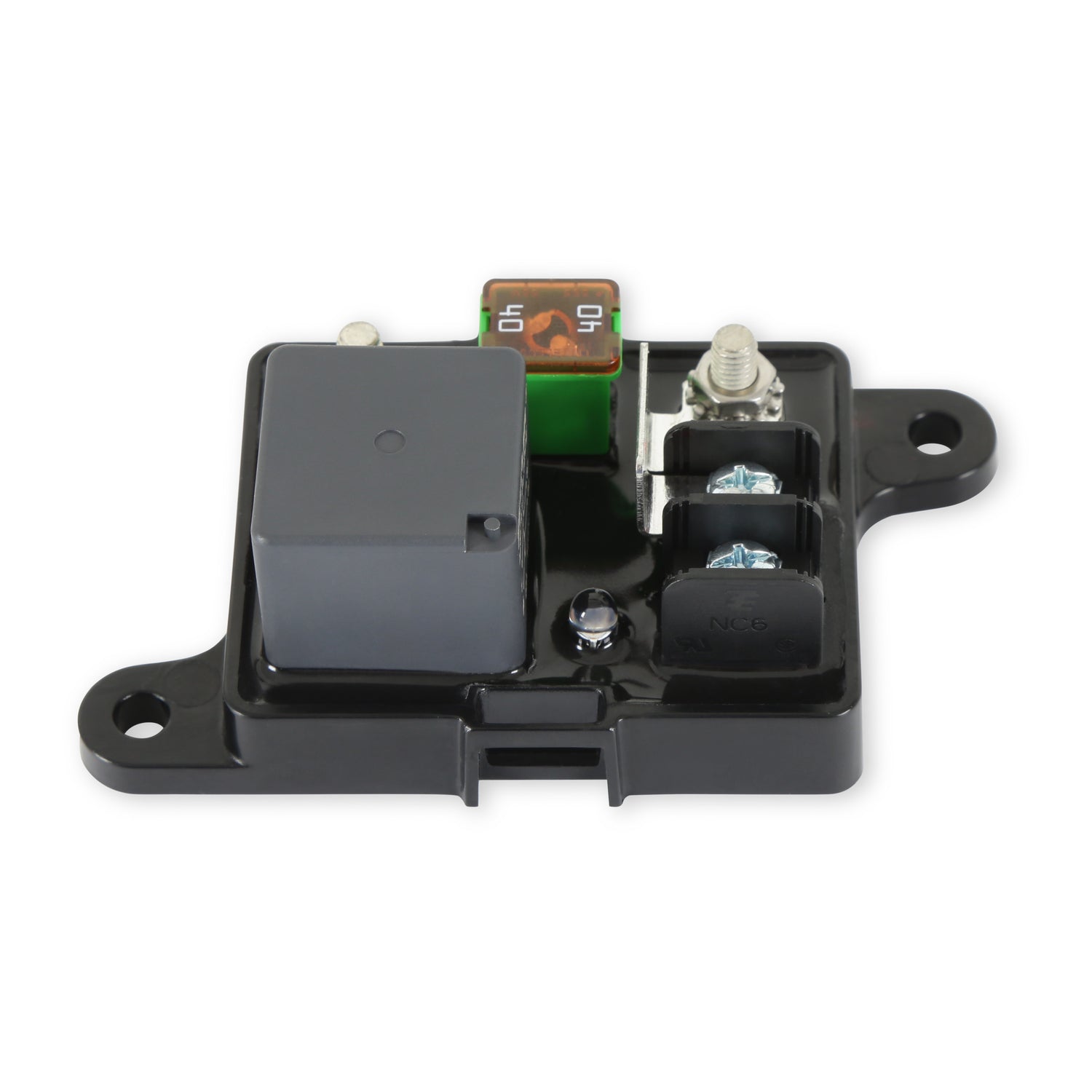

MSD relay modules are designed to be easily installed in most automotive electrical systems where a high amperage relay is needed. These relay modules are perfect use with high amperage electric fuel pumps and high CFM electric cooling fans. Each relay comes with a 40amp fuse, however lower amp fuses can be installed if required. The relay housing comes with a labeled lid that snaps into place providing a clean installation, and protecting the main power stud and triggers from contamination or accidental contact.

• 7V to 20V supply to fit a wide variety of applications
• Independent 40A outputs, to supply power to most aftermarket fuel pumps and electric fans

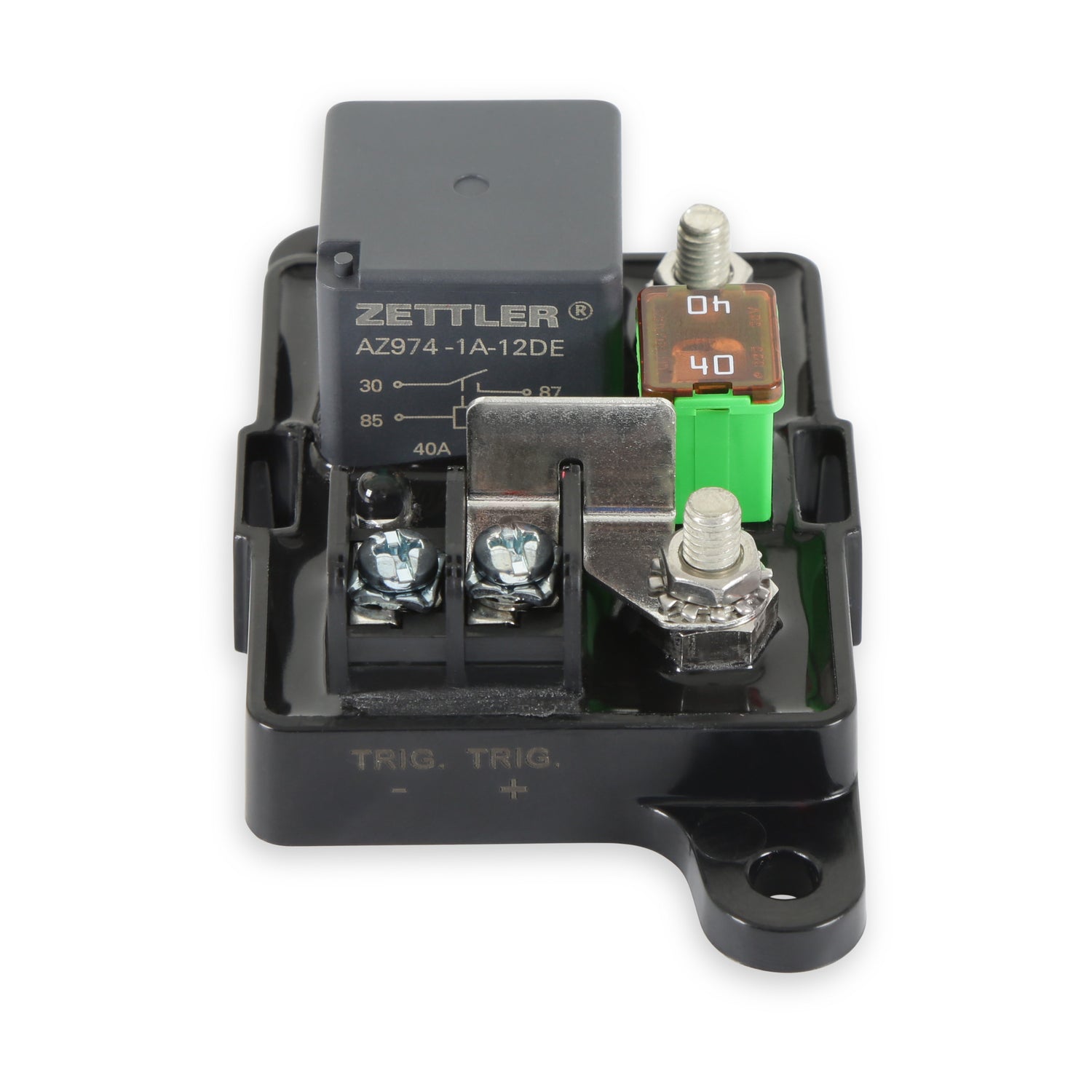

• Configurable single-wire activation with Ground (-) input or 12V (+) input, with removal of the Tie-Bar

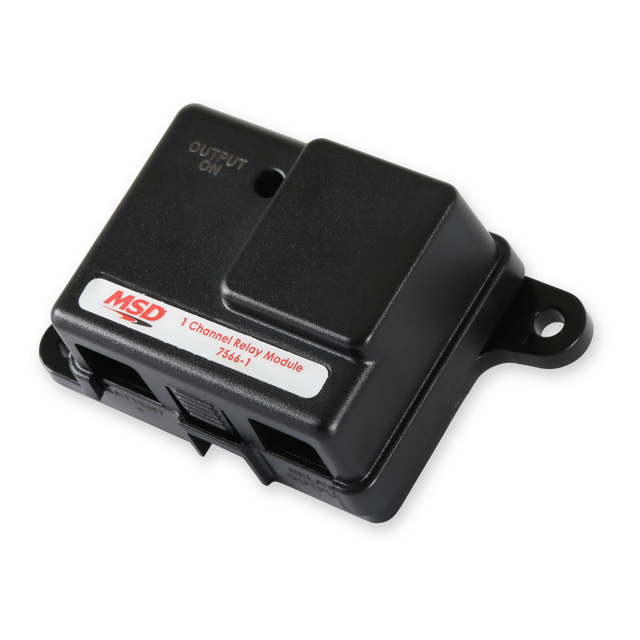

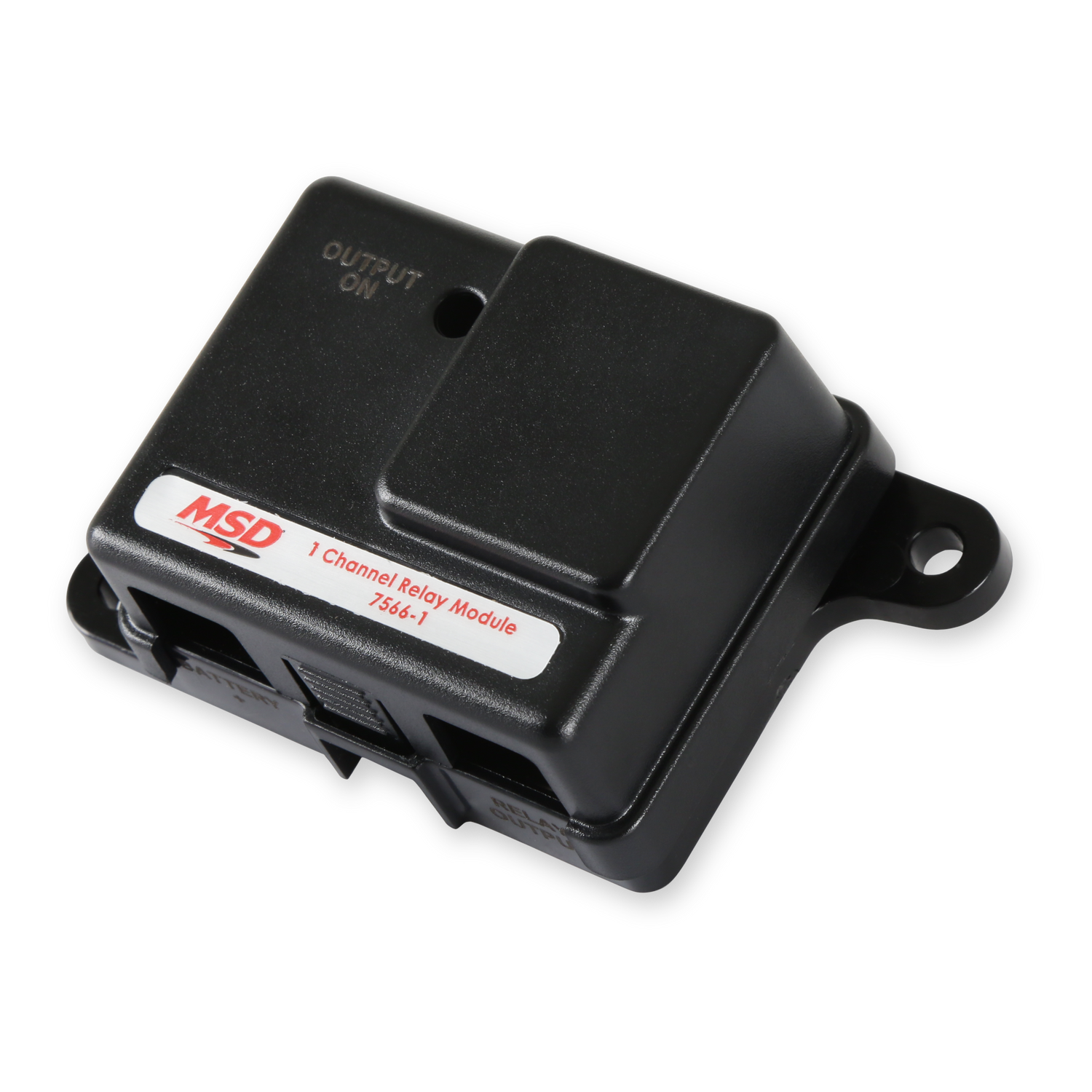

• Removable cover for easy accessibility
• Low profile JCASE fuses provide ample protection in case of a short
• LED status indicators, show you which channel is triggered at a glance
