MSD 601513 - Direct Ignition System [DIS] Kit

MSD 601513 - Direct Ignition System [DIS] Kit

Ignition System - Control Box / Coil Harness / Distributor / Ignition Coils / Spark Plug Wires - Chevy V8 - Kit

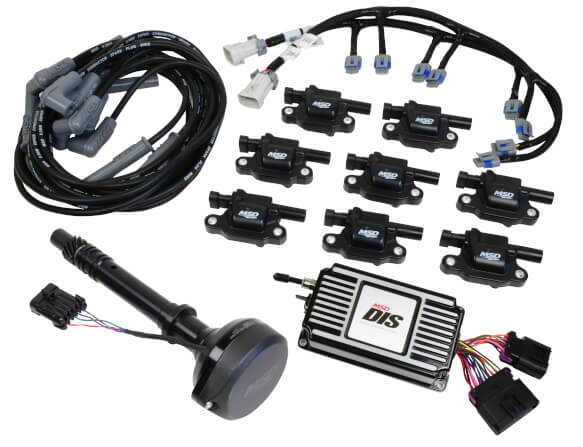

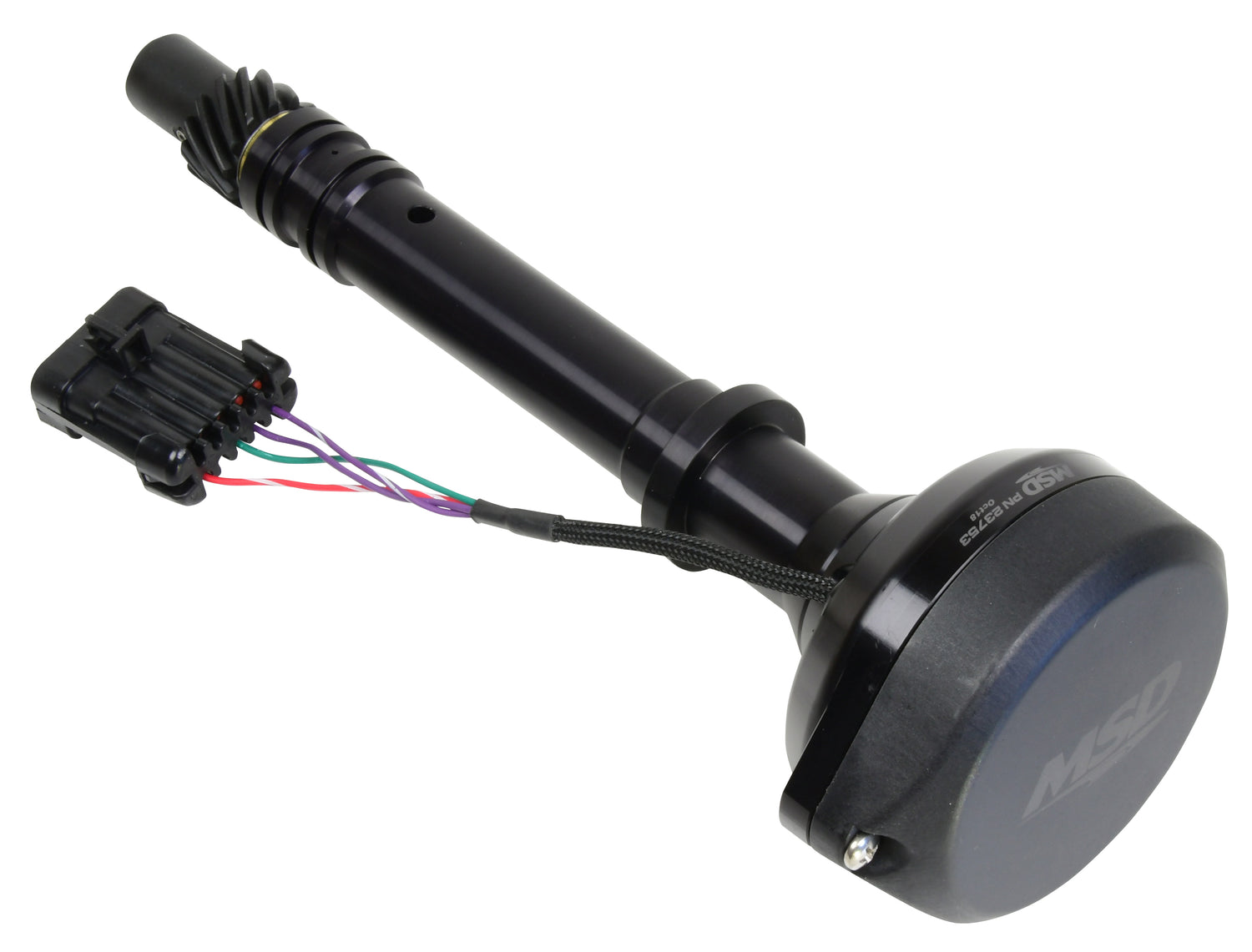

MSD Direct Ignition System [DIS] Kit; Conversion Kit; Incl. DIS Ignition Control Box/Pro-Billet Distributor w/Blank Cap/Coils/Wiring Harnesses/Universal Wire Set/Hardware; Black;

The MSD Direct Ignition System (DIS) controller greatly simplifies the conversion of conventional distributor-type engines to a Coil-Per-Plug configuration. Benefits include the elimination of distributor cap and rotor wear, reduced spark energy losses caused by long spark plug wires, and the ability to optimize your ignition tuning parameters. The integral 2.5 Bar MAP Sensor, and optional temperature sensor input, meaning you get the most power and reliability out of your Naturally Aspirated or Forced Induction engine combination. Nitrous-fed engines benefit from the included Step Retard feature. Drag racers will appreciate the 2-Step Rev Limiter and Launch Retard features. Real-time DIS configuration and tune-up changes are a snap with easy-to-use MSDView software. Thanks to the real-time monitor feature of MSDView, and 8 MB of internal data storage in the DIS controller, data monitoring and logging have never been easier. The clearly labeled wiring harness, along with a full line of supporting components and accessories, takes the difficulty and guesswork out of converting traditional distributor-type engines to a modern and efficient Coil-Per-Plug ignition system.

• Easily convert to a Coil-Per-Plug ignition system
• Preprogrammed timing maps
• Fully Programmable 2D and 3D Timing maps provide complete timing control
• Individual Cylinder Timing (ICT) allows precise tuning
• Built-in 2.5 bar Manifold Absolute Pressure (MAP) sensor for boosted applications
• Optional temperature sensor input to control timing based on temperature
• Fully potted electronics and sealed connectors for maximum durability
• Easily programmable through a Mini-USB communication port
• Programmable Max Rev and Launch RPM limiters provide engine protection
• Consistent holeshots thanks to a Programmable Launch Timing Retard
• Single Timing Step Retard ideal for pulling timing for nitrous applications
• On-Board Data Acquisition
• Kits available for Chevy and Ford V8 applications with more to come
