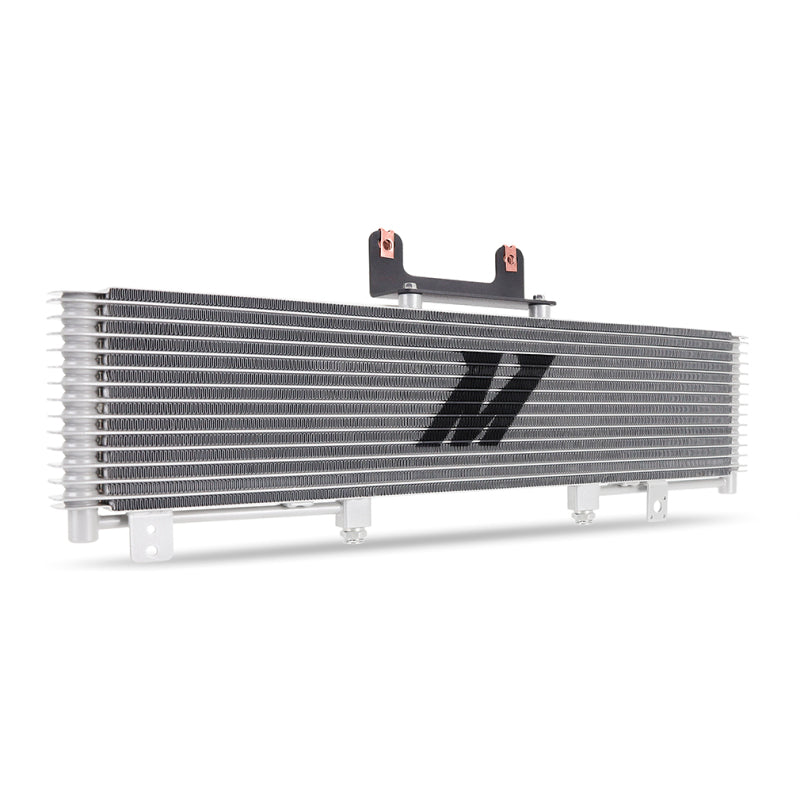

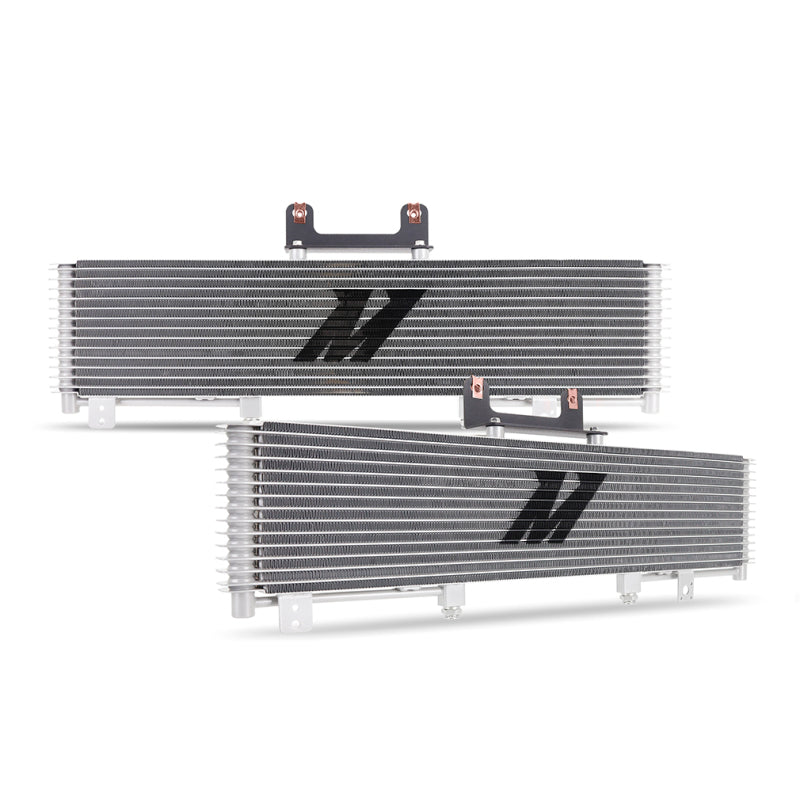

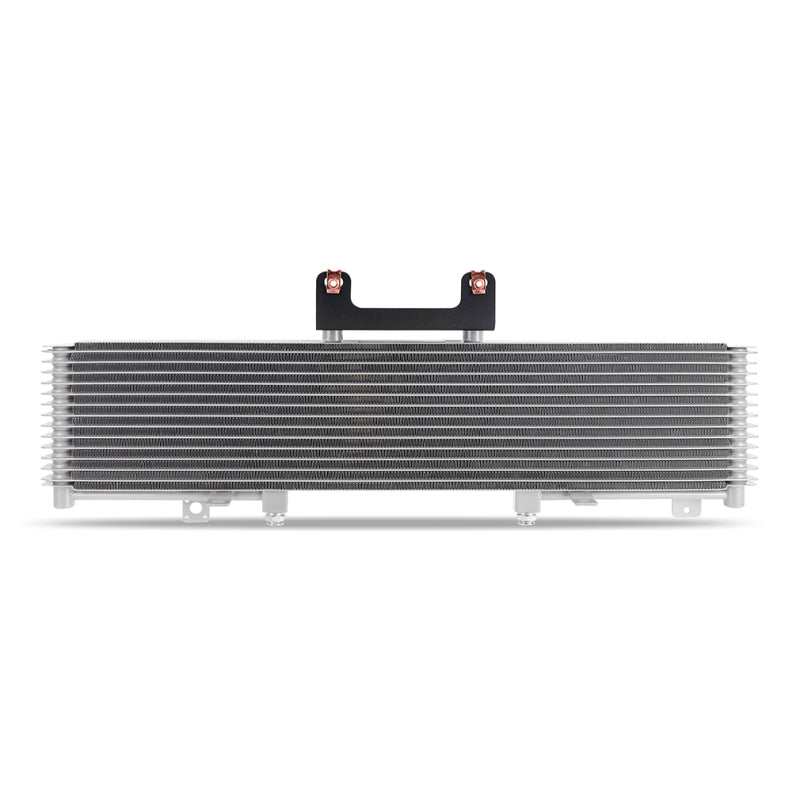

Mishimoto MMTC-GMT-99 - 99-13 Chevrolet Silverado / GMC Sierra Transmission Cooler
Transmission Cooler, Silver, fits Chevrolet/GMC Truck 4LXX/6L80 Gas 1999-2013
There's no greater enemy for a transmission than heat. Whether your 1999-2013 GMT800 or 900 Chevy Silverado/GMC Sierra is a dedicated tow vehicle, hardworking fleet truck, or a daily driver, you need to ensure that your transmission runs cool. Luckily, Mishimoto has developed a cooler to do just that.----Our 1999-2013 Chevy Silverado/GMC Sierra performance transmission cooler utilizes a stacked-plate design for maximum durability and powerful cooling. With a massive core that’s 521% larger than stock, and a 278% increase in frontal area, the Mishimoto transmission cooler adds significant cooling capacity to your truck whether you’re towing a heavy load, or low-speed driving on the trail. Internal fins and louvered external fins circulate cool air and fluid throughout the core for optimal heat transfer.----Included with the Mishimoto transmission cooler are precision-machined -6ORB quick-disconnects that connect directly to the stock lines, or can be removed allow the use of -6AN lines. We also include a relocation bracket for the ambient air temperature sensor to keep full functionality of your truck. An adjustable mounting bracket makes installing this transmission cooler a breeze in an hour or less.--Like all Mishimoto products, our 1999-2013 Chevy Silverado/GMC Sierra transmission cooler is backed by our Lifetime Warranty with Accident Protection for worry-free cooling as long as you own it.
- 521% increase in core volume for vastly improved cooling capacity
- 278% increase in frontal surface area transfers more heat at any speed
- -6ORB quick-disconnects can easily be swapped for -6AN fittings
SellingPoint01: Direct fit for 1999-2013 Chevrolet Silverado and GMC Sierra with 4LXX or 6L80 transmissions
SellingPoint02: 521% increase in core volume for vastly improved cooling capacity
SellingPoint03: 278% increase in frontal surface area transfers more heat at any speed
SellingPoint04: -6ORB quick-disconnects can easily be swapped for -6AN fittings
SellingPoint05: Stacked-plate core balances flow with effective cooling

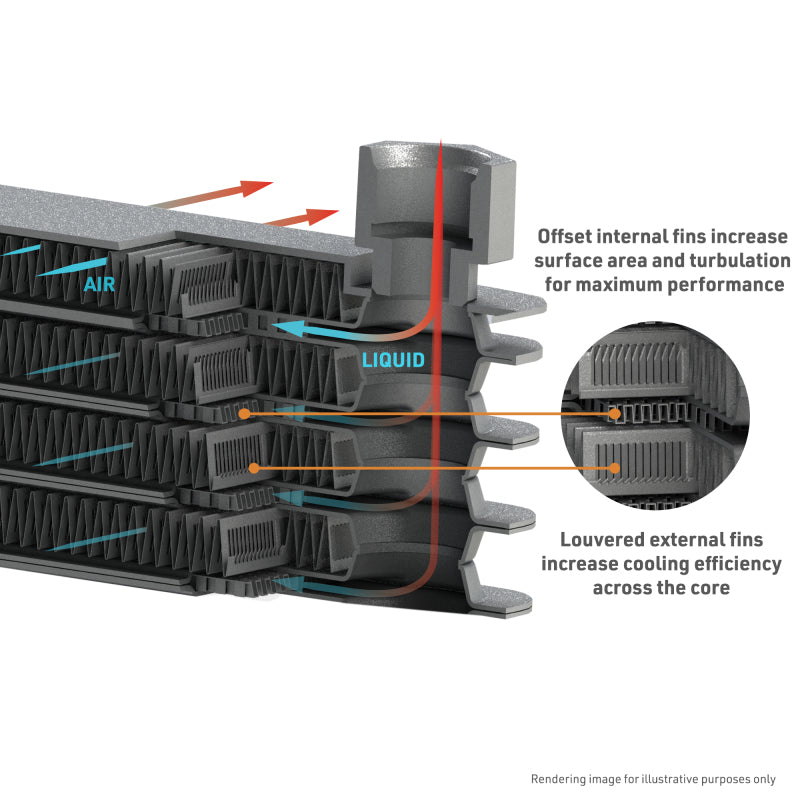

SellingPoint06: Internal fins and external louvered fins maximize heat transfer

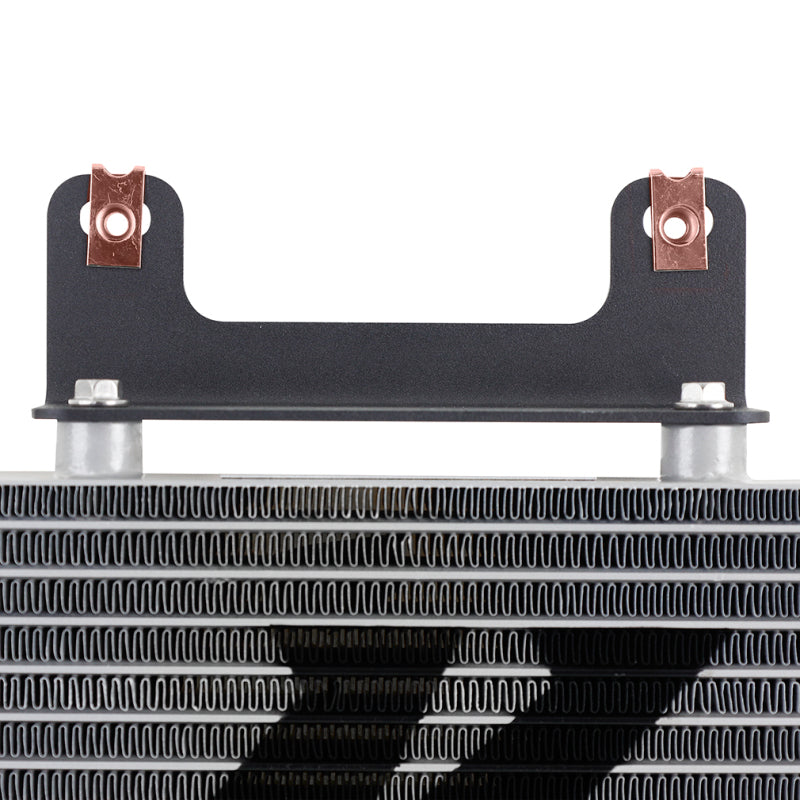

SellingPoint07: Adjustable bracket makes installation fast and easy
SellingPoint08: Includes ambient air temperature sensor relocation bracket
SellingPoint09: Patent Pending
SellingPoint10: Includes durable SAE J1532 hose designed specifically for use with transmission fluid
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Rows: 14
TechSpec Core Construction: Stacked-Plate
TechSpec Core Length (in): 27
TechSpec Core Height (in): 6
TechSpec Core Thickness (in): 1.25
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: GMT800--GMT900
TechSpec Installation Notes: N/A
TechSpec Transmission Codes: 4L60E--4L80E--6L80E--6L90E
TechSpec Caution: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Inlet: -6ORB
TechSpec Outlet: -6ORB

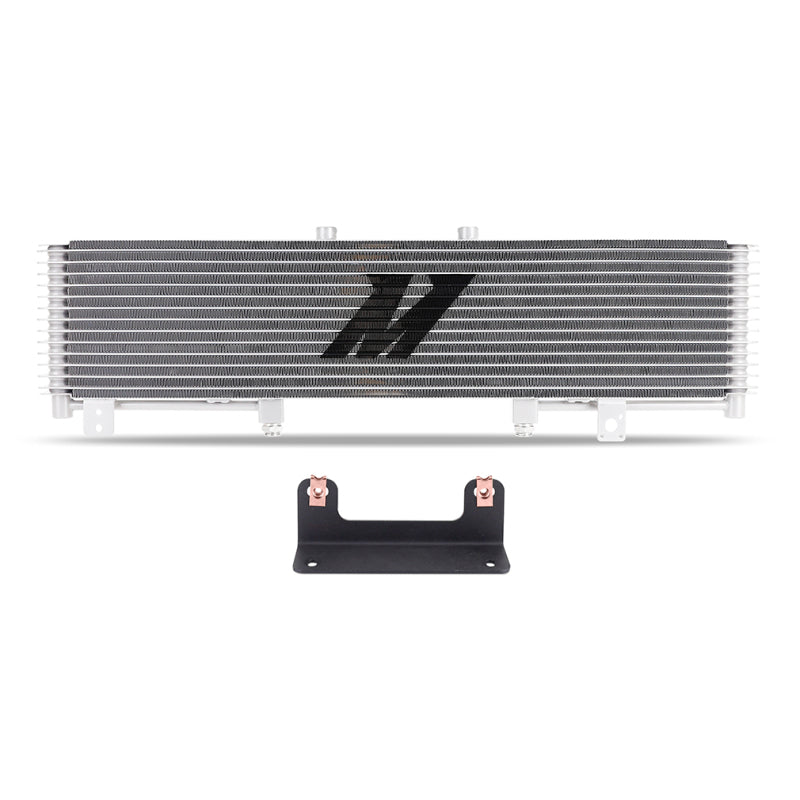

TechSpec Includes: (1) Transmission Cooler--(2) Quick-Disconnect Fittings--(1) Ambient Air Temp Sensor Bracket--(1) Mounting Bracket--Mishimoto Lifetime Warranty
TechSpec Applications: Cadillac Escalade ESV 6.2 V8 2007-2014--Cadillac Escalade ESV 6.0 V8 2003-2006--Cadillac Escalade EXT 6.2 V8 2007-2013--Cadillac Escalade EXT 6.0 V8 2002-2006--Cadillac Escalade 5.3 V8 2002-2005--Cadillac Escalade 6.2 V8 2007-2014--Cadillac Escalade 6.0 V8 2002-2006--Chevrolet Avalanche 1500 5.3 V8 2002-2006--Chevrolet Avalanche 5.3 V8 2007-2013--Chevrolet Avalanche 6.0 V8 2007-2009--Chevrolet Silverado 1500 Classic 4.3 V6 2007-2007--Chevrolet Silverado 1500 Classic 4.8 V8 2007-2007--Chevrolet Silverado 1500 Classic 5.3 V8 2007-2007--Chevrolet Silverado 1500 Classic 6.0 V8 2007-2007--Chevrolet Silverado 1500 HD Classic 6.0 V8 2007-2007--Chevrolet Silverado 1500 HD 6.0 V8 2001-2006--Chevrolet Silverado 1500 4.3 V6 1999-2013--Chevrolet Silverado 1500 4.8 V8 1999-2013--Chevrolet Silverado 1500 5.3 V8 1999-2013--Chevrolet Silverado 1500 6.2 V8 2009-2013--Chevrolet Silverado 1500 6.0 V8 2003-2013--Chevrolet Silverado 2500 HD Classic 6.0 V8 2007-2007--Chevrolet Silverado 2500 HD 6.0 V8 2001-2013--Chevrolet Silverado 2500 5.3 V8 1999-2000--Chevrolet Silverado 2500 6.0 V8 1999-2004--Chevrolet Silverado 3500 Classic 6.0 V8 2007-2007--Chevrolet Silverado 3500 HD 6.0 V8 2007-2010--Chevrolet Silverado 3500 6.0 V8 2001-2006--Chevrolet Suburban 1500 5.3 V8 2000-2014--Chevrolet Suburban 1500 6.0 V8 2006-2009--Chevrolet Suburban 2500 6.0 V8 2000-2013--Chevrolet Tahoe 4.8 V8 2000-2009--Chevrolet Tahoe 5.3 V8 2000-2014--Chevrolet Tahoe 6.2 V8 2008-2009--GMC Sierra 1500 Classic 4.3 V6 2007-2007--GMC Sierra 1500 Classic 4.8 V8 2007-2007--GMC Sierra 1500 Classic 5.3 V8 2007-2007--GMC Sierra 1500 Classic 6.0 V8 2007-2007--GMC Sierra 1500 HD Classic 6.0 V8 2007-2007--GMC Sierra 1500 HD 6.0 V8 2001-2006--GMC Sierra 1500 4.3 V6 1999-2013--GMC Sierra 1500 4.8 V8 1999-2013--GMC Sierra 1500 5.3 V8 1999-2013--GMC Sierra 1500 6.2 V8 2007-2013
TechSpec Fluid Capacity (qts): 0.65
TechSpec Note: This product does not fit trucks with Allison transmissions. For transmission coolers which fit Allison transmissions, click here.
Install Difficulty: 3
