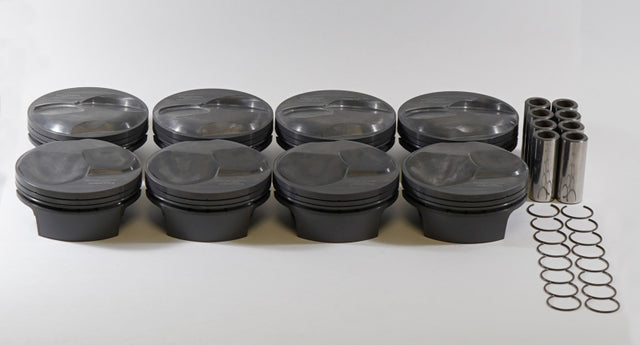

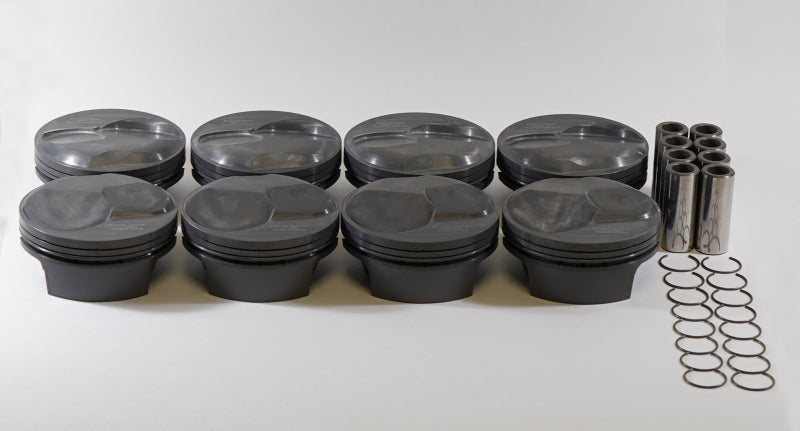

Mahle Motorsport 930240000 - Mahle Piston Set SBF 565cid 4.600in Bore 4.250in Stroke 6.385in Rod .990in Pin 28cc 15.5 CR

Name: Mahle Motorsport 930240000 - Mahle Piston Set SBF 565cid 4.600in Bore 4.250in Stroke 6.385in Rod .990in Pin 28cc 15.5 CR
Brand: Mahle Motorsport
SKU: DGJH-930240000
Price: 885.99 USD
Availability: InStock

Mahle Motorsport | SKU: DGJH-930240000

$885⁹⁹ $1,070¹¹

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Mahle Motorsport 930240000 - Mahle Piston Set SBF 565cid 4.600in Bore 4.250in Stroke 6.385in Rod .990in Pin 28cc 15.5 CR

565cid 4.600 x 1.270CH,4.250stroke,6.385rod,0.990pin,28.0cc,642g,15.5CR, 2618

BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 20? 565cid 4.600 x 1.270CH, 4.250stroke,6.385rod,0.990pin,28.0cc,642g,15.5CR, 2618.

Clip Style: Round Wire

Clips Included: Yes

Coatings: Phosphate plus Grafal

Crown Vol: 28.0cc

Lateral Gas Ports: Yes

Package Qty: Sold as a set of 8

Pin Diameter: 0.990

Pin Length: 2.930

Pin Mass: 171g

Pin Material: Steel

Pin Style: Floating

Pins Included: Yes

Piston Mass: 642g

Piston Material: Forged, 2618

Piston Ring Thickness: .043, .043, 3.0mm

Piston Style: Dome, w/ INT valve relief

Rings Included: N
