Mahle Motorsport 930223205 - Mahle MS Piston Set GM LS 403ci 4.005in Bore 4in Stk 6.125in Rod .927 Pin -4cc 10.7 CR Set of 8
Mahle Motorsport | SKU:
DGJH-930223205
Sale price
$64099
Regular price
$81234
Unit price
/
Unavailable
$171.35 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

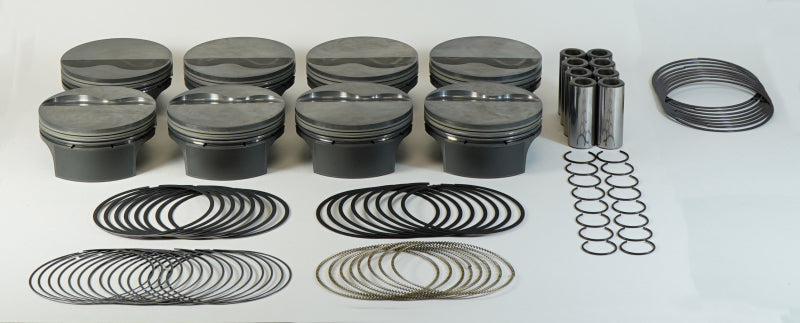

Mahle Motorsport 930223205 - Mahle MS Piston Set GM LS 403ci 4.005in Bore 4in Stk 6.125in Rod .927 Pin -4cc 10.7 CR Set of 8
4.005bore,4.000stroke,6.125rod,1.105Rc/h,0.927pin,-4ccvol,416g,10.7c/r,4032 1mm,
LS 6.0L & 6.2L FLAT TOP - compatable with LS3 / L92 style rectangular port heads 403cid 4.005 x 1.105CH, 4.000stroke,6.125rod,0.927pin,-4.3cc,404g,11.0CR, 4032.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal
Crown Vol: -4.3cc
Package Qty: Sold as a set of 8
Pin Diameter: 0.927
Pin Length: 2.287
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 404g
Piston Material: Forged, 4032
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm

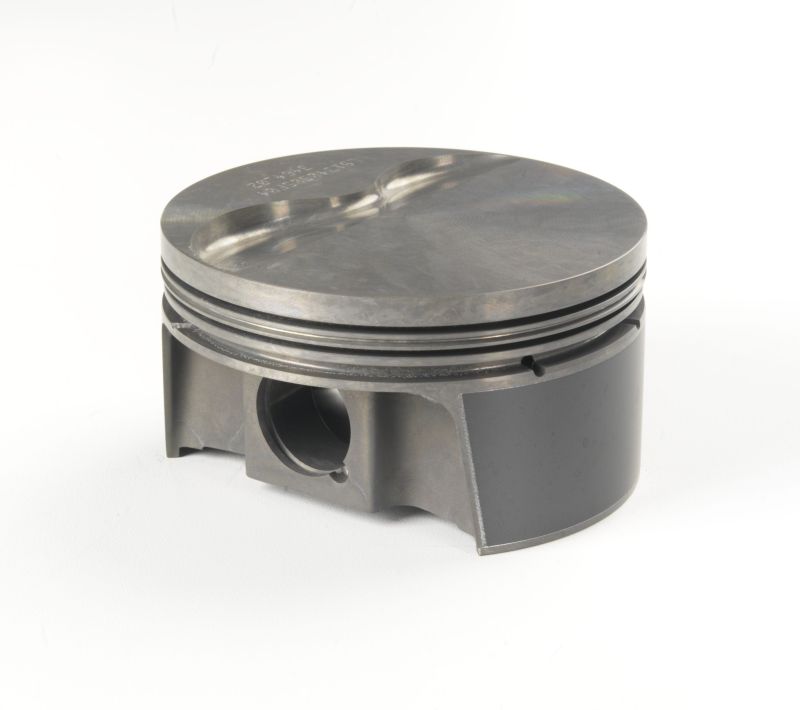

Piston Style: Flattop, w/ 2 valve reliefs
Rings Included: Yes
