JE Pistons S100S8-4155-5 - Ring Sets 1/16-1/16-3/16 ECONO

JE Pistons  |  SKU: BHXG-S100S8-4155-5
$13299 $14629

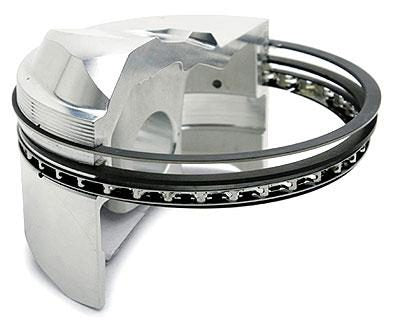

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

JE Pistons S100S8-4155-5 - Ring Sets 1/16-1/16-3/16 ECONO

Piston Rings - Sportsman Series - 4.155 in Bore - File Fit - 1/16 x 1/16 x 3/16 in Thick - Standard Tension - Ductile Iron - Plasma Moly - 8-Cylinder - Kit

Piston Ring Set, 8 Cyl., File Fit, 0.064 in. Ductile Iron Plasmy Moly Top Ring, 0.064 in. Iron Phosphate Second Ring, 0.188 in. Carbon Steel Chrome Standard Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Ductile iron plasma-moly inlay top ring
  • Premium iron taper faced 2nd and standard tenion oil ring
Bore Diameter: 4.155
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 1/16
Top Ring Radial Width: 0.195
Top Compression Ring Thickness: 0.0640
Top Ring Facing Material: Plasma Moly
Top Ring Material: Ductile Iron
Top Ring Shape: Barrel Face, D-wall, Torsional
Second Ring Axial Height: 1/16
Second Ring Radial Width: 0.195
Second Compression Ring Thickness: 0.0640
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Shape: Taper Face, D-wall, Reverse Torsional
Oil Ring Axial Height: 3/16
Oil Ring Radial Width: 0.187
Oil Ring Thickness: 0.188
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: Full Seal, Flex Vent
Ring Set Thickness: 0.0640 in. Top x 0.0640 in. 2nd x 0.188 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Category Hierarchy: Auto>Accessories>Rings
Out of Stock Message: Call for Availability
Title - Web: Piston Ring Set - 4.155 in. Bore - 0.0640 in. Top / 0.0640 in. 2nd / 0.188 in. Oil - 8 Cyl.
Bore Diameter - Web: 4.155 IN / 105.54 MM
Engine Type: ICE
EBAY Category ID: 33623
