JE Pistons 311903 - LS7 FT 6077 OEM ROD Set of 8 Pistons

JE Pistons  |  SKU: BHXG-311903
Sale price $94999 Regular price $1,04499

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

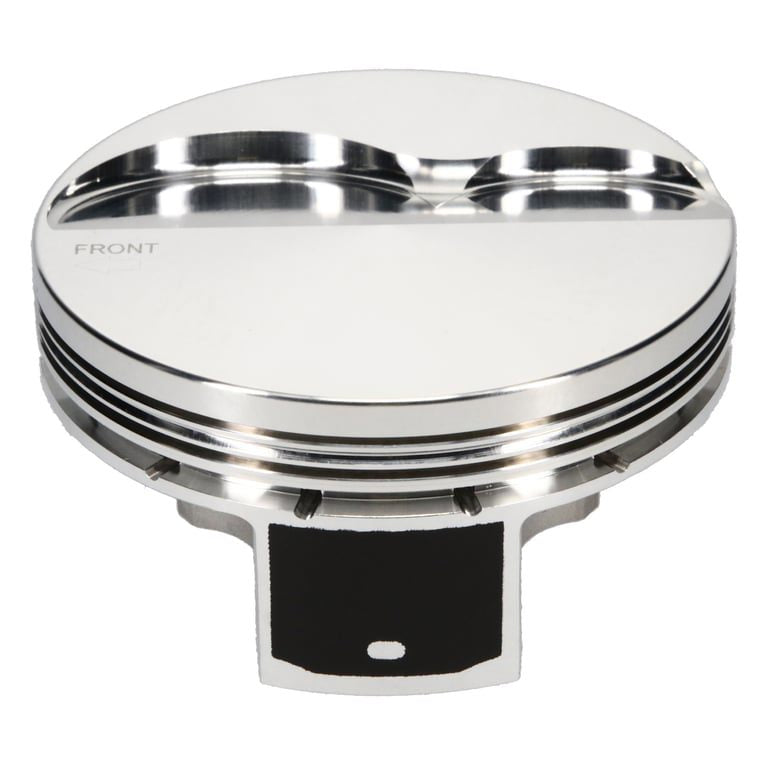

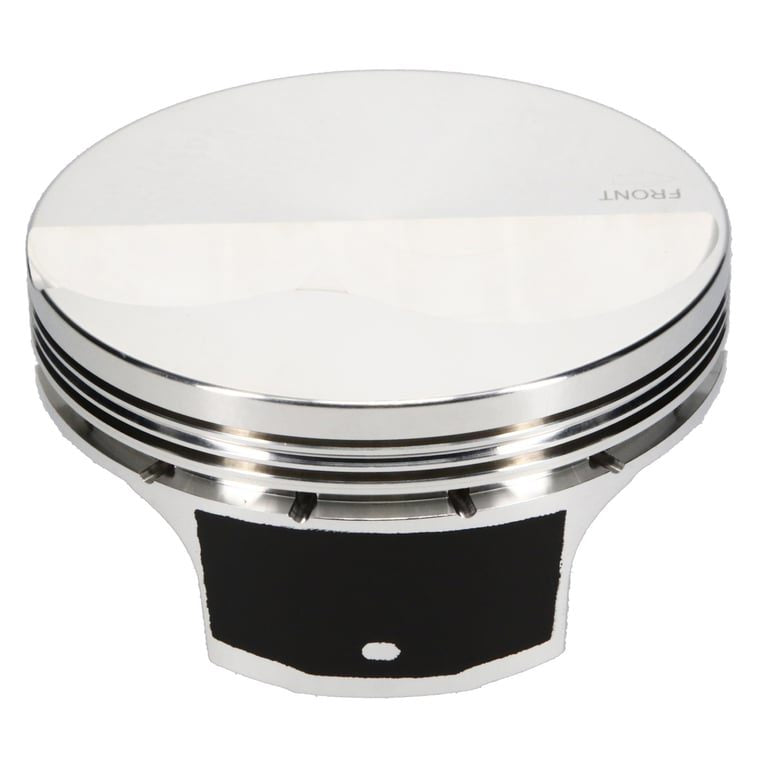

JE Pistons 311903 - LS7 FT 6077 OEM ROD Set of 8 Pistons

Piston Set, 2618, Flat Top, 4.128 Bore, 1.163 CD, 0.927 Pin, Set of 8.

4.1275 in. Bore - 1.163 CD - (-2.00 cc) - Flat Top - 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Product Market: Domestic
Add-On: JG31F8-4125-2
Engine: LS7
Engine - Web: LS7
Make: Chevrolet
Make - Web: Chevrolet
Industry: Automotive
Category Hierarchy: Auto>All Piston Kits
Title - Web: JE Pistons GM LS7 Flat Top FSR Piston Kit
Bore Diameter - Web: 4.1275 IN
Engine Type: ICE
EBAY Category ID: 33623
Out of Stock Message: Please Allow Approx. 6-8 Weeks or Less for Shipping
Piston Series: JE Pistons
Cylinder Head: GM LS7 / LSX 12 DEG
Bore Diameter: 4.1275
Piston Head Type: Flat
Compression Height: 1.163
Piston Volume: -2.00
Piston Material: 2618
Piston Quantity: 8
Forging Type: FSR
Piston Average Weight: 432
Ring Set Included: No
Top Compression Ring Thickness: 0.0480
Second Compression Ring Thickness: 0.0600
Oil Ring Thickness: 0.1175
Wrist Pin Included: Yes
Wrist Pin Part Number: 927-2250-15-51C
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.150
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: 927-073-MW
Engine Displacement: 428
Engine Stroke: 4.000
Connecting Rod Length: 6.077
Deck Height: 9.240
Ring Set Thickness: 1.20 MM x 1.50 MM x 3.00 MM
Oversized: Yes
Ring Set - Recommended: JG31F8-4125-2
OEM Bore Diameter: 4.125
Piston Sub-Series: LS7 Flat Top
Pro Seal Head Gasket: GM1021-051
Engine Family: LS
Compression Ratio: 11.70:1 / 70.00 CC Head
Oversized Amount: 0.003
Product Type: Engine Piston Kit
