Hella 009071081 - Micro DE Premium Halogen H7 Low Beam 12V SAE Lo Headlamp w/ Bulb and Stone Shield

Hella  |  SKU: HLA-009071081
$17799 $22946

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

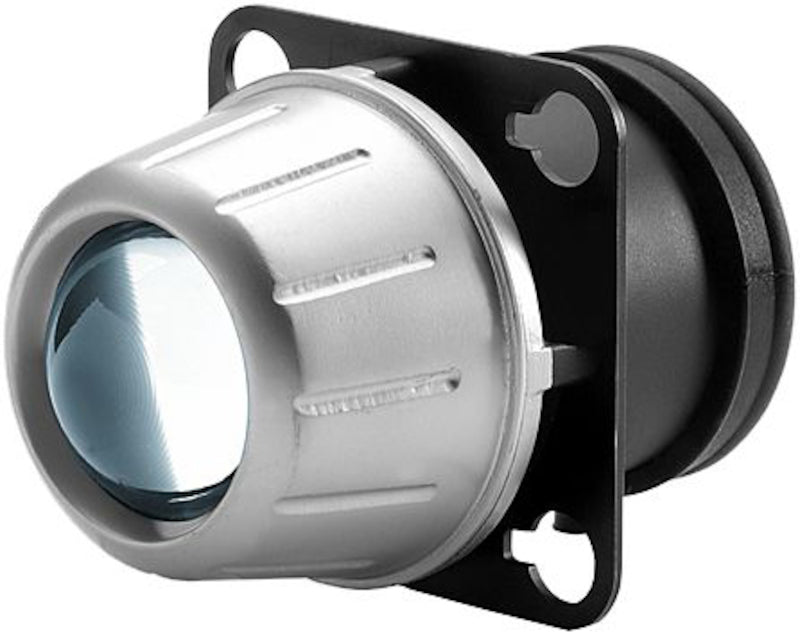

Hella 009071081 - Micro DE Premium Halogen H7 Low Beam 12V SAE Lo Headlamp w/ Bulb and Stone Shield

HELLA Headlight Assembly 009071081

Headlight Assembly

This headlamp series has been developed to provide top levels of light output with compact dimensions. A solution for a practical assembly was also important as was a distinctive appearance. We use lens systems in the low beam headlamp and fog lamp. The low beam has a pattern-free lens, while the fog lamp has the familiar structure of the Micro DE headlamp. The low beam and the fog lamp are realised in halogen design.

  • Compact Modular 50mm System Design
  • Includes 3 Point Mounting Frame
  • Adjustable From The Front And Rear Of The Lamp
  • Modular Fog Lamp Also Available
Light Function: with Low Beam
Light Functions: 1
Number of light functions: 1
Protection Type (IP Code): IP5KX
Test Mark: SAE
Registration Type: SAE Approved
Plug Type: Blade Terminal
Shape: Round
Housing Color: Black
Illuminated Area (mm): 50
Illuminated Area (in): 1.97
Connector type: Blade Termils
Lens Color: Transparent
Supplementary Article/Supplementary Info: with Bulb
Assy/Disassy by Qualified Personnel Required!: .
Lighting Compliance: SAE
Headlight Type: Assembly
Bulb Color: White
Bulbs Included: Yes
Bulb Type: H7
Mounting Hardware Included: No
Bulb Technology: Halogen
Depth: 129.00
Housing Color: Black
Lens Color: Transparent
Shape: Round
Voltage: 12.00
IP Rating: IP5KX/IPX4K/IPX9K
Bulb Type: H7
Illuminated Area: 50 mm
Mounting Type: Fitting
Plug: Blade Terminal
Street Legal: Yes
Fastening Type: Three-Point Mounting
Lamp Type: H7
Light Design: Halogen
Voltage (V): 12
Fitting Position: Right
Width (mm): 134
Width (in): 5.28
Height (in): 3.15
Height (mm): 80
Depth (mm): 129
Depth (in): 5.08
