Edelbrock 5089 - Cylinder Head E-Street SB Chevrolet 64cc (Complete Pair)

Edelbrock  |  SKU: EDEL-5089
$1,29399 $1,42339

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

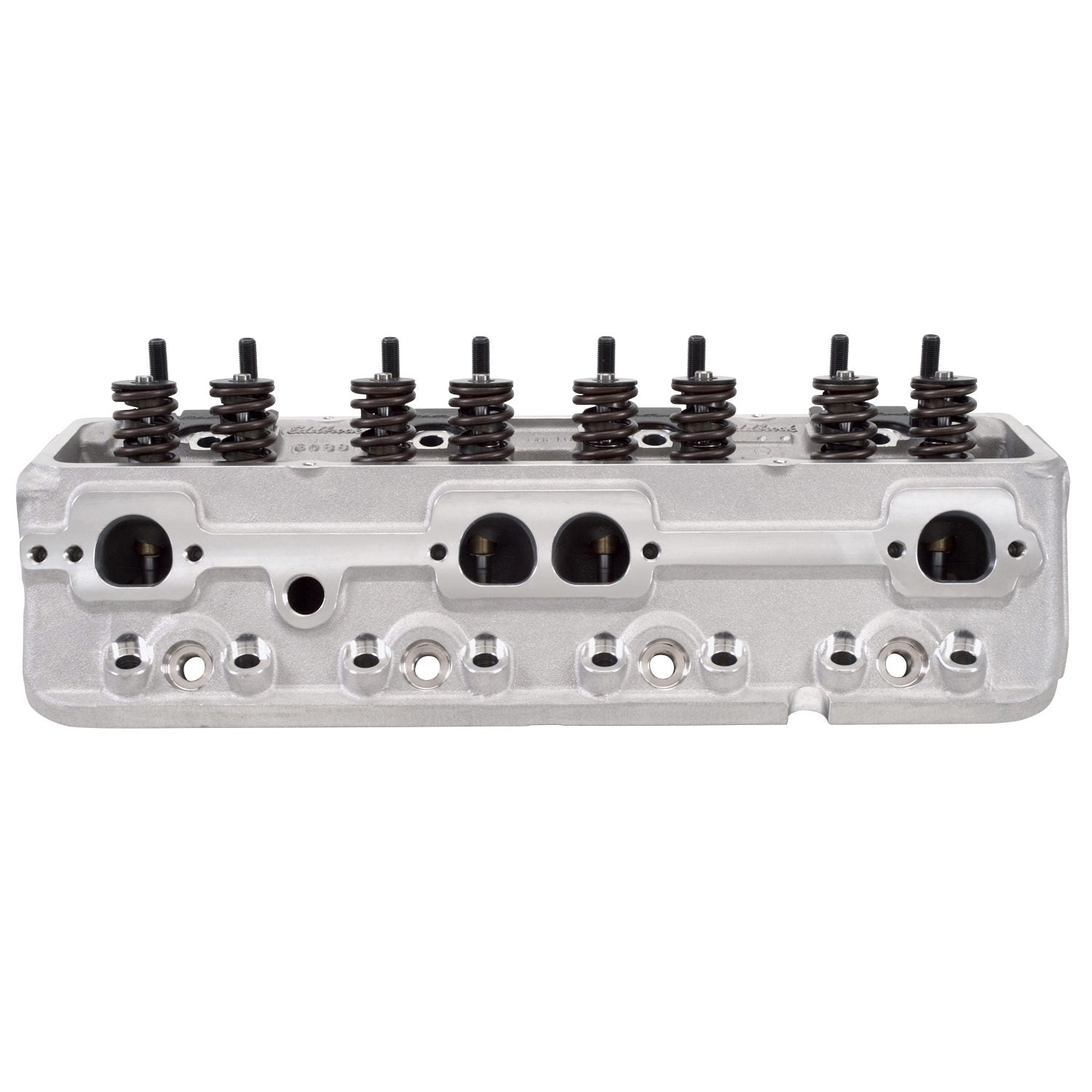

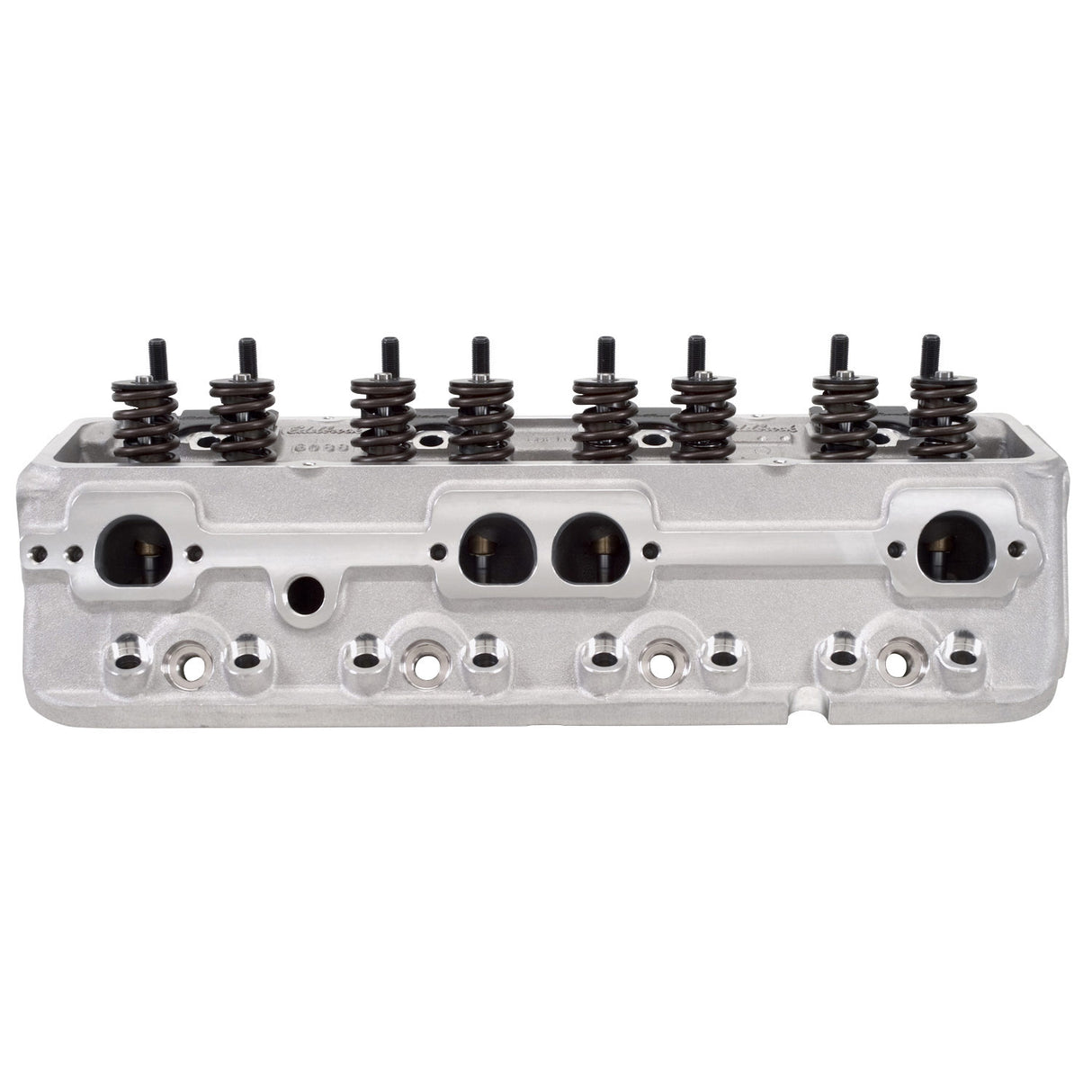

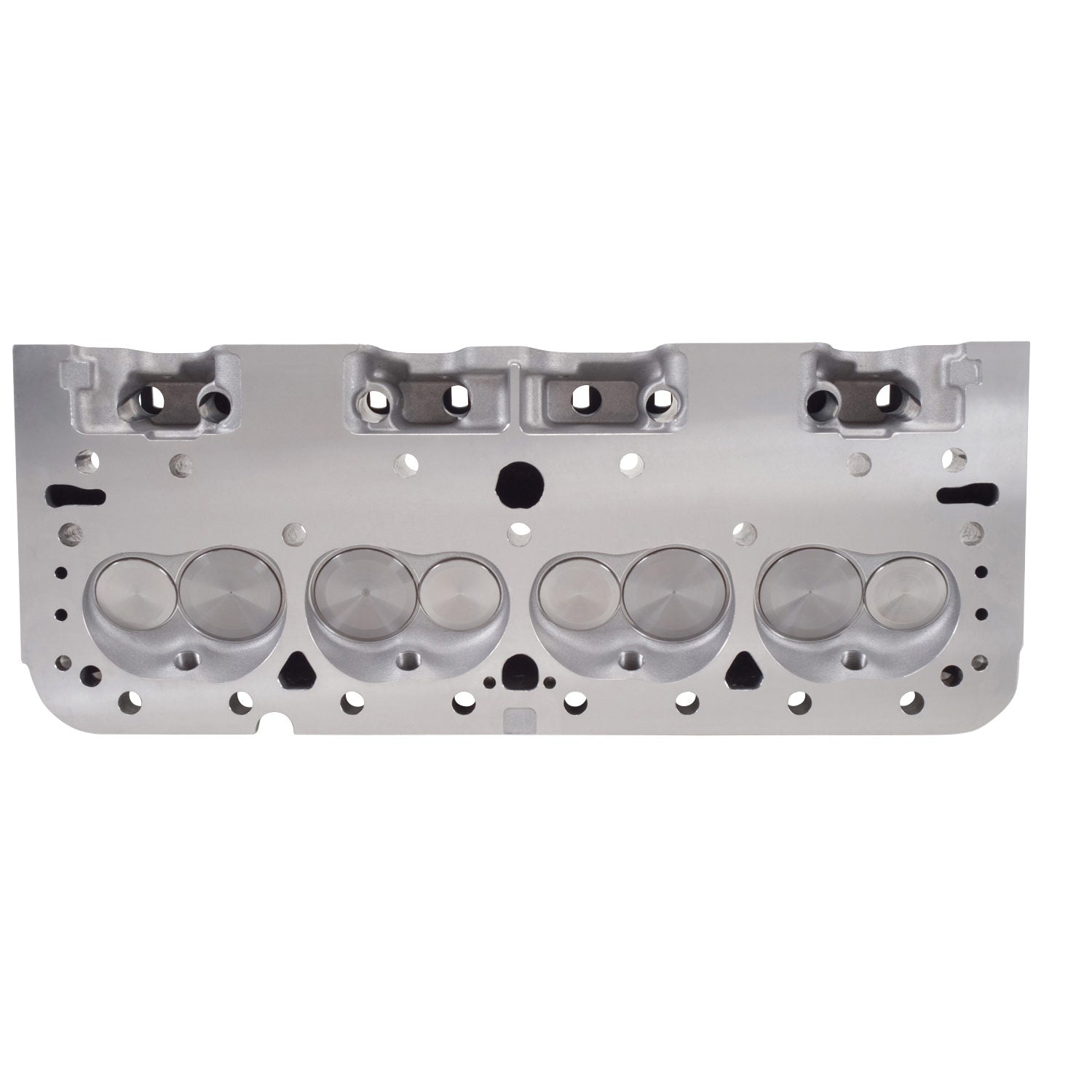

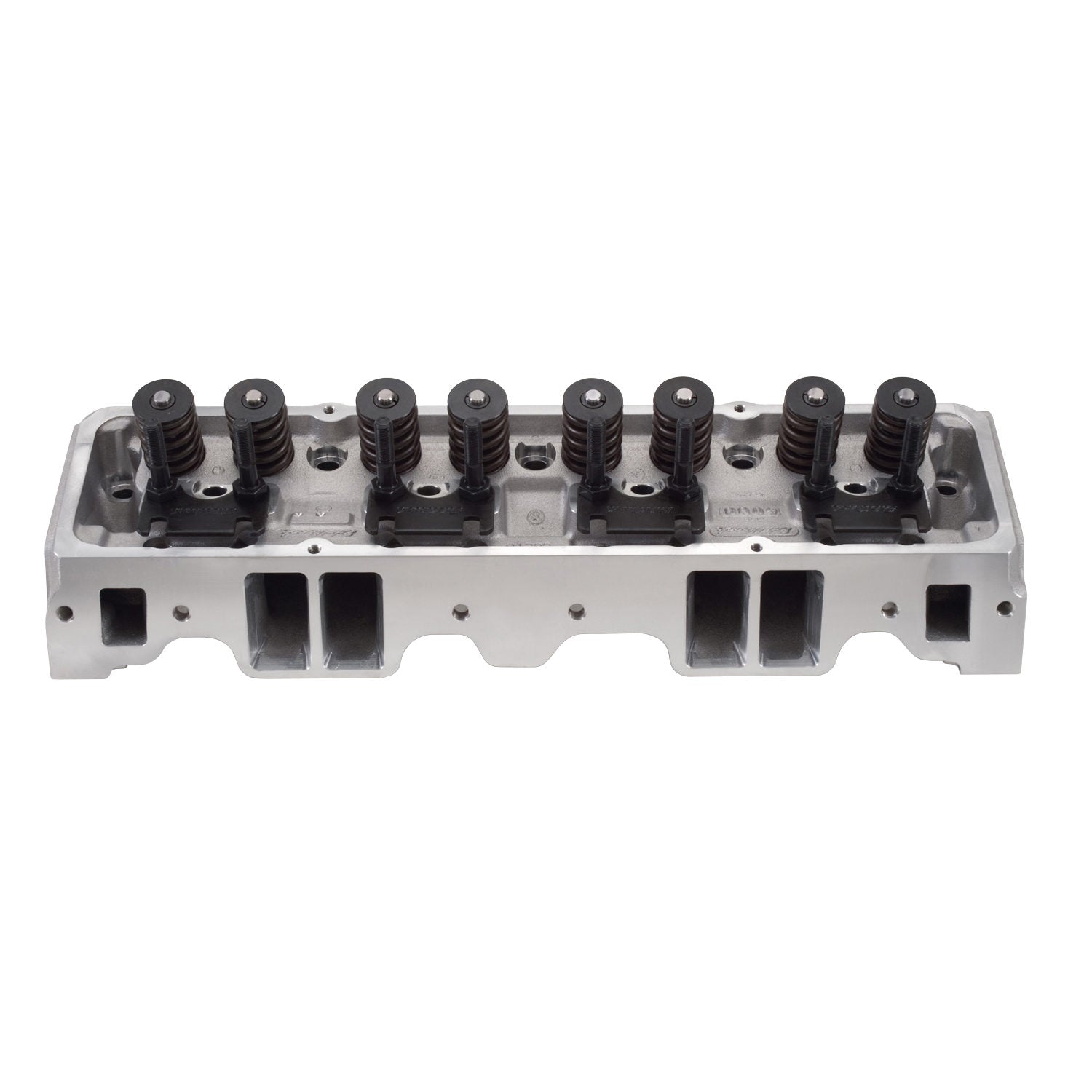

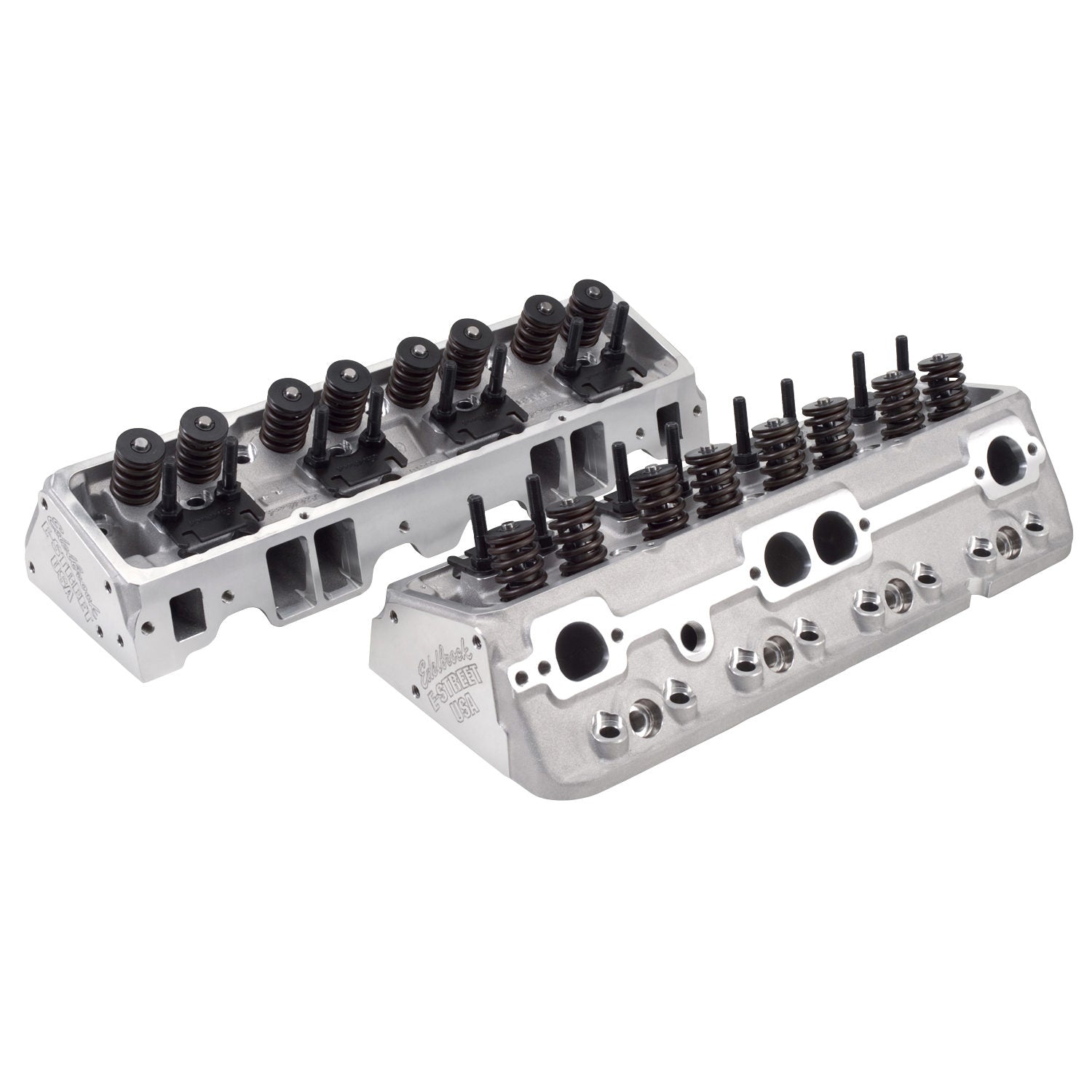

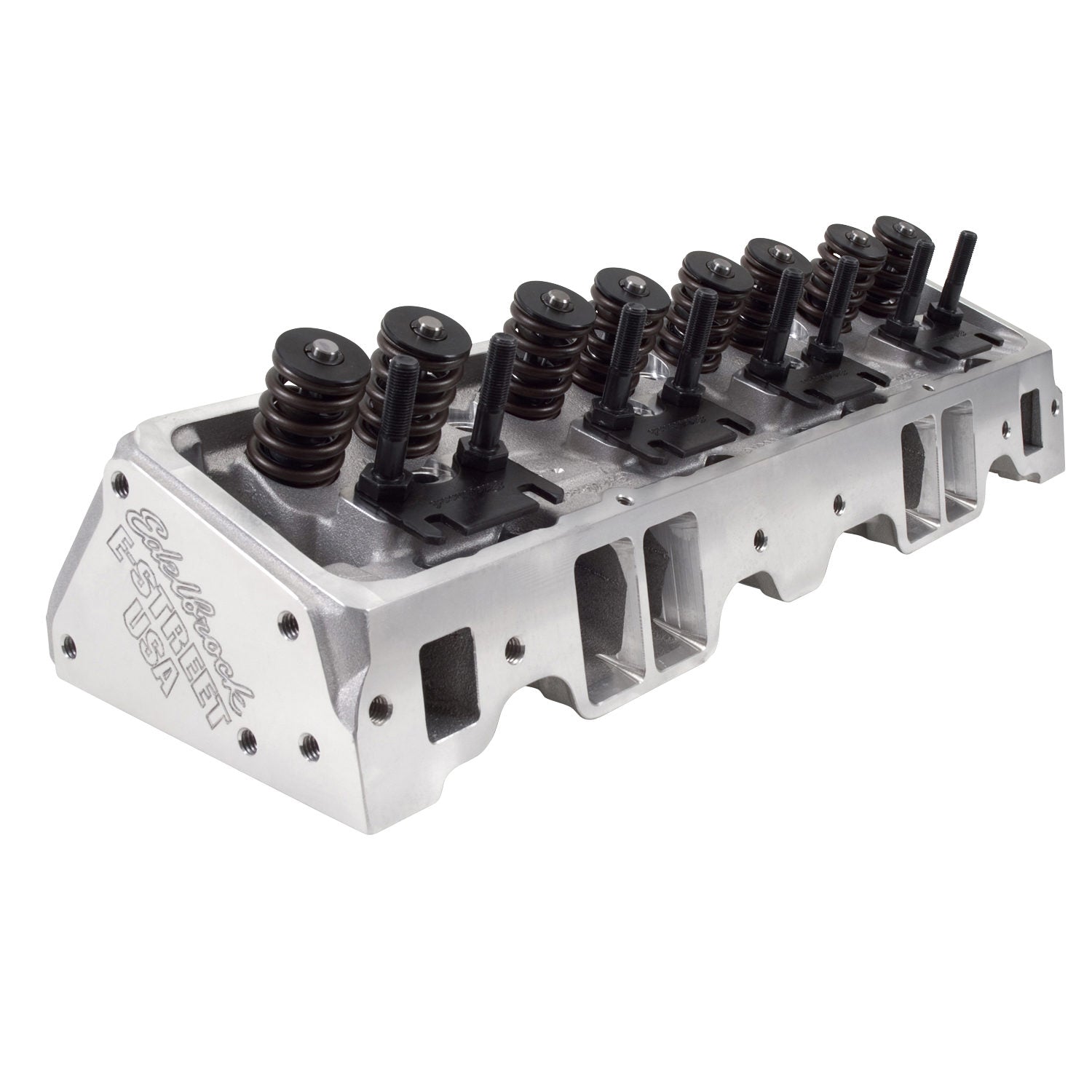

Edelbrock 5089 - Cylinder Head E-Street SB Chevrolet 64cc (Complete Pair)

Cylinder Head - E-Street - Assembled - 2.020 / 1.600 in Valves - 185 cc Intake - 64 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - Small Block Chevy - Pair

The Edelbrock #5089 E-Street cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

  • Entry Level Street Performance Upgrade
  • A356 Aluminum
  • Sold As A Pair
  • Edelbrock Quality And Performance
  • Affordable Price
  • Made In U.S.A.
Seat Material: Ductile Iron
Guide Material: Manganese Bronze
Quantity: Set of 2
Deck Thickness: 0.5625
Seat Angle: Exhaust 45 deg/Intake 45
Valve Stem Diameter: 0.3438
Push Rod Diameter: (Suggested) 0.3125
Rocker Arm Stud Diameter: 0.375
Exhaust Runner Volume: 60
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Exhaust Valve Diameter: 1.60
EGR Port: No
CNC Ported: No
Horsepower: 300-400
Construction Type: Complete
Valve Spring Maximum Lift: 0.550
Exhaust Port Location: Standard
Family: E-Street
Camshaft Type: Flat Tappet
Rotor Center Bore Inside Diameter: Straight
Valve Spring Diameter: 1.46
Series: E-Street
Retainer Included: Yes
Intake Valve Diameter: 2.02
Valve Angle: 23
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: Yes
Mounting Hardware Included: No
Material: Aluminum
Intake Runner Volume: 185
Head Casting Number: 5086P
Guide Plates Included: Yes
Guide Plate Material: Chromoly Steel
Grade Type: Performance
Deck Height: 9.025
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 64
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Guide Plate Material: Hardened Steel
