Eagle CRS63853D - Chevrolet Big Block H-Beam Connecting Rods (Set of 8)
Eagle | SKU:
CFQW-CRS63853D
Sale price
$60099
Regular price
$66099
Unit price
/
Unavailable
$60.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

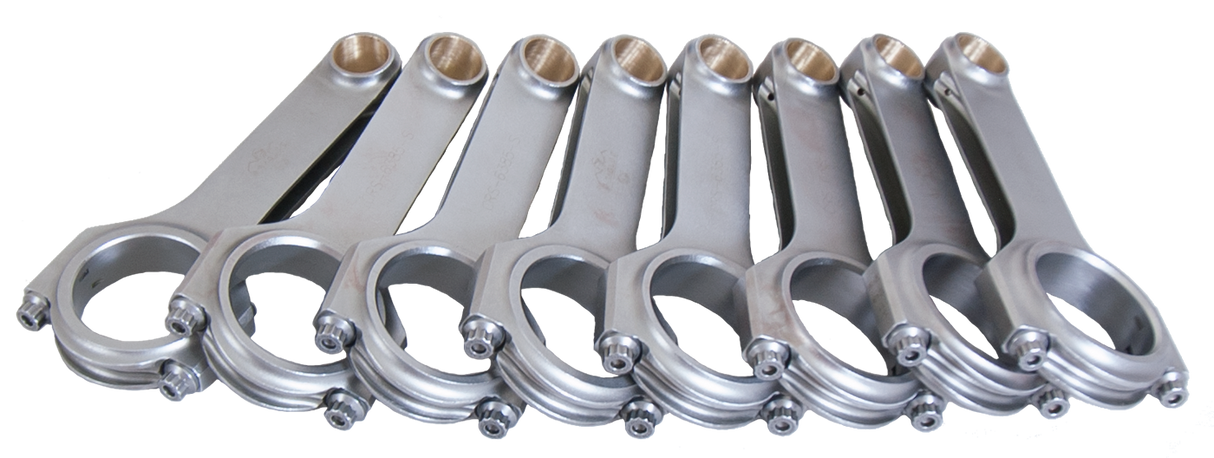

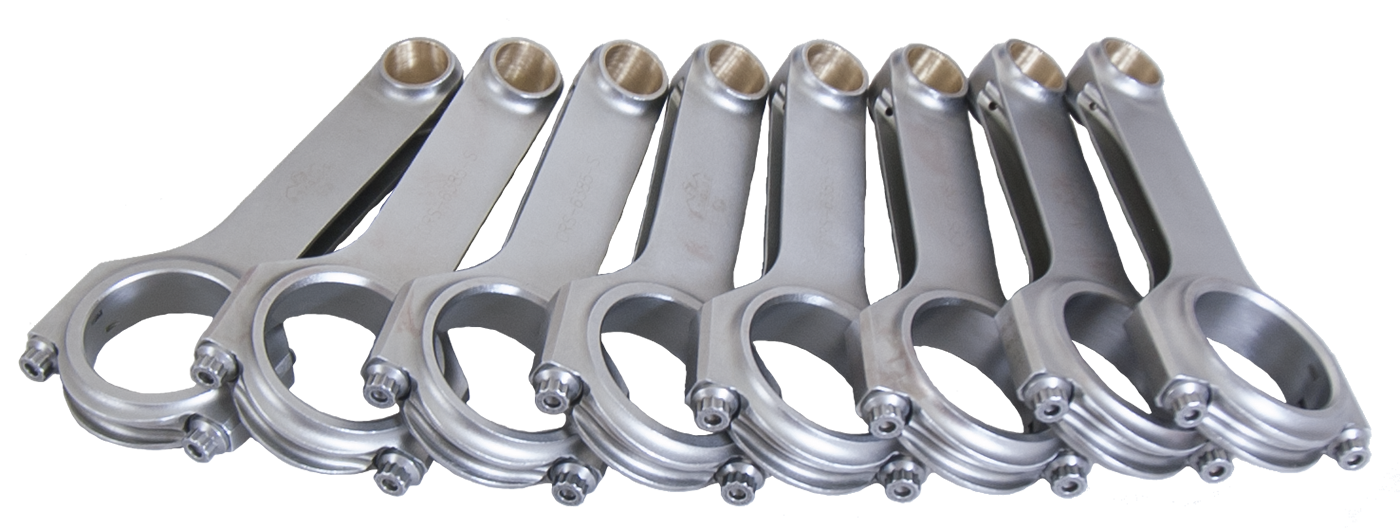

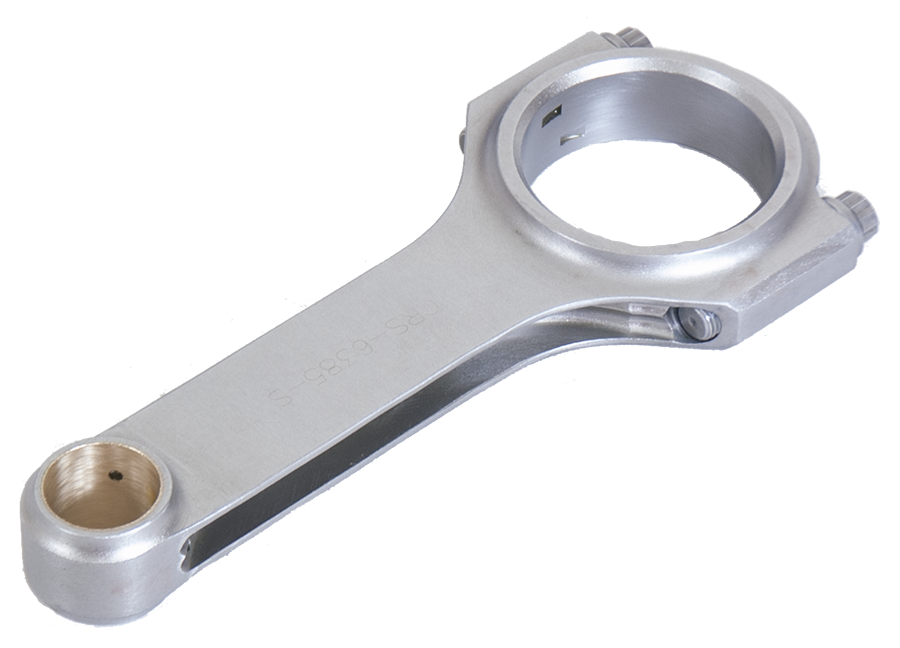

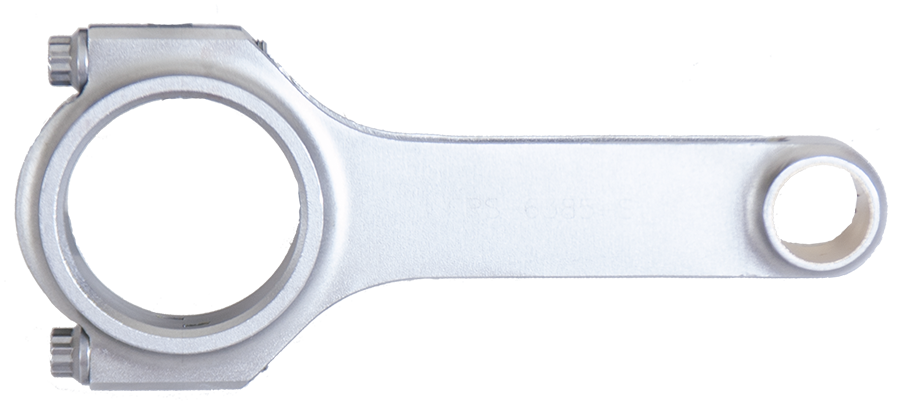

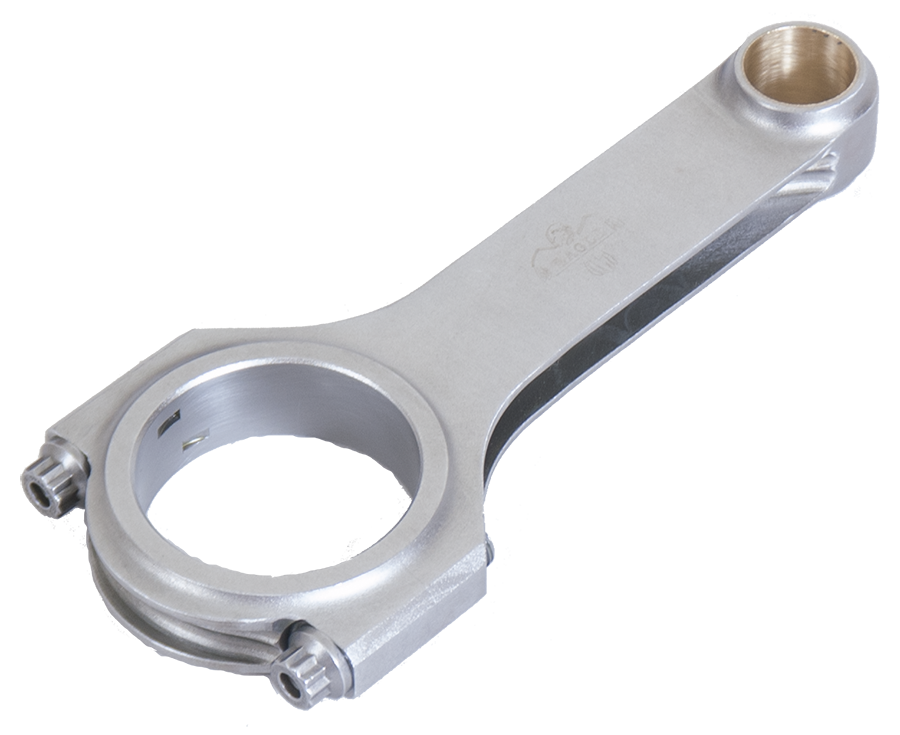

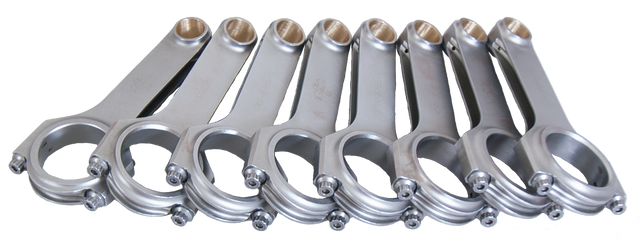

Eagle CRS63853D - Chevrolet Big Block H-Beam Connecting Rods (Set of 8)
Connecting Rod - H Beam - 6.385 in Long - Bushed - 7/16 in Cap Screws - 8740 Bolt - Forged - Steel - Big Block Chevy - Set of 8
Forged 4340 Steel H-Beam Rods - CHEVROLET BIG BLOCK, 6.385" LENGTH.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
Big End Width: 0.99 in
Bolts: 7/16 in ARP 8740
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.385 in
Housing Bore: 2.325 in
Length Center Bore To Center Bore: 6.385
Material: Forged 4340 Steel
Pin End Width: 1.125 in
Pin Size: 0.99 in
Rod Journal: 2.2 in.
