Eagle CRS5400S3D20-1 - ESP 4340 ROD SBF 5.400 in 2.123
4340 Rod SBF 5.400" 2.123

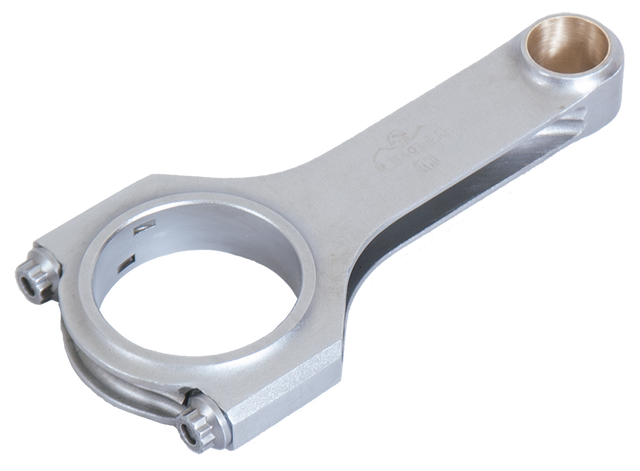

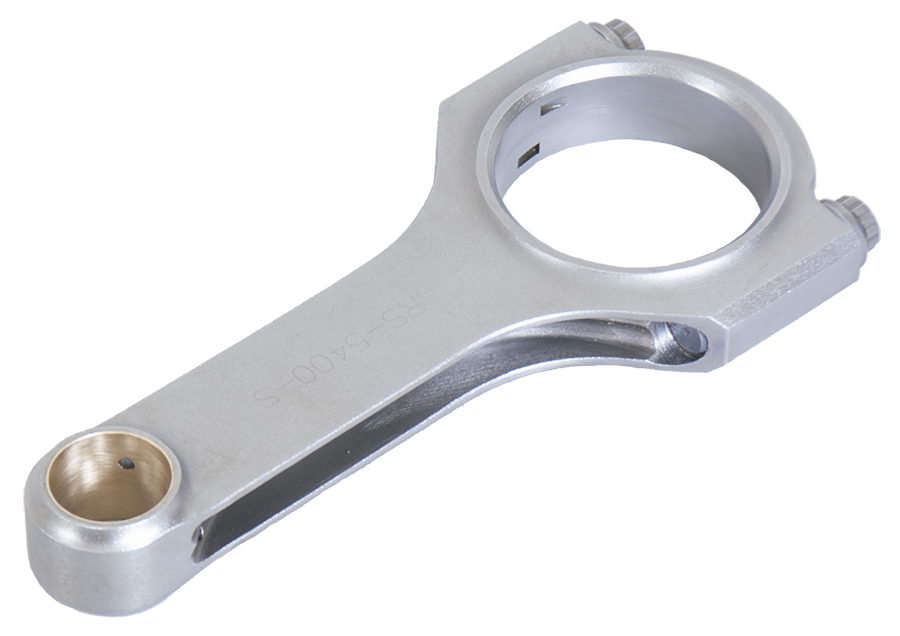

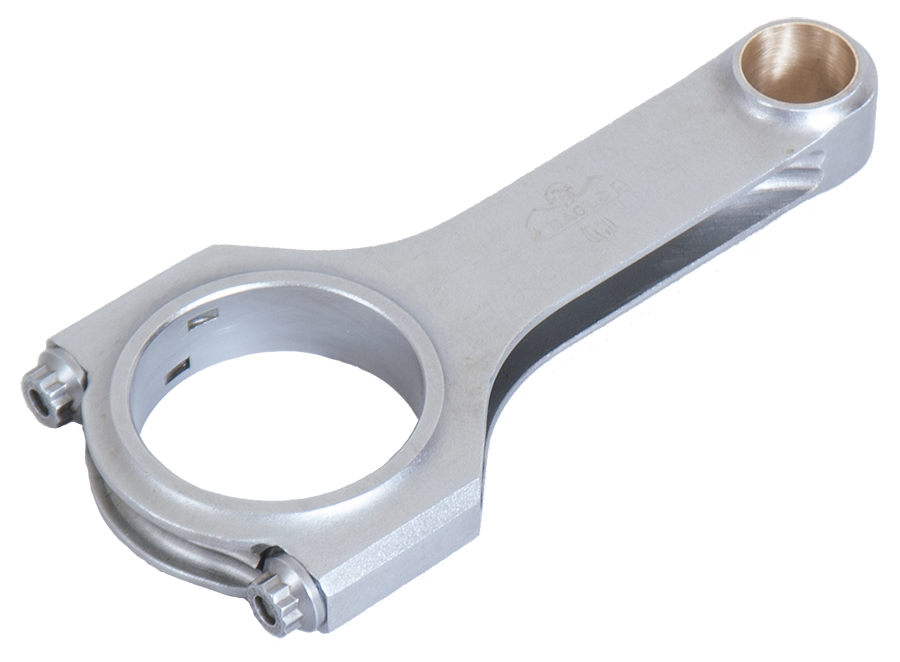

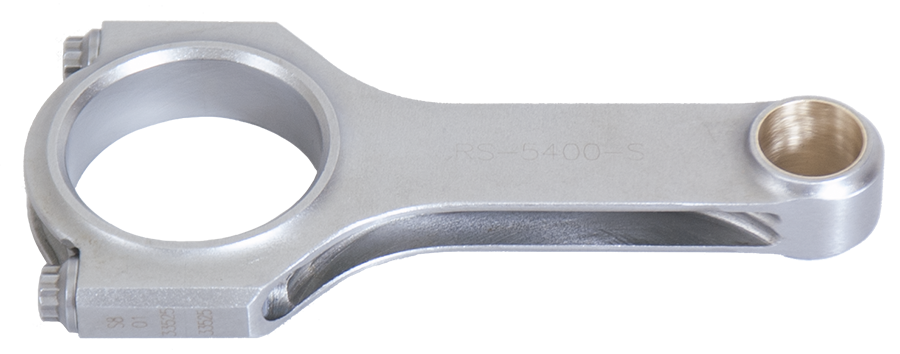

Forged 4340 Steel H-Beam Rod - Ford 302 STROKER, 3.400" LENGTH, .927" PIN, ARP 2000 BOLTS.
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Specify weight required when ordering. Recommended for competition use.
Big End Width: 0.8315 in
Bolts: 7/16 in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 5.400 in
Housing Bore: 2.2394 in
Length Center Bore To Center Bore: 5.4
Material: Forged 4340 Steel
Pin End Width: 1.06 in
Pin Size: 0.927 in
Rod Journal: 2.123 in
