Eagle B11011060 - Chevrolet 427/454 Balanced Competition Rotating Assembly Kit
Eagle | SKU:
CFQW-B11011060
Sale price
$2,75599
Regular price
$3,05799
Unit price
/
Unavailable
$302.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

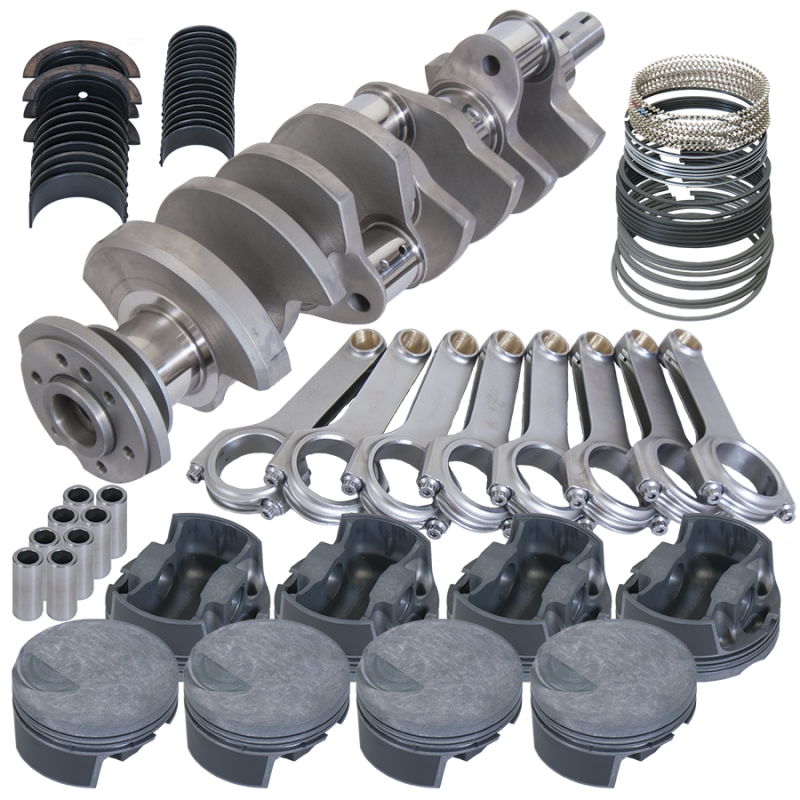

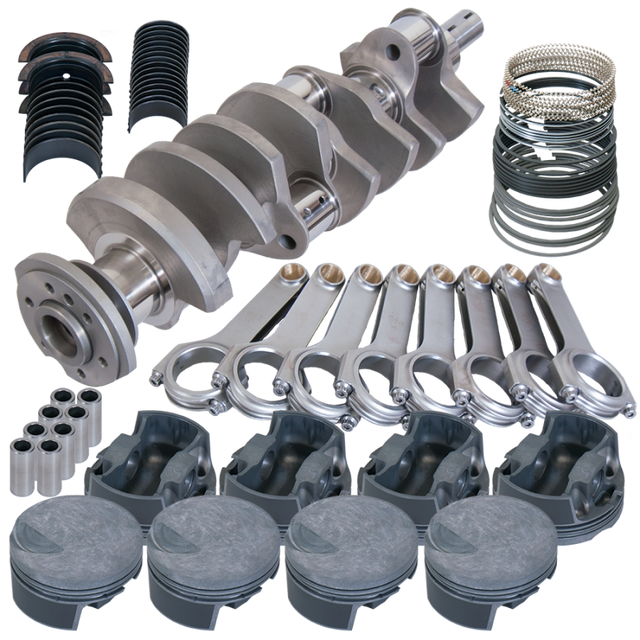

Eagle B11011060 - Chevrolet 427/454 Balanced Competition Rotating Assembly Kit
Rotating Assembly - 496 CID - Forged Crank - Forged Pistons - 4.250 in Stroke - 4.310 in Bore - 6.385 in Long H-Beam Rods - Big Block Chevy - Kit
BALANCED 4.250" Forged 4340 Crank,6.385" H-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 4032 MAHLE -3CC FLAT TOP 4.310" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING XP Rod/MAIN BEARINGS.
Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.
Assembly Balanced: Yes
Assembly Type: Balanced Competition Assembly
Balance Type: internal
Bore: 4.31
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 6.385 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: Yes
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 2.749 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.200 in
Crankshaft Stroke: 4.250 in
Cylinder Bore Diameter: 4.310 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: hardened, narrowed or chamfered
Main Bearings Included: Yes
Oil Rail Support Included: Yes
Piston Brand: Mahle
Piston Face Type: flat top
Piston Flat Top Volume: -3cc
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .990 in
Piston Pin Type: Full Floating
Piston Ring Gap: file fit
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Type: Flat Top Forged
Product Line: Competition
Rod Bearing Type: hardened, narrowed or chamfered
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
