Eagle 434641256100 - Chevy LS1 24 Tooth Reluctor 4140 Chromoly Forged Crankhaft
Eagle | SKU:
CFQW-434641256100
Sale price
$94799
Regular price
$1,09399
Unit price
/
Unavailable
$146.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

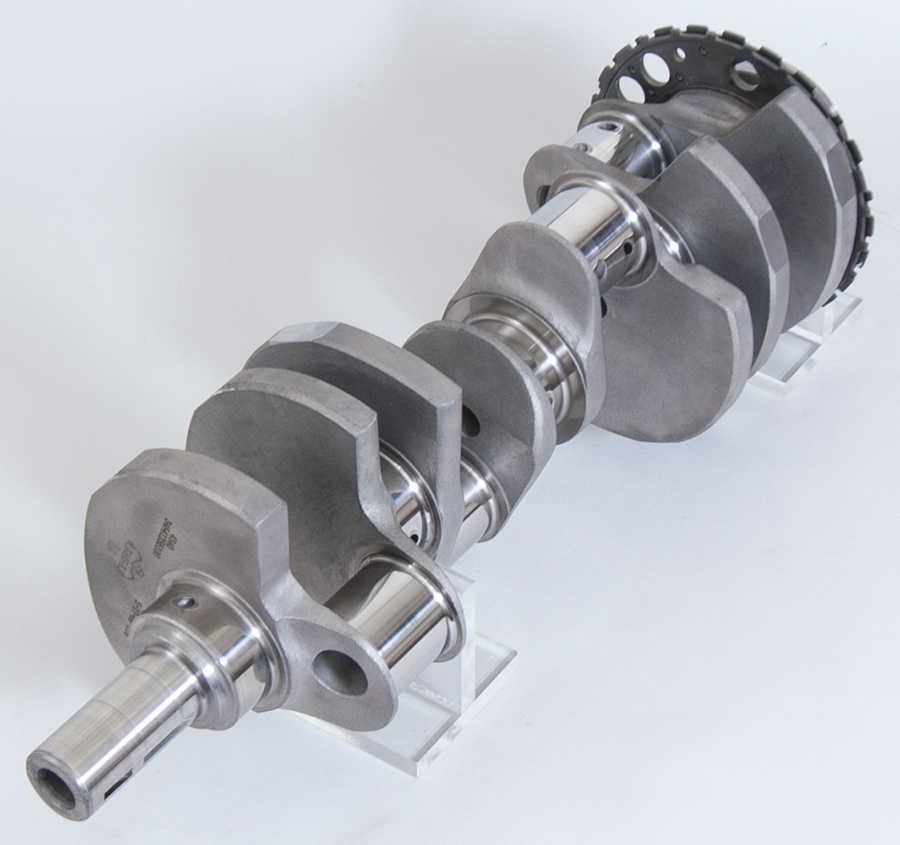

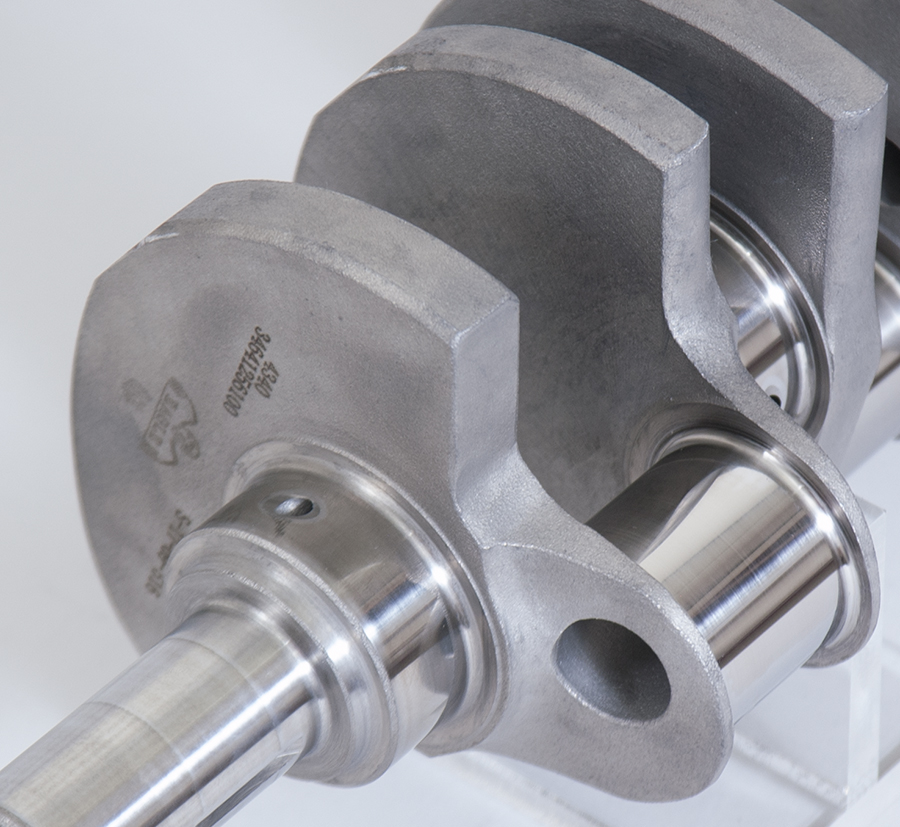

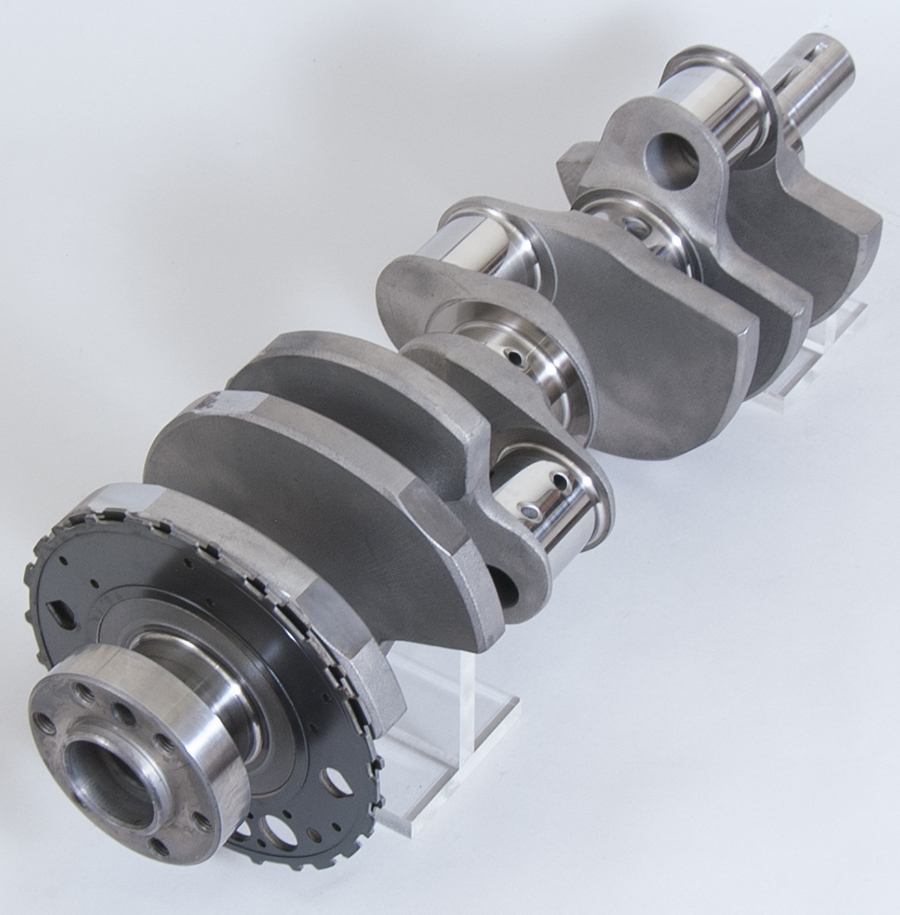

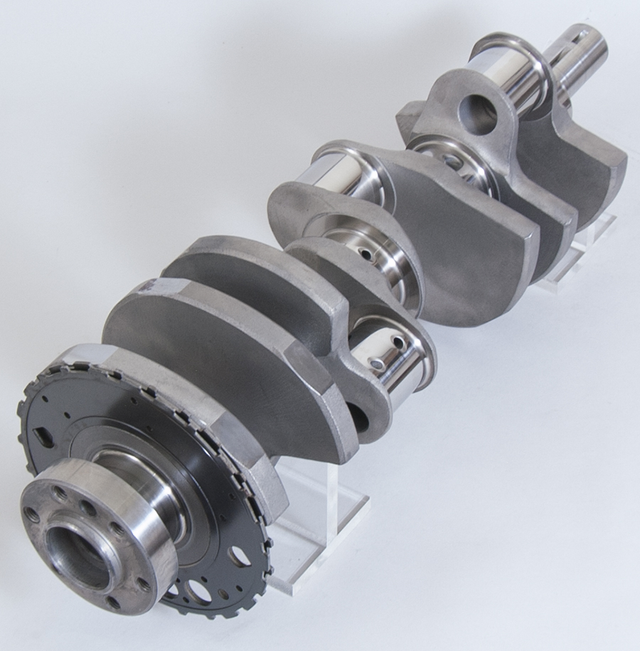

Eagle 434641256100 - Chevy LS1 24 Tooth Reluctor 4140 Chromoly Forged Crankhaft
4340 CRANK CHEVY LS1 24T 4.125" STROKE
Forged 4340 Steel Crank - Chevrolet LS, 4.125" Stroke, 24 TOOTH RELUCTOR.

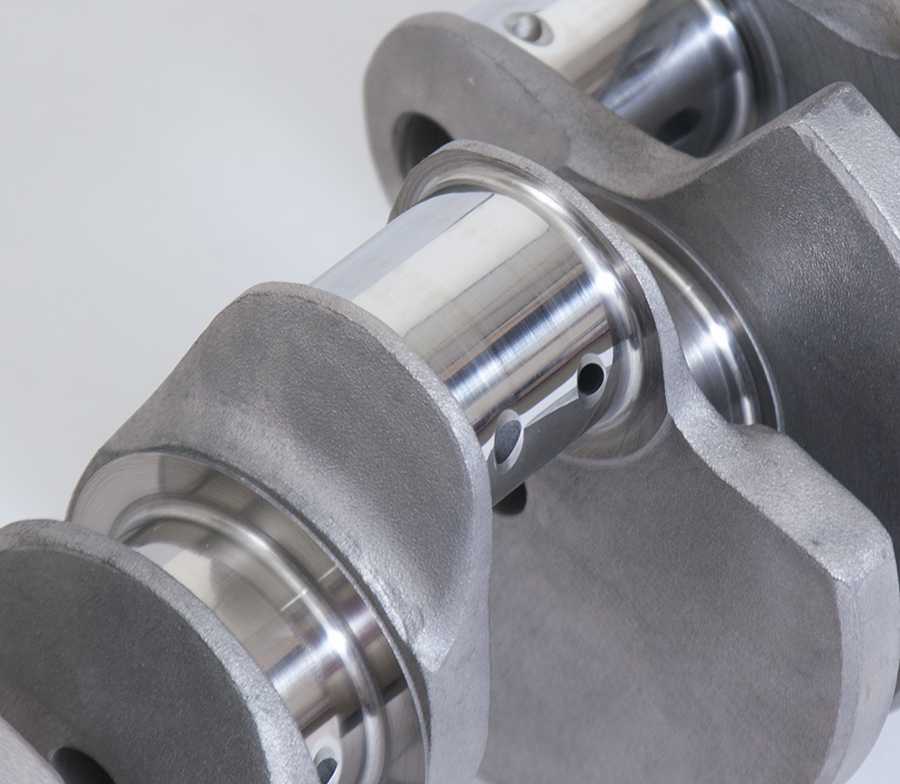

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 24 tooth reluctor.
Balance Type: Internal
Crankshaft Stroke: 4.125 in
Engine Stroke: 4.125
Flywheel Bolt Count: 6
Flywheel Register Diameter: call
Intended Balance: internal
Main Journal: 2.559 in
Material: Forged 4340 Steel
Minimum Rod Length: 6.125 in
Pilot Bore Diameter: call
Rear Seal Diameter: call
Rod Journal Diameter: 2.1
Rod Journal Width: 1.900 in
Rod Journal: 2.1 in.
Snout Diameter: 1.48 in
Target Bobweight: 1800g
