Eagle 14003030 - Ford Small Block 289/302 Competition Rotating Assembly Kit

Eagle  |  SKU: CFQW-14003030
$2,41499 $2,67599
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

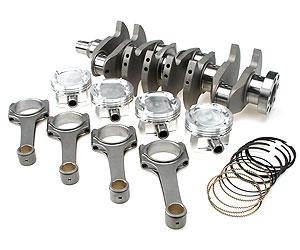

Eagle 14003030 - Ford Small Block 289/302 Competition Rotating Assembly Kit

Rotating Assembly - 347 CID - Forged Crank - Forged Pistons - 3.400 in Stroke - 4.030 in Bore - 5.400 in H Beam Rods - Small Block Ford - Kit

Competition Assembly,3.400" forged 4340 crank,5.400" H-Beam rods,7/16" ARP 8740 bolts,forged 4032 Mahle -6cc flat top 4.030" pistons,plasma-moly file fit rings,King XP rod/main bearings.

Eagle Competition Rotating Assemblies are the perfect choice for your racing engine. Eagle takes great care to select the best parts to makimize performance, reliability, and durability without breaking the bank. Eagle competition assemblies are recommended for use in racing engines including exotic fuels, nitrous, and forced-induction.

Crankshaft Main Journal Diameter: 2.249 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.123 in
Crankshaft Stroke: 3.400 in
Cylinder Bore Diameter: 4.030 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: hardened, chamfered or narrowed
Main Bearings Included: Yes
Oil Rail Support Included: Yes
Piston Brand: Mahle
Piston Dome Volume: -6cc
Piston Face Type: flat top
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .927 in
Piston Pin Type: Full Floating
Piston Ring Gap: file fit
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Type: Flat Top Forged
Product Line: Competition
Rod Bearing Type: hardened, chamfered or narrowed
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
Assembly Balanced: No
Assembly Type: Competition Assembly
Balance Type: internal
Bore: 4.03
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 5.400 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
