DS18 X4 - Ultra Compact Class D 4 Channel Amplifier 1400 Watts

DS18 X4 - Ultra Compact Class D 4 Channel Amplifier 1400 Watts

Micro amps are a great power solution for an audio enthusiast that doesn't have alot of room to spare for big bulky amps. In this case, you want to maximize your size to power ratio so you can get as much power you can with as little space as possible.

DS18 now has the our newest micro amp, the X4. The X4 is about as large as a cell phone and packs a whopping punch.

This tiny amp pushes out 70w x 4 at 4ohm, 140w x 4 at 2ohm, and 220w x 2 at 4ohm bridged. Now you need to sacrifice very little space for multiple power options that can power most mids, highs, and tweeters.

Details:

• Model X4
• RMSPower at 2 Ohm 140W X 4 Ch
• RMSPower at 4 Ohm 70W X 4 Ch
• RMSPower at 4 Ohm Bridge 220W X 2 Ch
• Frequency Response 20-20Khz
• Signal/Noise Ratio >90Db

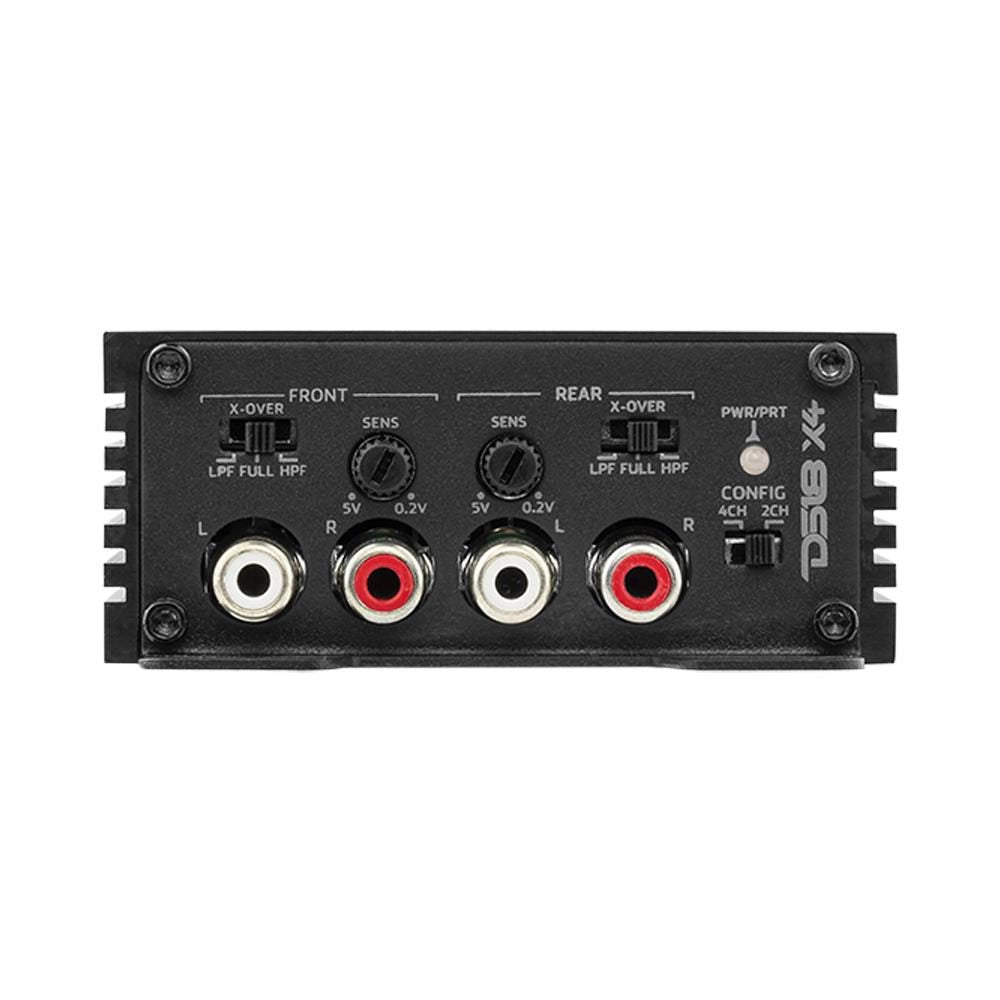

• Selectable X-Over Lpf/Flat/Hpf
• Fixed Lpf Frequency 80Hz
• Low Lever Input Range 0.2-5V
• Input Configaration 2Ch/4Ch
• Leds Indicate Working Status Power/Protection
• Dimensions 140.8 L X 82.4 W X 34H (Mm)
