COMP Cams 20-249-4 - Camshaft CRS 306S-10

Name: COMP Cams 20-249-4 - Camshaft CRS 306S-10
Brand: COMP Cams
SKU: COMP-20-249-4
Price: 328.99 USD
Availability: Backorder

COMP Cams | SKU: COMP-20-249-4

$328⁹⁹ $361⁸⁹

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

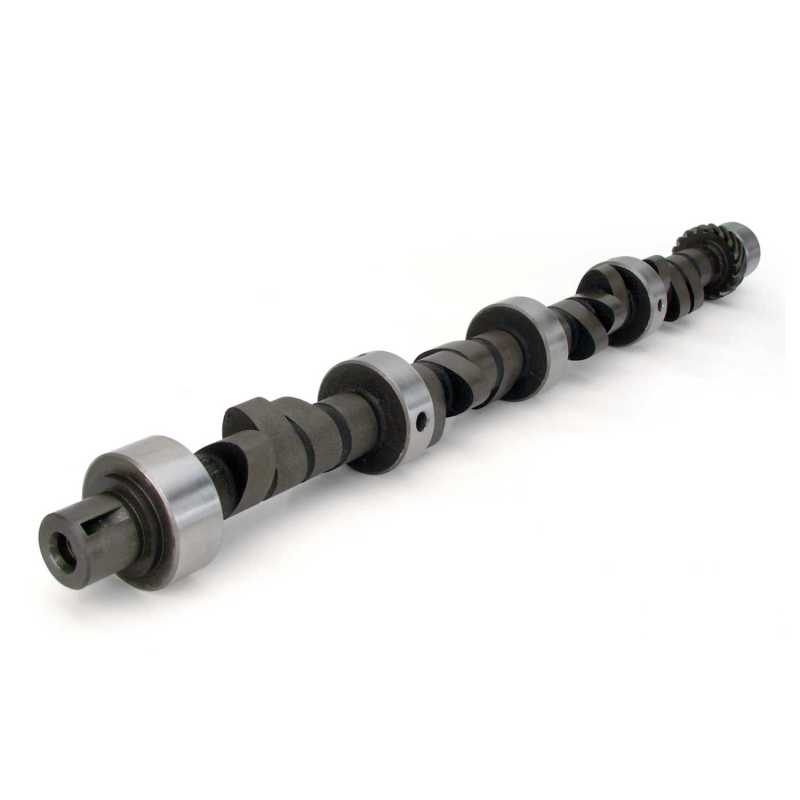

COMP Cams 20-249-4 - Camshaft CRS 306S-10

Magnum 260/260 Solid Flat Cam for Chrysler 273-360

Max effort bracket racing or Pro Street. 10:1-11:1 compression with 4000 to 4500 stall and 4.30-4.88 gear.

An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.

Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)

Cam and Lifter Kit Upgrade: CL20-249-4

K-Kit Upgrade: K20-249-4

Lifter Type: Solid Flat Tappet

SK-Kit Upgrade: SK20-249-4

Amazon ASIN: B000P59574

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?: No

C.A.R.B. Exemption Reason: N/A

C.A.R.B. E.O. Number: N/A

Grind Number: 306S

Camshaft Series: Magnum

Usage: Street/Strip

Cam Type: Solid Flat Tappet

Grind Number: 306S

Basic Operating RPM Range: 4,000-7000

Intake Duration at .050 Inch Lift: 260

Exhaust Duration at .050 inch Lift: 260

Advertised Intake Duration: 306

Advertised Exhaust Duration: 306

Lobe Separation: 110

Intake Valve Lift: 0.555

Exhaust Valve Lift: 0.555

Lifters Included: No

Valve Springs Required: Yes

Assembly Lubricant Included: Yes

Camshaft Gear Attachment: 1-Bolt

Camshaft Material: Cast Iron

COMP Cams 20-249-4 - Camshaft CRS 306S-10
