COMP Cams 12-902-9 - Camshaft CS 296A-R6

Name: COMP Cams 12-902-9 - Camshaft CS 296A-R6
Brand: COMP Cams
SKU: COMP-12-902-9
Price: 535.99 USD
Availability: InStock

COMP Cams | SKU: COMP-12-902-9

$535⁹⁹ $589⁵⁹

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

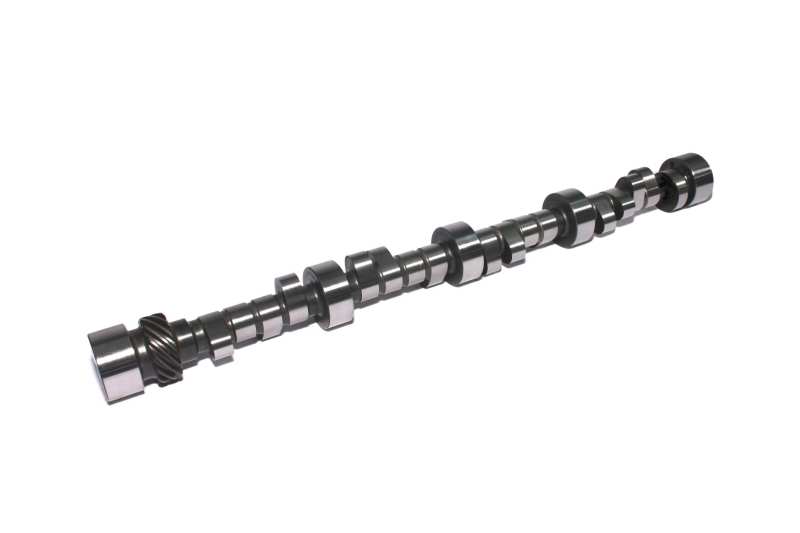

COMP Cams 12-902-9 - Camshaft CS 296A-R6

Camshaft - Oval Track - Mechanical Roller - Lift 0.630 / 0.630 in - Duration 296 / 300 - 106 LSA - 3600 / 6600 RPM - Small Block Chevy - Each

Good torque and throttle response w/ 355 engine on short track.

Advertised Intake Duration: 296

Advertised Exhaust Duration: 300

Lobe Separation: 106

Intake Valve Lift: 0.63

Exhaust Valve Lift: 0.63

Lifters Included: No

Valve Springs Required: Yes

Assembly Lubricant Included: No

Camshaft Gear Attachment: 3-Bolt

Camshaft Material: Billet Steel

Lifter Type: Solid Roller

Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)

Amazon ASIN: B001O0BRQG

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?: No

C.A.R.B. Exemption Reason: N/A

C.A.R.B. E.O. Number: N/A

Camshaft Series: Oval Track

Usage: Strip

Cam Type: Solid Roller

Grind Number: 296AR-6

Basic Operating RPM Range: 3,600-6,600

Intake Duration at .050 Inch Lift: 260

Exhaust Duration at .050 inch Lift: 262
