Classic Instruments NO66W-LS - White 1966-67 Nova Package LS Sending Unit

Classic Instruments NO66W-LS - White 1966-67 Nova Package LS Sending Unit

White 1966-67 Nova Package LS Sending Unit

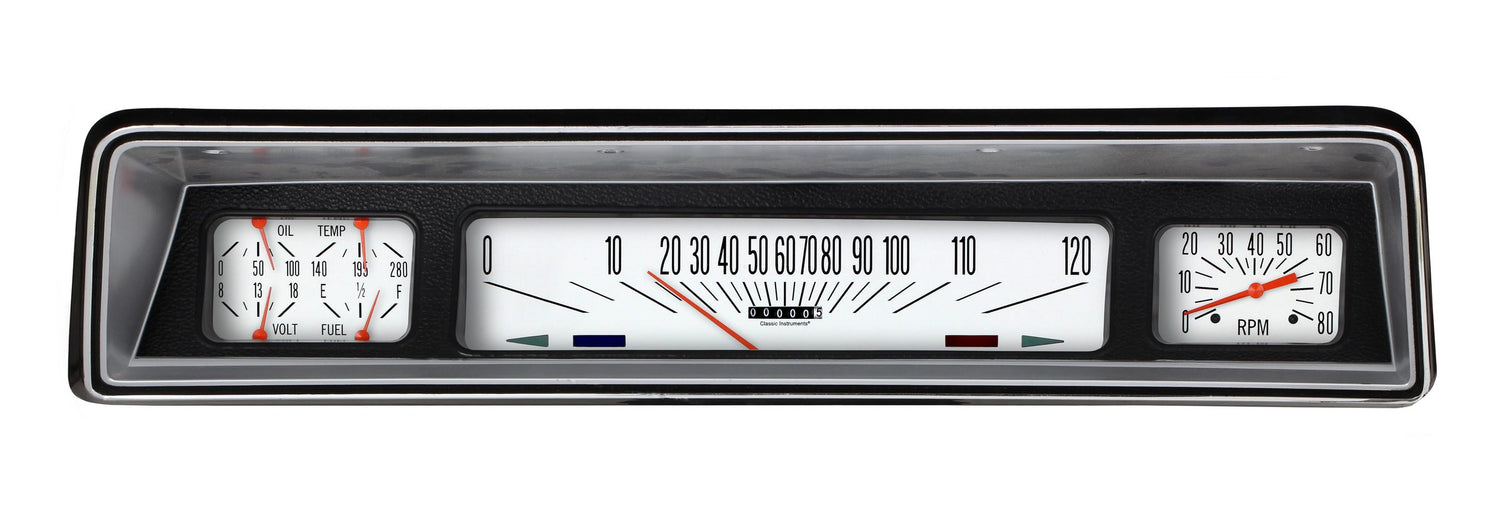

The White 1966-67 Nova direct-fit cluster features a speedometer, tachometer, fuel level, temperature, oil pressure, and volt gauges; along with indicator lights. All the gauges are electronic operation and the molded plastic housing has been designed with factory fitment in mind. The cluster mounts in the original factory bezel and uses the original diffuser plate, both of which will need to be re-used from your original cluster.

• Green LED turn signal indicators, red warning light, and a blue high beam indicator
• Speedometer calibration is quick and easy with push-button control
• Classic Instruments’ Zeus Speedometer Technology is built-in meaning the cluster requires no external control boxes and works directly with ECM or VSS signals
• Programmable fuel gauge compatible with any ohm range, featuring a selector switch on the back of the cluster. Works with stock (0-90 ohm), any factory, or Classic Instruments fuel sending units.
• A new, laser-cut plastic lens is provided with the cluster
• Wiring is handled with a single wire harness connection on the back of the cluster
• Built-in ECM signal filter switch
• The wire harness includes a separate power (12V) and ground lead to allow the customer the flexibility to add things such as a check engine, emergency brake, open door, or low oil pressure indicator
• A separate connection and harness for an external shift light on the back of the cluster
