Bilstein 33-316437 - Shock Absorbers

Bilstein  |  SKU: BIL-33-316437
Sale price $21223 Regular price $23345

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

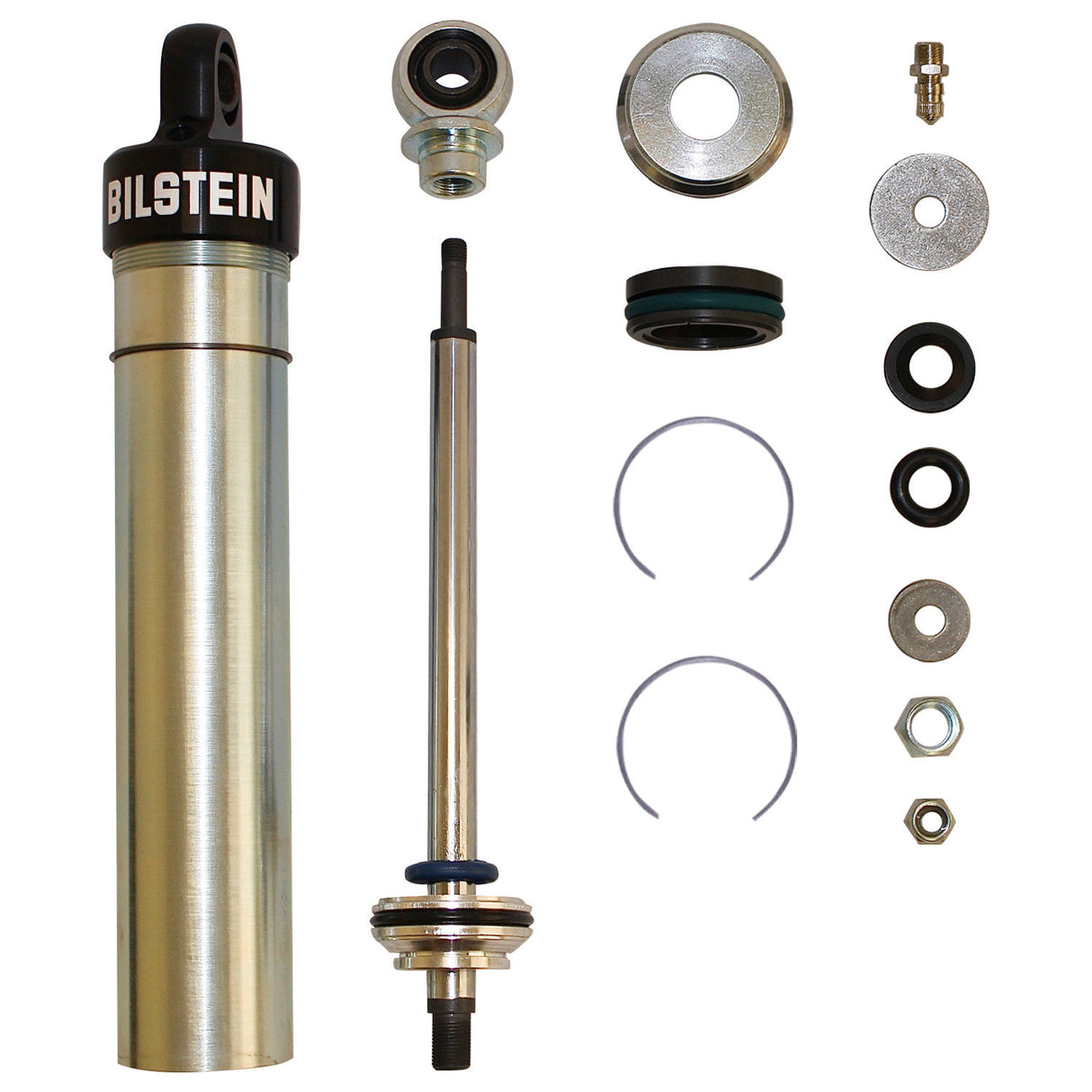

Bilstein 33-316437 - Shock Absorbers

SN2 Series - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.

  • Plated steel body for durability and superior heat dissipation
  • 46mm piston design for maximum damping control
  • Standard 1/2” graphite heims
Collapsed Length (IN): 12.00
Body Material: Steel
Piston Diameter: 46mm
Finish: Zinc Plated
Body Design: Smooth Body Screw Top (Non-coilover)
Extended Length (IN): 17.81
Upper Mount Type: 1/2in Heim
Segment: Motorsports
Shaft Diameter: 14mm
Collapsed Length (MM): 304.8
Internal Design: Monotube
Series: SN2 Series
Spring Seat Included: No
Adjustable Damping: Non-Adjustable
Stroke/Travel Length (IN): 5.81
Piston Type: Sold Separately
Stroke/Travel Length (mm): 147.6
PartType: Shocks / Struts
Lower Mount Type: 1/2in Heim
Boot Included: No
Extended Length (MM): 452.3
