Bilstein 33-244471 - M 9200 60mm Coilover 10in 255/100

Bilstein  |  SKU: BIL-33-244471
$78100 $85910

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

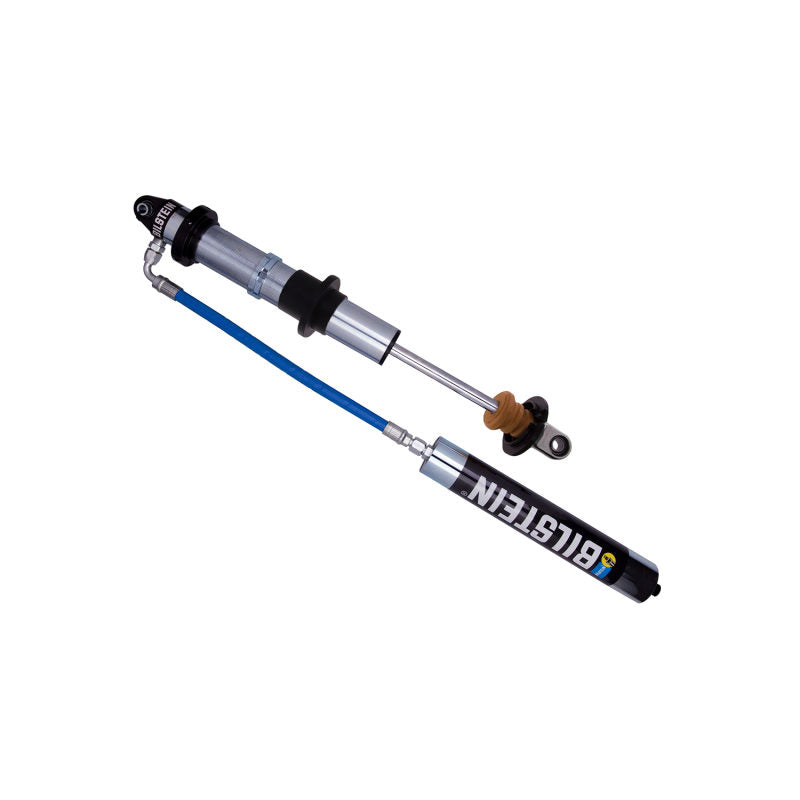

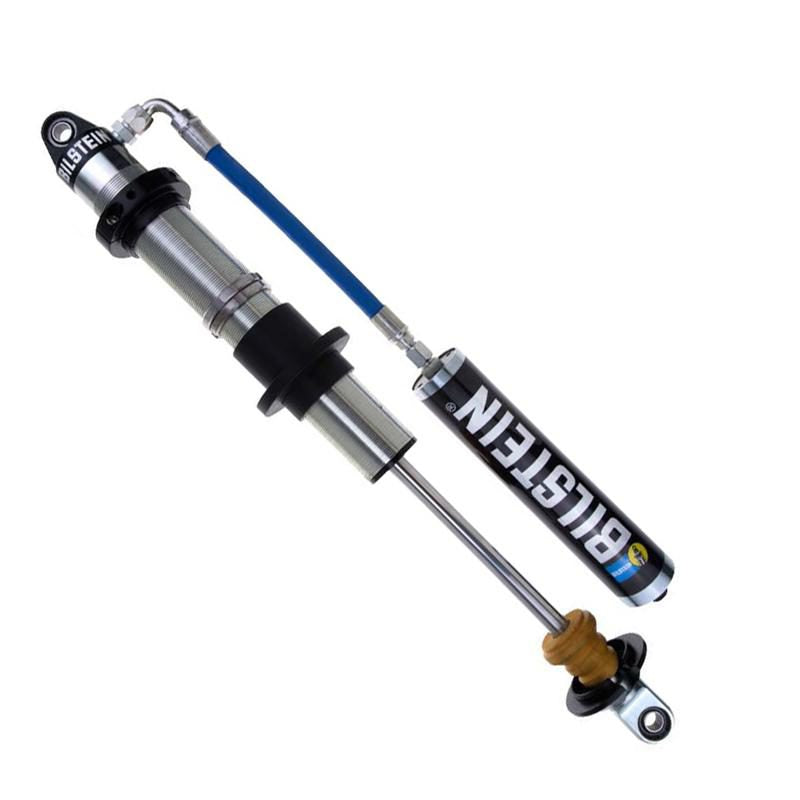

Bilstein 33-244471 - M 9200 60mm Coilover 10in 255/100

M 9200 (Coilover) - Suspension Shock Absorber

60mm Monotube Shock Absorber

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

  • Available in 46mm and 60mm monotubes
  • Threaded body with dual-rate coilover hardware
  • Multiple stroke lengths available ranging from 8" to 16"
Spring Seat Included: No
Extended Length (IN): 29.50
Mount Type: Eye-to-Eye
Segment: Motorsports
Internal Design: Monotube
Reservoir: Yes
Optional Reservoir Clamp: N/A
Collapsed Length (IN) Rounded: 20
Series: M 9200 (Coilover)
Lower Mount Type: Eye .5x1.5in
Upper Mount Type: Eye .5x1.5in
Extended Length (IN) Rounded: 30
Extended Length (MM): 749.3
Rebound @0.52m/s: 2550
Boot Included: N/A
Spring Max Travel (IN): 10.00
Finish: Zinc Plated
Body Design: Threaded Body (Coilover)
Collapsed Length (IN): 19.50
Body Diameter (ID): 60mm
Collapsed Length (MM): 495.3
Compression @0.52m/s: 1000
PartType: Shocks / Struts
