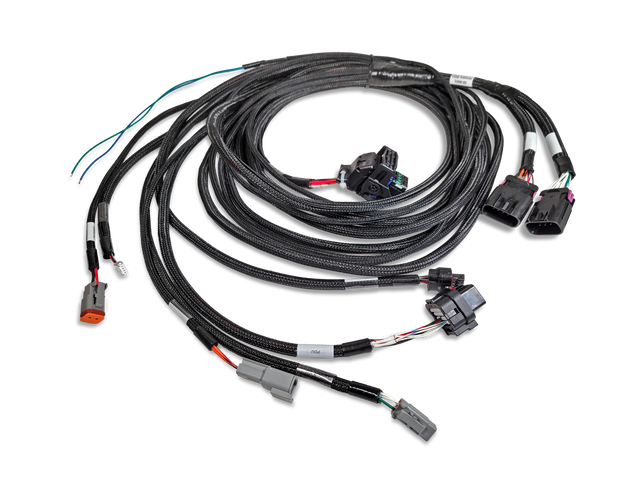

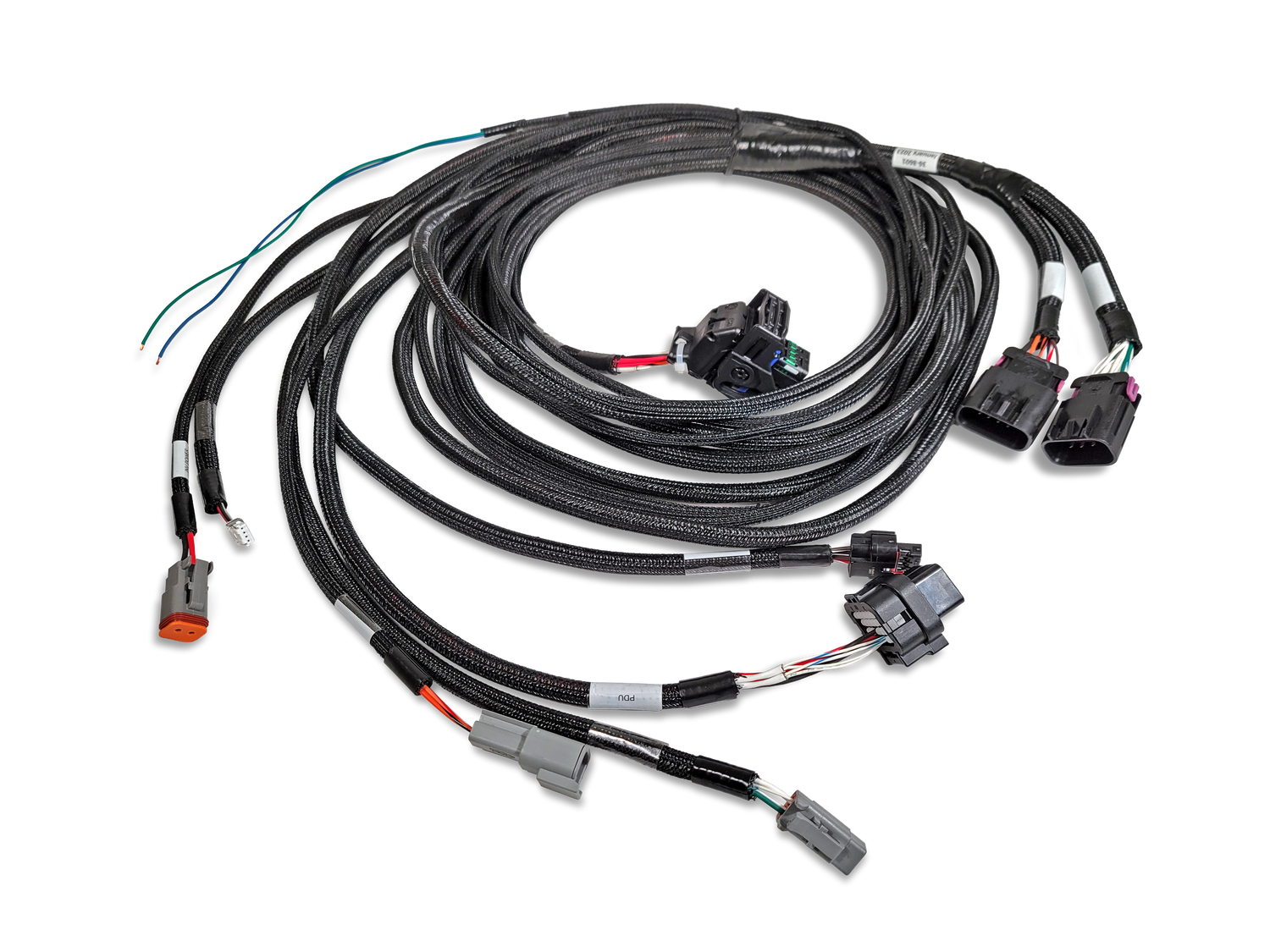

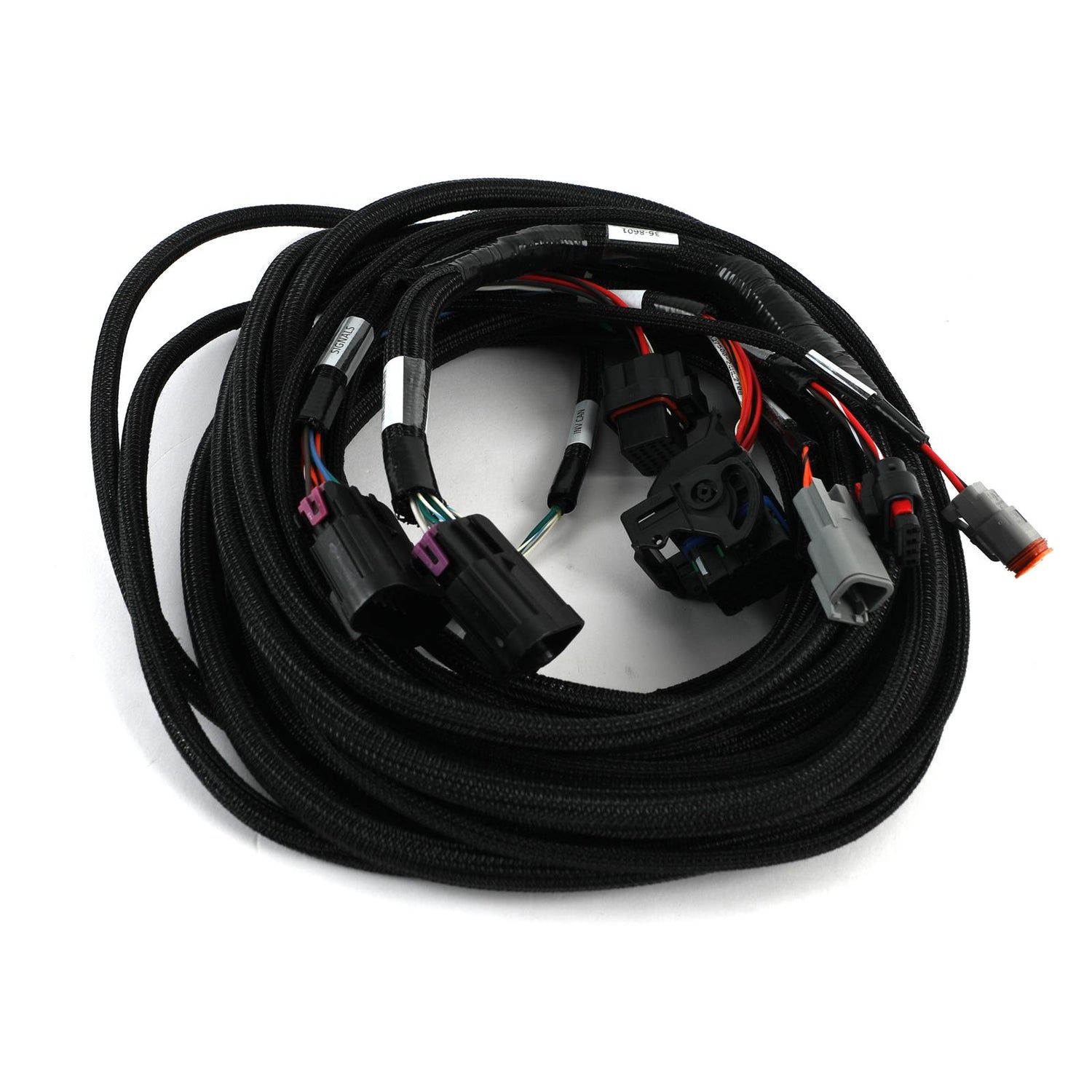

Rear Low Voltage VCU Harness

This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle. It was designed to be used with a mating front half assembly that is VCU hardware specific. The AEM part number for the mating front half harness is 30-8600.

• Connector interface features include:
• Power Distribution Unit (PDU)
• Combined Charging Unit (CCU)
• Isabellenhutte (IVTS) - current voltage shunt based measuring system
• - Life Energy Motion (LEM) - current voltage DHAB s/124 Transducer Sensor
• Inverter CAN (INV CAN)
• Inverter High-Voltage Interlock (HVIL)
• Inverter Power (INV PWR)
• J1772 Flying Leads - Proximity Pilot (PROX) and Control Pilot (CP)
• Inline Signals
• Inline CAN
