Edelbrock 19014 - The # AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Performer or Performer EPS manifold or other brands of similar design

Edelbrock - 19014

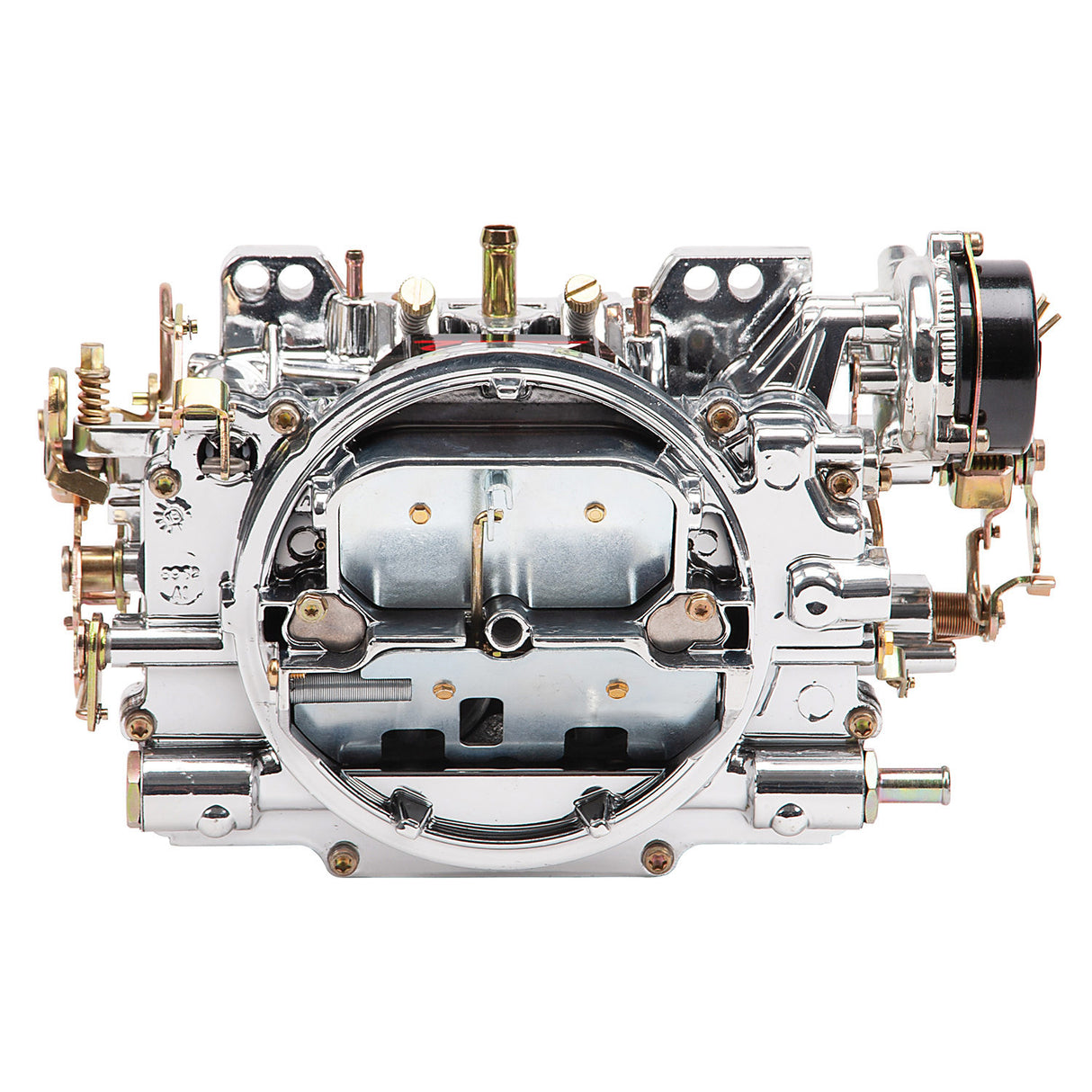

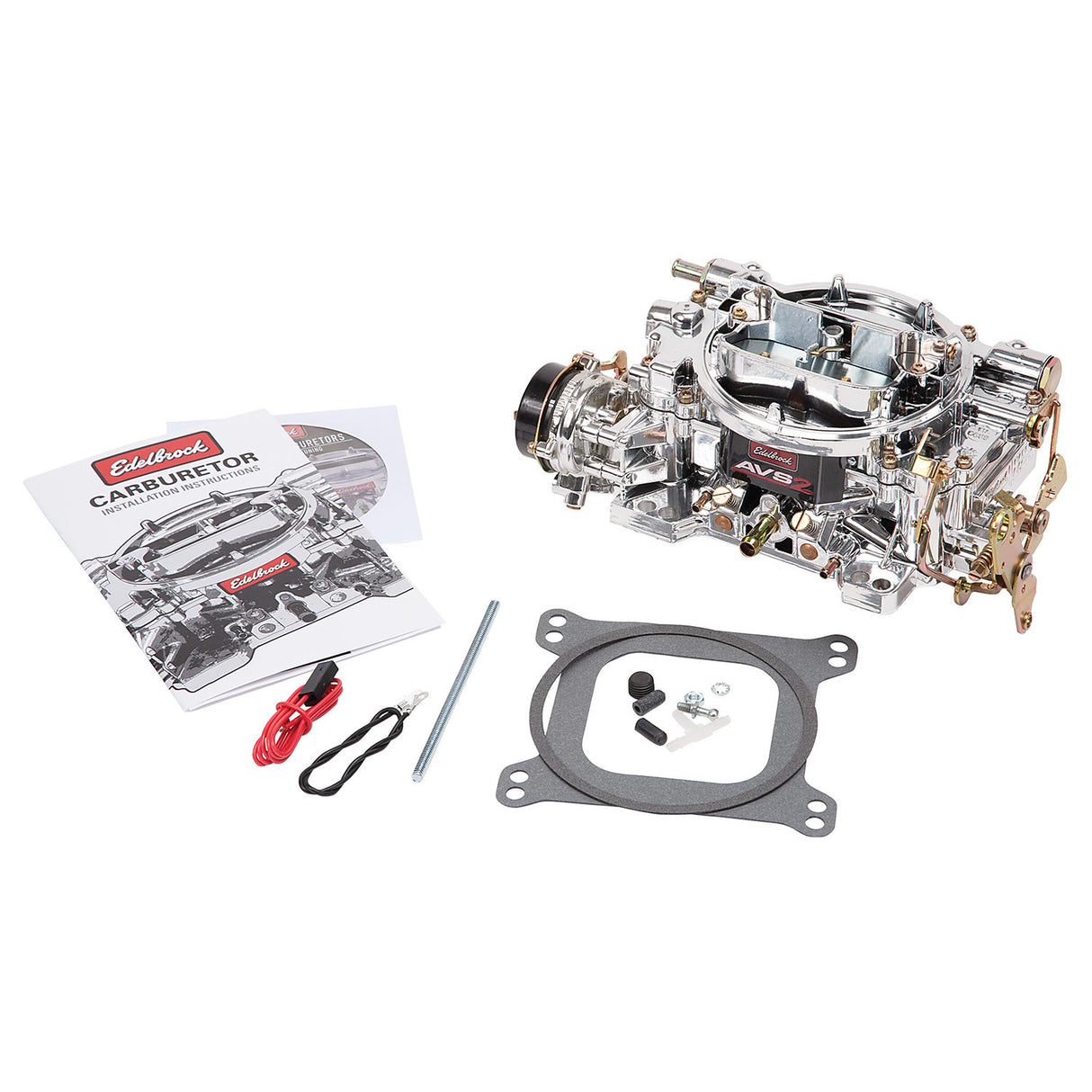

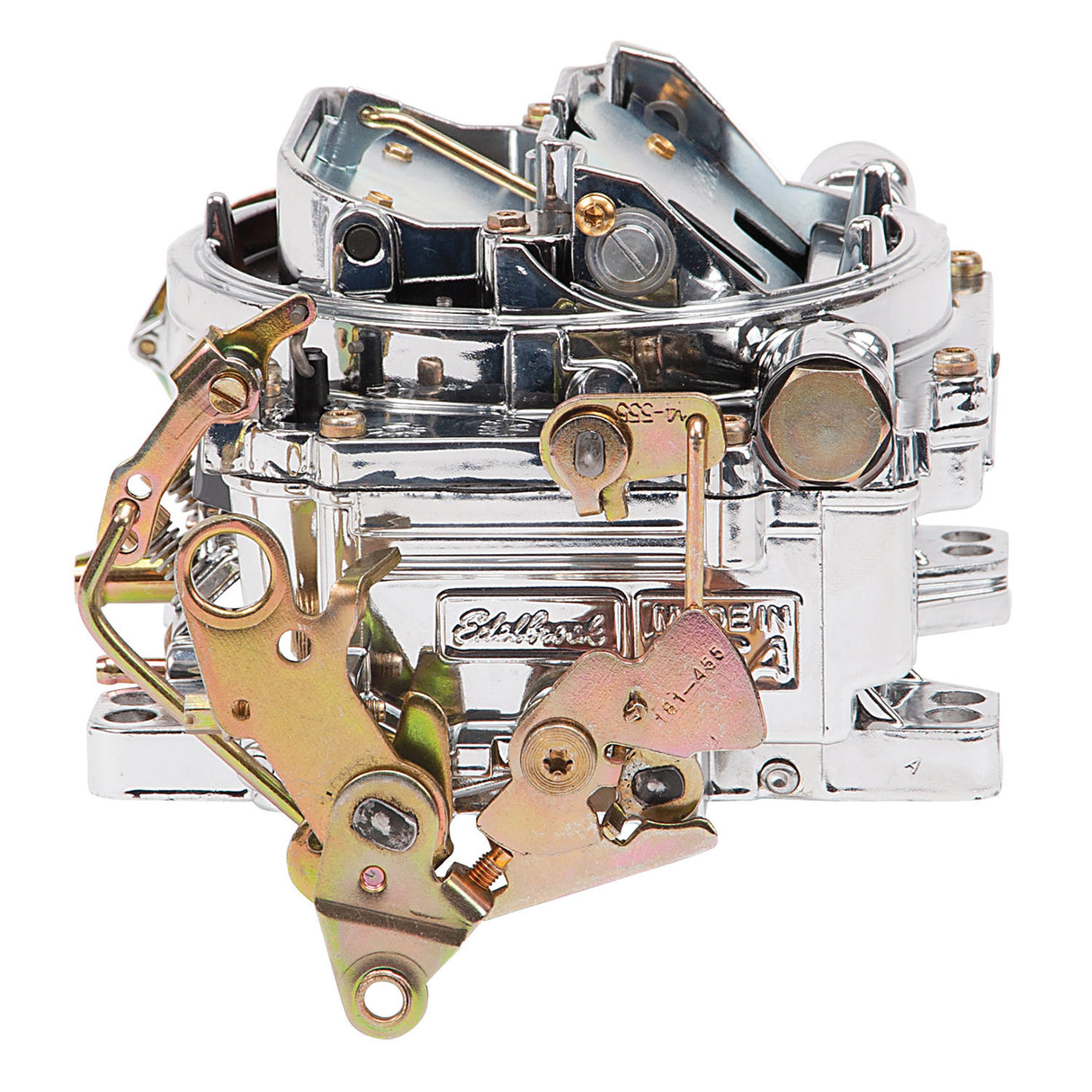

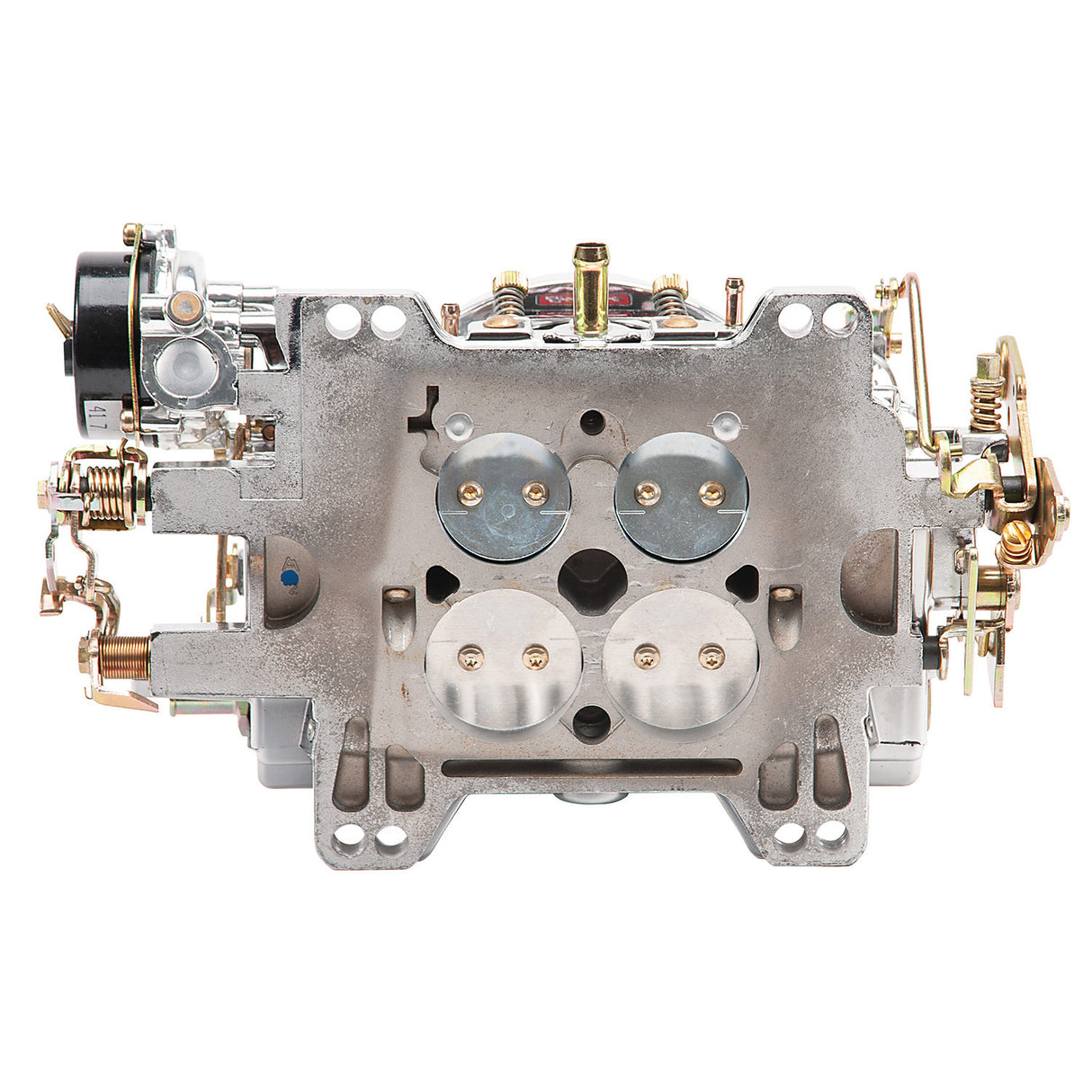

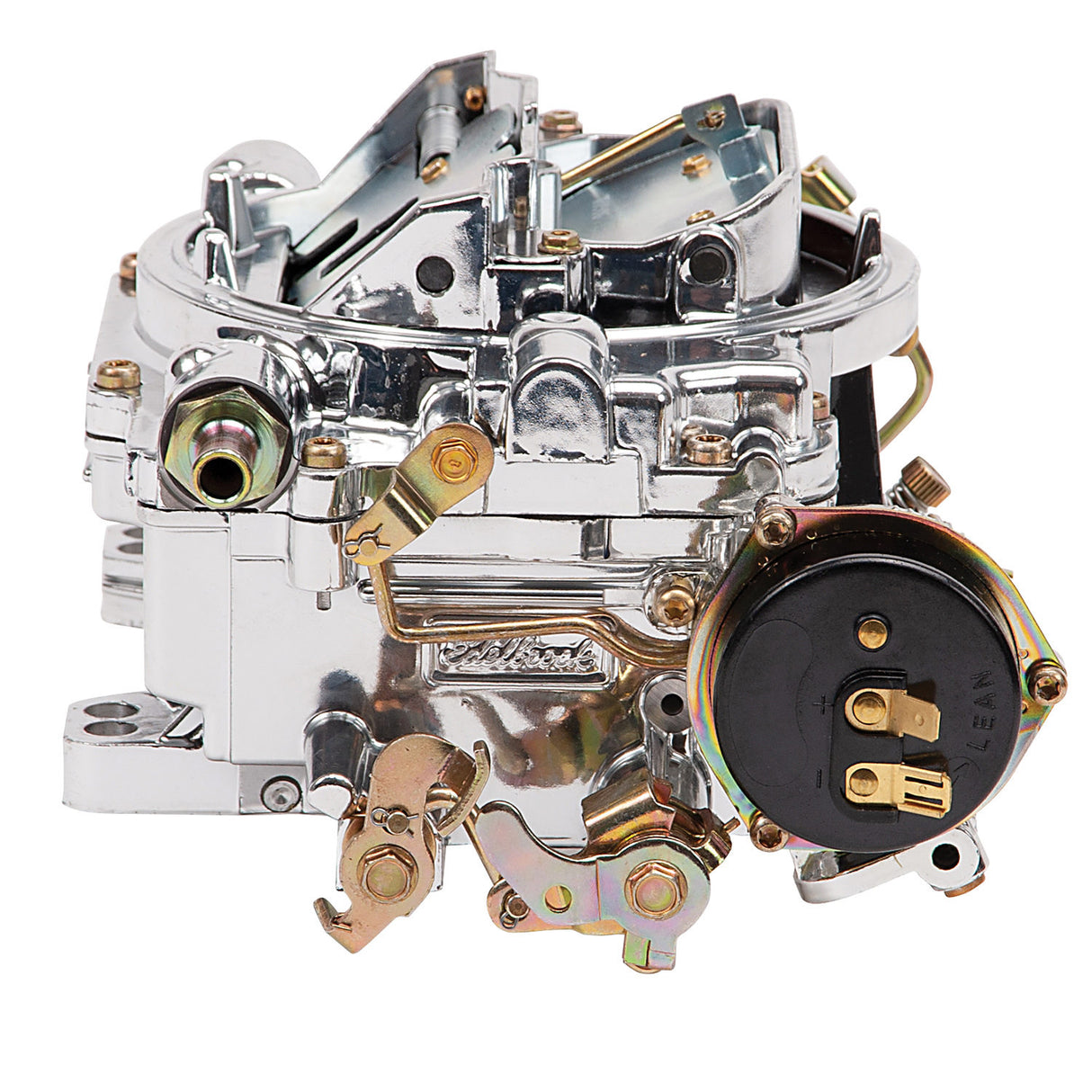

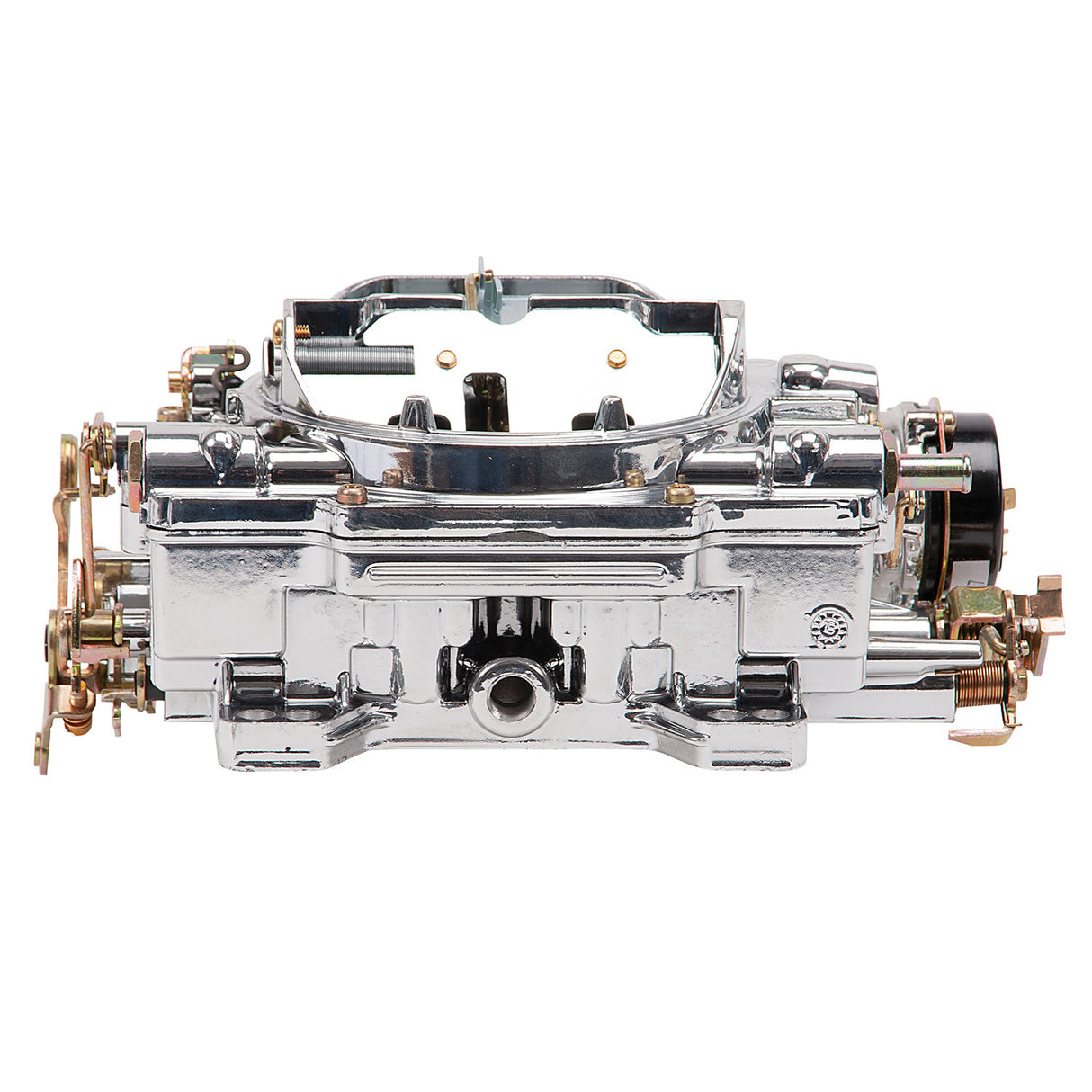

AVS2 500 CFM #19014 Carburetor with Electric Choke, EnduraShine Finish

The Edelbrock #19014 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design.

The AVS2 Series is the next generation in Edelbrock carburetors. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular booster features eight, equally spaced orifices to improve fuel metering from idle to the main. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The AVS2 includes both timed and full vacuum ports for ignition advance. It comes with: Metering Jets - Primary .101, Secondary .098; Metering Rods - .070 x .037; Step-Up Spring - orange (5" Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

• The Next Generation in Edelbrock Carburetors.
• Annular Flow Primary Boosters
• Delivers Improved Fuel Atomization To Eliminate Flat Spots
• Improved Flow Metering Make It Ideal For Small/Big Block Engines
• For Single Or Dual Plane Intake Manifolds
• Incl. Both Timed And Full Vacuum Ports For Ignition Advance
