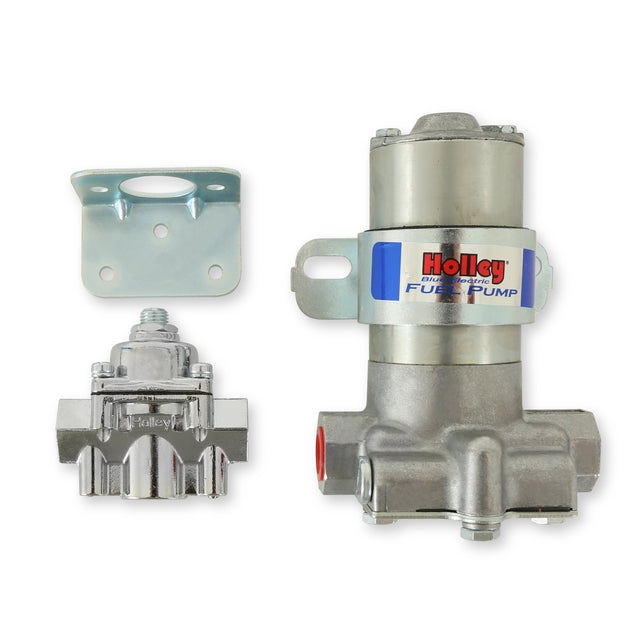

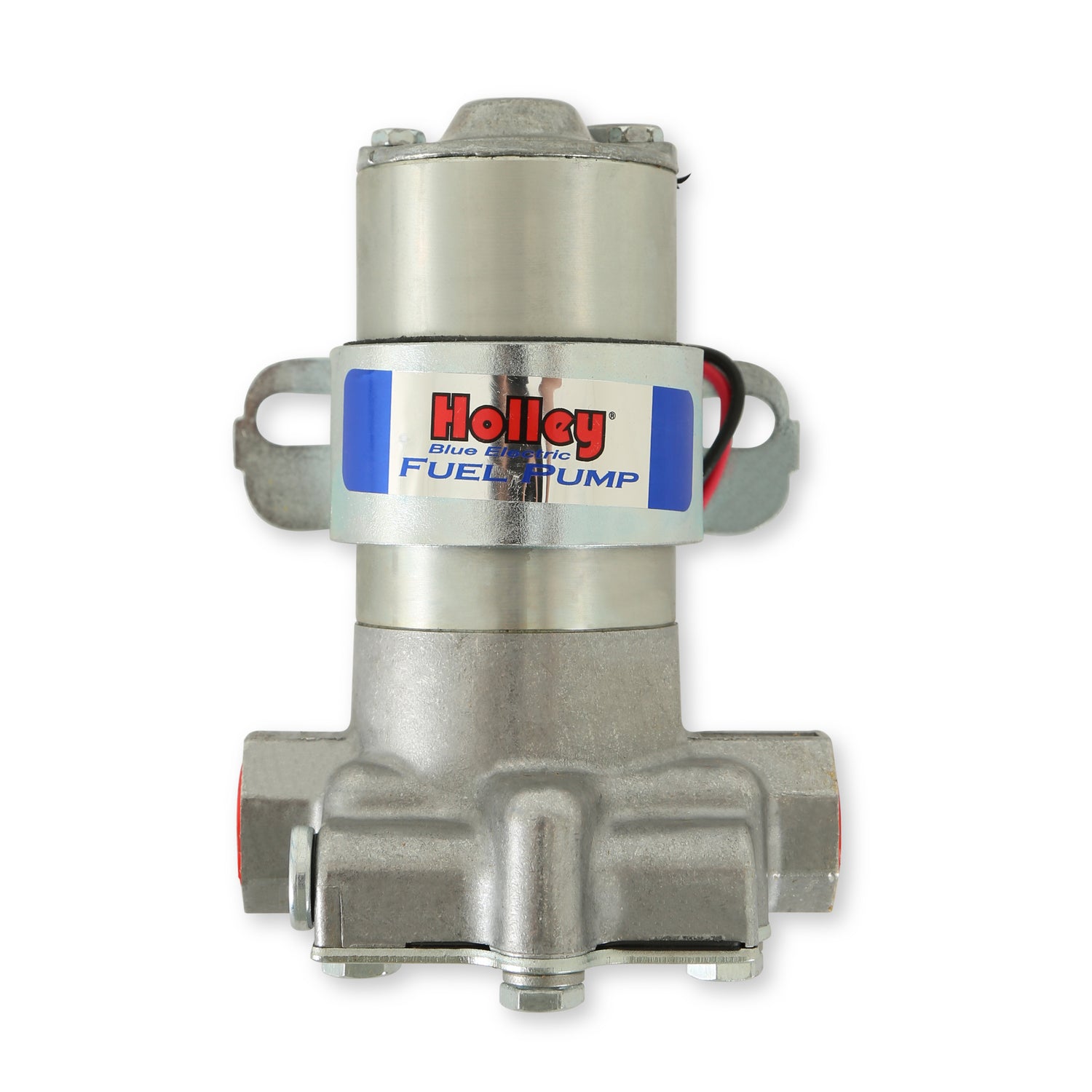

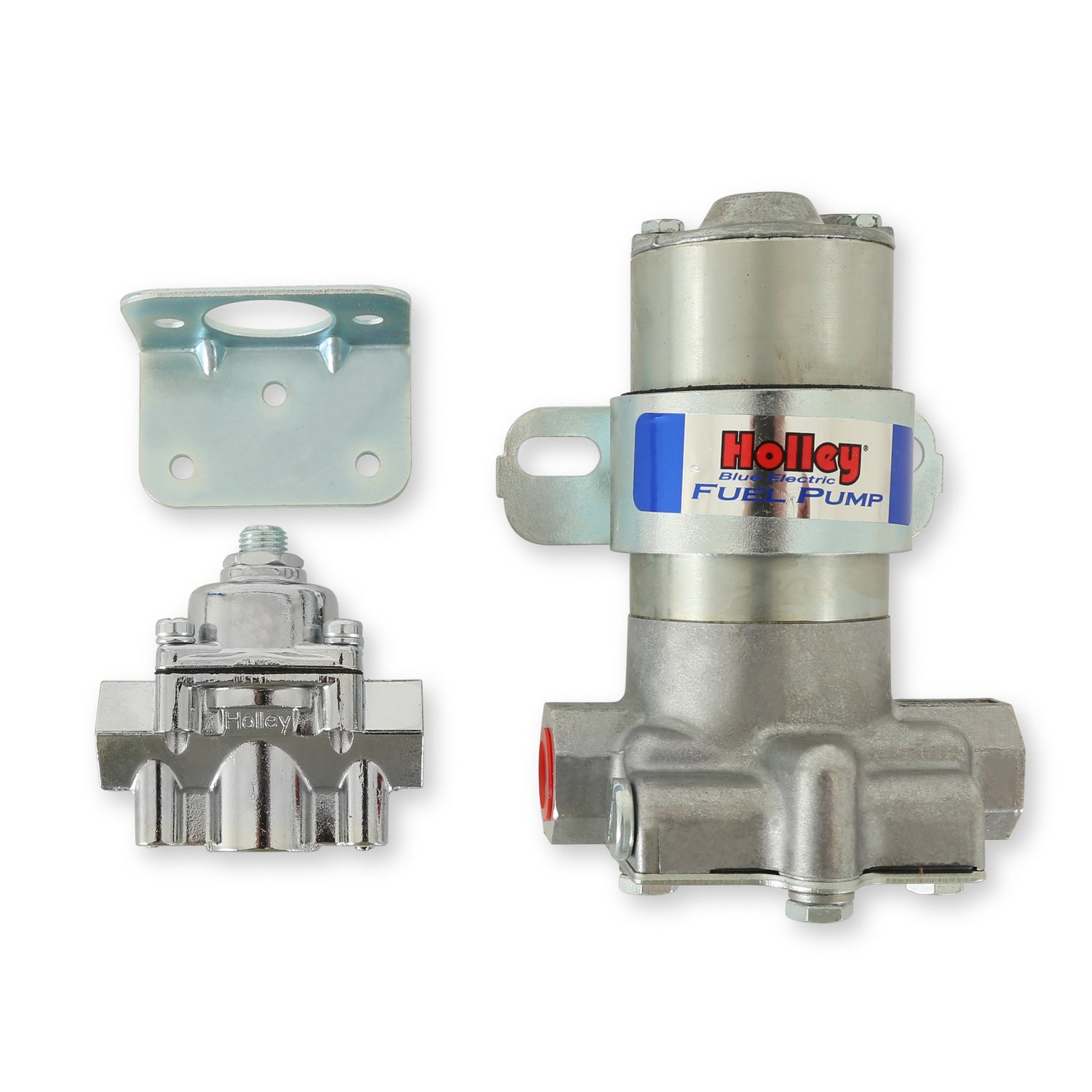

Holley 12-802-1 - 110 GPH Blue® Electric Fuel Pump With Regulator
Couldn't load pickup availability
Description
Description
Holley 12-802-1 - 110 GPH Blue® Electric Fuel Pump With Regulator
Fuel Pump - Blue - Electric - In-Line - 88 gph at 9 psi - 3/8 in NPT Female Inlet / Outlet - Regulator - Silver - Gas - Each
Electric Fuel Pump; Free Flow GPH 110; Gasoline; Carbureted; 3/8 in. NPT Inlet/Outlet Size; Silver Body/Silver Bracket/Red Logo;
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all time. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package.
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow
- Motor draws only 3 amps current
- Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
- Improved design for street/strip applications
- Not designed for use on aircraft of any type
- Distinctive “Blue” logo
- Flows 110 GPH (free flow)

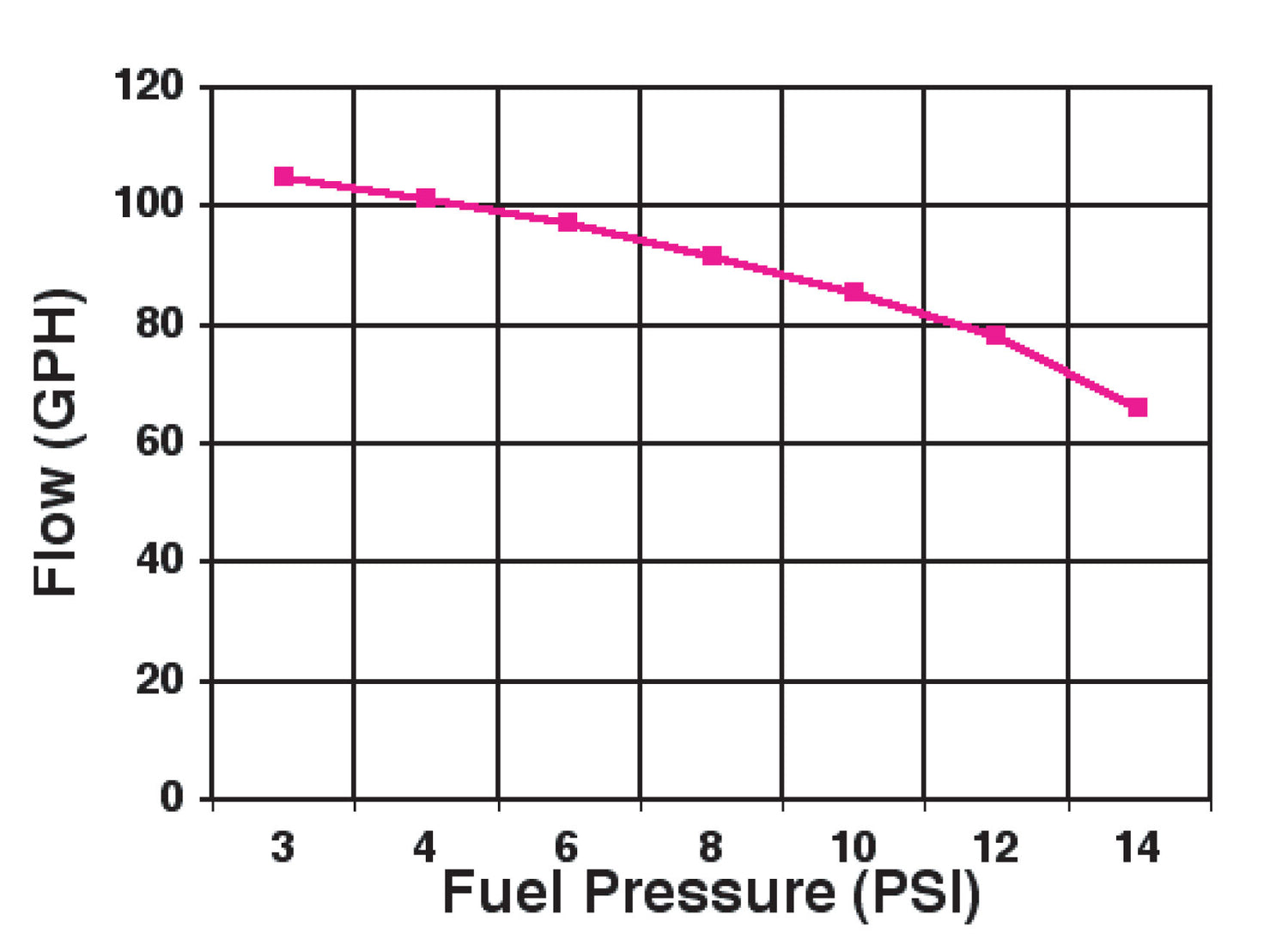

- Flows 88 GPH at 9 psi
- Maximum pressure is 14 psi

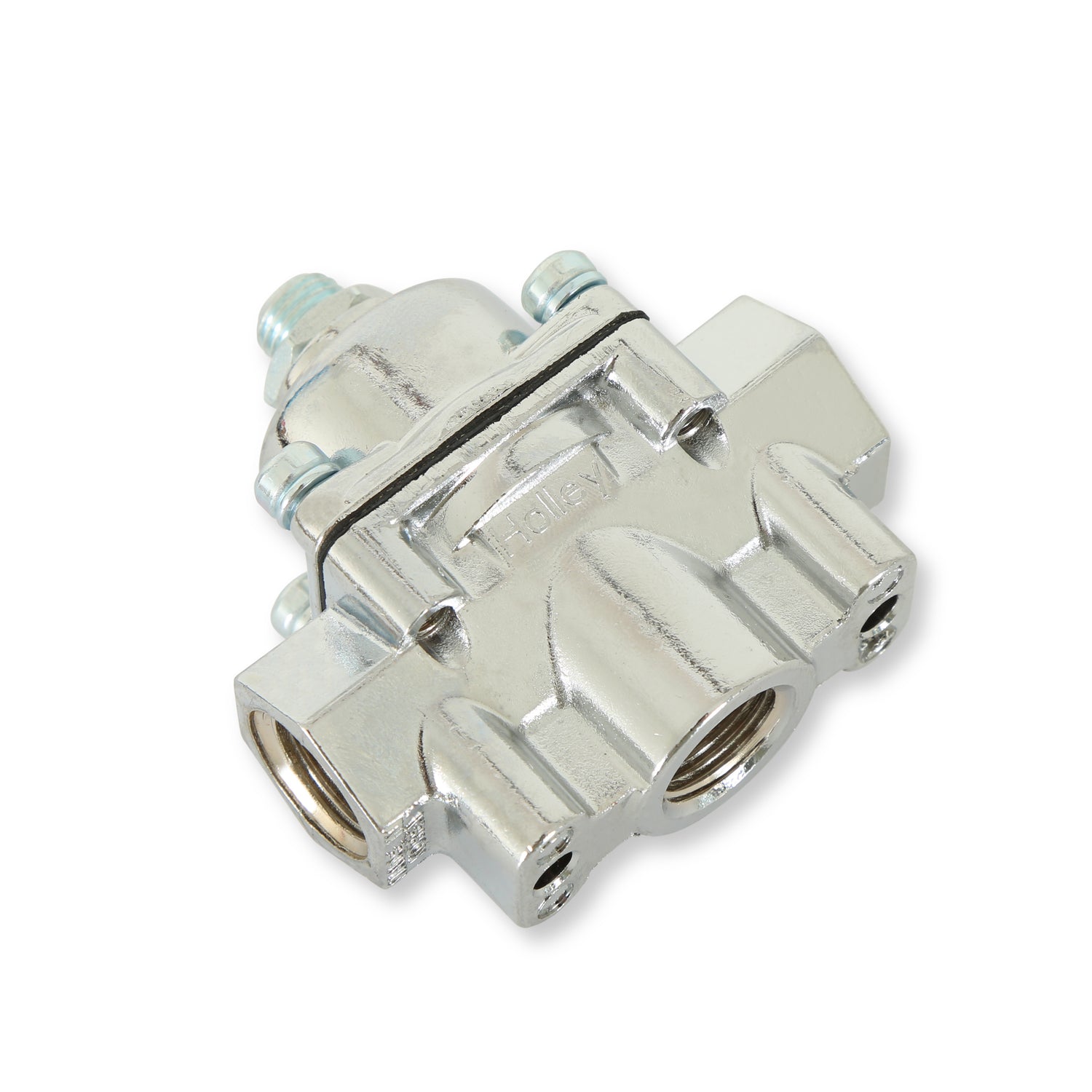

- Includes P/N 12-803 fuel pressure regulator
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs

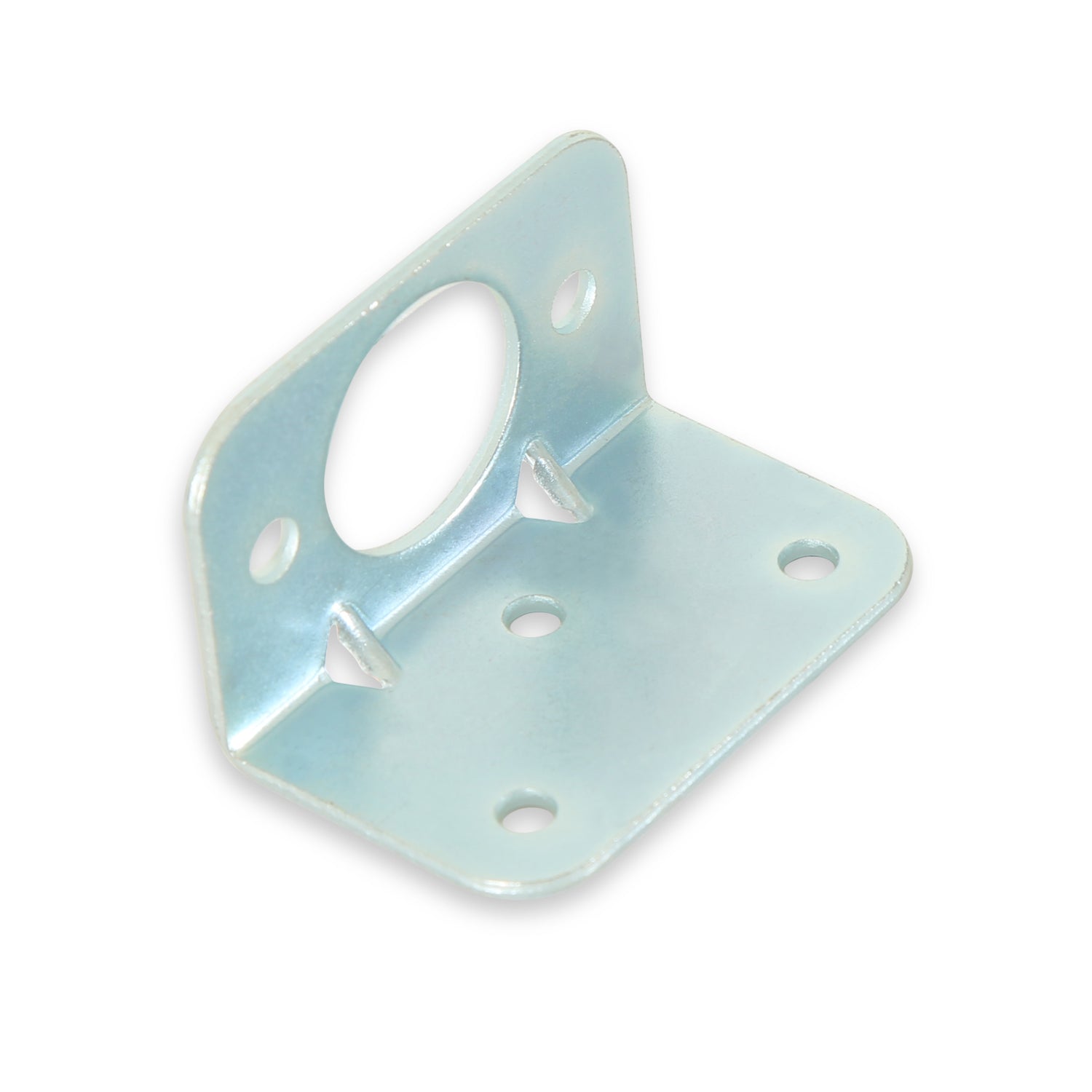

- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
