Edelbrock 5089 - Cylinder Head E-Street SB Chevrolet 64cc (Complete Pair)

Edelbrock  |  MPN: 5089  |  SKU: EDEL-5089
$1,22995 $1,35294

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

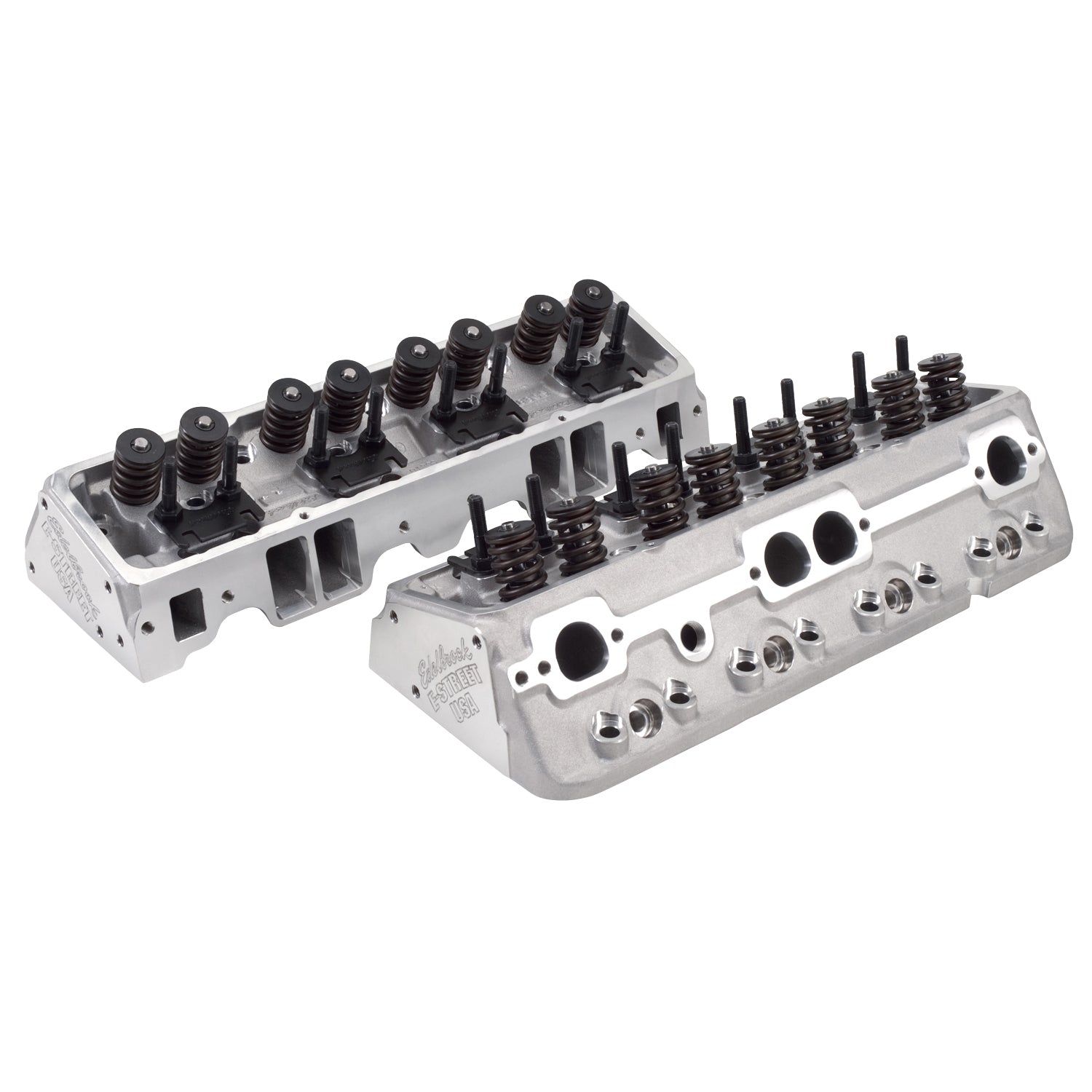

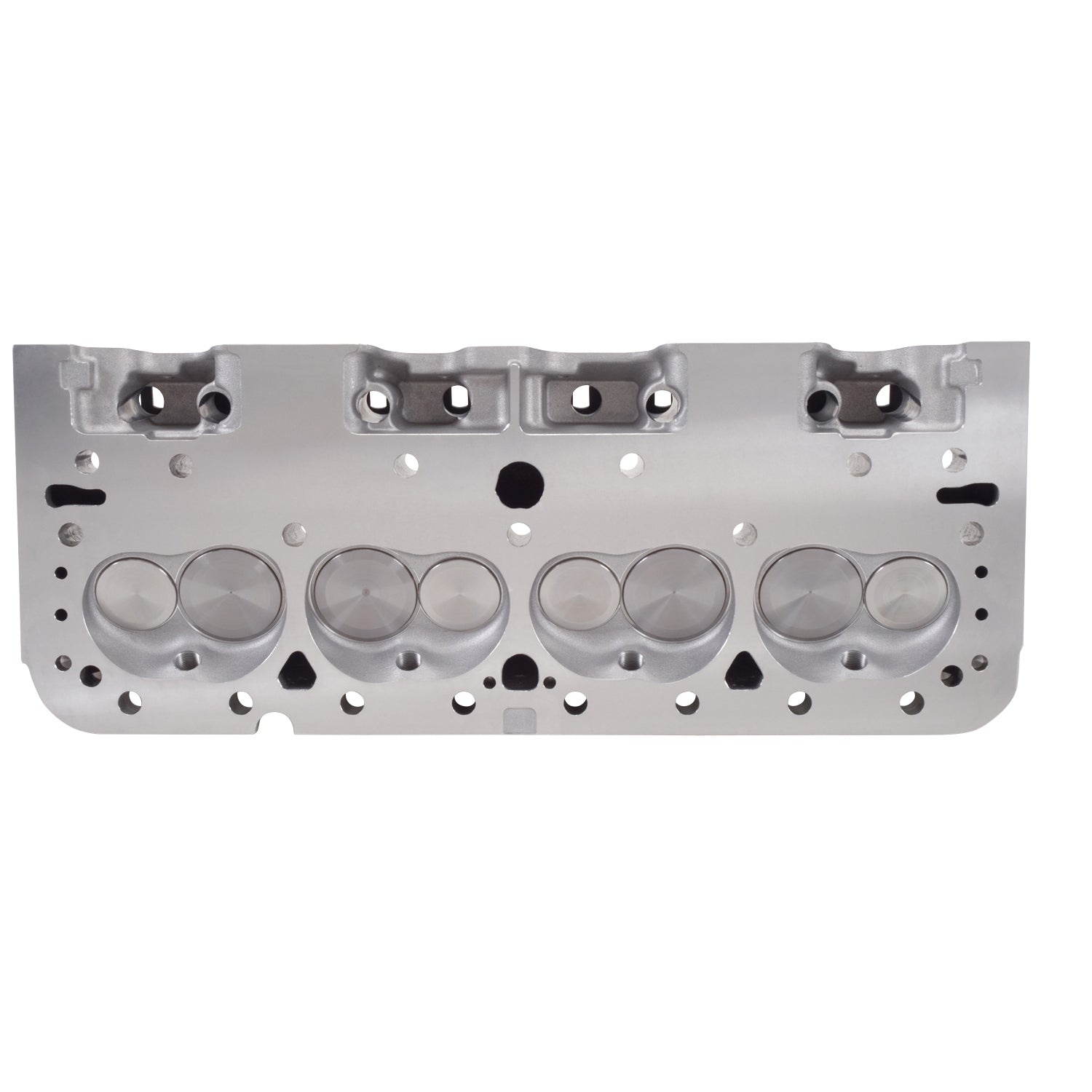

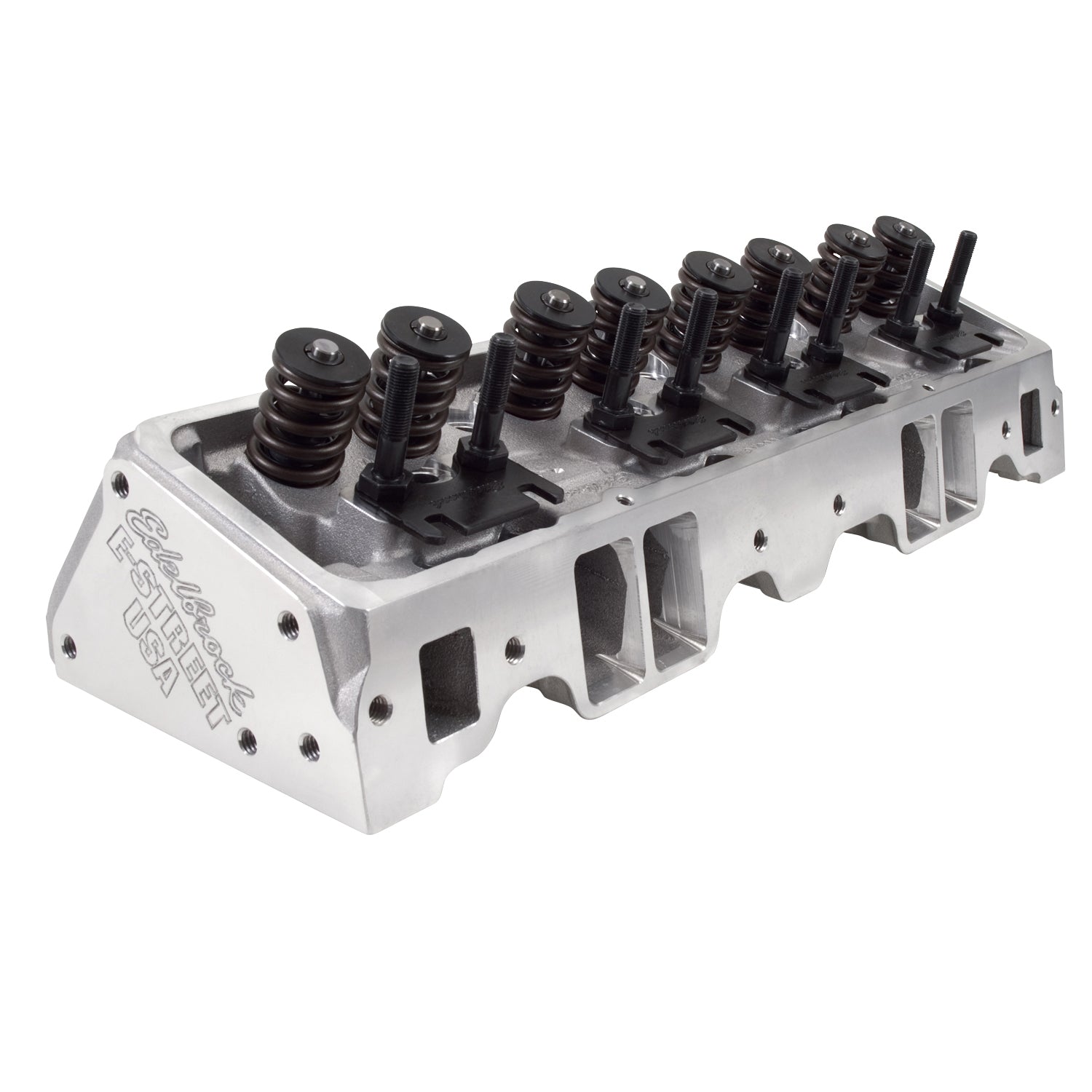

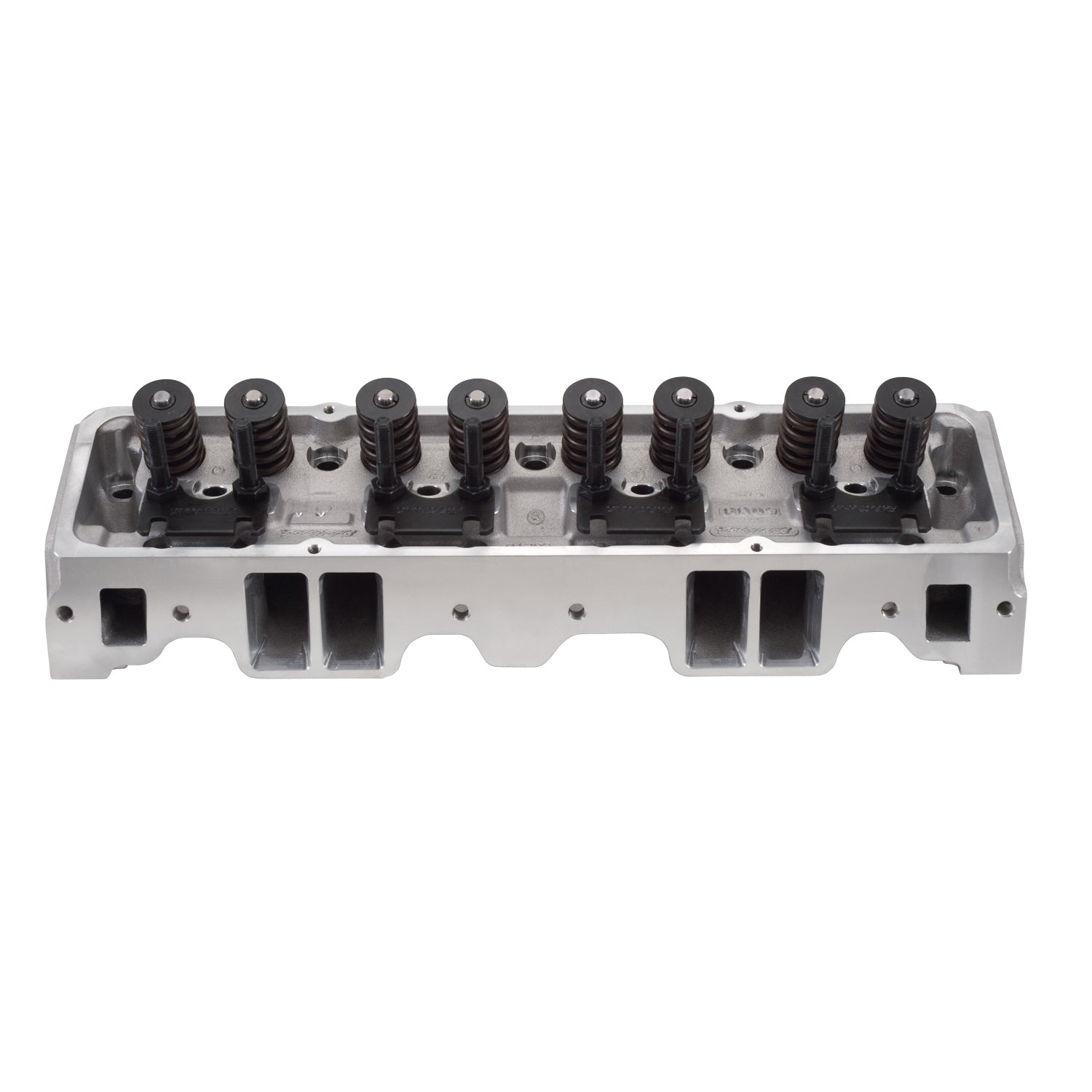

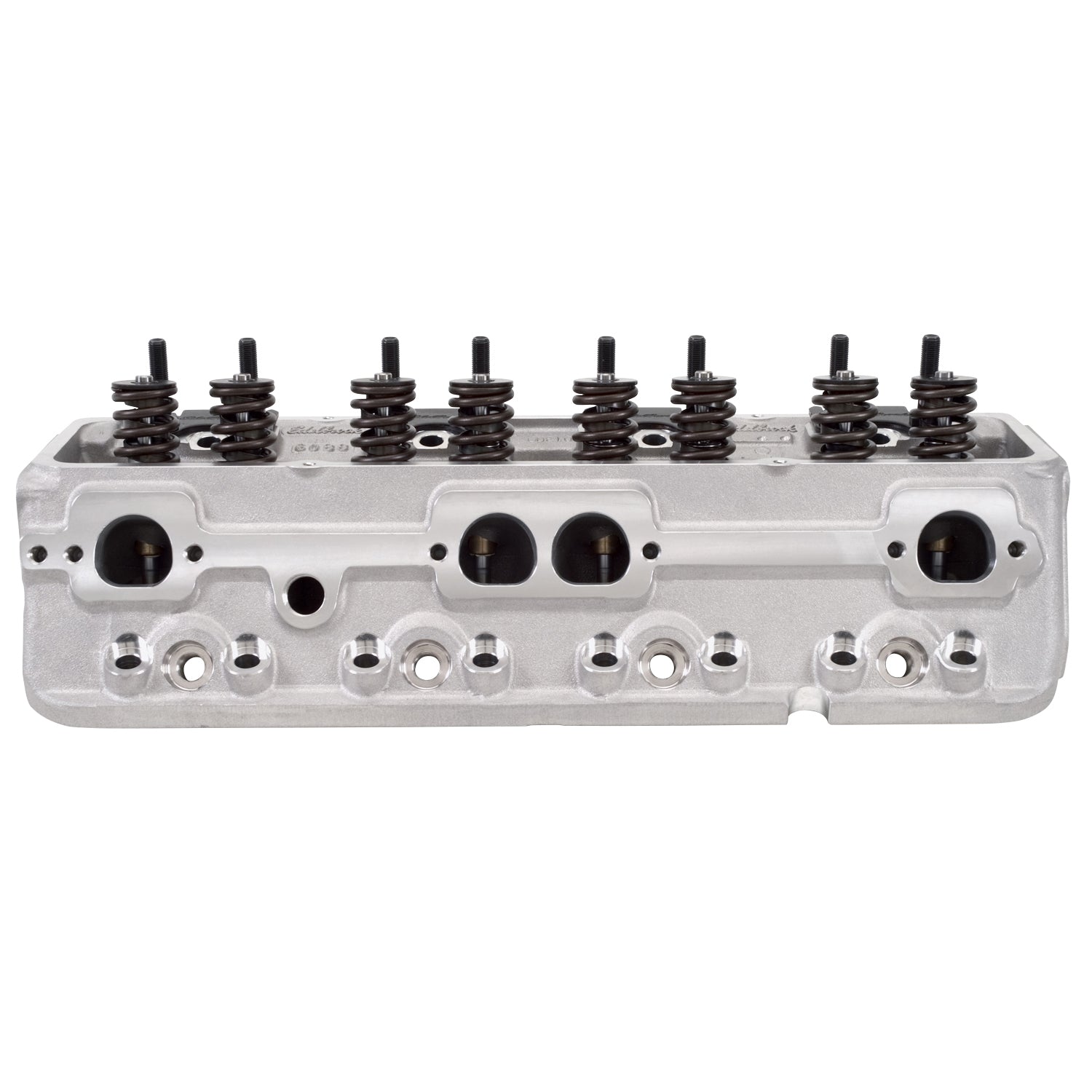

Edelbrock 5089 - Cylinder Head E-Street SB Chevrolet 64cc (Complete Pair)

Cylinder Head - E-Street - Assembled - 2.020 / 1.600 in Valves - 185 cc Intake - 64 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - Small Block Chevy - Pair

The Edelbrock #5089 E-Street cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

  • Entry Level Street Performance Upgrade
  • A356 Aluminum
  • Sold As A Pair
  • Edelbrock Quality And Performance
  • Affordable Price
  • Made In U.S.A.
Exhaust Valve Diameter: 1.60
EGR Port: No
CNC Ported: No
Horsepower: 300-400
Construction Type: Complete
Valve Spring Maximum Lift: 0.550
Exhaust Port Location: Standard
Family: E-Street
Camshaft Type: Flat Tappet
Rotor Center Bore Inside Diameter: Straight
Combustion Chamber Volume: 64
Valve Spring Diameter: 1.46
Series: E-Street
Retainer Included: Yes
Valve Included: Yes
Intake Valve Diameter: 2.02
Valve Angle: 23
Guide Plate Material: Hardened Steel
Seat Material: Ductile Iron
Grade Type: Performance
Head Casting Number: N/A
Guide Material: Manganese Bronze
Material: Aluminum
Quantity: Set of 2
Deck Thickness: 0.5625
Intake Runner Volume: 185
Seat Angle: Exhaust 45 deg/Intake 45
Valve Springs Included: Yes
Valve Stem Diameter: 0.3438
Push Rod Diameter: (Suggested) 0.3125
Rocker Arm Stud Diameter: 0.375
Guide Plates Included: Yes
Exhaust Runner Volume: 60
