Edelbrock 61905 - Cylinder Head Performer LT1 Small Block Chevy Complete Single

Edelbrock  |  SKU: EDEL-61905
$1,03550 $1,13905


AVAILABILITY: This Item Is Out Of Stock.

Starting at $94/mo or 0% APR with . Check your purchasing power

Description

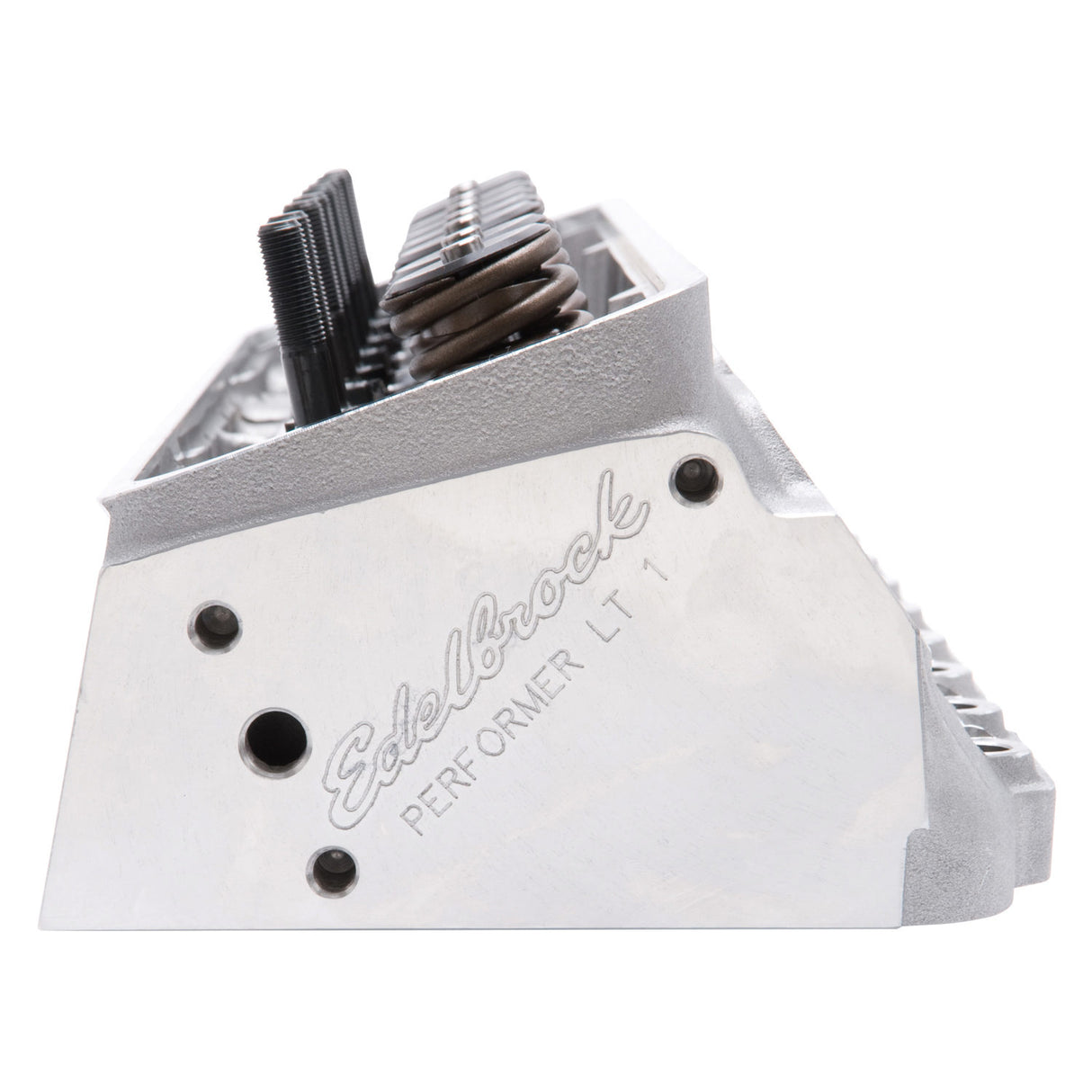

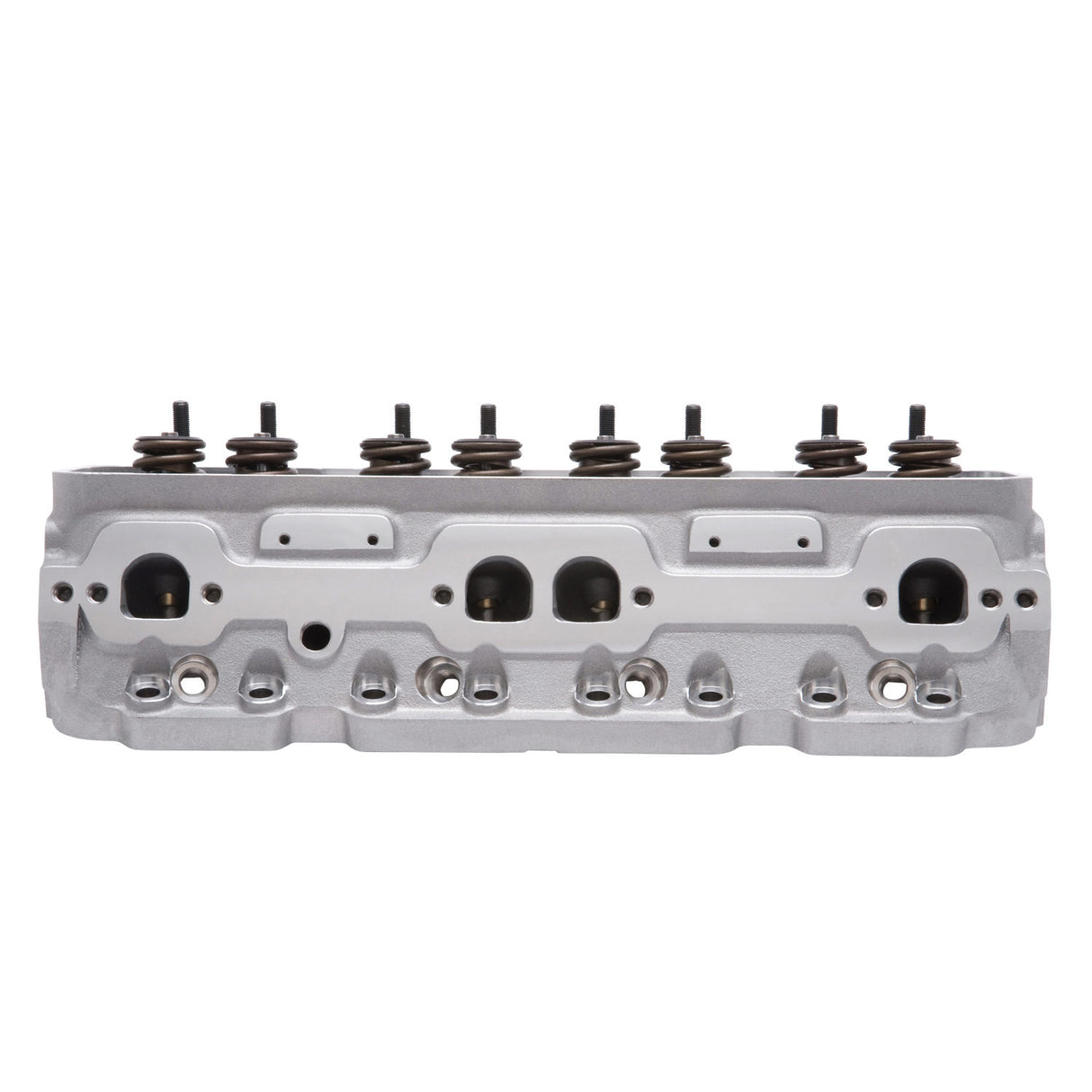

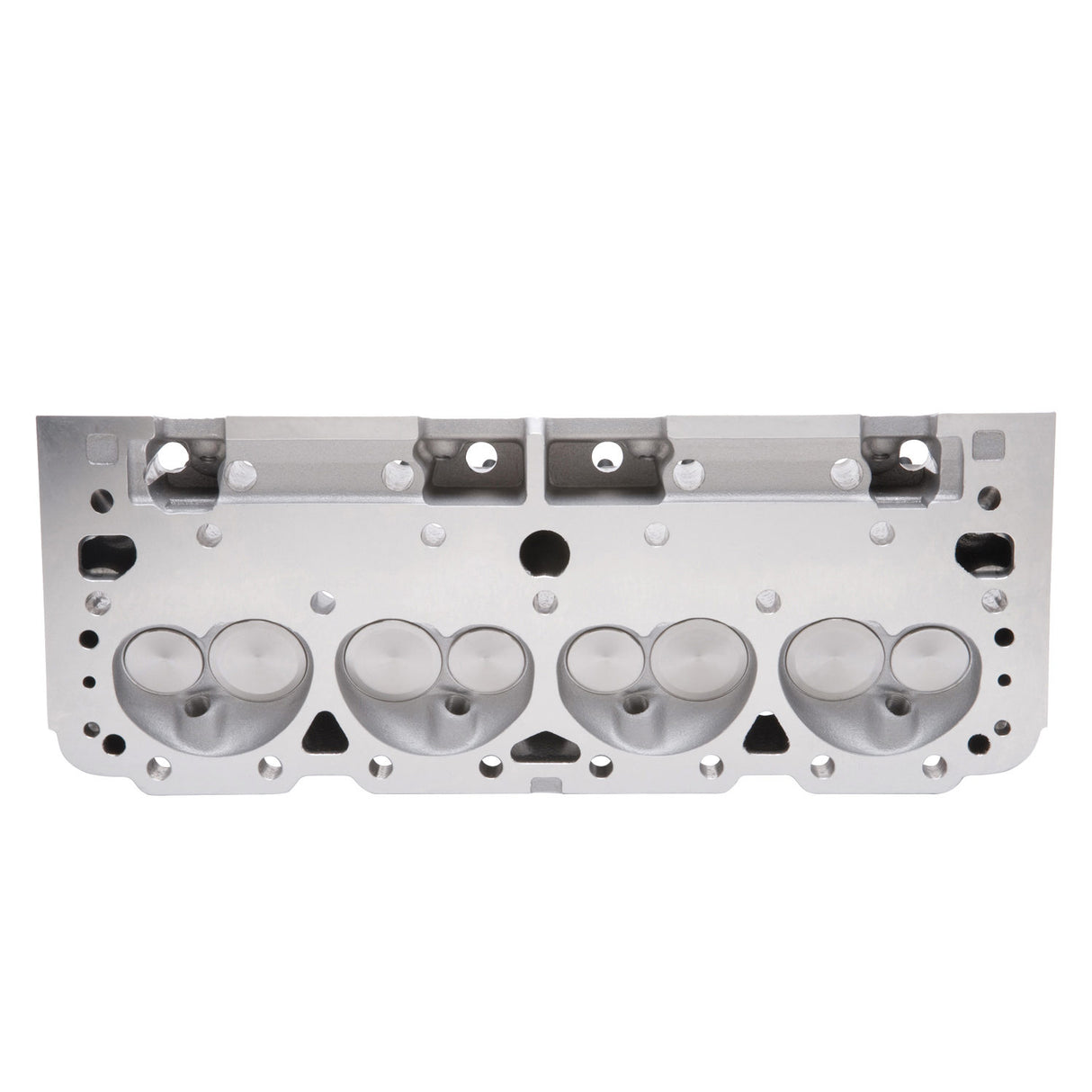

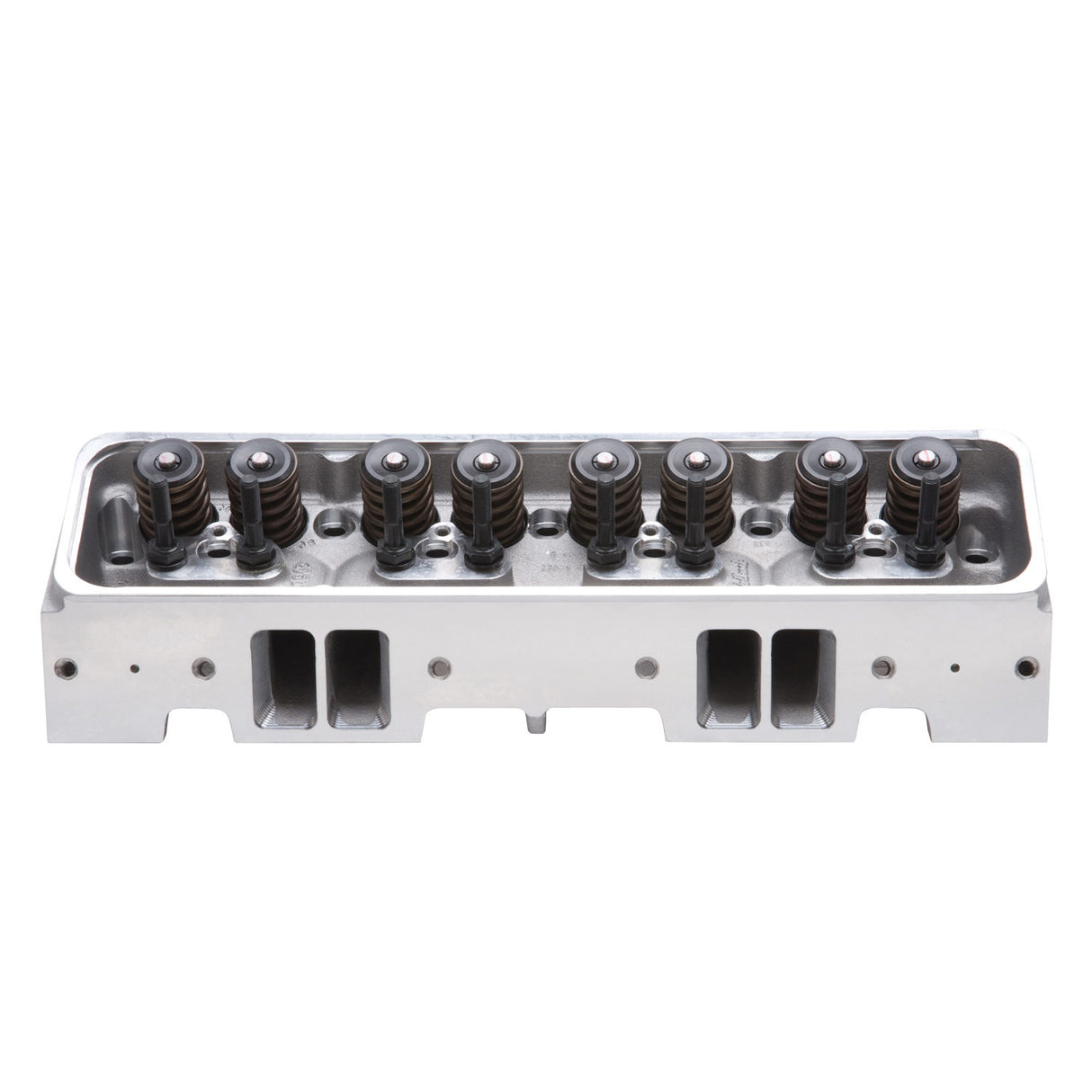

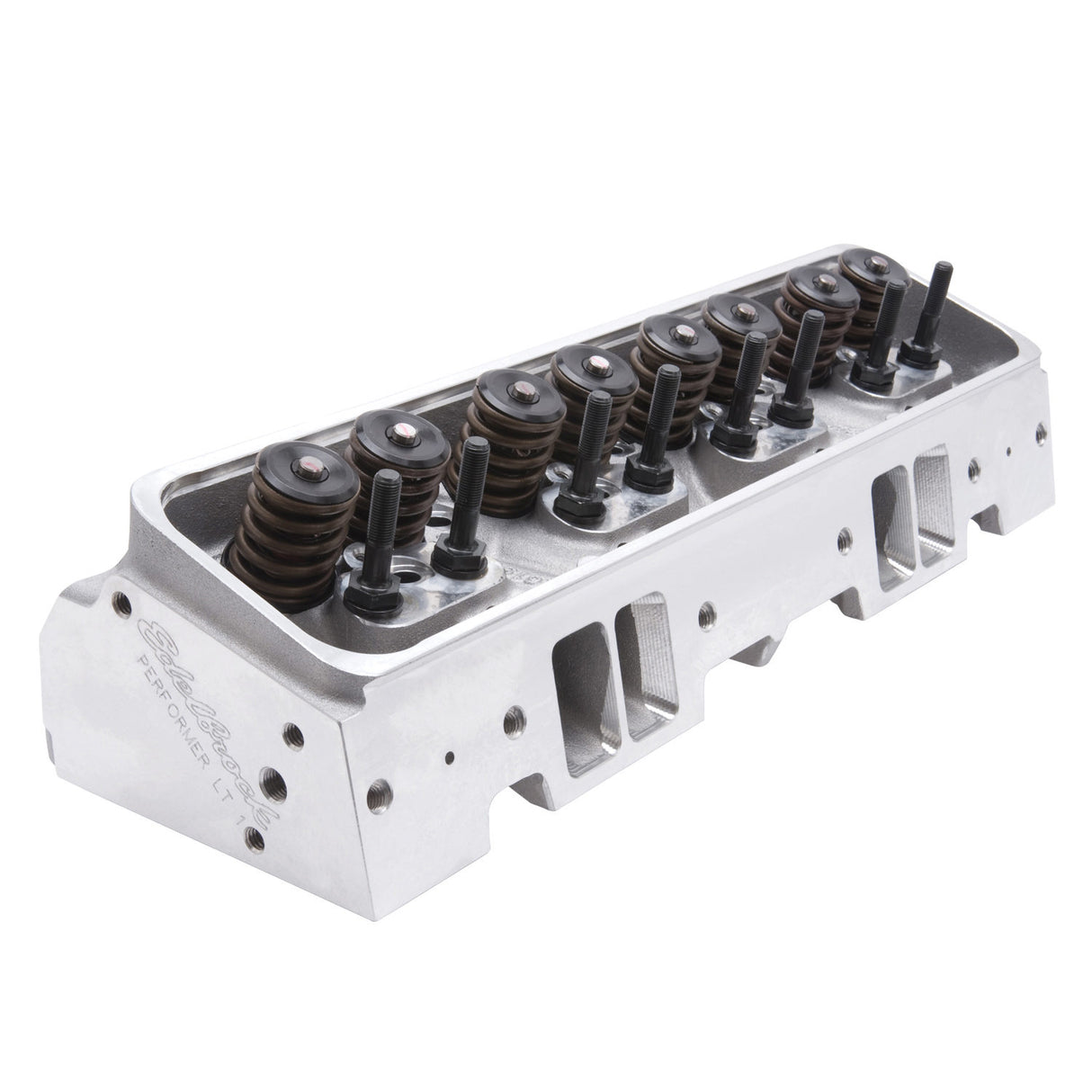

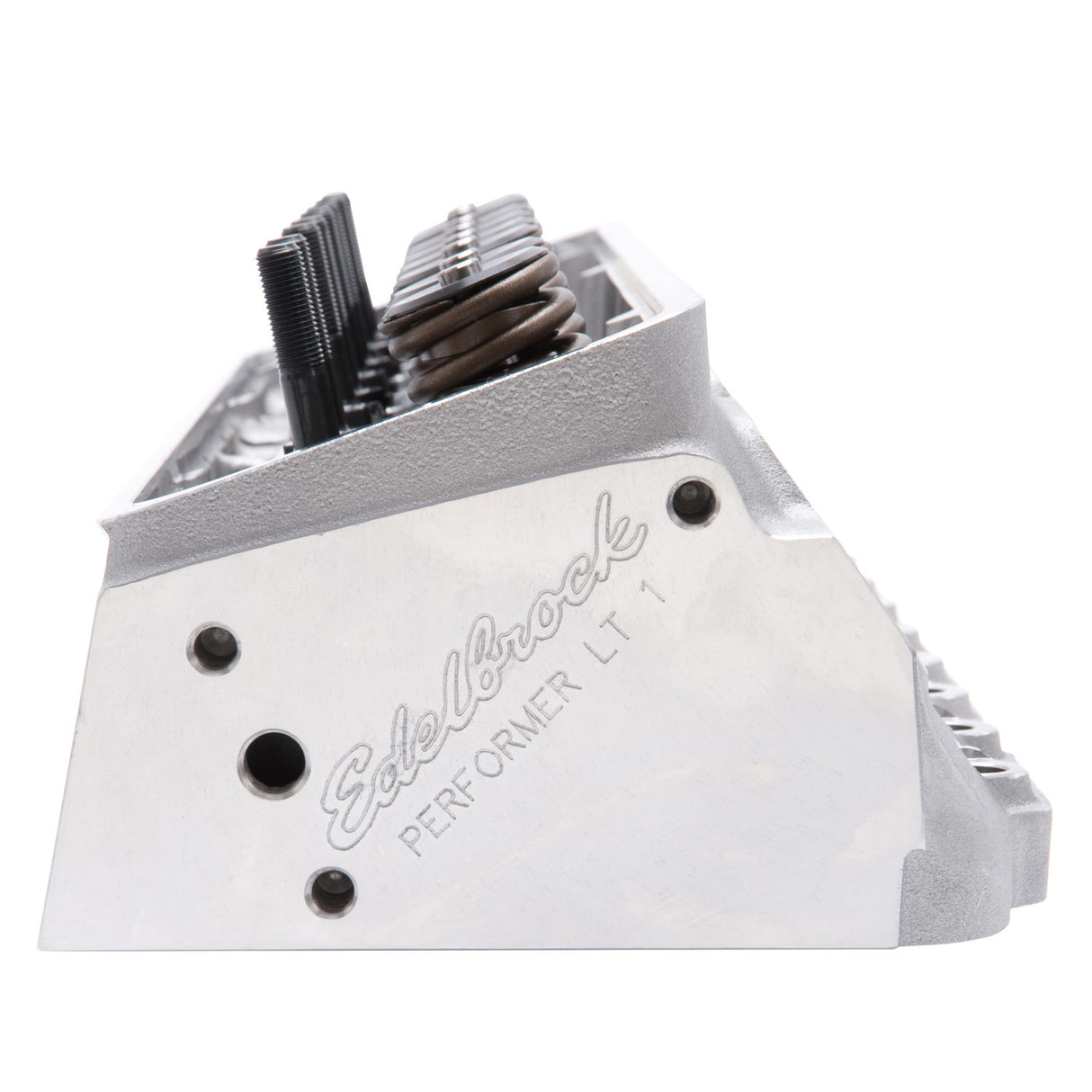

Edelbrock 61905 - Cylinder Head Performer LT1 Small Block Chevy Complete Single

Cylinder Head - Performer - Assembled - 1.940 / 1.550 in Valves - 170 cc Intake - 60 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - GM LT-Series 1992-97 - Each

Edelbrock part #61905 Performer small-block Chevy LT1 (1992-97) Performer complete cylinder head delivers 24 horsepower over stock and raise the peak power level by 500 rpm. This head is designed to accept factory style self-aligning rockers. This Performer LT1 cylinder head is 50-state street legal and accept factory center bolt valve covers. It features exhaust ports in the stock location for use with stock or aftermarket exhaust manifolds and headers. Match with RPM Air-Gap intake #7107, throttle body #3809 and camshaft #2108 for the Total Power Package combo. Cylinder Head Specifications: - Exhaust port location: Stock - Spark plug fitment: 14mm x 3/4 reach, gasket seat

  • Complete 50-State Street Legal Alum Cylinder Head
  • Out-of-the-Box Bolt-On Performance
  • Design That Improves Intake Port Alignment
  • Outstanding High Performance Street Head
  • Provides A Semi-Open Combustion Chamber
  • 9.2:1 Compression with Flat Top Pistons
  • 8.8:1 Compression With 1987 And Up TBI Dished Pistons
  • Match with Edelbrock Multi-Point EFI to Maximize

Valve Springs Included: Yes
Valve Spring Maximum Lift: 0.600
Camshaft Type: Hydraulic Roller
Grade Type: Performance
Deck Thickness: 0.625
Exhaust Valve Diameter: 1.55
9040: D-215-70
CNC Ported: No
Exhaust Port Location: Standard
Exhaust Runner Volume: 60
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Family: Performer
EGR Port: No
Horsepower: 300-450
Seat Material: Ductile Iron
Construction Type: Complete
Guide Plates Included: No
Head Casting Number: N/A
Guide Material: Manganese Bronze
Combustion Chamber Volume: 54
Rocker Arm Stud Diameter: 0.4375
Quantity: Sold Individually
Valve Stem Diameter: 0.3125
Retainer Included: Yes
Push Rod Diameter: (Suggested) 0.375
Valve Included: Yes
Intake Valve Diameter: 1.94
Valve Spring Diameter: 1.46
Series: Performer
Material: Aluminum
Intake Runner Volume: 170
Valve Angle: 23
Seat Angle: Exhaust 45 deg/Intake 45

FITMENT DATA

Year
Make
Model
Notes
1994 - 1996
Buick
Commercial Chassis
Complete
Standard Exh. Port
1.94 in. Intake/1.55 in. Exh. Valves
1.46 in. V. Springs
Exh. Runner Vol. 60cc
Exh. V. Dia 1.55 in.~ V. Stem Dia. 11/32 in.
Deck Thickness 5/8 in.~ V. Spring Dia. 1.46 in.
Rocker Stud 3/8 in.~ Pushrod Dia. 5/16 in.
14mmx.0750 Reach Gasket Seat~ Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps
1994 - 1996
Buick
Roadmaster
Complete
Standard Exh. Port
1.94 in. Intake/1.55 in. Exh. Valves
1.46 in. V. Springs
Exh. Runner Vol. 60cc
Exh. V. Dia 1.55 in.~ V. Stem Dia. 11/32 in.
Deck Thickness 5/8 in.~ V. Spring Dia. 1.46 in.
Rocker Stud 3/8 in.~ Pushrod Dia. 5/16 in.
14mmx.0750 Reach Gasket Seat~ Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps
1993 - 1997
Chevrolet
Camaro
Complete
Standard Exh. Port
1.94 in. Intake/1.55 in. Exh. Valves
1.46 in. V. Springs
Exh. Runner Vol. 60cc
Exh. V. Dia 1.55 in.~ V. Stem Dia. 11/32 in.
Deck Thickness 5/8 in.~ V. Spring Dia. 1.46 in.
Rocker Stud 3/8 in.~ Pushrod Dia. 5/16 in.
14mmx.0750 Reach Gasket Seat~ Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps
1994 - 1996
Chevrolet
Caprice
Complete
Standard Exh. Port
1.94 in. Intake/1.55 in. Exh. Valves
1.46 in. V. Springs
Exh. Runner Vol. 60cc
Exh. V. Dia 1.55 in.~ V. Stem Dia. 11/32 in.
Deck Thickness 5/8 in.~ V. Spring Dia. 1.46 in.
Rocker Stud 3/8 in.~ Pushrod Dia. 5/16 in.
14mmx.0750 Reach Gasket Seat~ Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps
1994
Chevrolet
Commercial Chassis
Complete
Standard Exh. Port
1.94 in. Intake/1.55 in. Exh. Valves
1.46 in. V. Springs
Exh. Runner Vol. 60cc
Exh. V. Dia 1.55 in.~ V. Stem Dia. 11/32 in.
Deck Thickness 5/8 in.~ V. Spring Dia. 1.46 in.
Rocker Stud 3/8 in.~ Pushrod Dia. 5/16 in.
14mmx.0750 Reach Gasket Seat~ Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps
1992 - 1996
Chevrolet
Corvette
Complete
Standard Exh. Port
1.94 in. Intake/1.55 in. Exh. Valves
1.46 in. V. Springs
Exh. Runner Vol. 60cc
Exh. V. Dia 1.55 in.~ V. Stem Dia. 11/32 in.
Deck Thickness 5/8 in.~ V. Spring Dia. 1.46 in.
Rocker Stud 3/8 in.~ Pushrod Dia. 5/16 in.
14mmx.0750 Reach Gasket Seat~ Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps
1994 - 1996
Chevrolet
Impala
Complete
Standard Exh. Port
1.94 in. Intake/1.55 in. Exh. Valves
1.46 in. V. Springs
Exh. Runner Vol. 60cc
Exh. V. Dia 1.55 in.~ V. Stem Dia. 11/32 in.
Deck Thickness 5/8 in.~ V. Spring Dia. 1.46 in.
Rocker Stud 3/8 in.~ Pushrod Dia. 5/16 in.
14mmx.0750 Reach Gasket Seat~ Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps
1993 - 1997
Pontiac
Firebird
Complete
Standard Exh. Port
1.94 in. Intake/1.55 in. Exh. Valves
1.46 in. V. Springs
Exh. Runner Vol. 60cc
Exh. V. Dia 1.55 in.~ V. Stem Dia. 11/32 in.
Deck Thickness 5/8 in.~ V. Spring Dia. 1.46 in.
Rocker Stud 3/8 in.~ Pushrod Dia. 5/16 in.
14mmx.0750 Reach Gasket Seat~ Equipped w/Springs For Use in Hyd. Flat Tappet Camshaft Apps
