Spicer 707244-7X - Differential Ring and Pinion Kit - DANA 35 - 3.55 Ratio

Spicer  |  SKU: FSGR-707244-7X
$45999 $62040

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

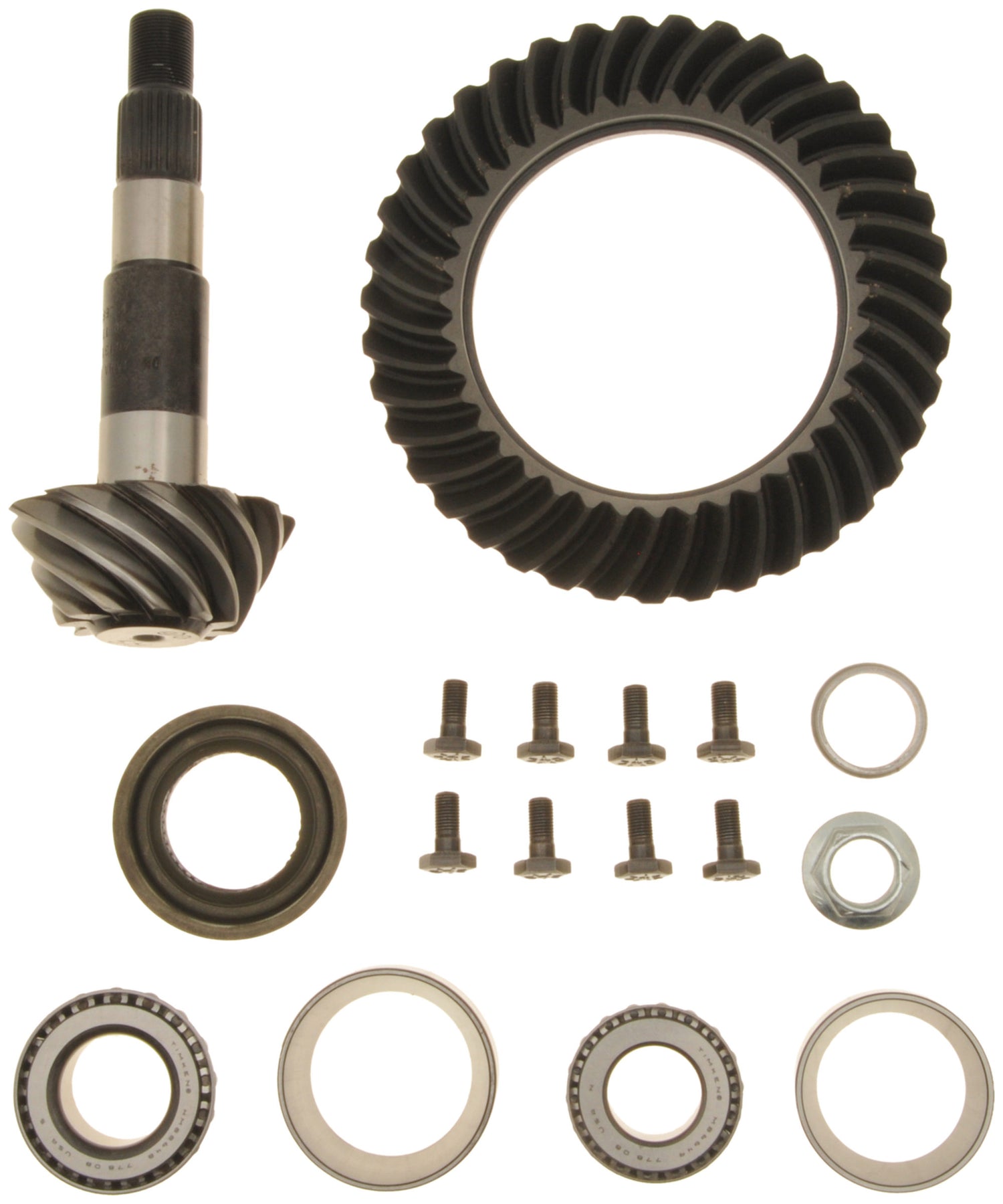

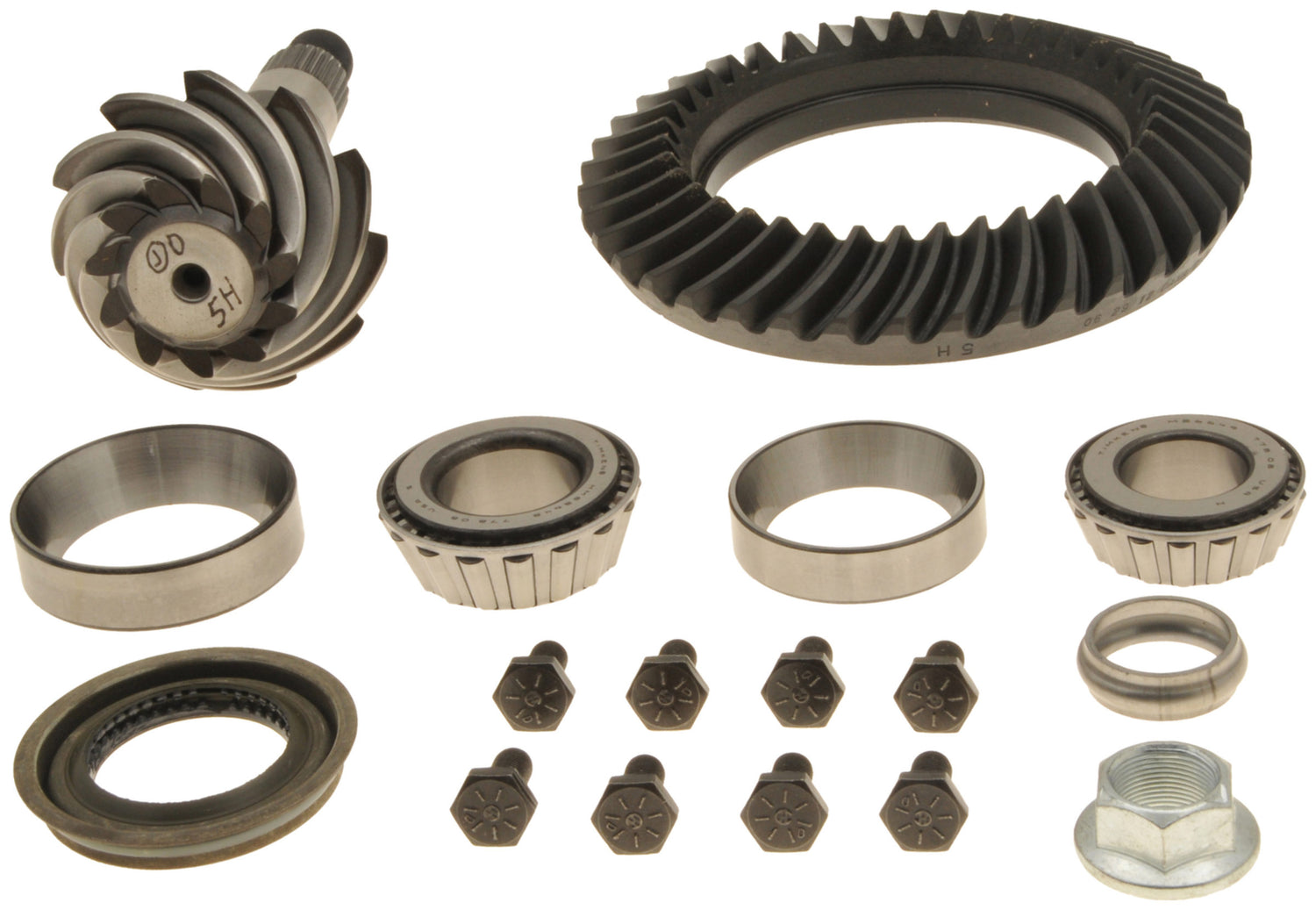

Spicer 707244-7X - Differential Ring and Pinion Kit - DANA 35 - 3.55 Ratio

Differential Ring and Pinion Kit - DANA 35 - 3.55 Ratio

All Spicer ring and pinion gears are designed and tested to meet original equipment specifications. When you purchase genuine Spicer ring and pinion gear sets, you can be confident the ring and pinion set will meet or exceed the exact Dana standards that original equipment manufacturers have relied upon for more than a hundred years.

  • All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications.
  • Lapped to reduce noise and heat. Lubrication process allows for no break in period.
  • Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear.
  • High-grade steel for maximum durability.
Pinion Spline Count: 26
Ring Gear Bolt Qty: 8
Ring Gear Bolt Thread In.: .375-24
Ring Gear Diameter (In.): 7.640
Ring Gear Rotation: Standard
Axle Type: Semi Floating
New Or Remanufactured: New
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: Y
Axle Model: DANA 35
Gear Ratio: 3.55
Ring Teeth Count: 39
Carrier Breaks: 3.54 And Up
Cover Bolt Quantity: 10
Include Installation Kit: Y
On Vehicle Location: Rear
Pinion Gear Tooth Quantity: 11
Pinion Shaft Diameter: 1.406
