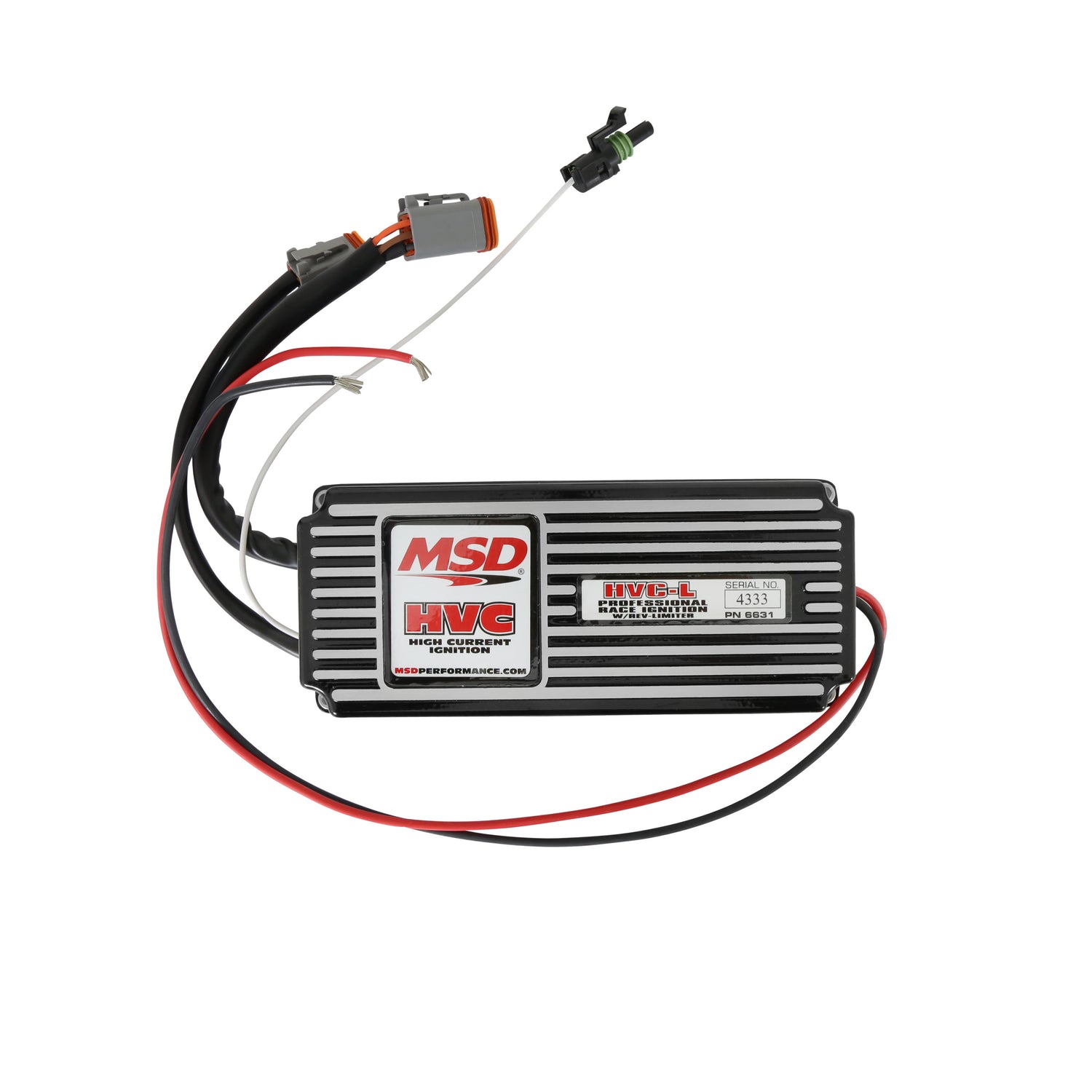

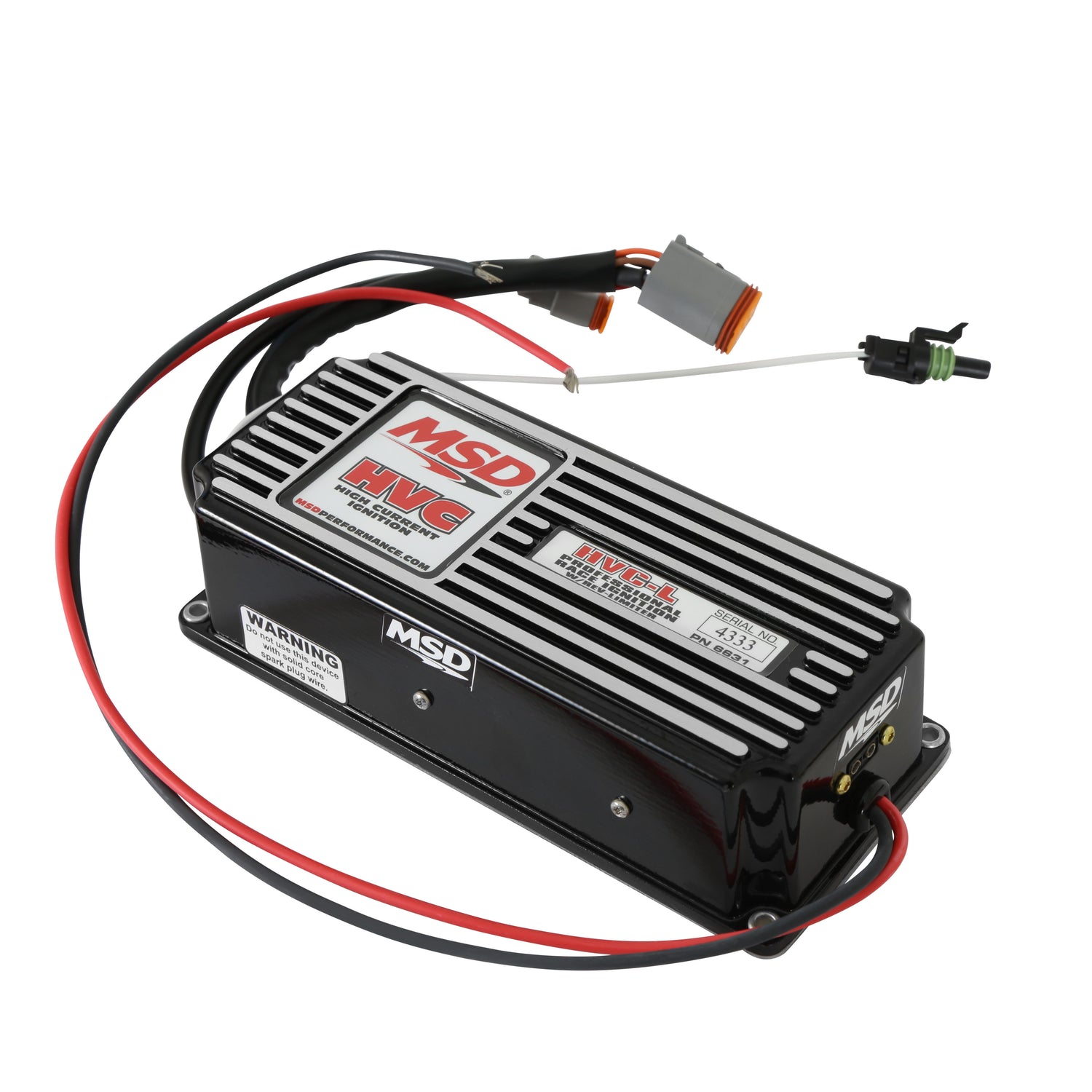

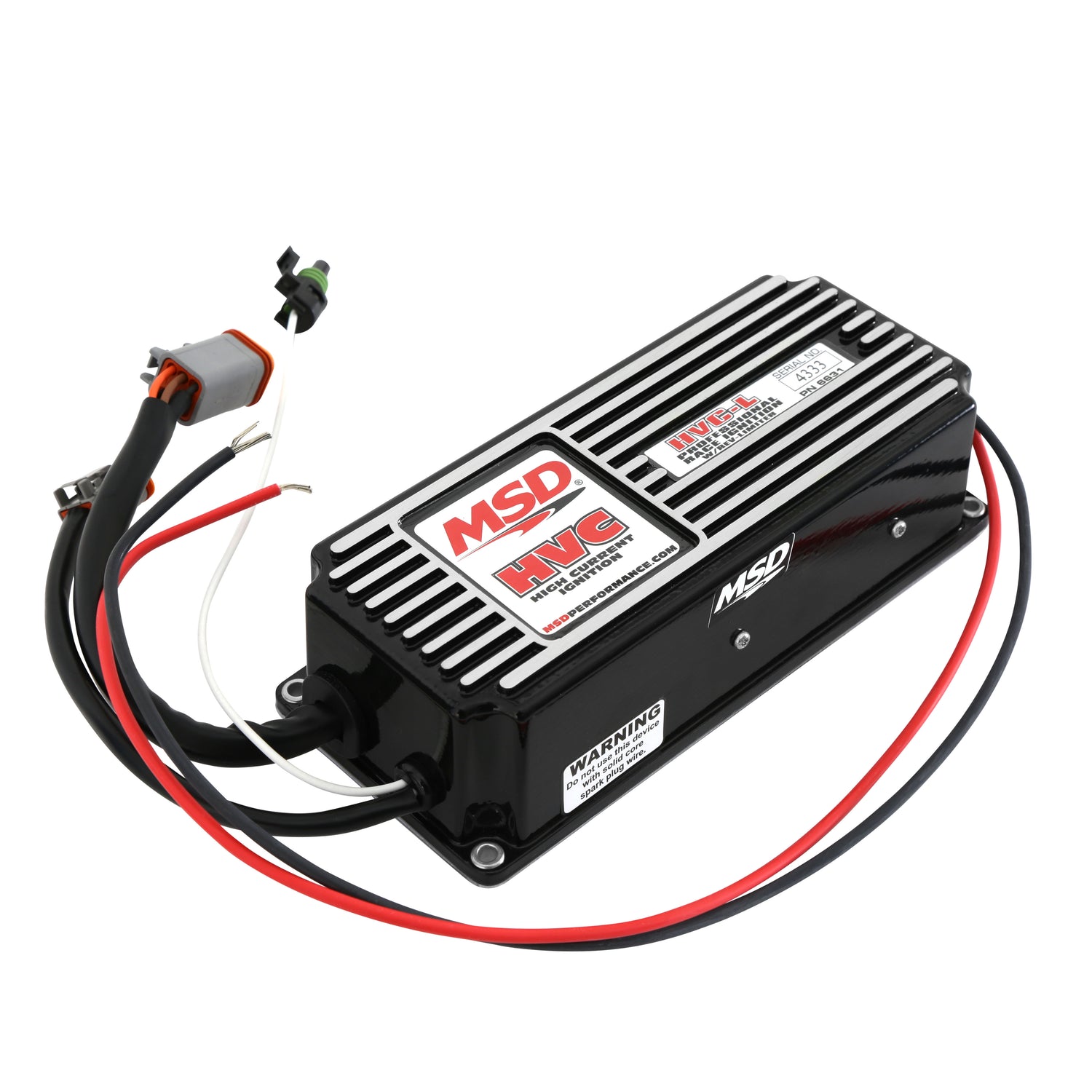

MSD 6631 - 6HVC-L Ignition Controller

MSD 6631 - 6HVC-L Ignition Controller

Ignition Box - 6 HVC - Analog - CD Ignition - Multi-Spark - 40000V - Rev Limiter - Deutsch Connectors - Each

For use in Circle Track and Professional Racing, with Fast Rev Limiter

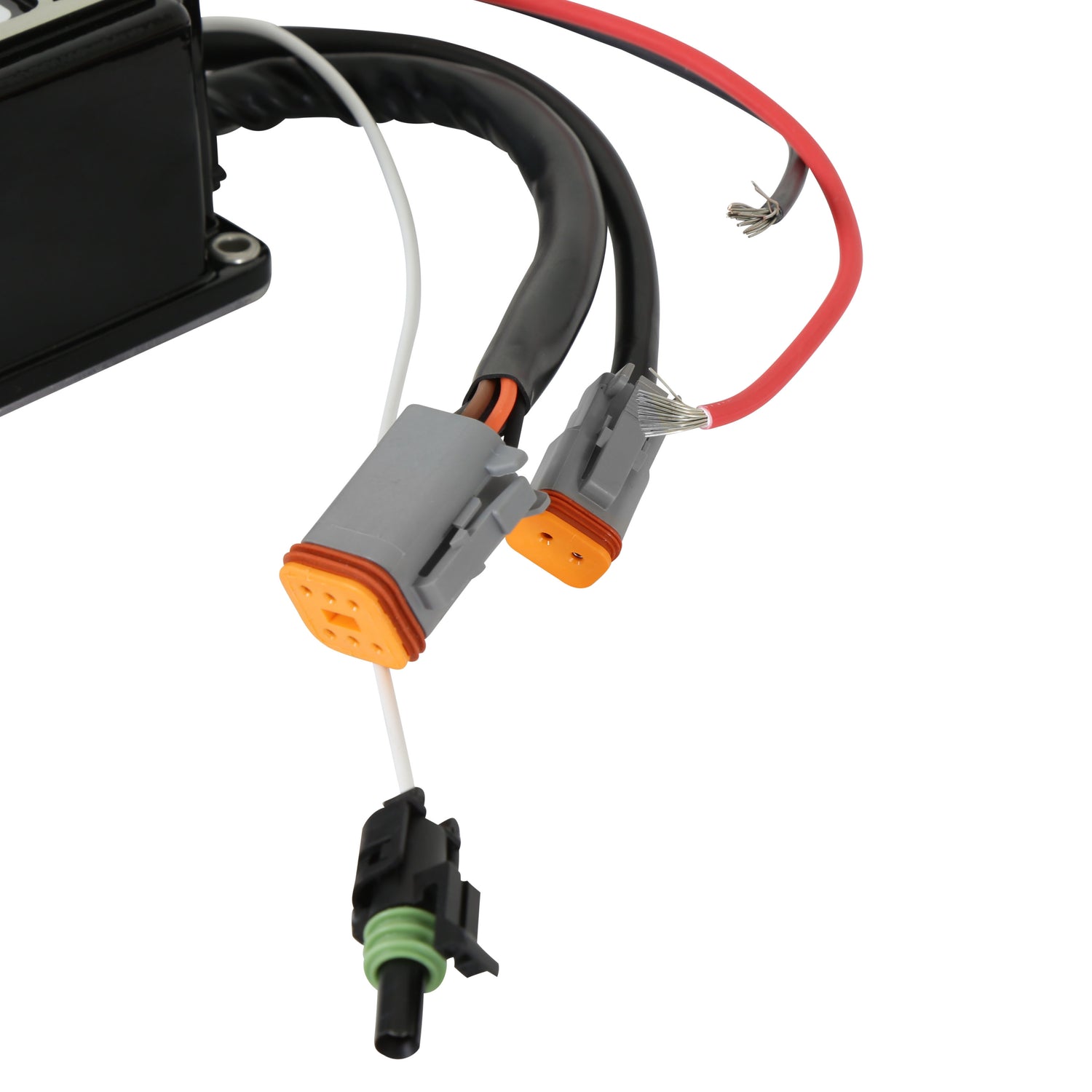

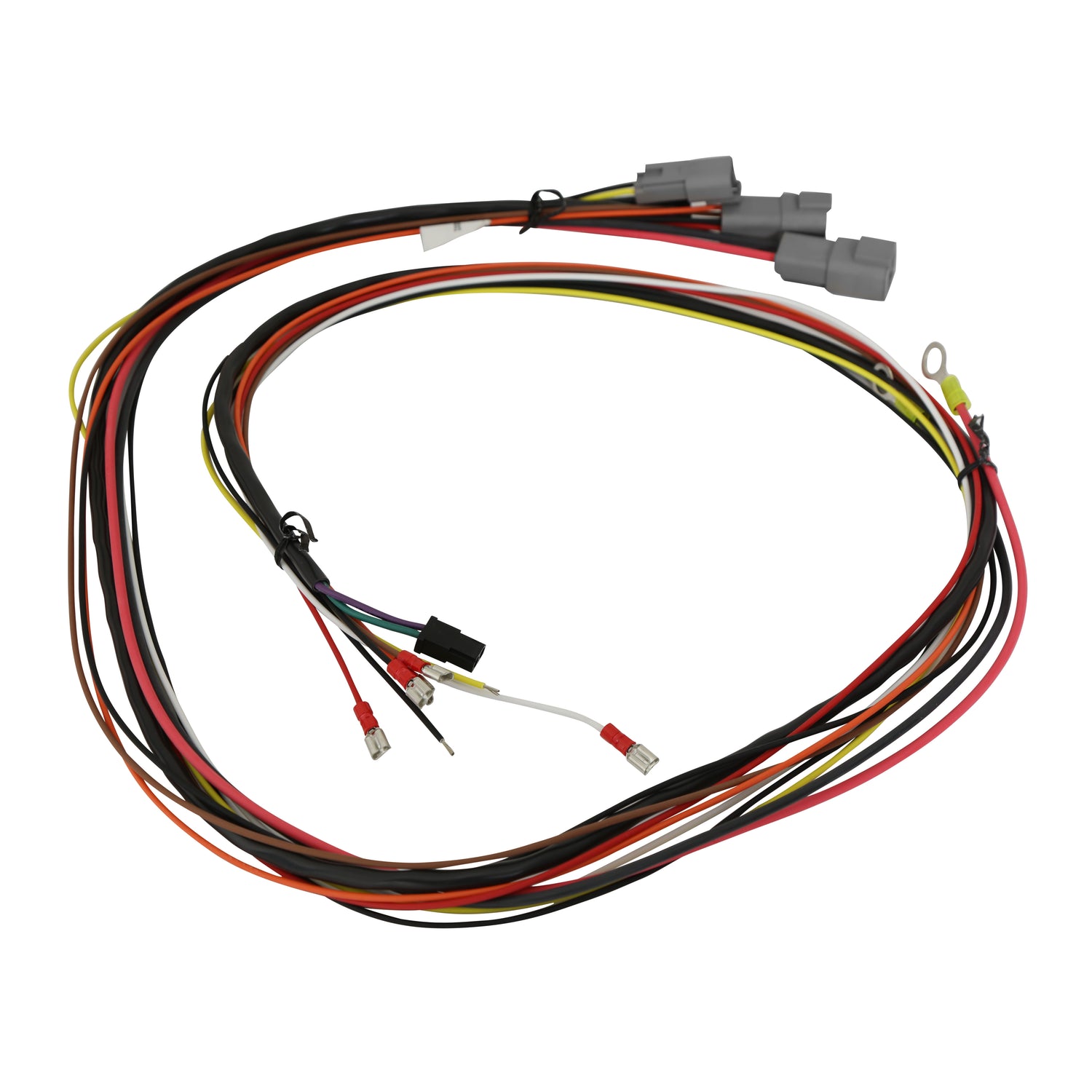

Professional race teams have been relying on the power and endurance of our 6 HVC ignition control and will be excited to see the addition of a rev limiter! The 6 HVC-L ignition has a built-in rev limiter that will save the engine from overrev damaged caused by spins, missed shifts or driver misfortune. This means there is no need to mount an external rev control (I.e., less wiring and reduced weight)! The advanced component design and circuitry of the 6 HVC ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The RPM limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.

• 150 millijoules per spark up to 15,000 RPM
• Built-in reverse polarity protection circuit
• Must be used with HVC Coil PN 8250
• Accepts breaker points, amplifier and magnetic pickup trigger inputs
• 6-pin Weathertight connector, mandatory for NASCAR use
• No CARB Exemption Order Number
• 15,000 RPM with 14.4 Volts
• Multiple sparks for 20 degrees of crankshaft rotation
• Includes built-in Fast rev limiter
• 12-18 Volts, Negative Ground

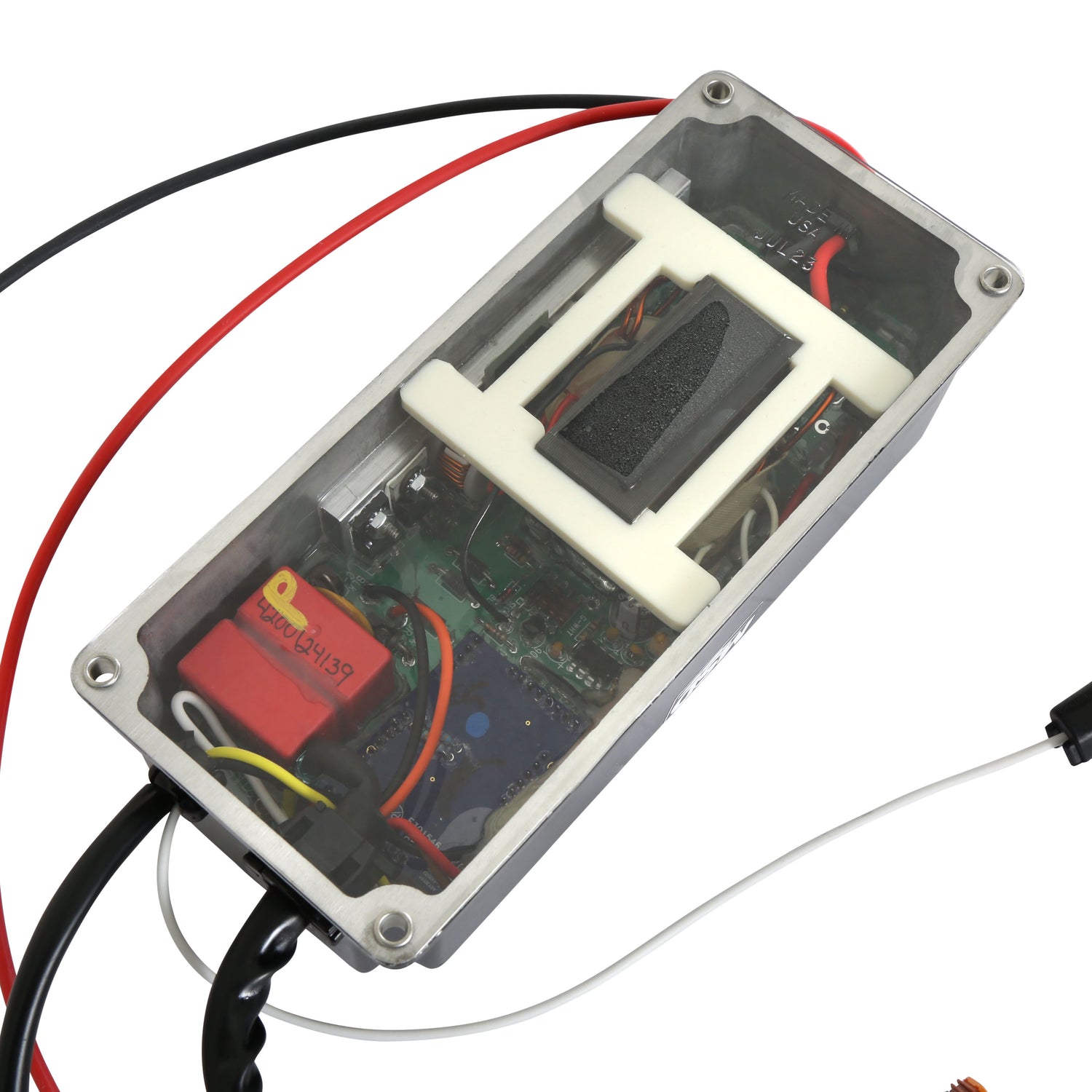

• Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
• 550 primary voltage output to coil
