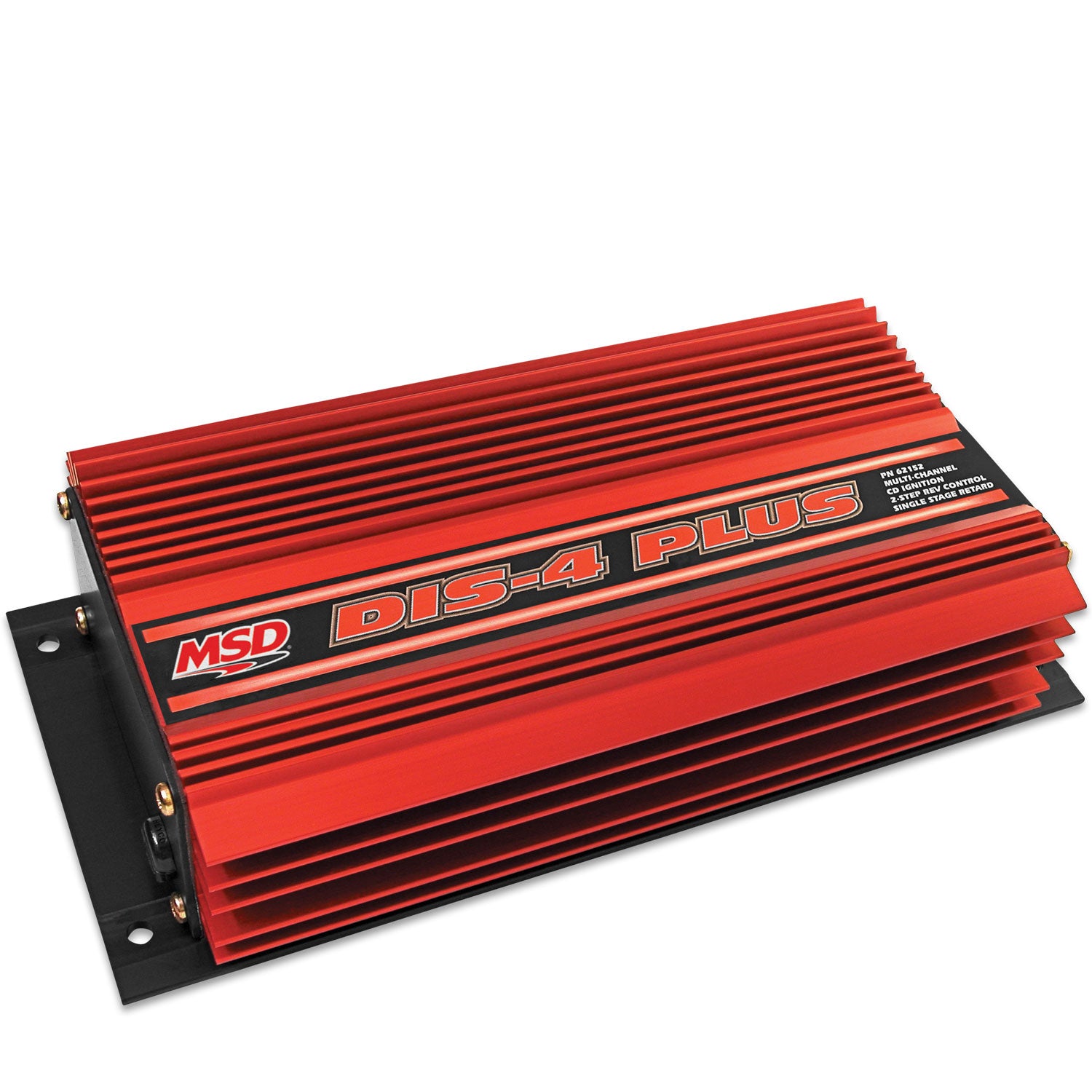

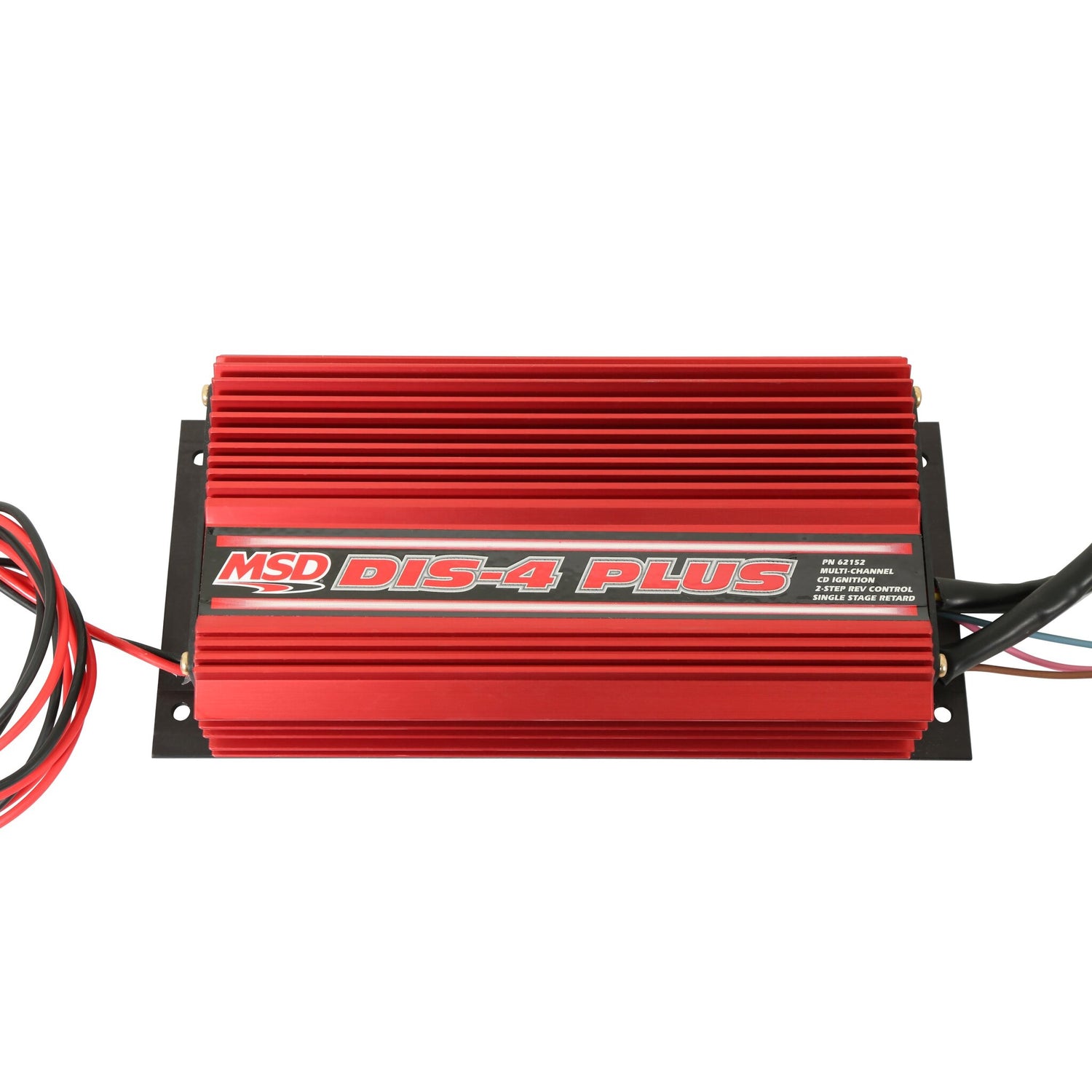

MSD 62152 - DIS-4 Plus Ignition Controller

MSD 62152 - DIS-4 Plus Ignition Controller

Ignition Box - Dis-4 Plus - Digital - CD Ignition - Multi-Spark - 40000V 2-Step Rev Limiter - Step Retard - 2/3/4 Coil Pack - 6/8-Cylinder - Each

DIS-4 Plus Ignition Controller; With 2/3/4 Coil Packs; 6.6 Amps at 10000 RPM; 460-480 Volts; 14000 RPM w/14.4 Volts; 105-115 mJ/Spark; 20 Deg. Crankshaft Rotation;

DIS-4 is capable of firing up to four coil packs or four individual coils. Each control delivers full power capacitive discharge sparks from idle through racing rpm. Below 3,000 rpm there is a series of multiple sparks that last for up to 20 degrees of crankshaft rotation to improve idle, starting and throttle response. The adjustable features of the DIS ignitions have also been upgraded with rotary dials. These provide easier, and more precise adjustments of the overrev limiter and the hole shot rev limit. Also, there is now a step retard that can be wired directly to a nitrous system or switch for activation. For use on 6 or 8 cylinder engines with two, three or four coil packs.

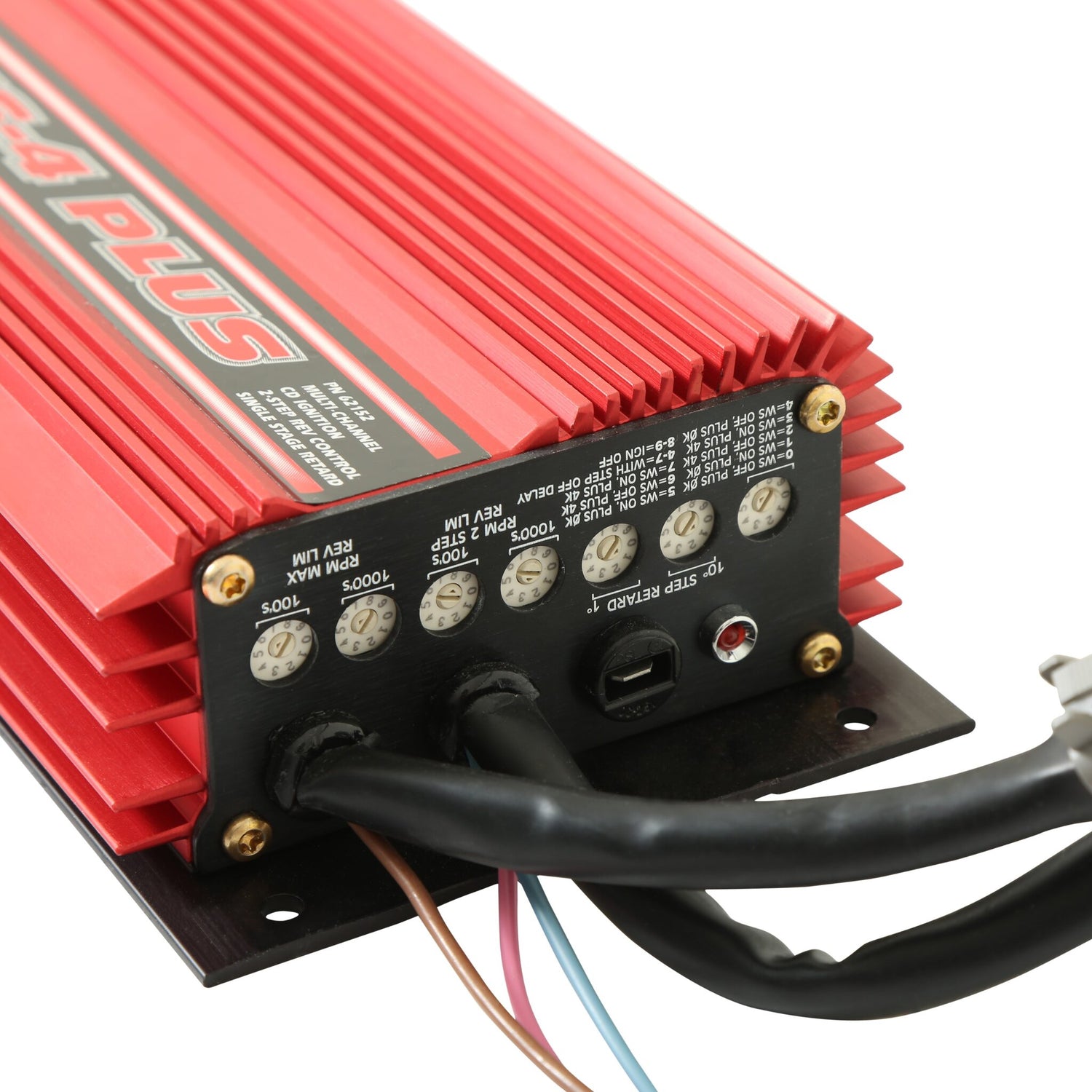

• Features are adjustable with rotary switches
• 10-18 Volts, Negative Ground
• Step Retard
• 14,000 RPM with 14.4 Volts
• 6.6 Amps at 10,000 RPM
• Two Step Rev Control
• LED Monitor
• EO # D-115-25
