MSD 6015MSD - Direct Ignition System [DIS] Ignition Control

MSD 6015MSD - Direct Ignition System [DIS] Ignition Control

MSD DIS Direct Ignition System Control Box - Red

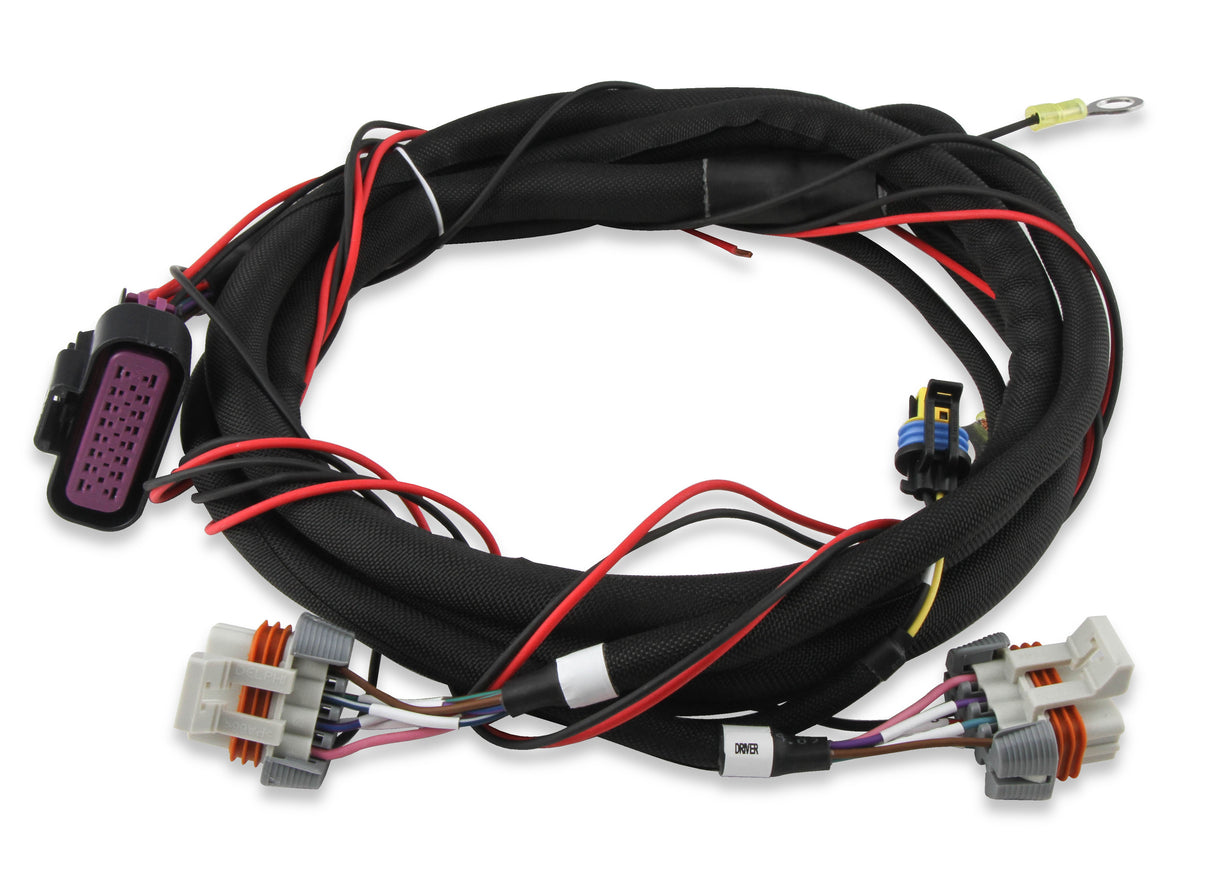

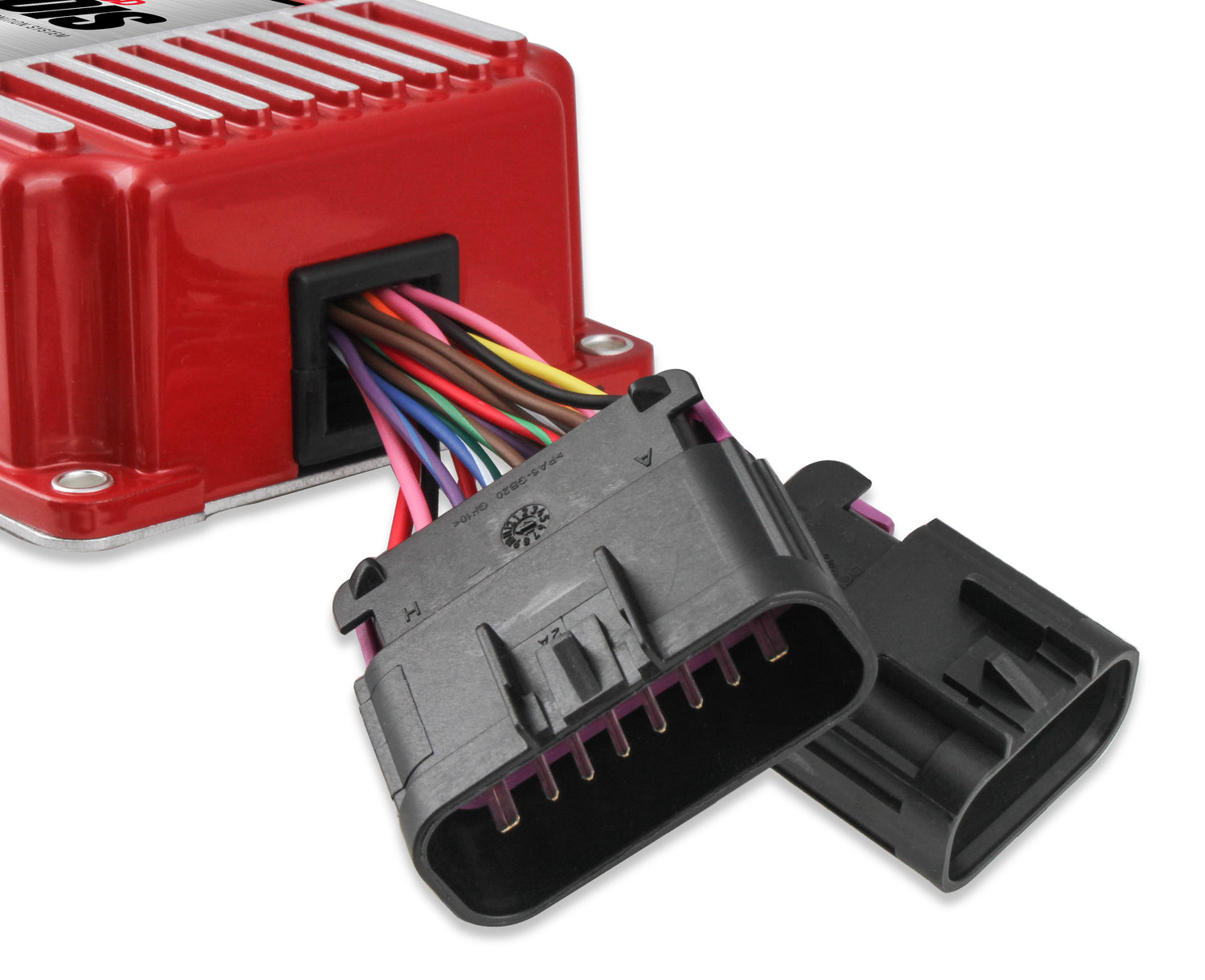

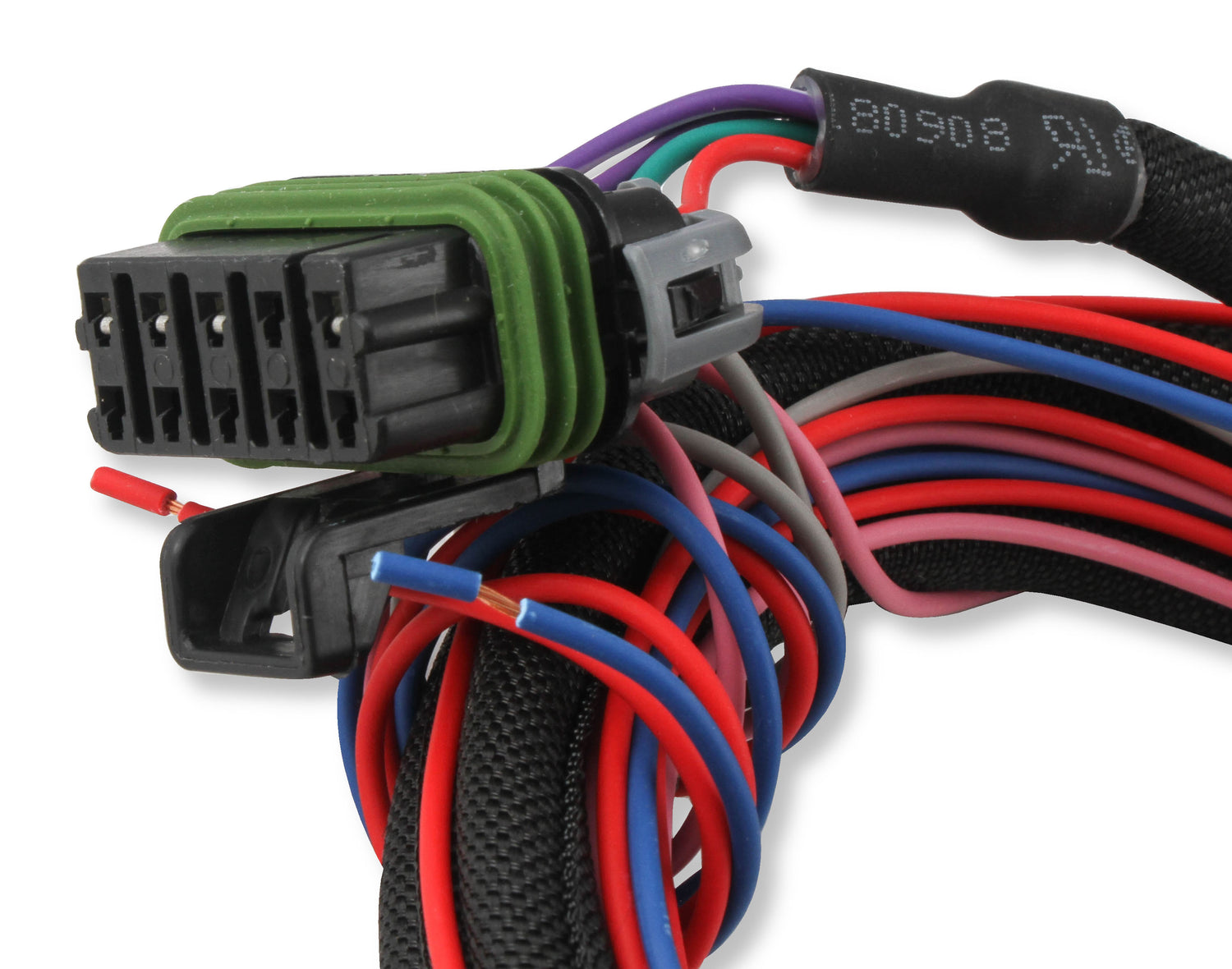

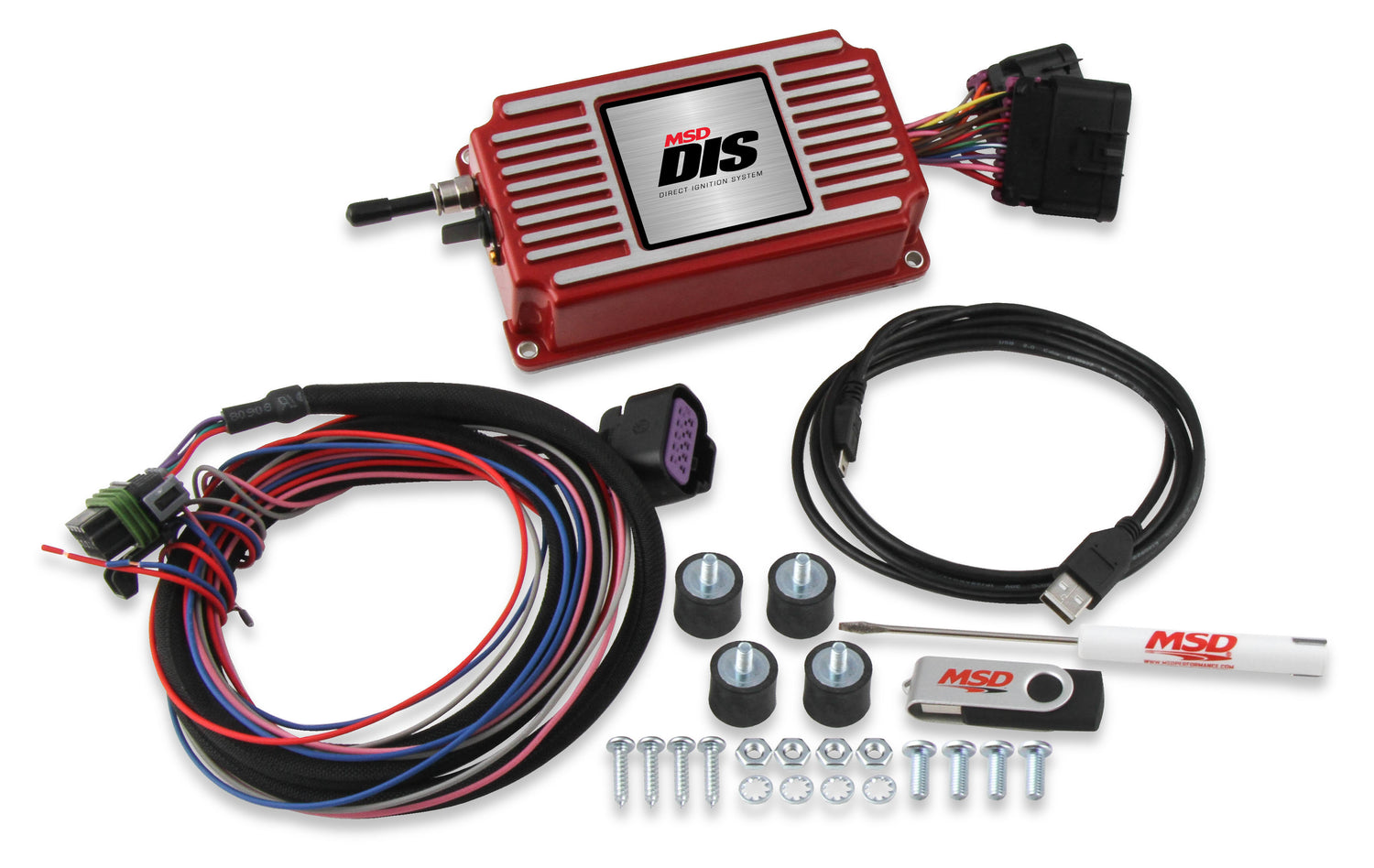

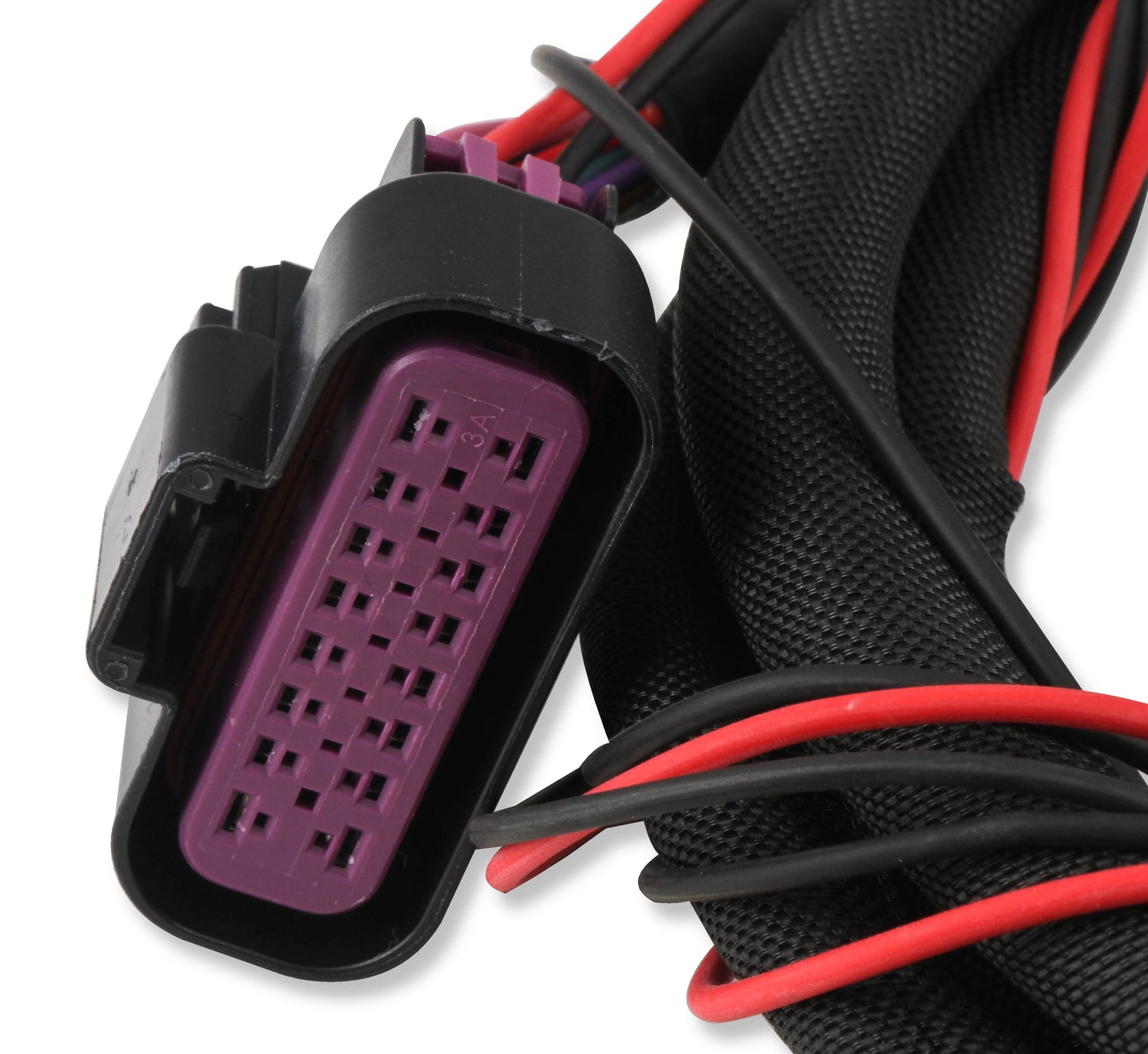

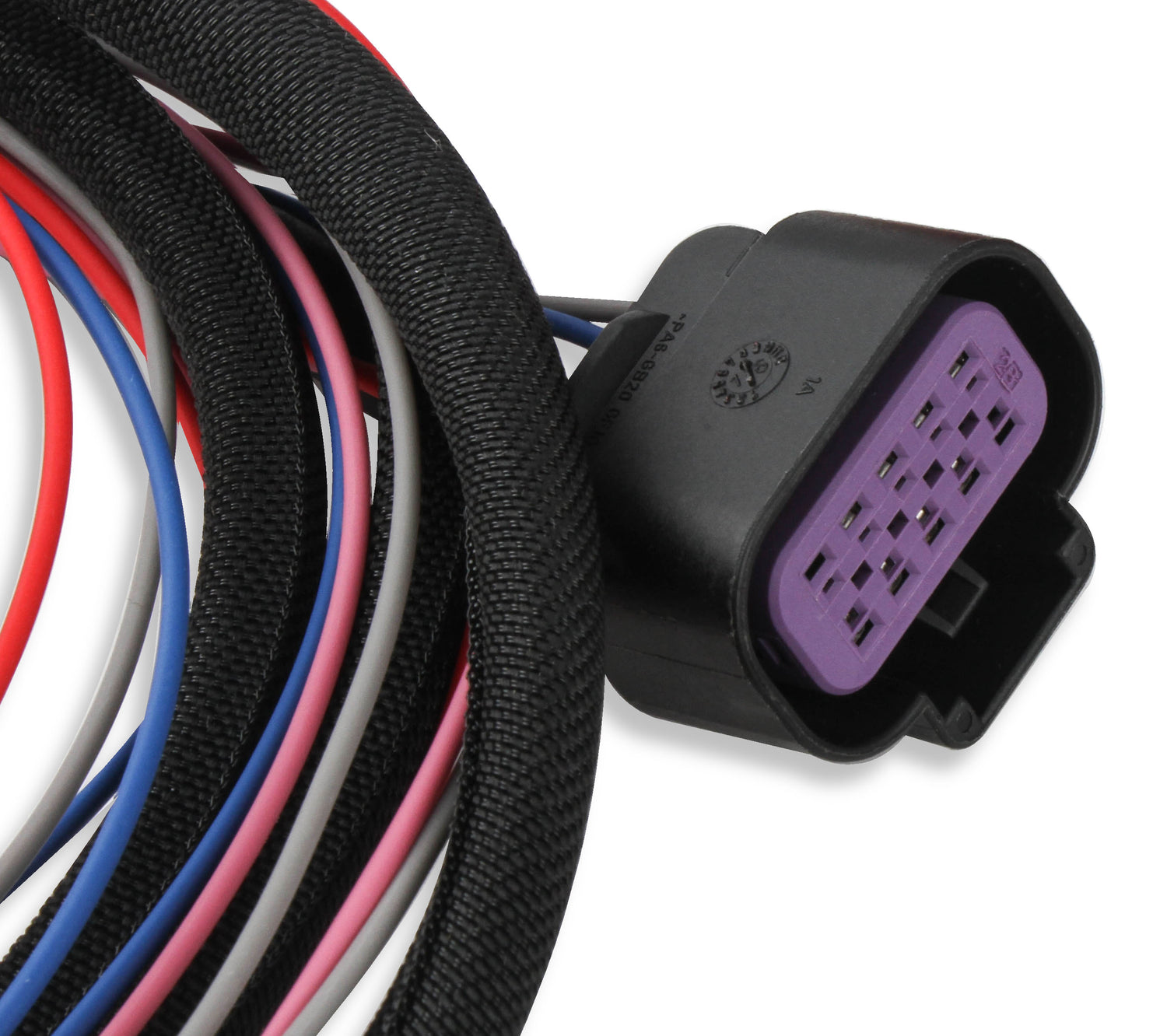

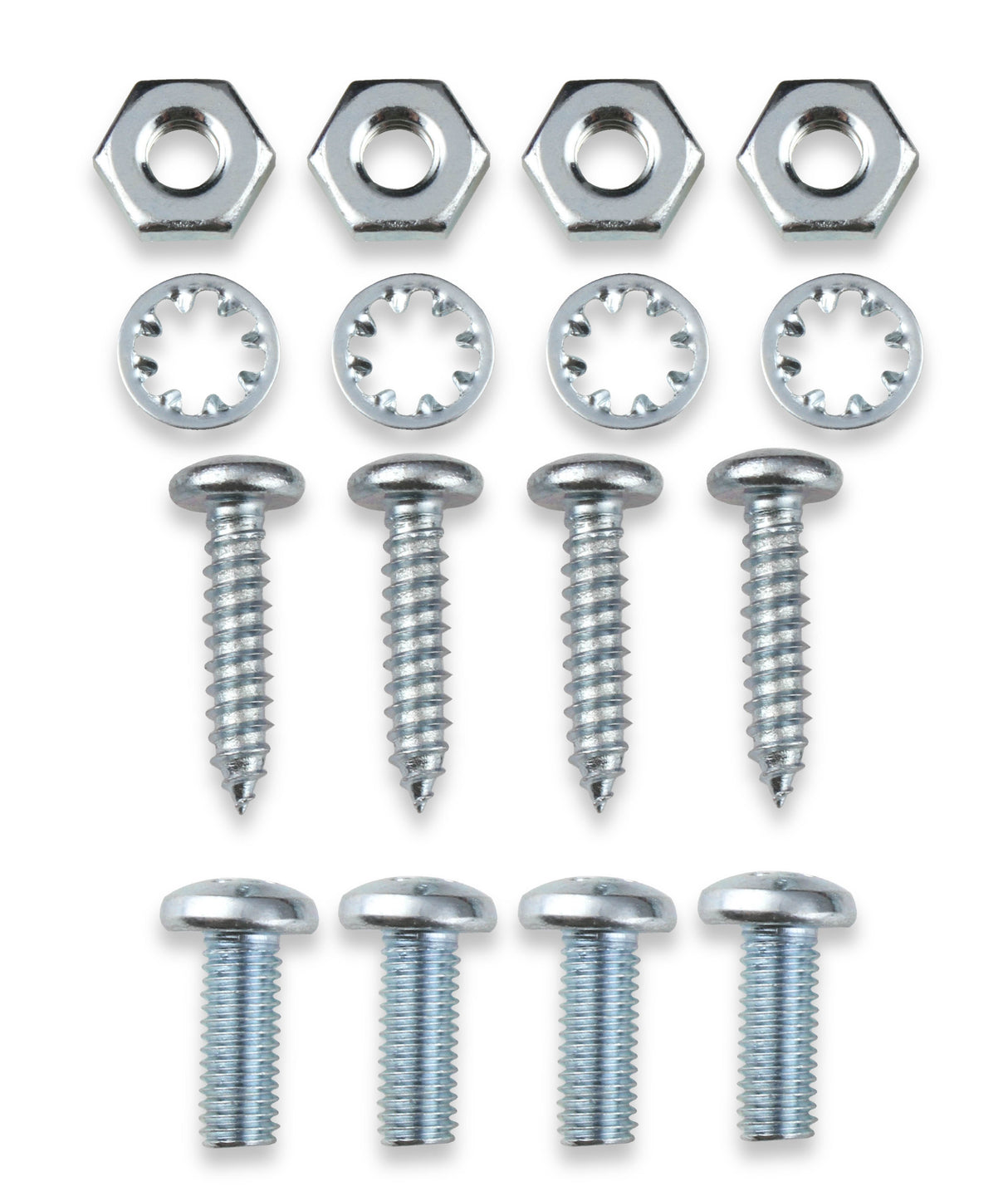

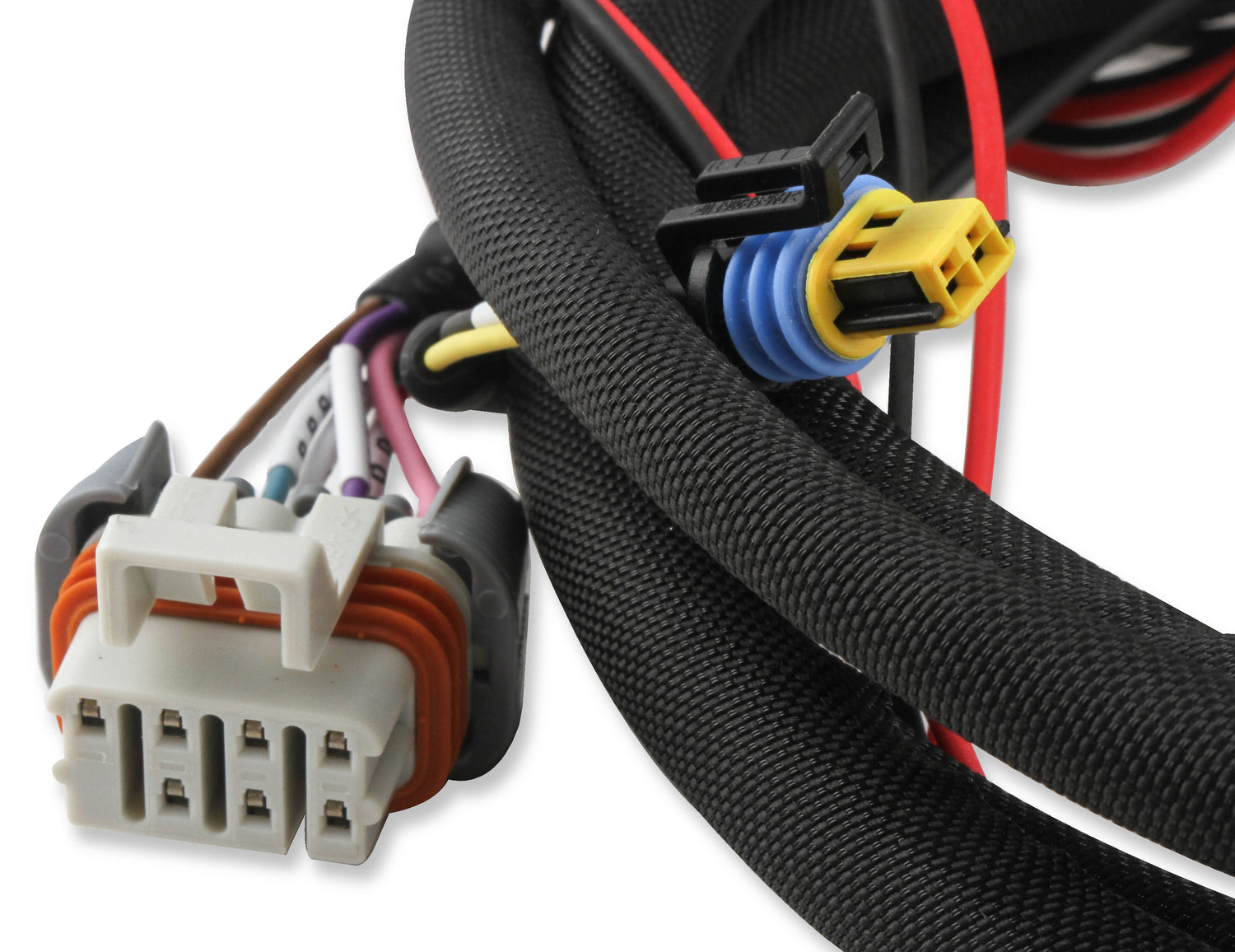

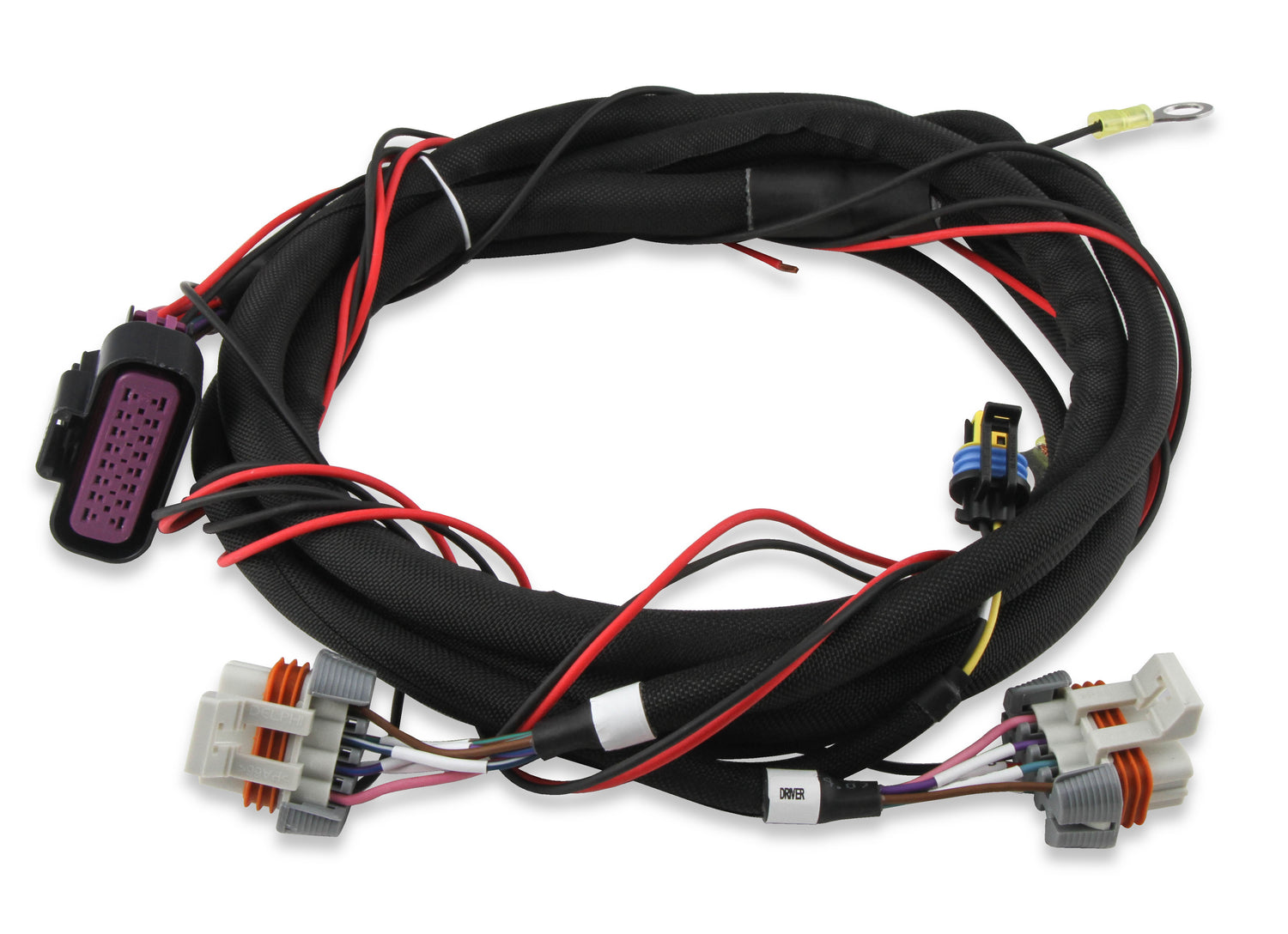

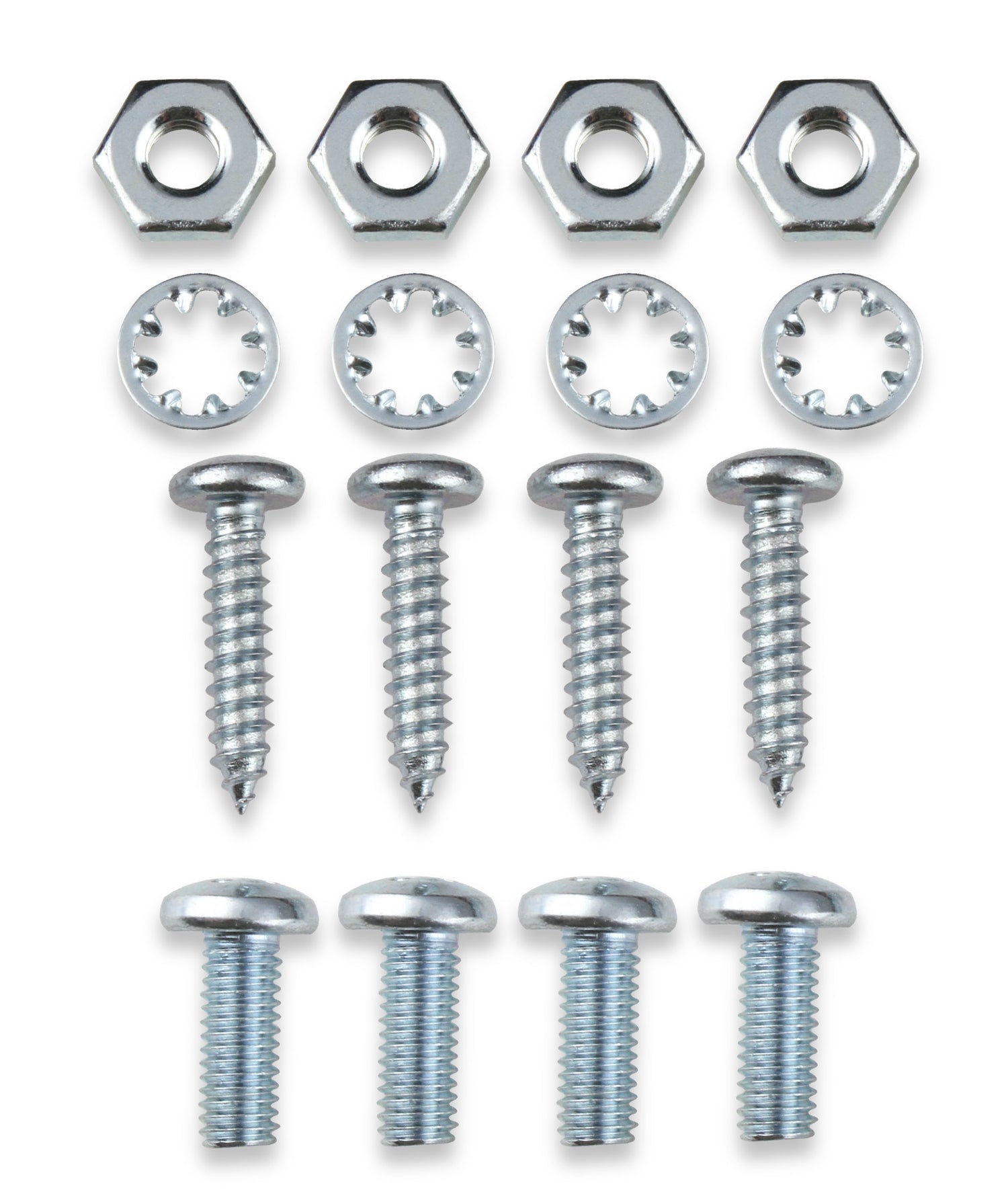

Direct Ignition System [DIS] Ignition Control; Conversion Box; Incl. DIS Ignition Control Box/Wiring Harness/Hardware; Red;

Modern Firepower for your classic - the MSD Direct Ignition System, or DIS, converts an early style engine from a conventional distributor and single coil setup to eight individual coils. One coil per cylinder means no moving parts in a distributor to control the timing and no cap and rotor to wear-out. Timing is digitally controlled ensuring precision accuracy at all RPMs and every firing. The DIS has advanced timing and rev-limiter functions for racers such as individual cylinder timing; timing retards for boosted and nitrous applications, a two-step rev-limiter, and launch control to get your car out of the hole and even data acquisition to keep everything in check. Convert your early Chevy, Ford or Mopar by replacing the worn out distributor with an MSD Pro-Billet Dual Sync Distributor and blank cap. The Dual Sync plugs directly into the 6015MSD DIS Ignition control providing the cam and crank signals. The DIS then plugs into a set of GM smart coils, a.k.a. LS coils, and just like that, your early bullet has modern firepower.

• Preprogrammed timing maps
• Single Timing Step Retard ideal for pulling timing for nitrous applications
• Built-in 2.5 bar Manifold Absolute Pressure (MAP) sensor for boosted applications
• Programmable Max Rev and Launch RPM limiters provide engine protection
• Optional temperature sensor input to control timing based on temperature
• Consistent holeshots thanks to a Programmable Launch Timing Retard

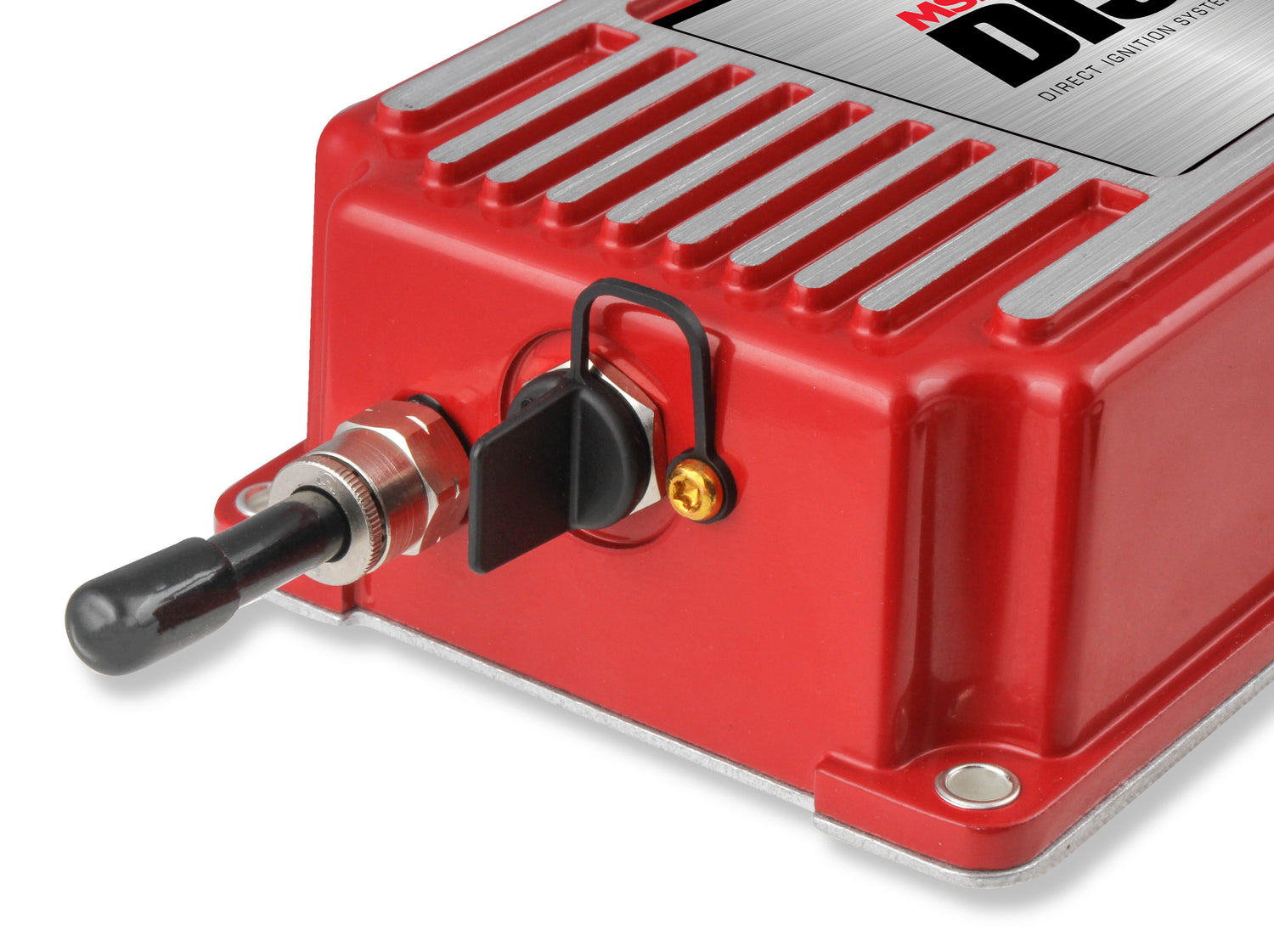

• Easily programmable through a Mini-USB communication port
• Individual Cylinder Timing (ICT) allows precise tuning
• Data acquisition allows you to keep an eye on all aspects of the ignition
• Fully Programmable 2D and 3D Timing maps provide complete timing control
• Easily convert to a Coil-Per-Plug ignition system
• Fully potted electronics and sealed connectors for maximum durability
• Complete kits with all required components available
