Motive Gear MGK-142 - JL NON-RUB 18+ D30F/D35R 4.88

Motive Gear  |  SKU: BHHD-MGK-142
$1,70899 $1,87989

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

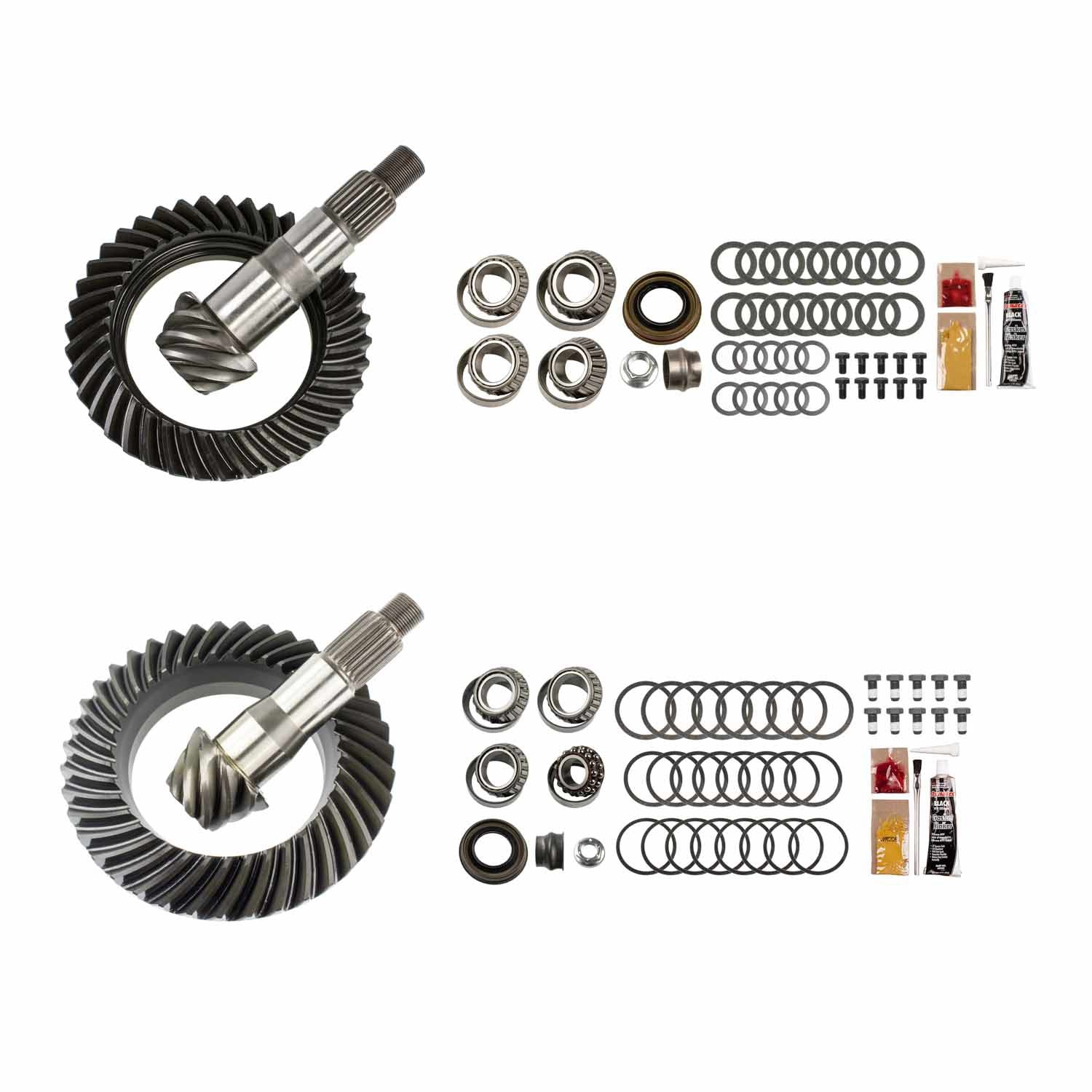

Motive Gear MGK-142 - JL NON-RUB 18+ D30F/D35R 4.88

JL NON-RUB 18+ D30F/D35R 4.88

DIFFERENTIAL RING AND PINION FOR DANA 30 FRONT AND DANA 35 JL REAR; 4.88 RATIO

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

App/Model: Dana AdvanTEK M186
App/Model: Dana AdvanTEK M200
App/Model: Dana 30 JL Reverse
App/Model: Dana 35 JL
Differential Carrier Break: 3.73 Ratio and Higher Front (D30-488RJK)
Position: Front and Rear
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion Gear Packages
Taxonomy C: Front and Rear
Taxonomy D: 4.88
Ring Gear Bolt Quantity: 10
Cover Bolt Quantity: 10 Front (D30-488RJK)
Cover Bolt Quantity: 12 Rear (D35-488JL)
Gear Ratio: 4.88
Pinion Shaft Diameter: 1.375 Front (D30-488RJK)
Pinion Shaft Diameter: 1.63 Rear (D35-488JL)
Ring Gear Tooth Quantity: 39
Pinion Spline Count: 24
Ring Gear Rotation: Reverse Front (D30-488RJK)
Ring Gear Rotation: Standard Rear (D35-488JL)
Pinion Gear Tooth Quantity: 8
Differential Case Design Type: Dana 30 JL Reverse
Differential Case Design Type: Dana 35 JL
Differential Case Design Type: Dana AdvanTEK M186
Differential Case Design Type: Dana AdvanTEK M200
Ratio: 4.88
Ring Gear Outside Diameter: 7.125 Front (D30-488RJK)
Ring Gear Outside Diameter: 7.88 Rear (D35-488JL)
Ring Gear Material: 8620 Steel
