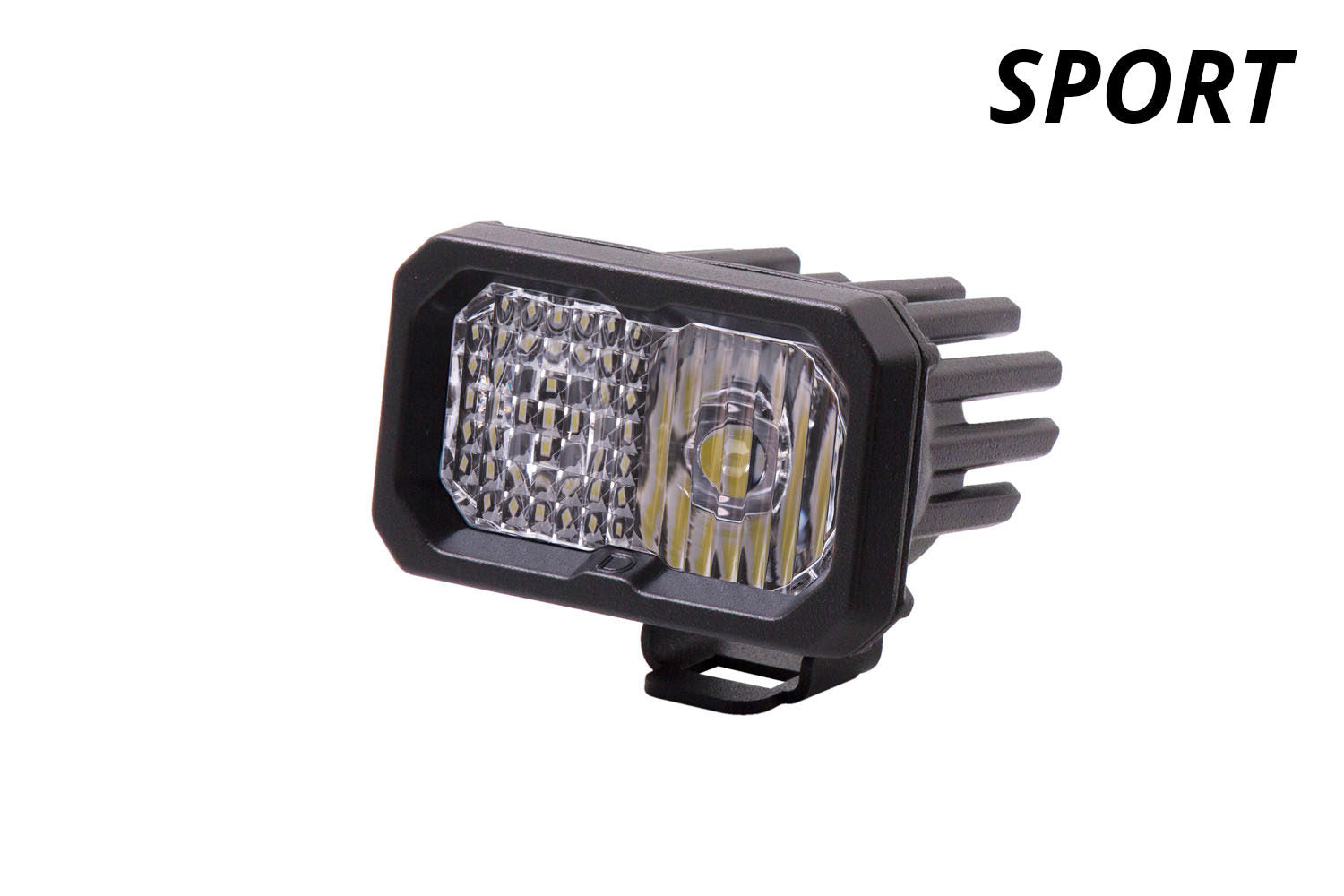

Diode Dynamics DD6399S - Stage Series 2 In LED Pod Sport - White Spot Standard RBL Each

Diode Dynamics  |  SKU: DIODE-DD6399S
Sale price $11995 Regular price $13194

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

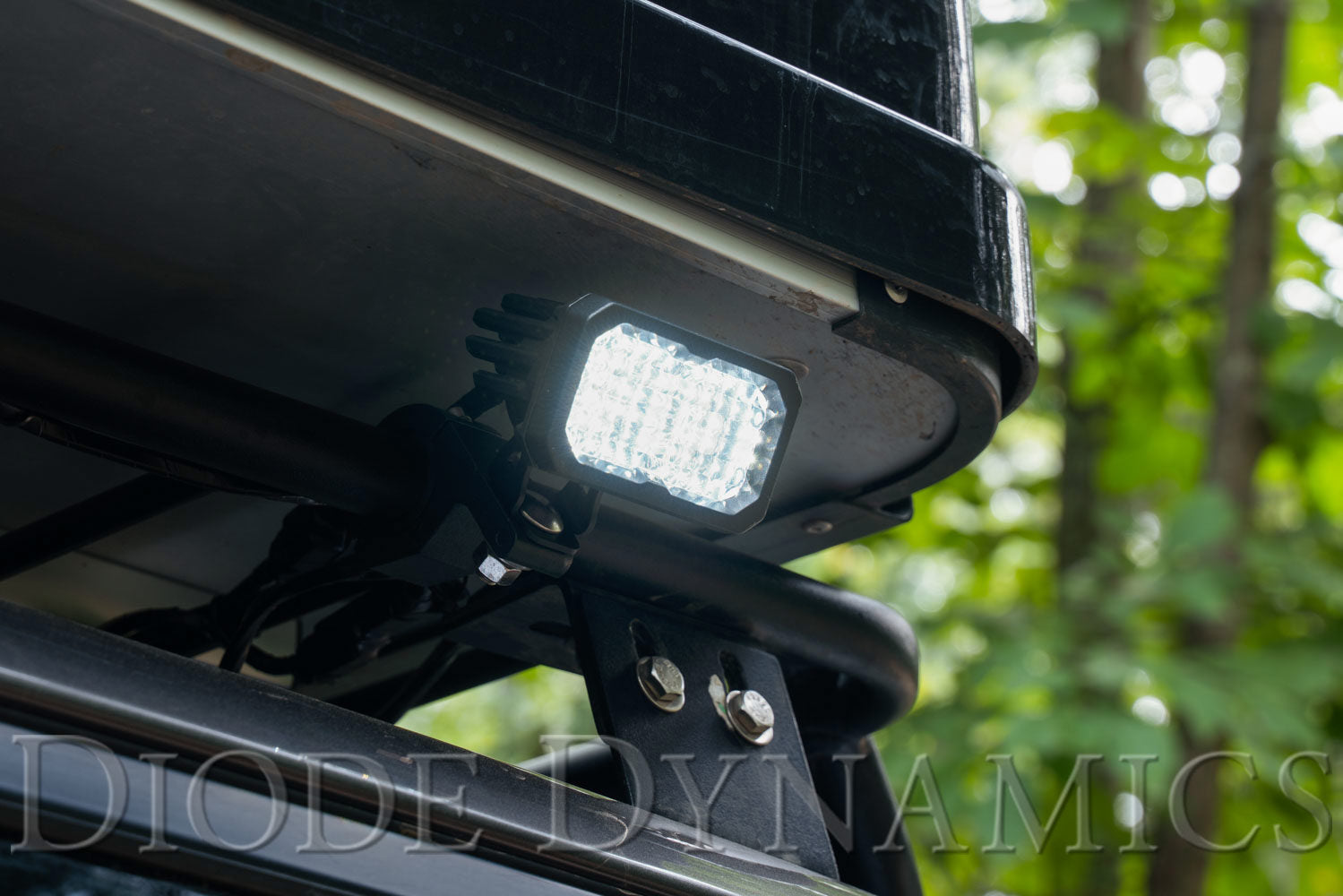

Diode Dynamics DD6399S - Stage Series 2 In LED Pod Sport - White Spot Standard RBL Each

Pod light featuring modern TIR optics for the highest intensity on the market.

Features

  • Modern TIR optics for the highest intensity on the market
  • Distinctive backlight feature
  • Durable powdercoated aluminum construction
  • Integrated Deutsch-style connector
  • Pin-fin heatsink design
  • Designed torture tested and assembled in USA

Overview

Introducing the Stage Series 2in LED Pod! Featuring higher output intensity than any other 2in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the Stage Series 2in collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

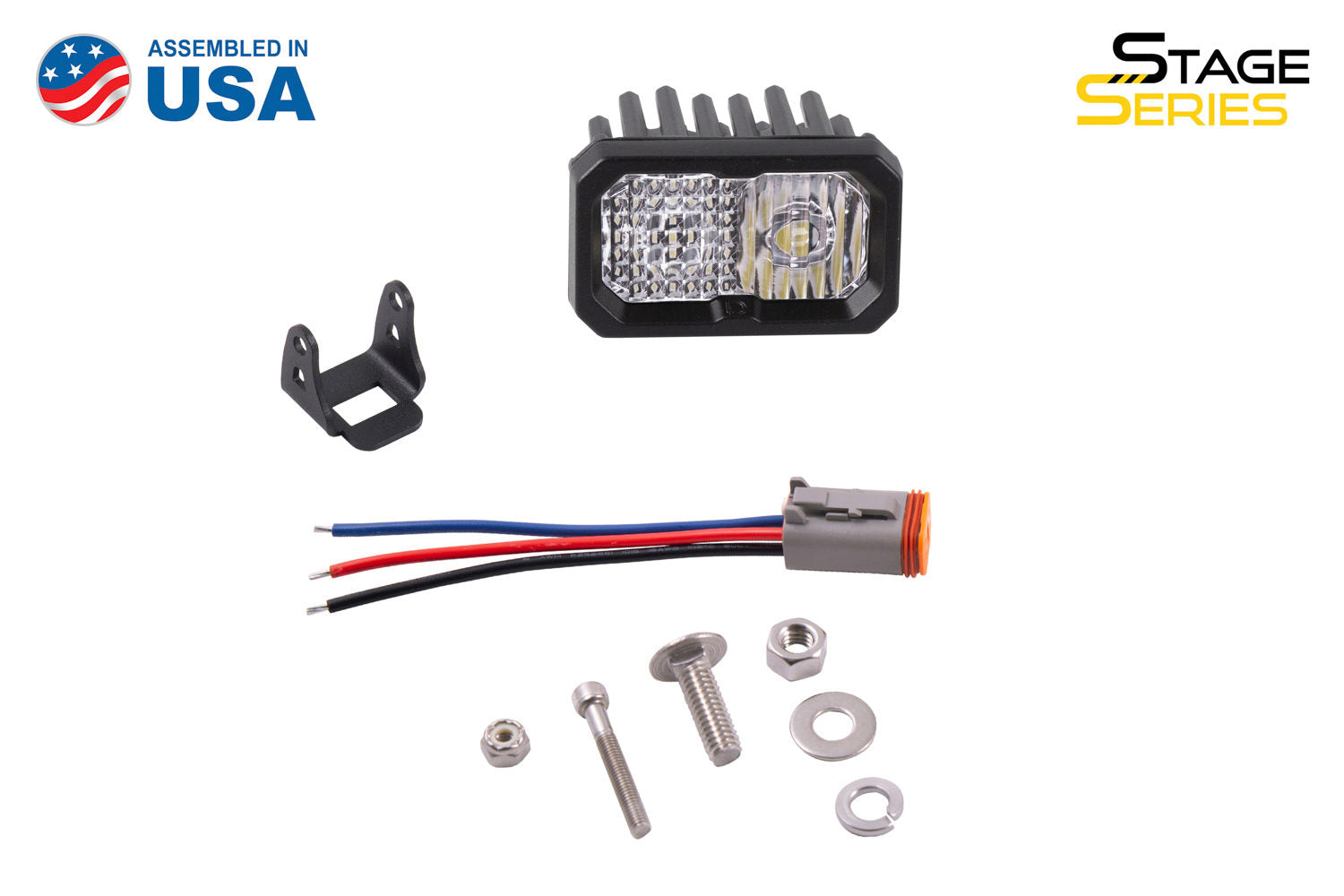

Simple connections. All SSC2 LED pods feature a custom-molded DT type Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads.

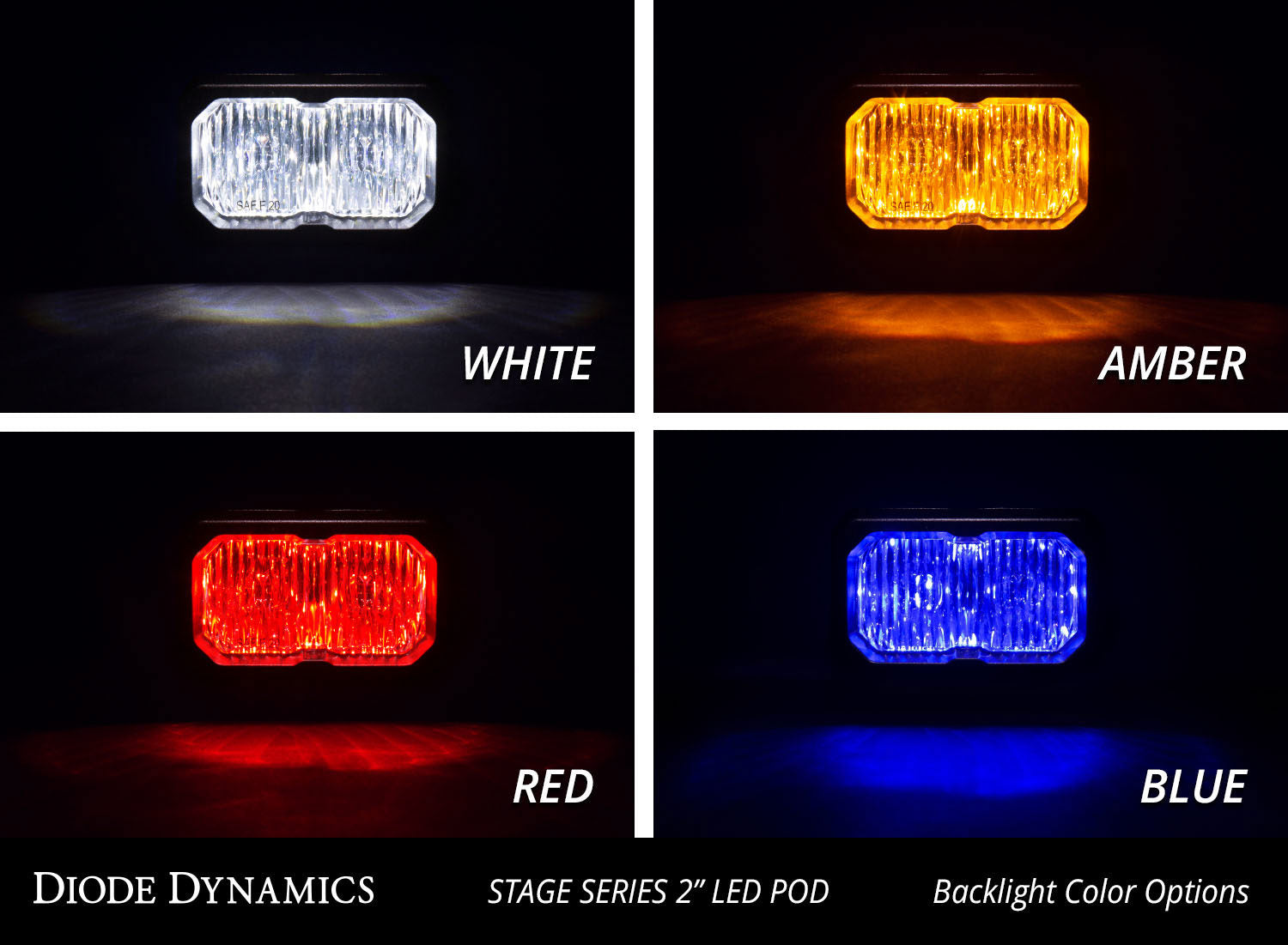

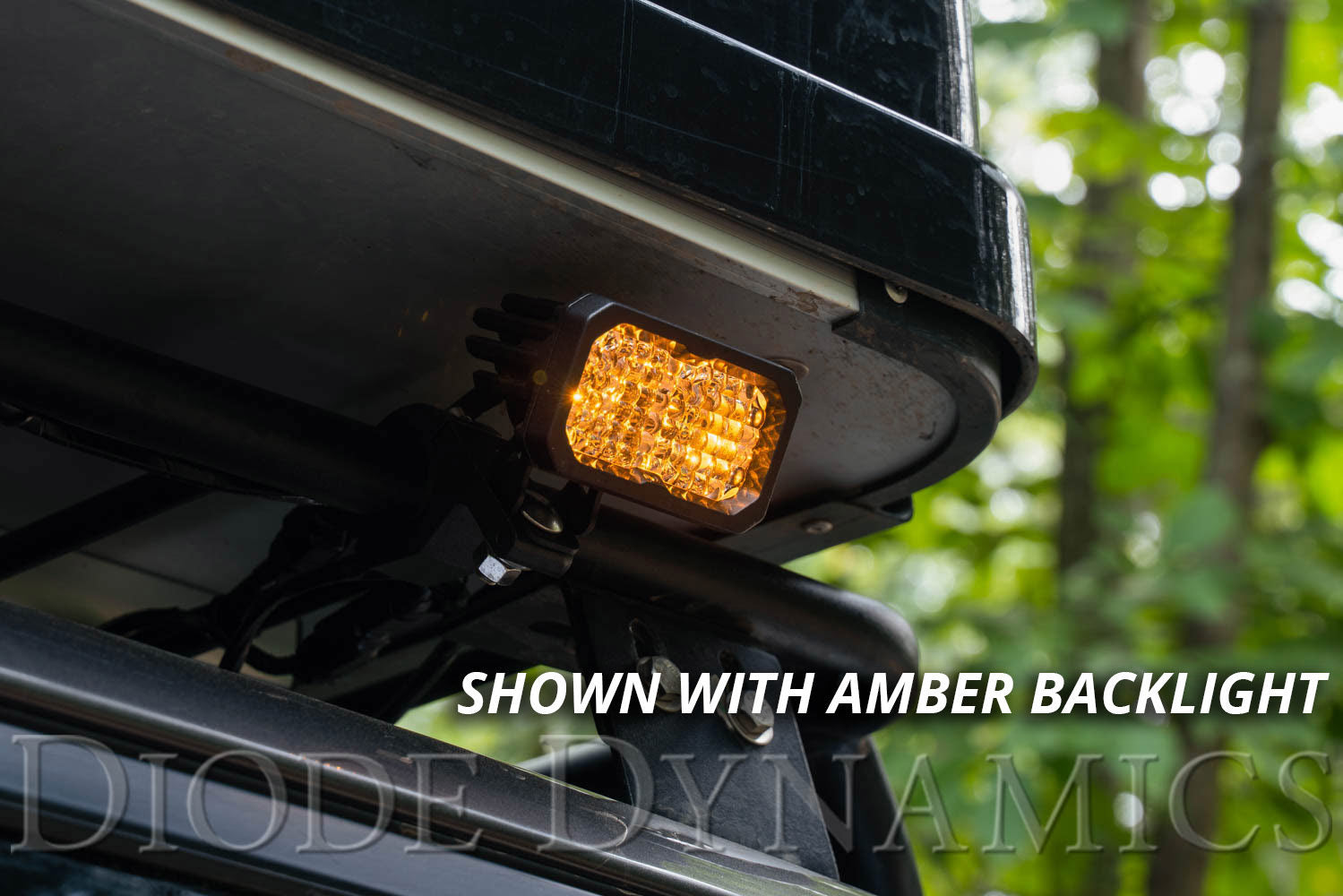

Backlight Functionality The Stage Series 2in LED Pod includes a distinctive backlight feature as well. The SSC2's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

  • Modern TIR optics for the highest intensity on the market
  • High-intensity automotive-type LEDs
  • Pin-fin heatsink design
  • Integrated Deutsch-style connector
  • Durable powdercoated aluminum construction
Add-On: N/A
Base Color: Black
Base Material: Steel

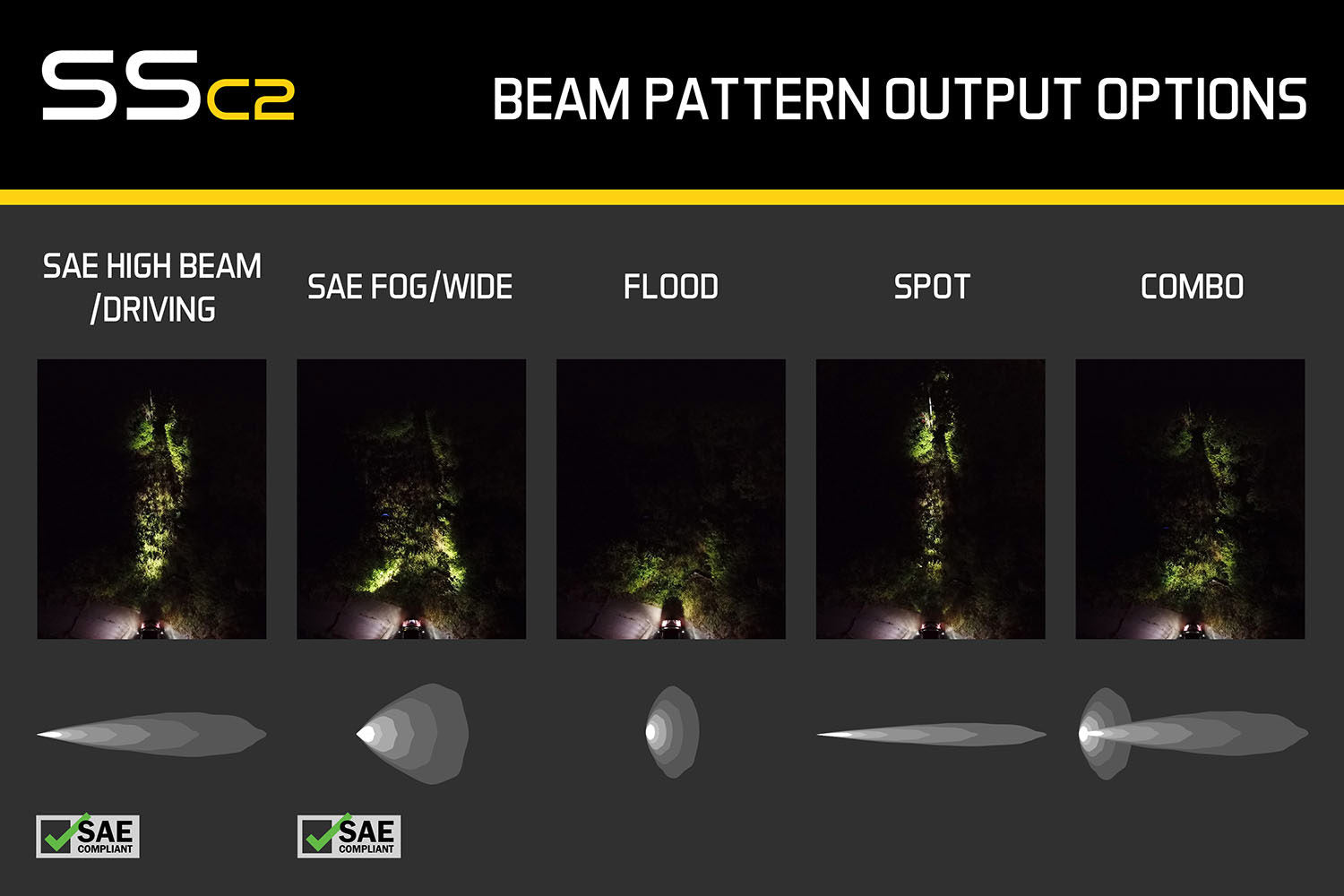

Beam Angle: Spot 6°x6°
Bolt Grade: High
Bolt Thread Type: Medium
Color Temp: 6000K
Drilling Required: No
Grade Type: Performance
Input Power (watts): Main Beam: 7.7 Backlight: 0.7
Intensity (lux): 91 000 cd
Intrusion Rating: IP69K Waterproof High Pressure
Light Beam Pattern: Spot
Measured Output (lumens): 871 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Sheen Level: Matte
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 7.7
